SPECIFICATIONS

Accuracy Class: High Precision

Adjustable output current: 50uA-5mA

Adjustable output voltage: DC 50V-3700V

Battery Included: Yes

Brand Name: Gaqqee

Certification: CE

Charging Port: Type-C

Choice: yes

DIY Supplies: Electrical

Data Record: Yes

Dimensions: 98*70*37mm

Display Type: Digital Only

High-concerned chemical: none

Model Number: IGBT Voltage Transistor Tester

Operating Temperature: Details Page

Origin: Mainland China

Output mode: constant voltage, constant current output

Power Source: AC

Power Supply: Battery

Semi-finishedproduct: No

Voltage display accuracy: 0.3%

Voltage range: Other

Product Features:

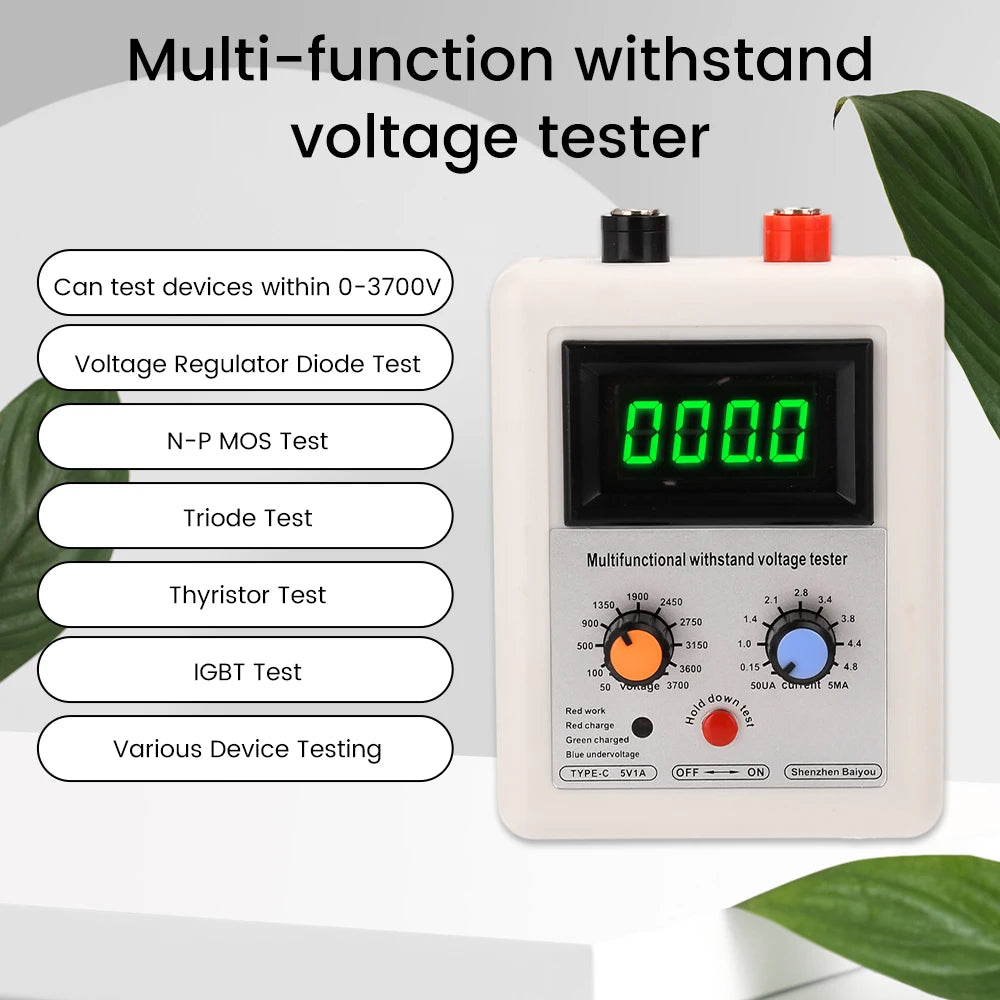

1. Capable of simultaneously testing the insulation voltage of objects. For example, it can measure the insulation voltage between two terminals of switches, pushbuttons, and connectors.

2. It is also convenient for testing insulation between windings, such as in electric motors, power frequency transformers, high-frequency transformers, phase-to-phase insulation, and insulation between the casing and the core.

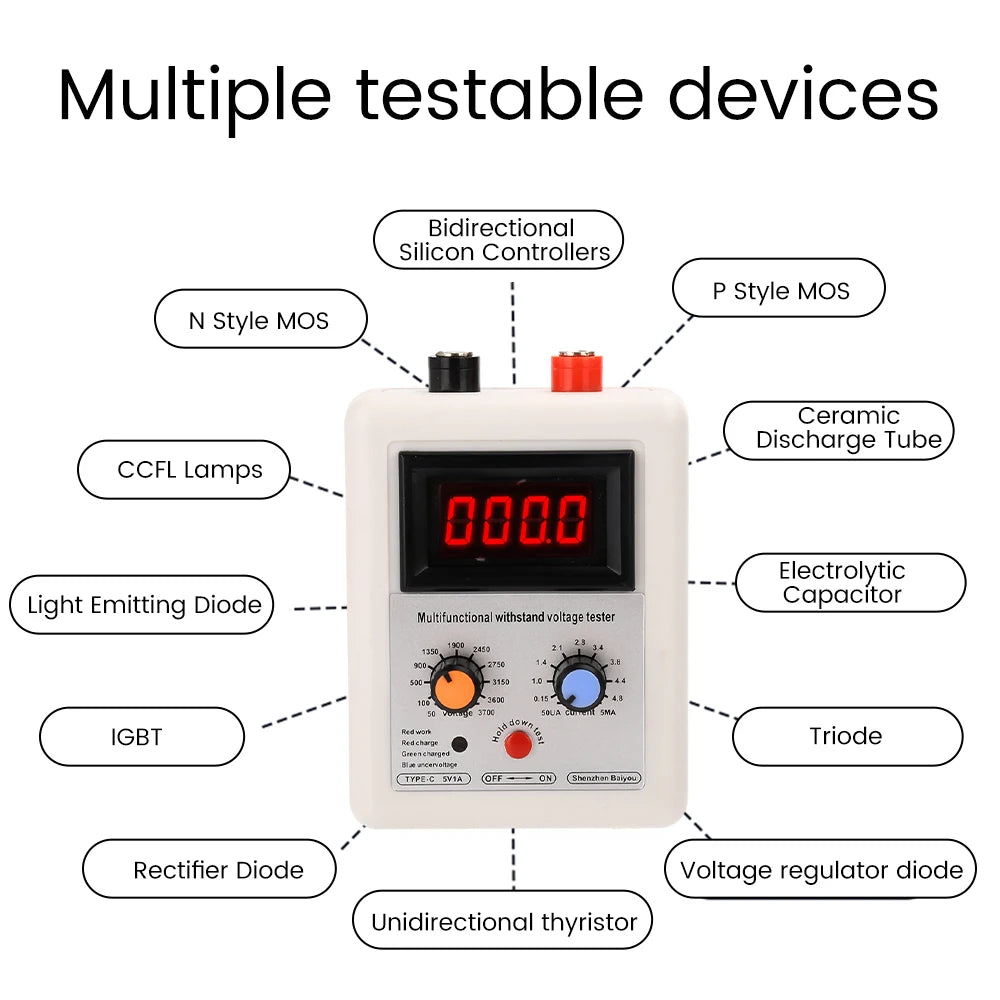

3. Widely applicable for measuring the breakdown voltage of: NIMOS, PMOS, IGBTs, transistors, unidirectional thyristors, zener diodes, light-emitting diodes (LEDs), rectifier bridges, varistors, ceramic gas discharge tubes, and electrolytic capacitors

Product Specifications:

Adjustable Output Voltage: DC 50 V–3,700 V

Voltage Display Accuracy: 0.3%

Output Voltage Error: ±50 V; due to resistance errors, the actual output ranges from 3,650 V to 3,750 V

Adjustable Output Current: 50 µA–5 mA

Output Modes: Constant Voltage, Constant Current

Maximum Power: 5

Voltmeter Resolution: 0.1 V below 100 V, 1 V above 100 V

Battery Capacity: 700 mA lithium battery

Charging Current: 550 mA

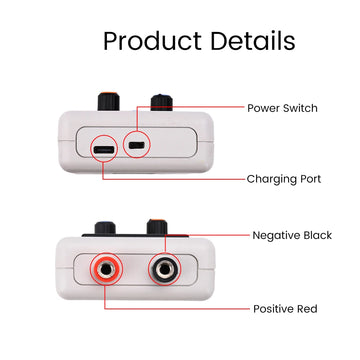

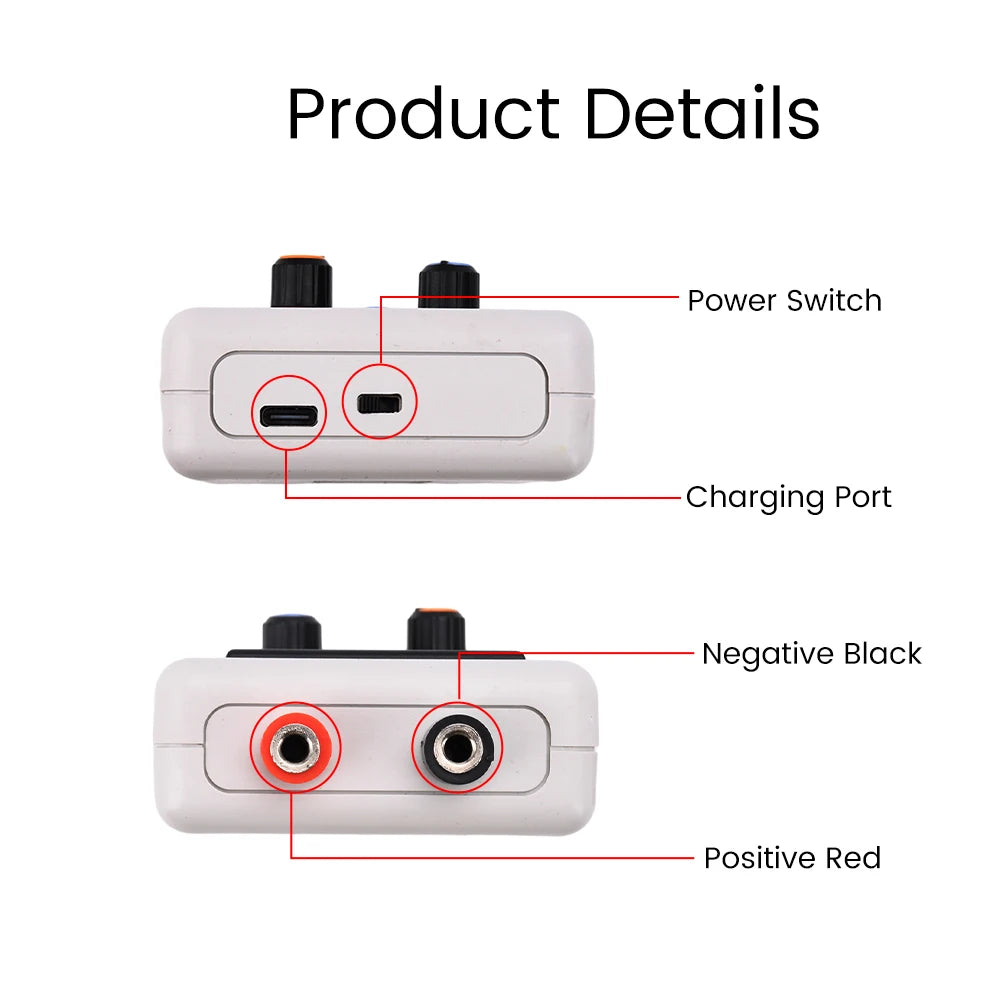

Charging Port: Type-C (red light indicates charging; green light indicates full charge)

Charging Adapter: Can be charged using any 5V 1A smartphone charger

Protection Features: 80°C over-temperature protection (blue light illuminates at high temperatures)

Lithium Battery Under-voltage: Blue light illuminates when battery voltage drops below 3.3V

Unit Dimensions: 98 × 70 × 37 mm

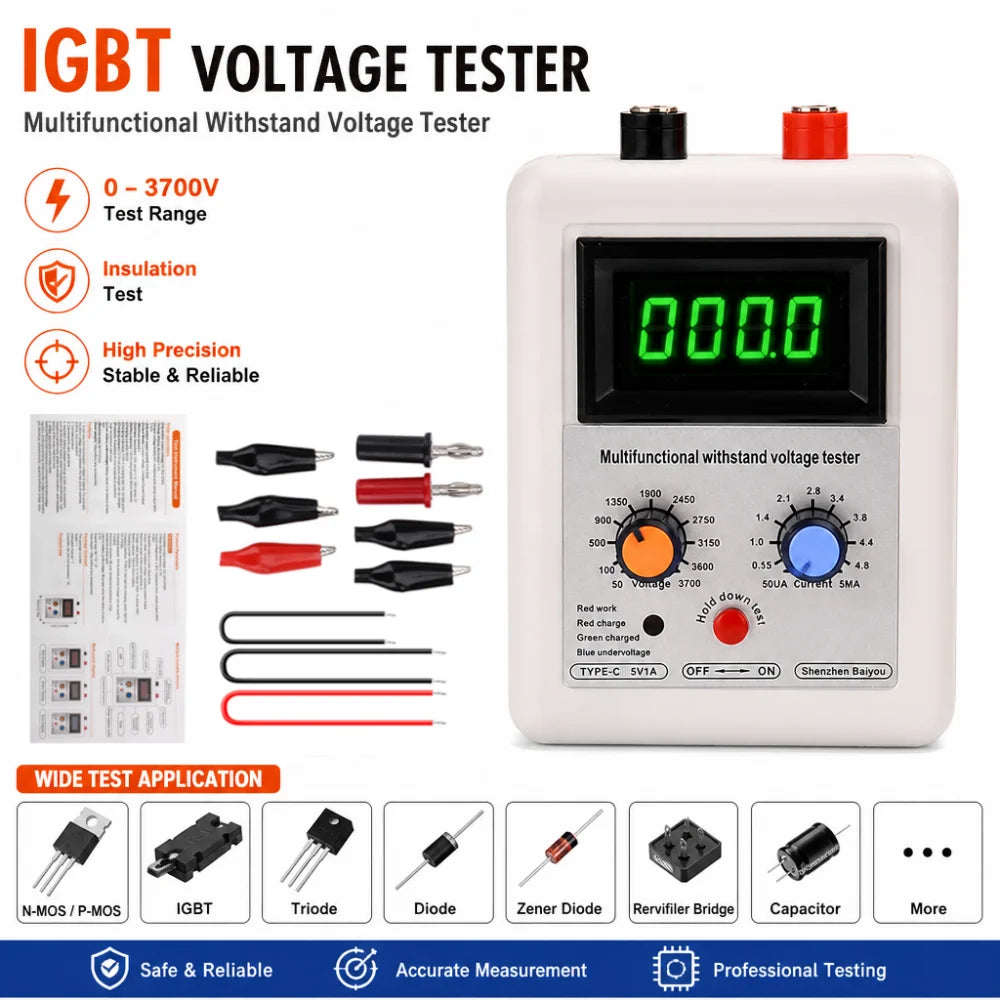

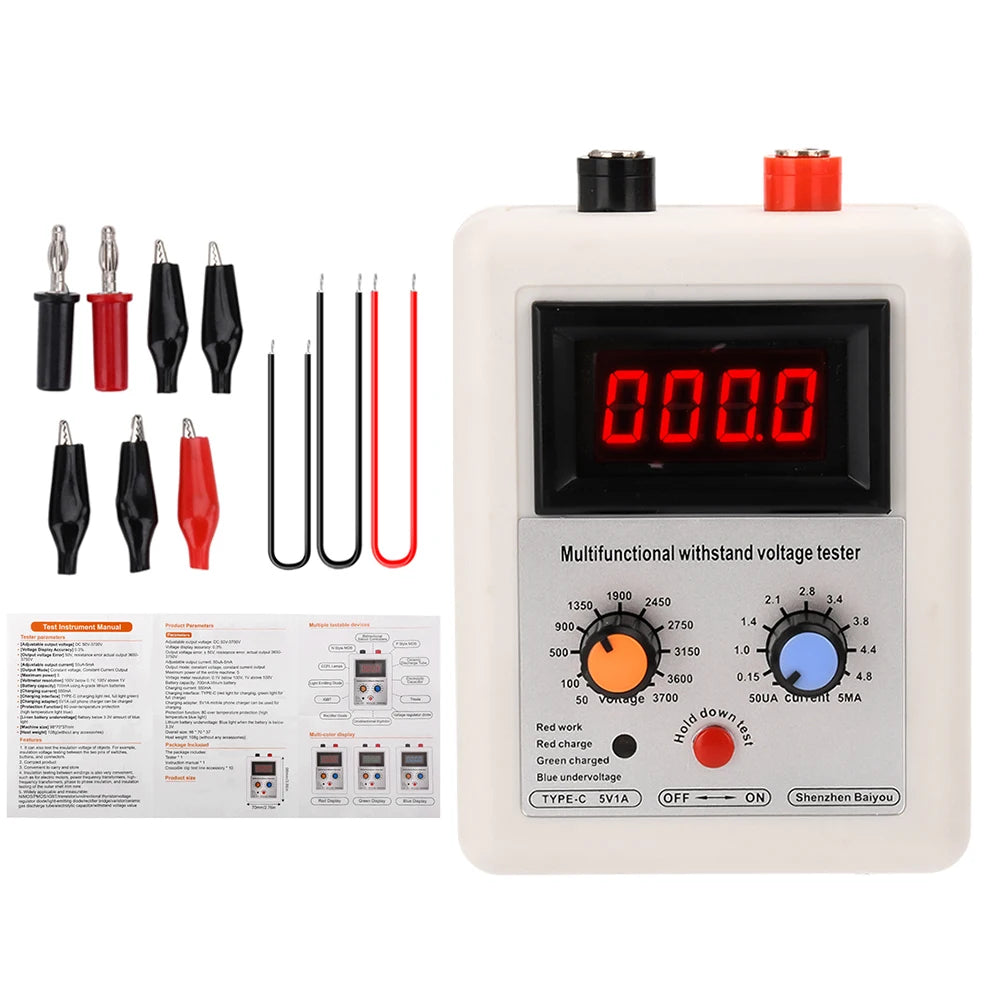

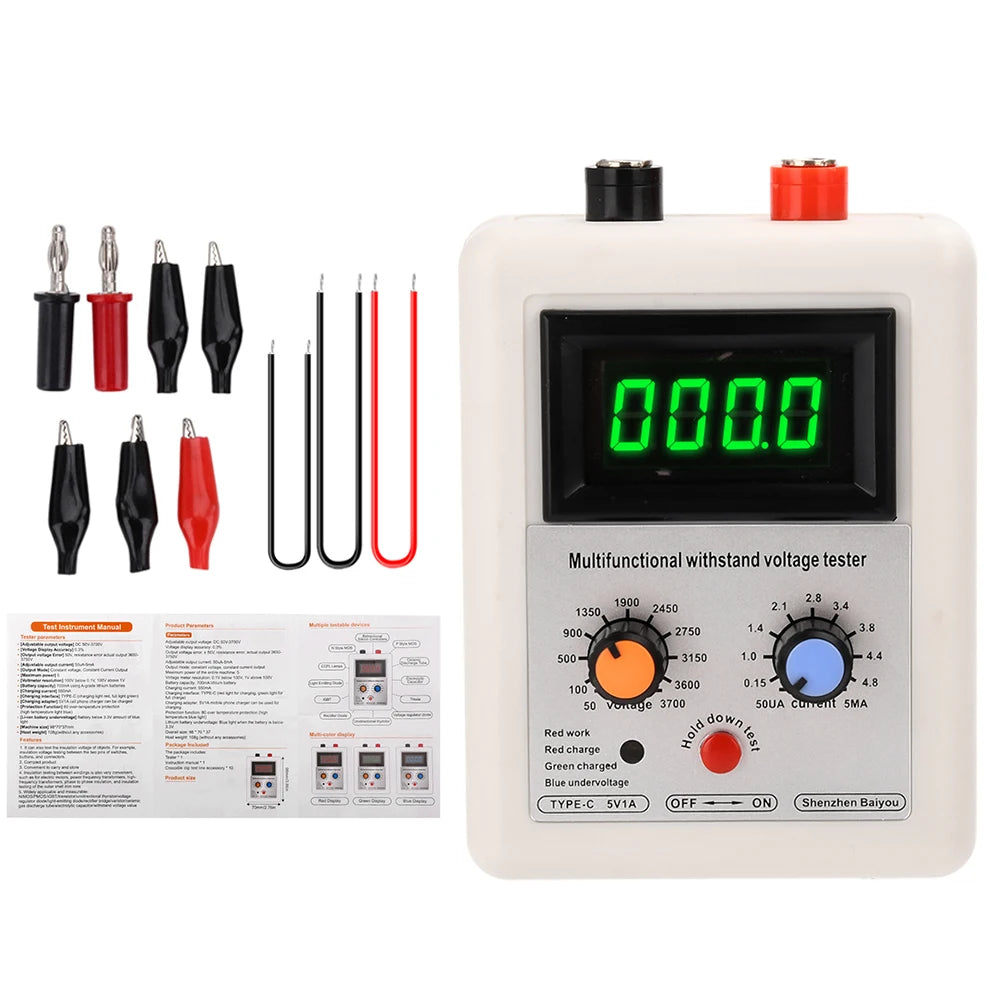

Contents:

Tester × 1

Alligator Clip Test Lead Set × 10

User Manual × 1
