Accessory Type: LCD Screen
Battery Included: no
Brand Name: SHCHV
Choice: yes

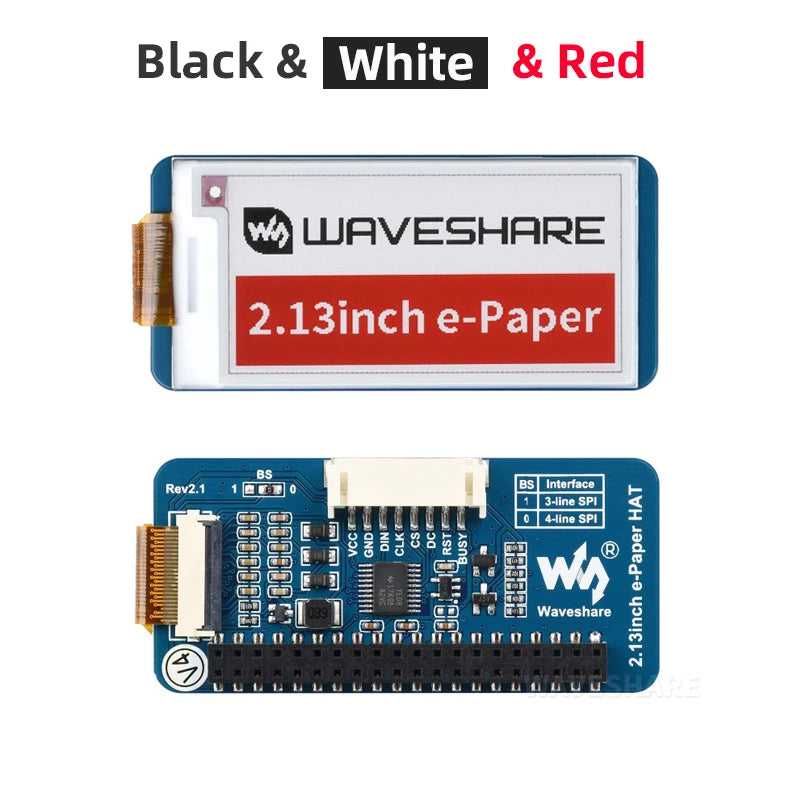

Color: Optional (Black & White) or (Red & Black & White)
Compatible With: Raspberry Pi/Jetson Nano/STM32/for Ardruino
Display size: 23.71mm x 48.55mm
Dot pitch: 0.194 x 0.194
Full refresh time: 2s
Grey level: 2
High-concerned chemical: none
Interface: SPI
Origin: Mainland China
Outline dimension: 65mm x 30.2mm
Refresh power: 26.4mW(typ.)
Resolution: 250x122
Size: 2.13 Inch
Standby power: <0.017mW
Typical Application Fields: Consumer Electronics
Viewing angle: >170°
semi_Choice: yes

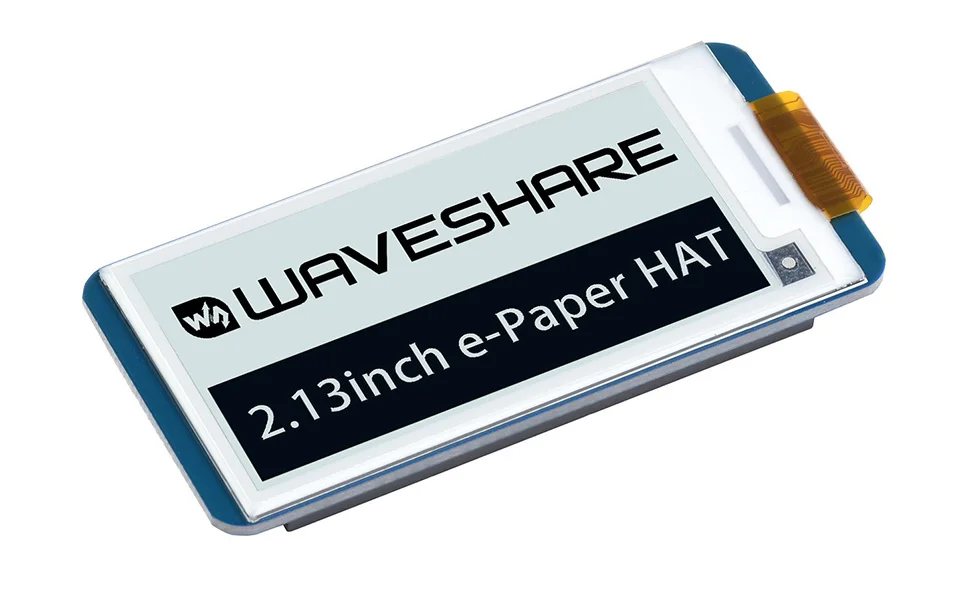

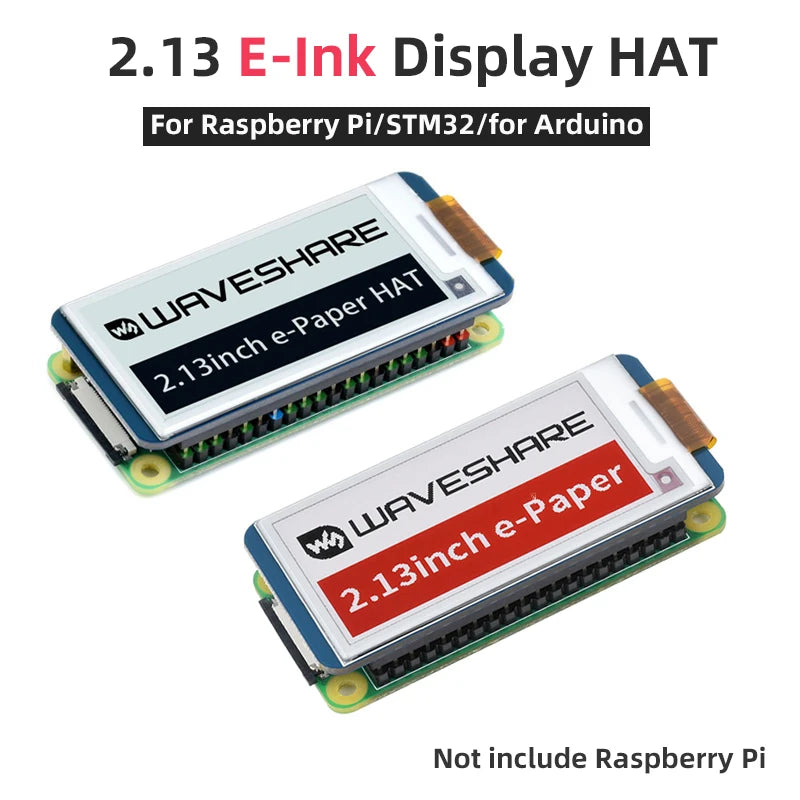

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

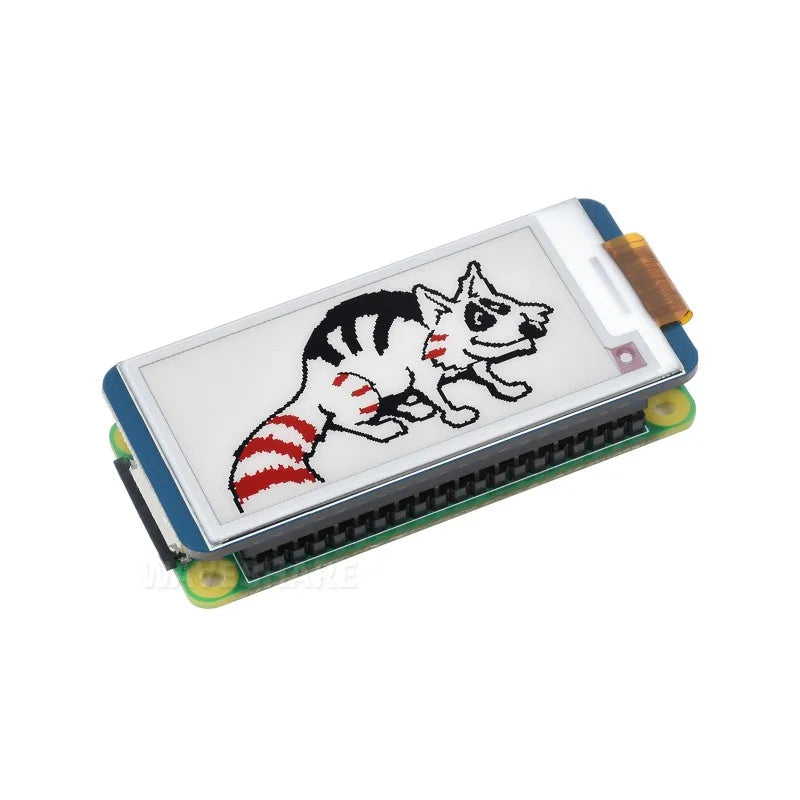

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.

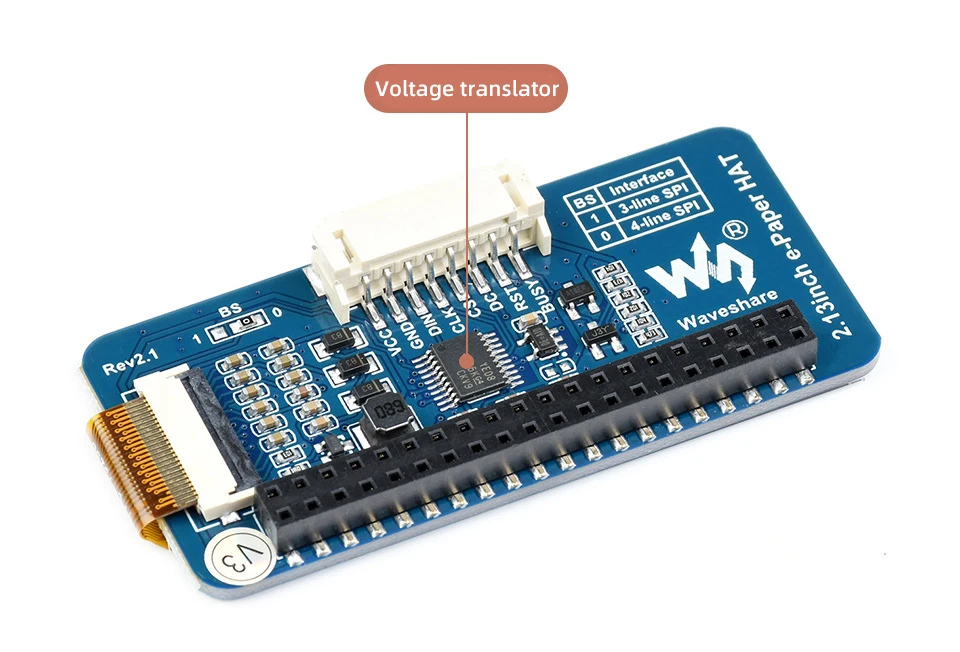

Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Operating voltage: 3.3V/5V
Interface: SPI
Outline dimension: 65mm × 30.2mm
Display size: 23.71mm × 48.55mm
Dot pitch: 0.194 × 0.194
Resolution: 250 × 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

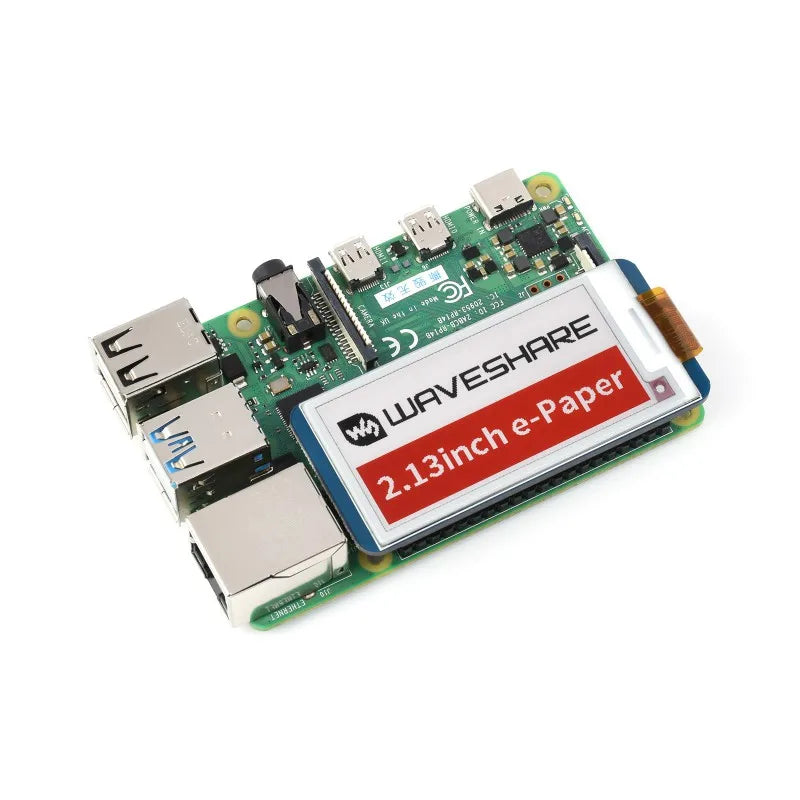

Sandard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series Boards, Jetson Nano
for reference only, the Raspberry Pi Zero is NOT included.
For Use With Controller Boards Like STM32/Arduino

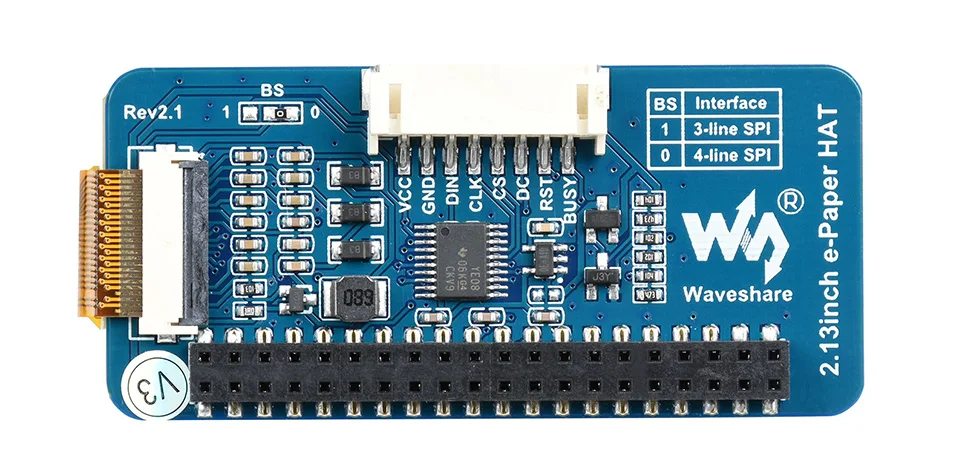

SYMBOL |
DESCRIPTION |
VCC |
3.3V/5V |
GND |
Ground |
NC |
NC |
DIN |
SPI MOSI pin |
CLK |
SPI SCK pin |
CS |
SPI chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
External reset, low active |
BUSY |
Busy status output, high active |
Compatible With 3.3V / 5V MCUs
Dimensions
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Development Resources
Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT

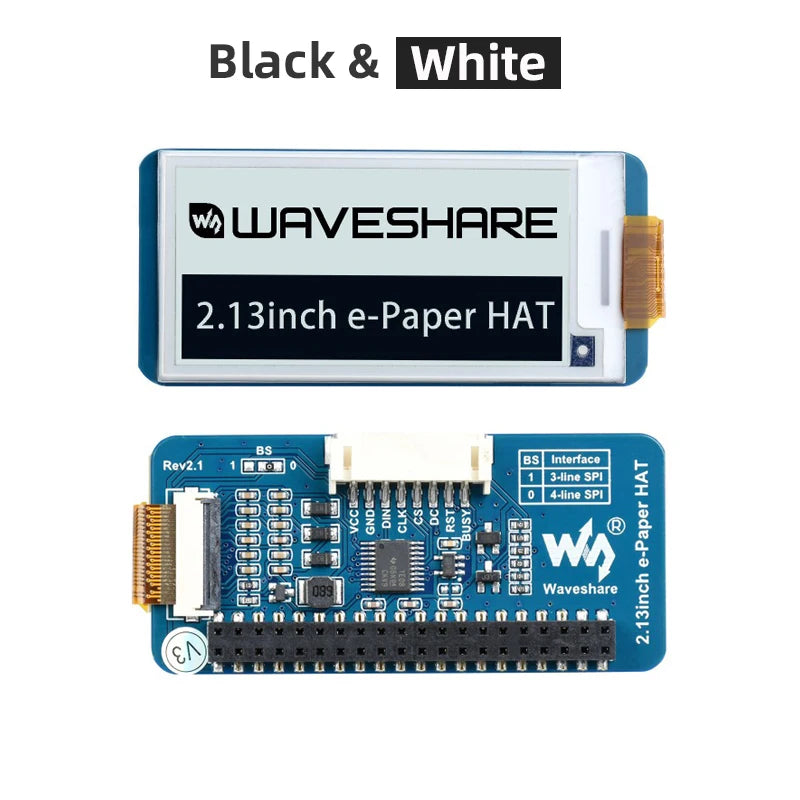

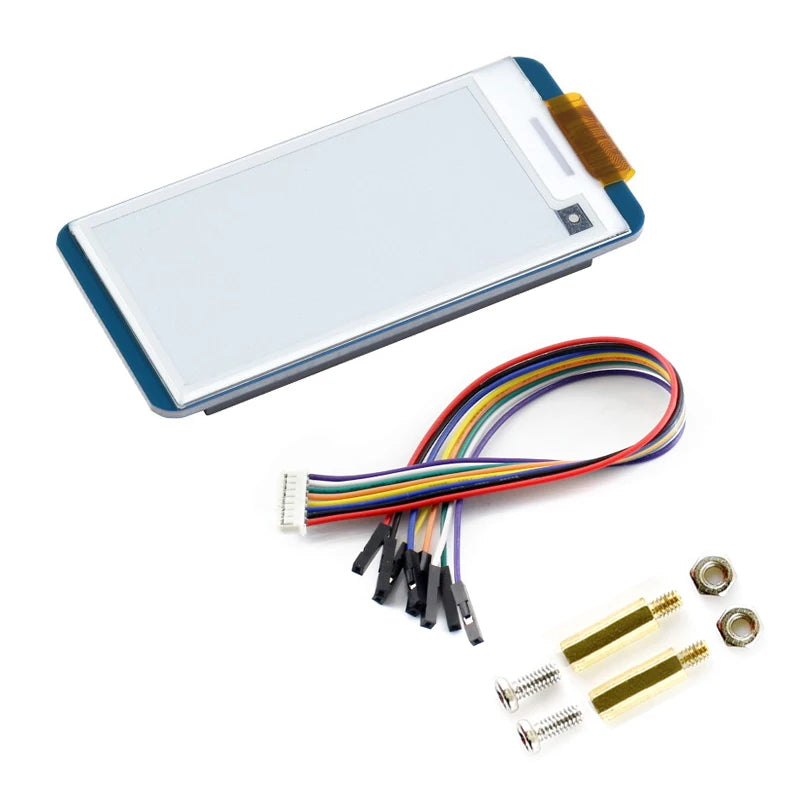

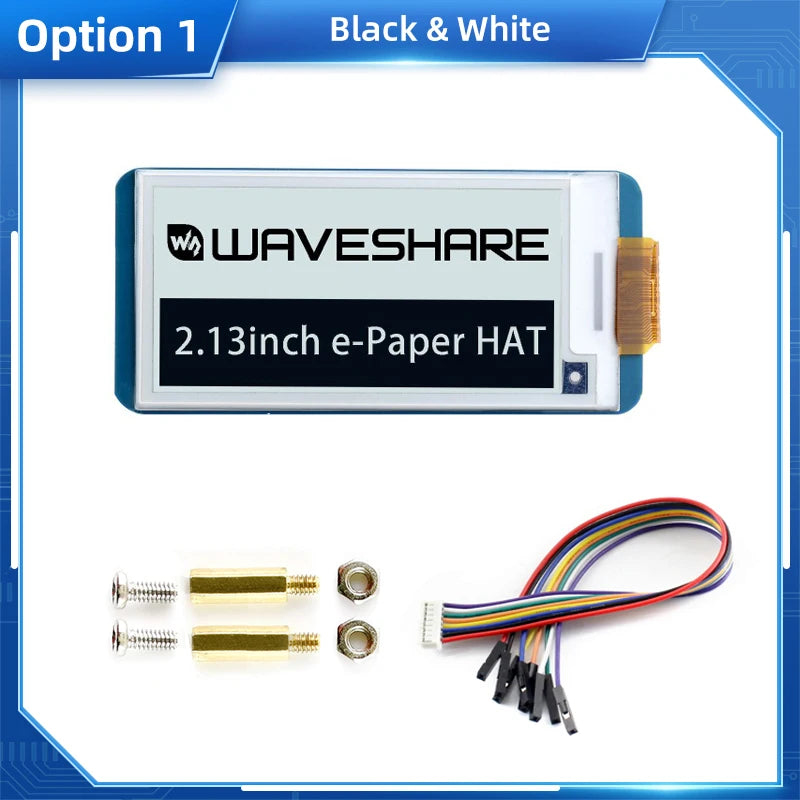

1 x 2.13inch e-Paper HAT (Black&White)
1 x RPi screws pack (2pcs)
1 x PH2.0 20cm 8Pin
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
Features At A Glance
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Arduino/STM32, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
OPERATING VOLTAGE |
3.3V/5V |
DISPLAY COLOR |
Red/Black/White |
INTERFACE |
3-wire SPI, 4-wire SPI |
GREY SCALE |
2 |
OUTLINE DIMENSIONS |
65 × 30.2mm |
FULL REFRESH TIME |
15s |
DISPLAY SIZE |
48.55 × 23.71mm |
REFRESH POWER |
26.4mW(typ.) |
DOT PITCH |
0.229 × 0.228mm |
STANDBY CURRENT |
<0.01uA (almost none) |
RESOLUTION |
250 × 122pixels |
VIEWING ANGLE |
>170° |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Compatible With Raspberry Pi Series Boards, Jetson Nano
For Use With Controller Boards Like STM32/Arduino
VCC |
Power (3.3V / 5V input) |
GND |
Ground |
DIN |
SPI MOSI pin |
CLK |
SPI SCK pin |
CS |
SPI chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
External reset, low active |
BUSY |
Busy status output pin |
Compatible With 3.3V / 5V MCUs
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Resources & Services
Packing List

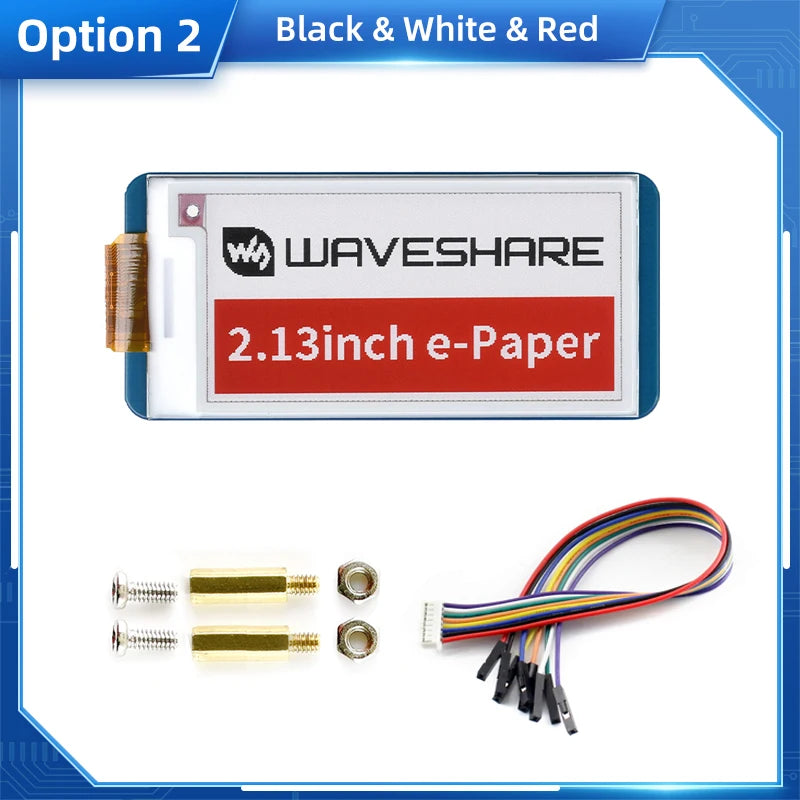

1 x 2.13inch e-Paper HAT (Red&Black&White)
1 x RPi screws pack (2pcs)
1 x PH2.0 20cm 8Pin
| Vendor: | Apsilon |
|---|---|

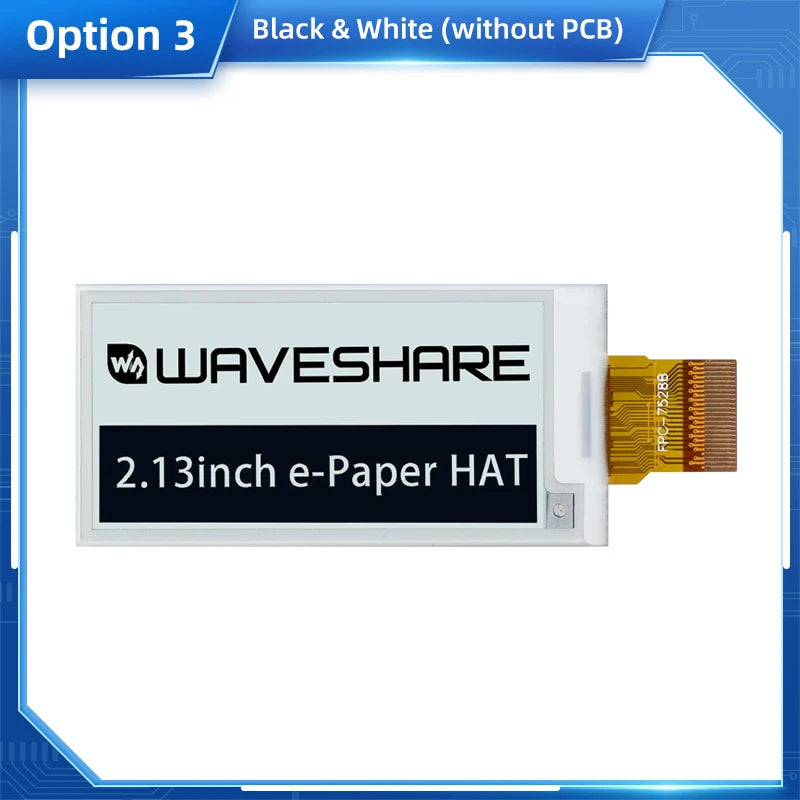

| Color: | Red Black White, 3 Without PCB, Black White |
| SKU: | 14:29#Red Black White |
| Weight: | 50 g |
