SPECIFICATIONS

Battery Included: no

Brand Name: Gaqqee

Certification: CE,RoHS

Choice: yes

DIY Supplies: Electrical

High-concerned chemical: none

Model Number: 18650 battery capacity internal resistance tester

Origin: Mainland China

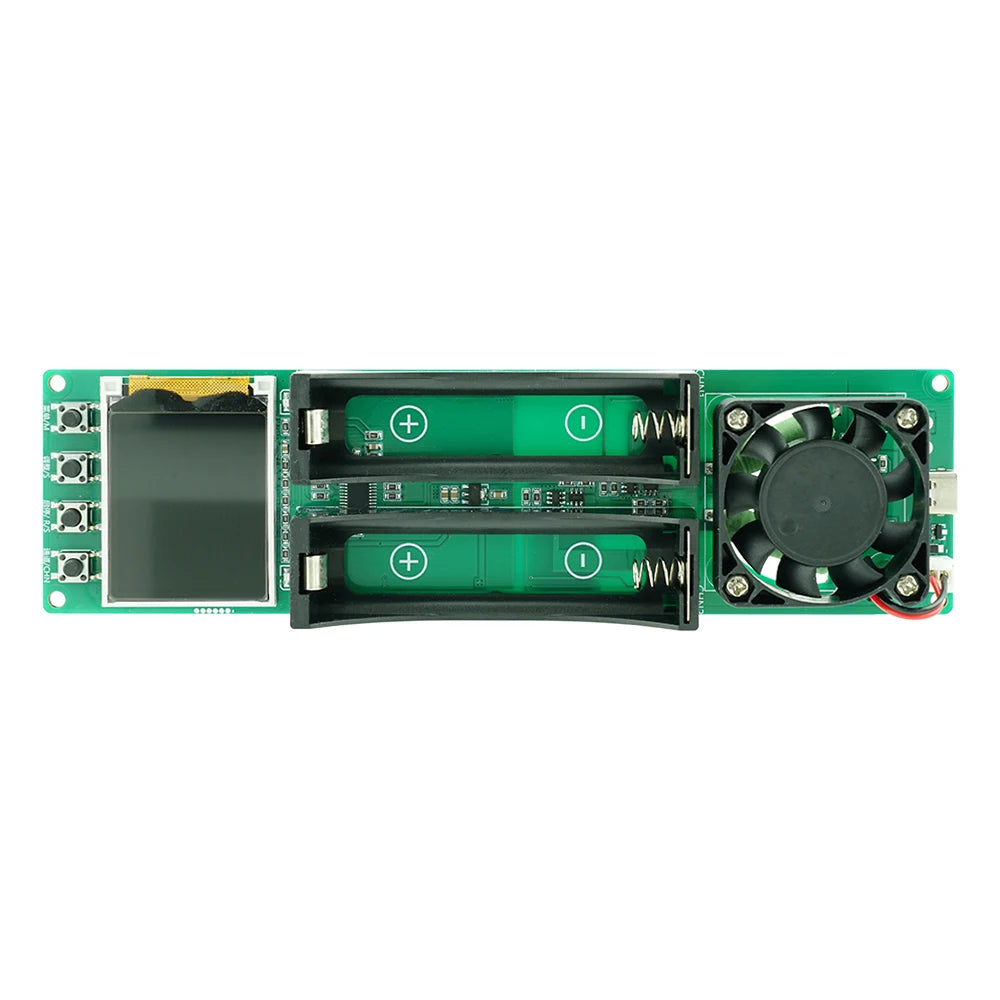

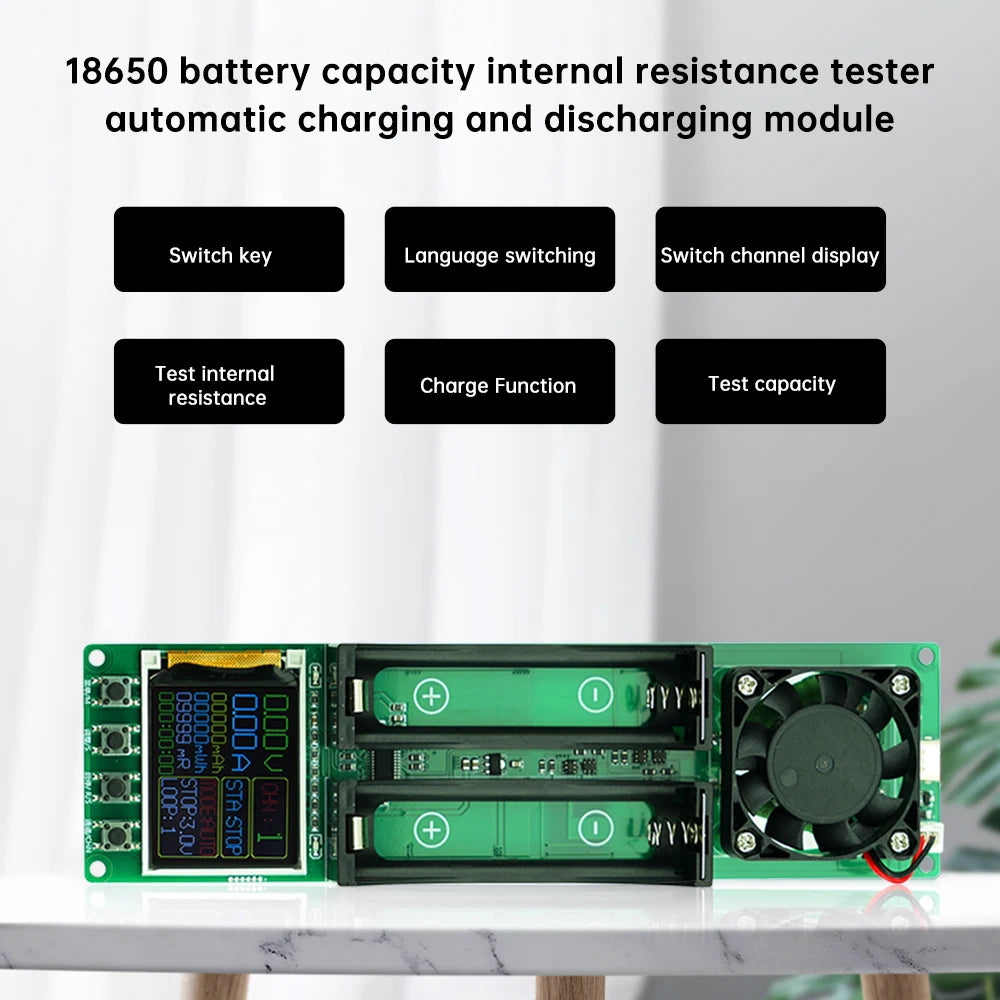

2 Channel

Product Features:

The product supports 2-channel capacity and internal resistance measurement

Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode.

Each channel is independent of each other, can be set up separately, independent operation, no interference with each other.

Strong battery clip, 18650 battery holder using compact battery holder, applicable to flat battery measurement

Dedicated battery charging chip control, maximum about 1A charging, full voltage 4.2V, charging current less than 0.1A stop charging

Product parameters:

Working voltage: DC5V

Applicable batteries: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full of batteries are applicable

Power supply interface: Type-C power supply interface (power supply and power cord provided)

System language: English

Number of tests: 2-way charging and discharging measurement

Internal Resistance Measurement: Support, using DC two-wire method to test internal resistance

Charging function: support, full of automatic cut-off charging (does not support lithium iron phosphate battery charging)

Discharge function: Support, automatically stop when conditions are reached, discharge current is not adjustable.

Automatic charging and discharging: Support, the battery is fully charged at the end of automatic mode.

Cycle charging and discharging: Support, 1~9 cycles adjustable (only automatic mode support)

Status Alert: Support

Heat dissipation mode: fan active heat dissipation

Overheating protection: Support

Stop Discharge Voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, adjustable in 11 steps.

Discharge current: maximum about 1A non-constant current, non-adjustable, does not support independent transformation

Charging voltage: special battery charging chip control, maximum about 1A charging, full voltage 4.2V, charging current less than 0.1A stop charging.

Power failure save: only save the setup parameters, do not save the measurement data

Product size: 190 * 50 * 27 (mm)

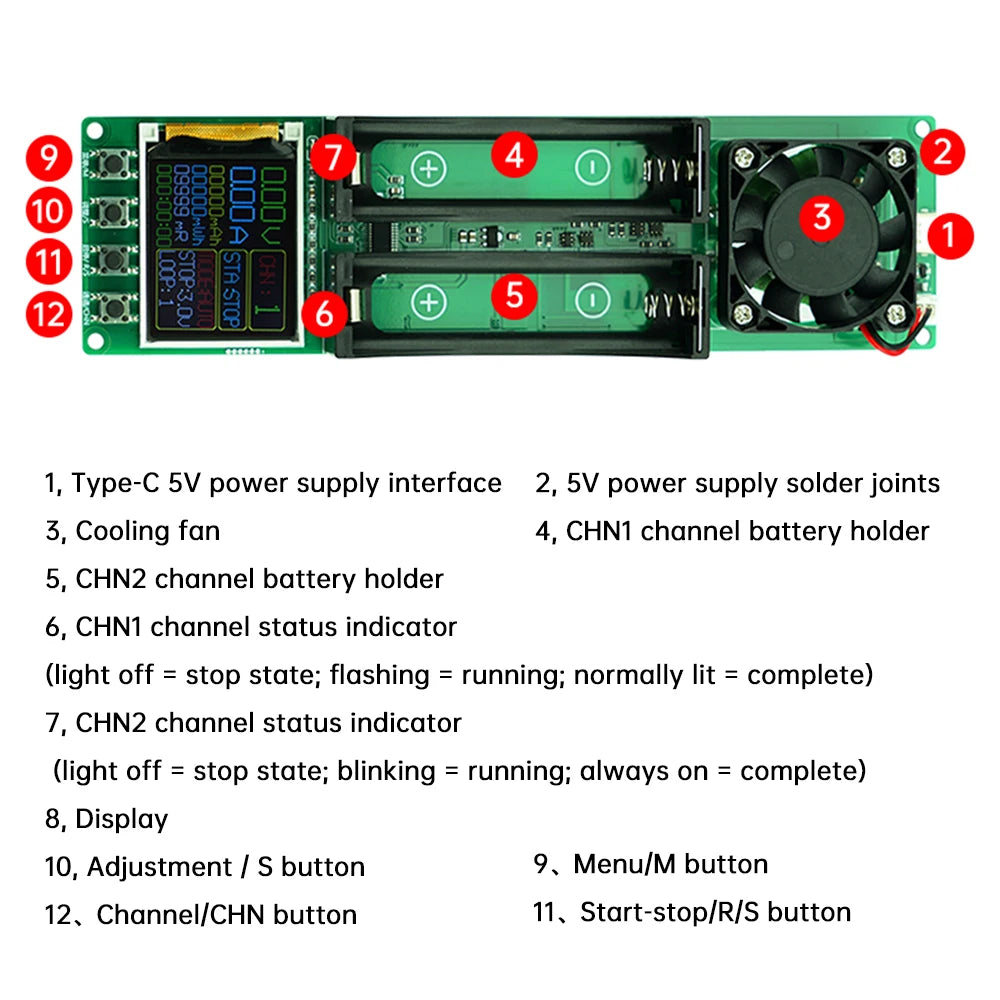

Instructions for use:

1. Product switch on and off:

The product has no switch key, power on automatically switch on, power failure shutdown

2.Language switching:

Live in the ‘menu / M’ key and then power on, the screen displays the main interface, release the ‘menu / M’ key, wait 10 seconds after the shutdown and restart can be

3. Switch channel display:

Each channel is independent of each other, do not interfere with each other, click the ‘channel / CHN’ button to switch the display channel, and you can view the parameters of each channel, and set the parameters of each channel.

4.Test internal resistance:

Install the battery, power on, wait for 10 seconds, display the battery voltage and internal resistance test results, this product uses DC two-wire method to test internal resistance, subject to the limitations of the test principle, may not be able to identify the battery, the internal resistance is always displayed in the case of 9999.

When the battery is not installed, the test circuit is disconnected, which means the resistance value is infinite, and the internal resistance shows 9999 mOhm.

5. Charging function (not suitable for lithium iron phosphate battery charging):

Install the battery in the battery holder, adjust the mode to ‘charging’ mode, click ‘start/stop/R/S’ to run the programme; after charging, the status indication is complete; the charging process records the capacity, energy, charging time, charging metering capacity is for reference only, please take the discharging capacity as the standard

6. Test capacity:

Capacity test needs to be discharged, need to wait for time, capacity test is carried out through the resistance discharge, discharge resistance heat generated by high temperature, do not touch directly with your hands to avoid burns outside. Capacity test results are only the capacity measured during the test phase when the battery starts discharging and stops triggering.

7. Battery capacity splitting and running cycle:

Separate the capacity to run the cycle is a process of charging, discharging and recharging, the use of the stopping voltage can not be lower than 2.8V, otherwise it can not be charged, the programme can not run properly

8.Data zeroing:

Switch off the machine, switch mode, capacity, energy, time data is automatically cleared to zero

Shipping list:

18650 battery capacity internal resistance tester *1 (battery not included)

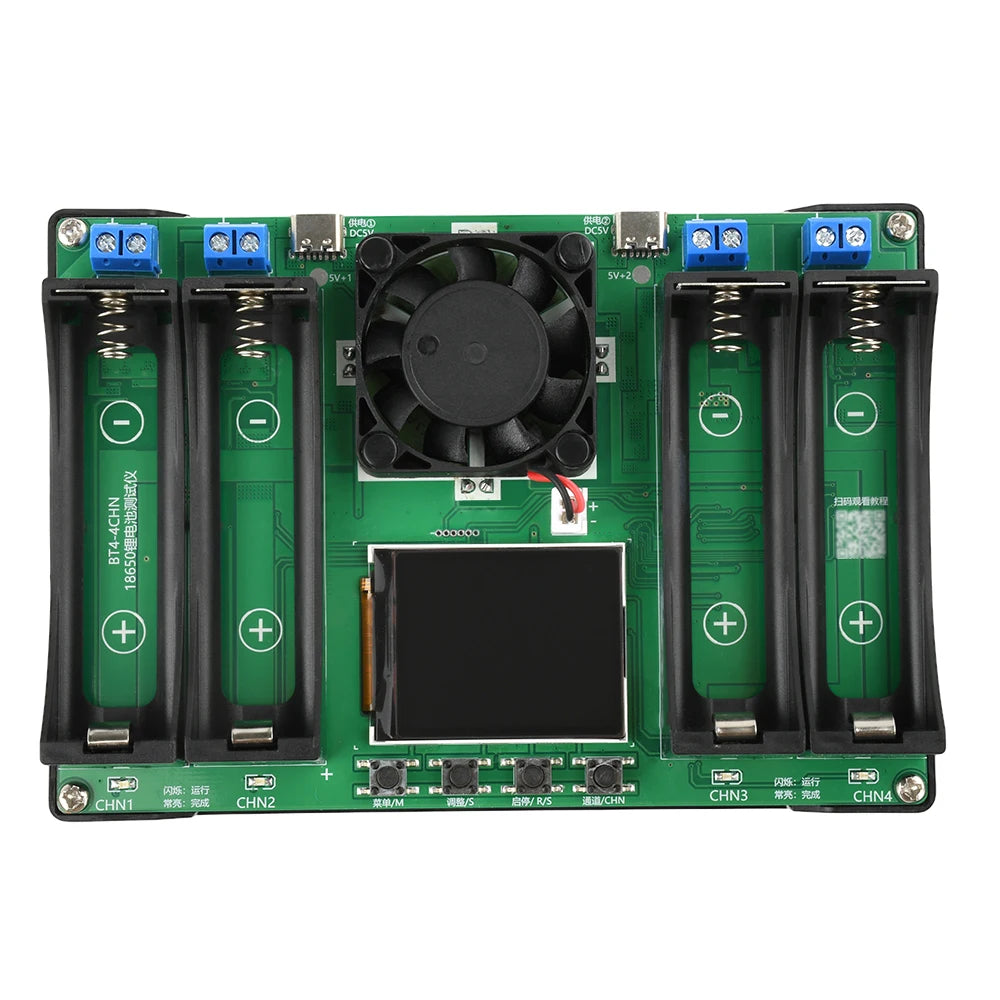

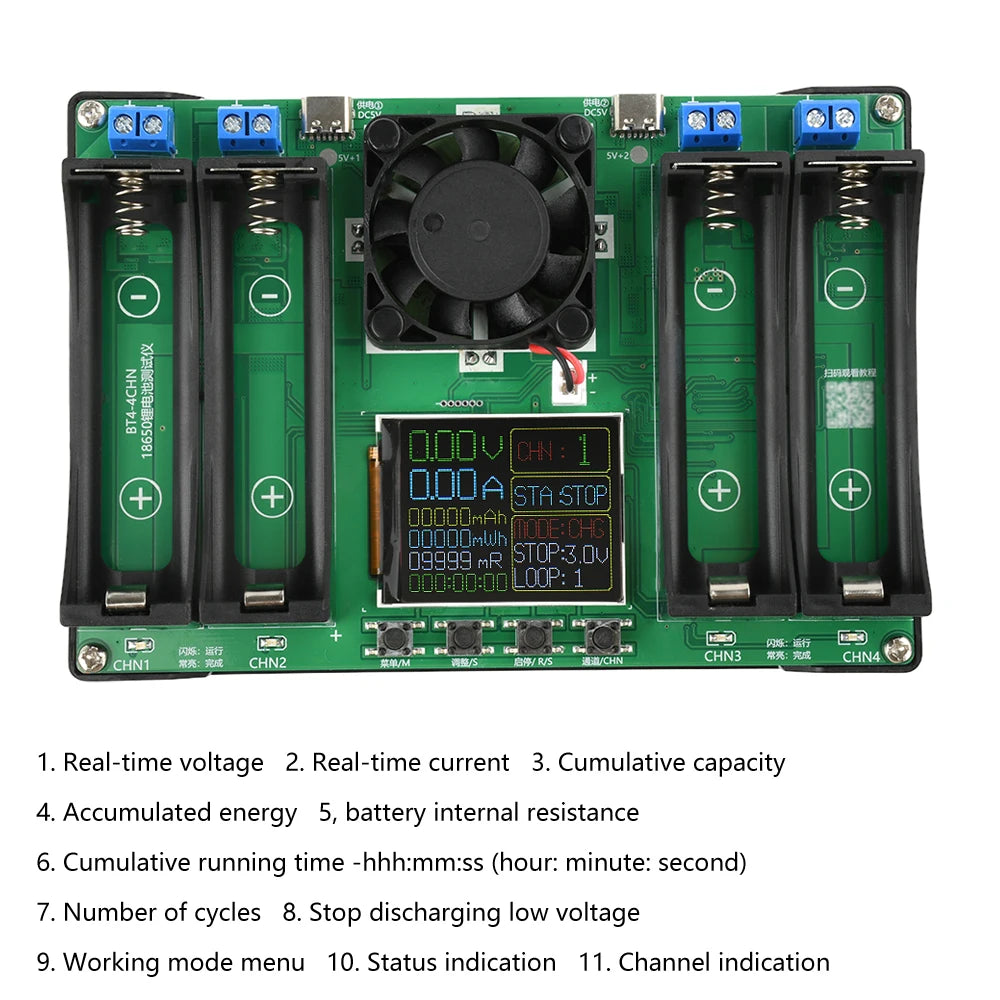

4 Channel

Product Features:

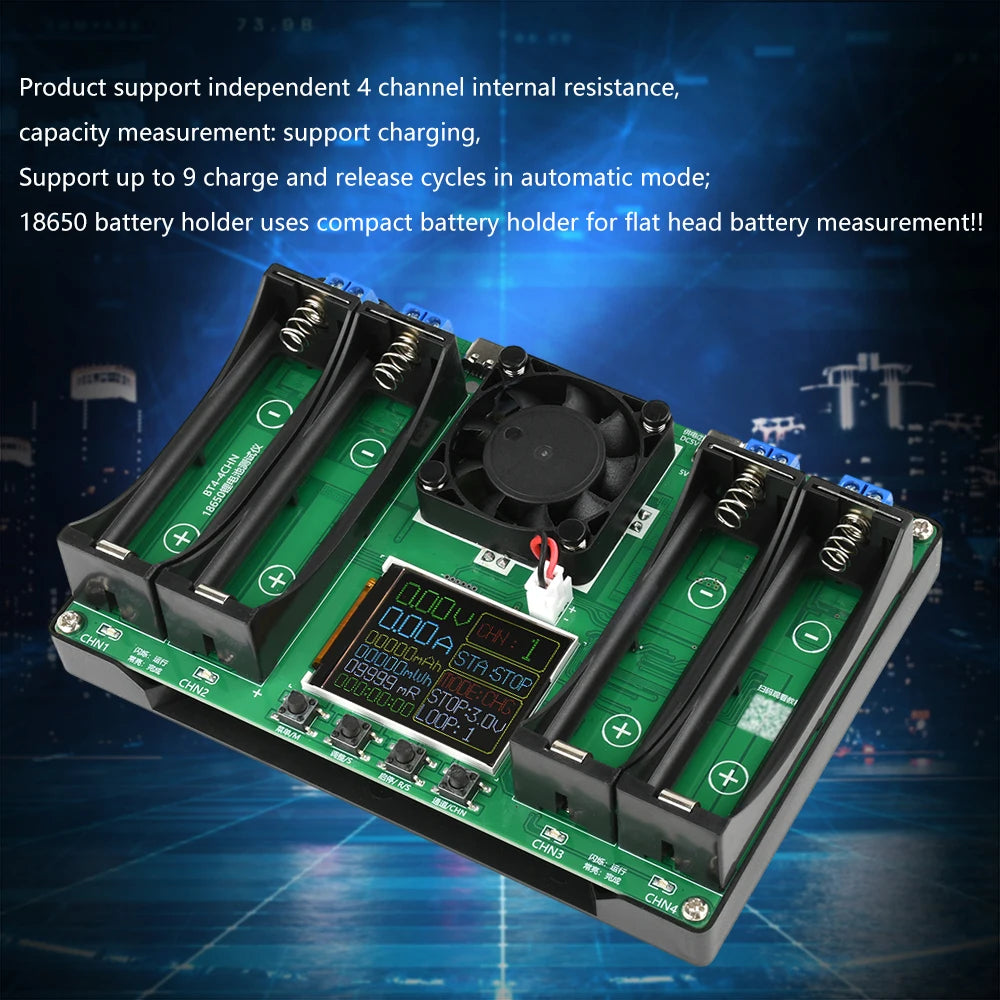

The product supports four-channel capacity and internal resistance measurement

Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode.

Each channel is independent of each other, set up separately, run independently without interference.

18650 battery holder uses compact battery holder, suitable for flat battery measurement.

Fan-activated heat dissipation Supports overheating protection

Adopt DC two-wire method to test internal resistance

Note: Does not support lithium iron phosphate battery charging.

Basic parameters:

Working voltage: DC5V

Applicable batteries: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full of batteries are applicable

Power supply interface: two-way Type-C power supply interface (power supply and power cord provided)

System language: English

Number of tests: 4-way charging and discharging measurement

Internal Resistance Measurement: Support, using DC two-wire method to test internal resistance.

Charging function: support, full automatic cut off charging (does not support lithium iron phosphate battery charging)

Discharge function: Support, automatic stop when conditions are reached, discharge current is not adjustable.

Automatic charging and discharging: Support, the battery is fully charged at the end of automatic mode.

Cycle charging and discharging: Support, 1~9 cycles adjustable (only automatic mode support)

Status Alert: Support

Heat dissipation mode: fan active heat dissipation

Overheating protection: Support

Stop Discharge Voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, adjustable in 11 steps.

Discharge current: maximum about 1A current, not adjustable, does not support independent transformation

Charging voltage: special battery charging chip control, maximum about 1A charging, full voltage 4.2V

Power failure saving: only save the setting parameters, do not save the measurement data

Product size: 150*103*36 (mm)

Data link: https://www.banber.com/gather/6374be9b2ee0e200077ec155

Shipping List:

18650 battery capacity internal resistance tester *1 (battery not included)

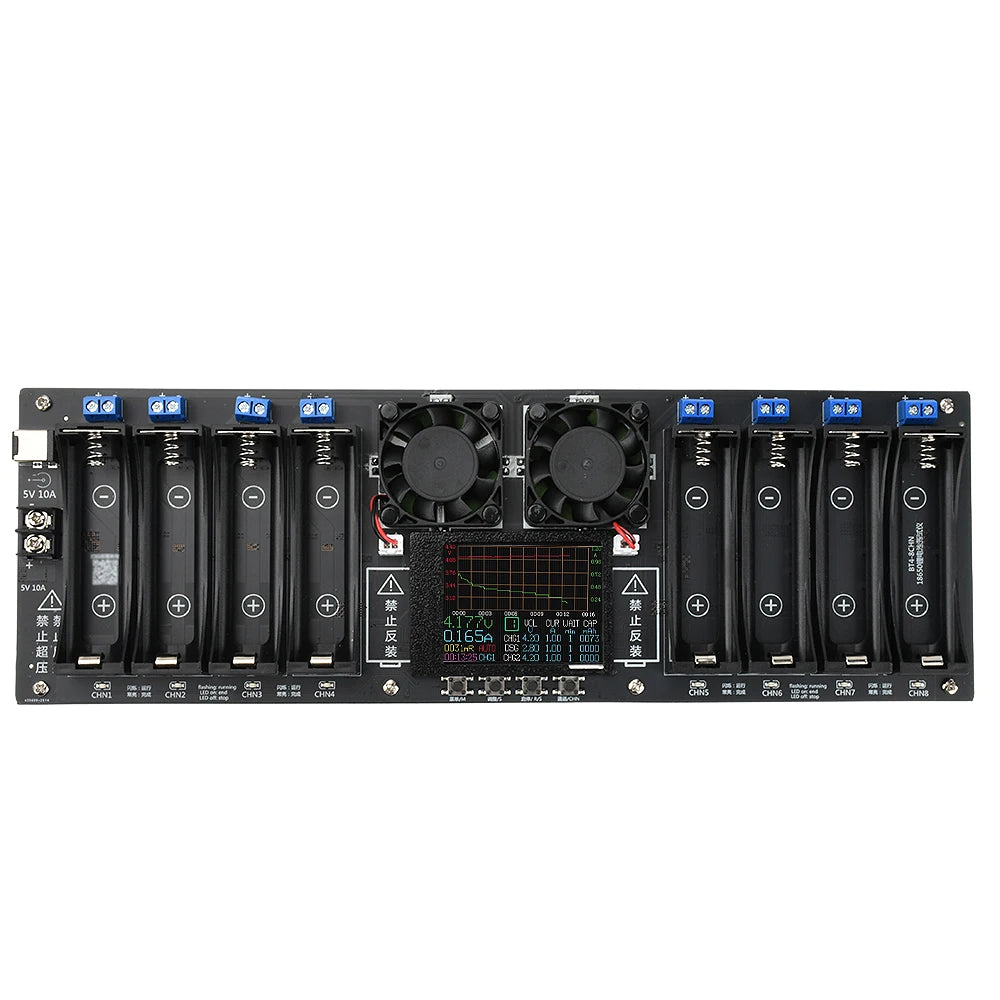

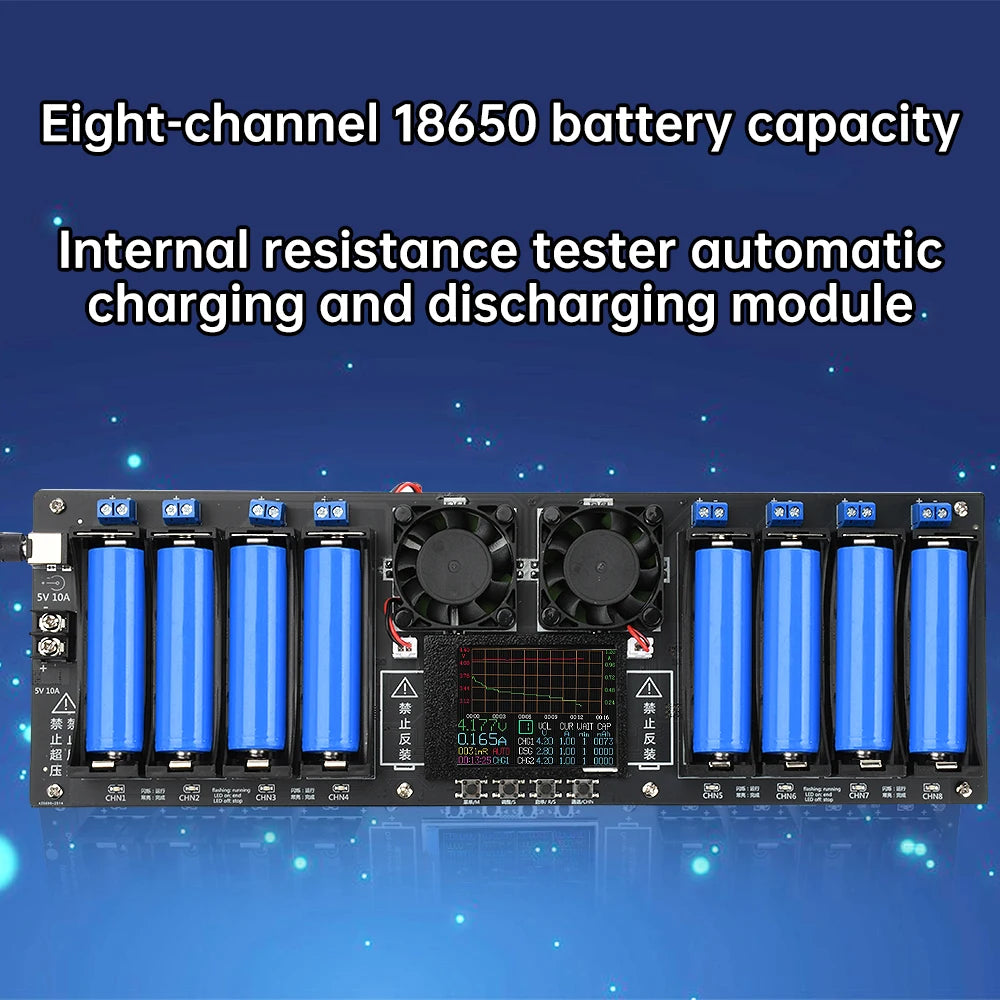

8 Channel

Product features:

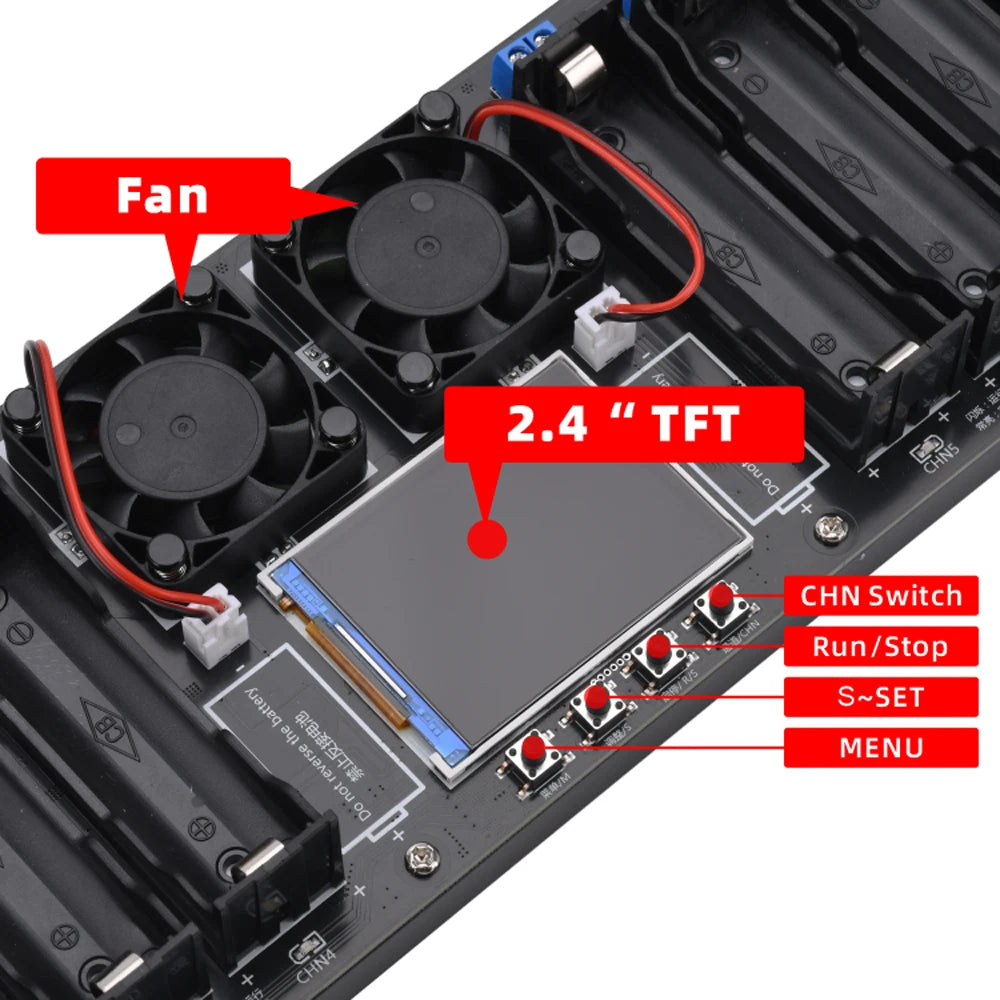

1. The blue segment at the upper end is the external discharge end, and the lower end has the working indicator of the corresponding channel

2. Voltage and current curve display, real-time voltage and current, DC two-wire method to measure internal resistance.

3. The U-shaped groove on the back is combined with the PCB board, and the fan actively dissipates heat to form a heat dissipation channel.

4.18650 battery holder using compact battery holder, suitable for flat battery measurement.

5. Channel type: 8 independent channels, each unrelated, independent operation, do not affect each other

6. Channel synchronization: support 8 channels to set up synchronization, you can also set up the parameters of each channel individually.

7. Cycle charging and discharging: only support charging-discharging-charging 1 cycle under automatic mode, not support multiple cycles.

Product parameters:

Operating voltage: DC5V 10A (standard bare metal, without power supply), overpressure must burn the machine

Power supply interface: ①: DC5.5 high-current interface, ②: 5V positive and negative welding points

Reverse power supply protection: reverse protection, prohibit reverse power supply.

①Automatic mode: program start ~ 4.2V charging stop voltage for charging, charging current is less than the stop current for 30 seconds, the first charging is completed ~ quiescent (not charging and not discharging) ~ set to discharge according to the stop voltage, the load voltage is lower than the stop voltage for 10 seconds, discharging is completed ~ quiescent (not charging and not discharging) ~ to recharge the voltage as the stop voltage for charging, the recharge voltage is set to 4.2V, charging current is less than the stop current for 30 seconds, the program is set to recharge for 30 seconds, the recharge voltage is set to recharge. When the recharge voltage is set to 4.2V, the charging current is less than the stopping current for 30 seconds, the program ends (when the recharge voltage is not equal to 4.2V, the battery voltage reaches the recharge voltage, the program ends), the recharging is completed, the program ends, and the operation of the automatic mode is completed.

② charging mode: program start ~ charging voltage is set to 4.2V, charging current is less than the stop current for 30 seconds, the end of the program (charging voltage is not equal to 4.2V, the battery voltage reaches the charging voltage, the end of the program) ~ charging is complete.

③ Discharge mode: program start ~ load voltage lower than the stop voltage 10 seconds, program end ~ discharge complete

④Activation Mode: For professional use only, testers are not allowed to leave the field during use! Forced charging with charging stop voltage, it will not stop automatically, need to end manually.

Charging current: each channel is independent of the maximum of about 1A, and charging current is not adjustable.

Charging stop voltage: 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V total of 6 adjustable steps

Recharge stop voltage: 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V adjustable in 13 steps.

End current: 100mA, 200mA, 300mA adjustable.

Discharge current: each channel independently maximum about 1A non-constant current discharge, and discharge current is not adjustable.

Discharge stop voltage: 2.0V, 2.1V, 2.2V, 2.3V, 2.4V, 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, a total of 17 adjustable.

Standby time: 1~5 minutes adjustable.

Status preview: support 8-channel status 1-screen preview.

Single-channel detail display: support

Single-channel charging and discharging curve display: support

Internal resistance detection: DC two-wire method, only for the same batch of sorting analogies

Heat dissipation mode: active heat dissipation

Overheating protection: Support

Cyclic charging and discharging: only support charging-discharging-charging 1 cycle in automatic mode, do not support multiple cycles.

External test: support, can be discharged through the 2P terminal external, a single channel single time only and can only support the battery holder or external test in one, can not be used at the same time to test the battery holder and external battery.

Battery reverse connection protection: reverse connection protection, prohibit reverse connection of the battery.

Product size: 37×110×310mm

Package size: 60×112×335mm

Data link: https://mp.weixin.qq.com/s/54bIE9IunVy7bZLAy99xNA

Packing list:

8-channel battery capacity internal resistance tester *1 (battery not included)
