Brand Name: GIZONT
Choice: yes
Gain(dB): 5.8~14DBi
High-concerned chemical: none
Impedance: 50Ω
Model Number: GT-BLG20-868
Origin: Mainland China
semi_Choice: yes
The link price is 1PCS，Three colors can be selected, the default delivery is black, if you need other colors,
please contact customer service or order remarks.
Material: Fiberglass

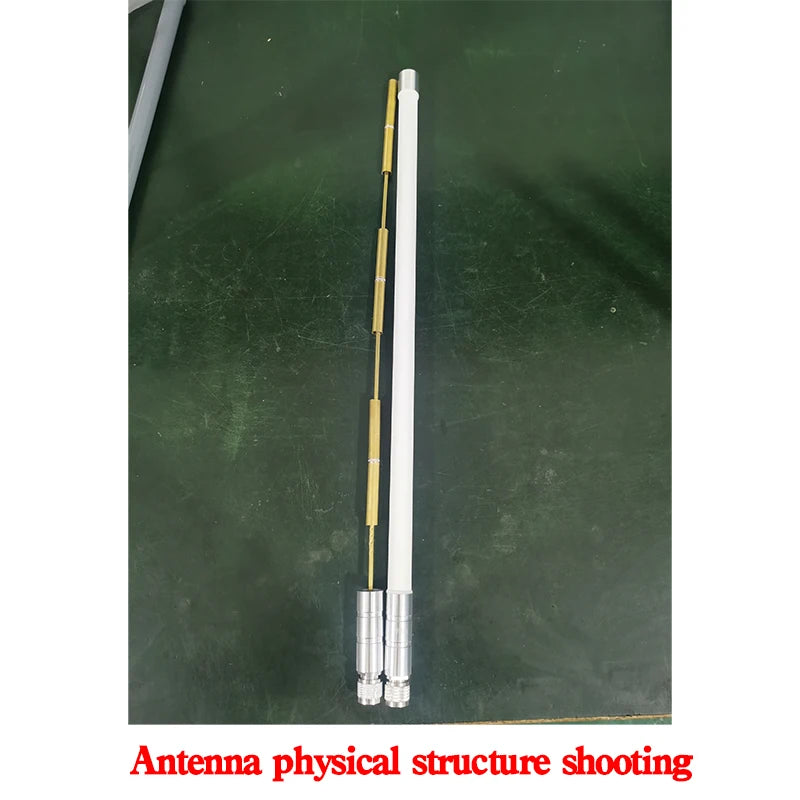

Material of Radiator: Copper

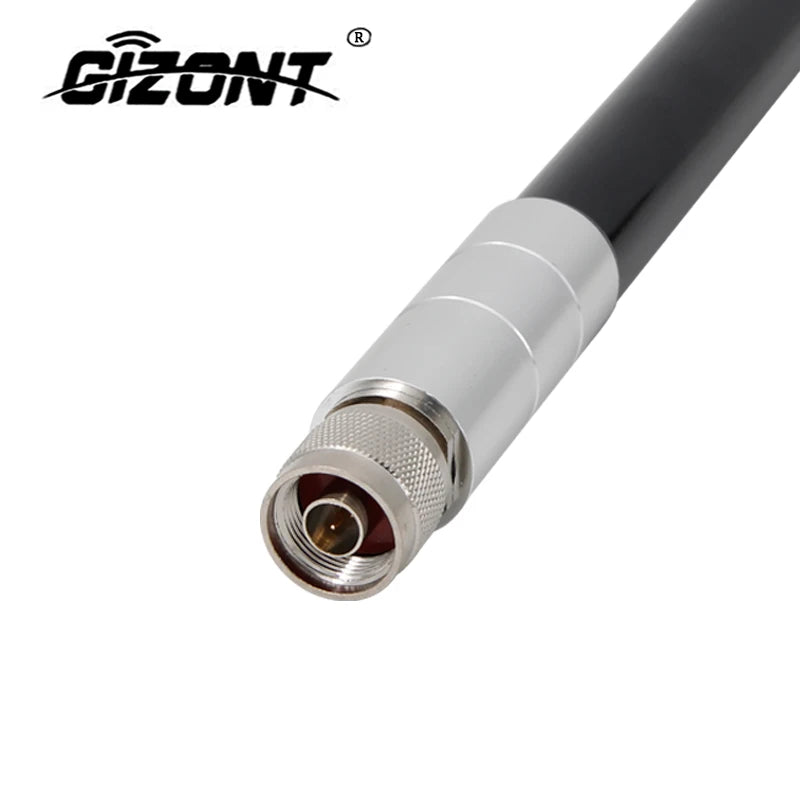

Connector Type: N-male
Colour：Black/Gray/White

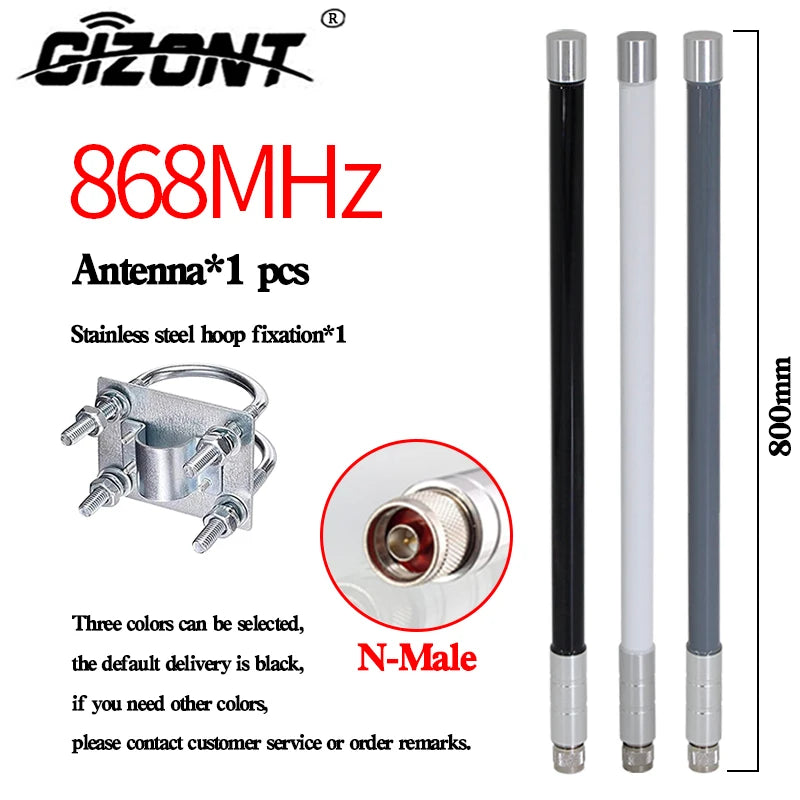

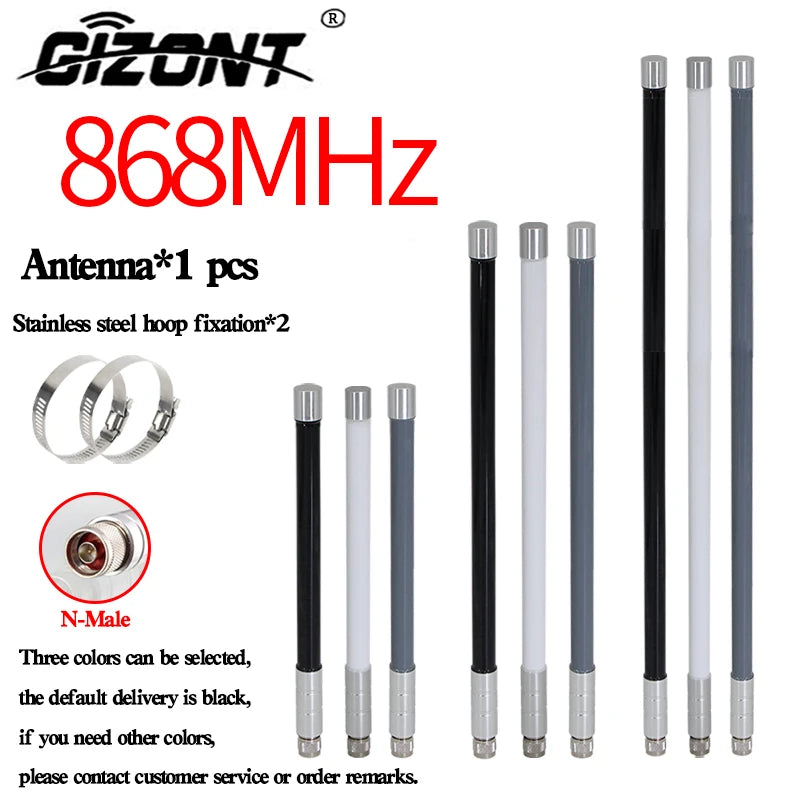

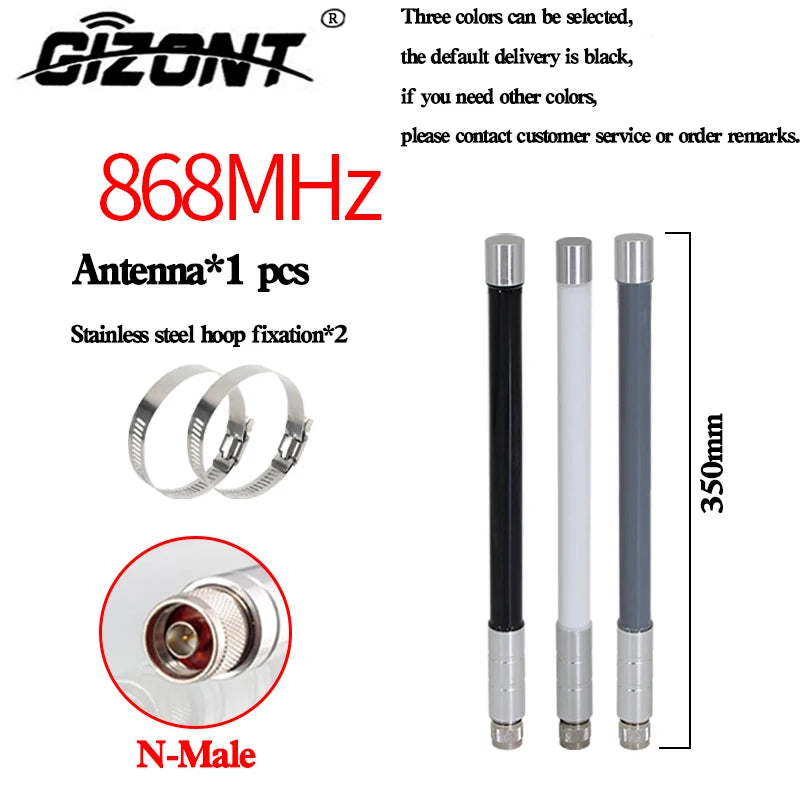

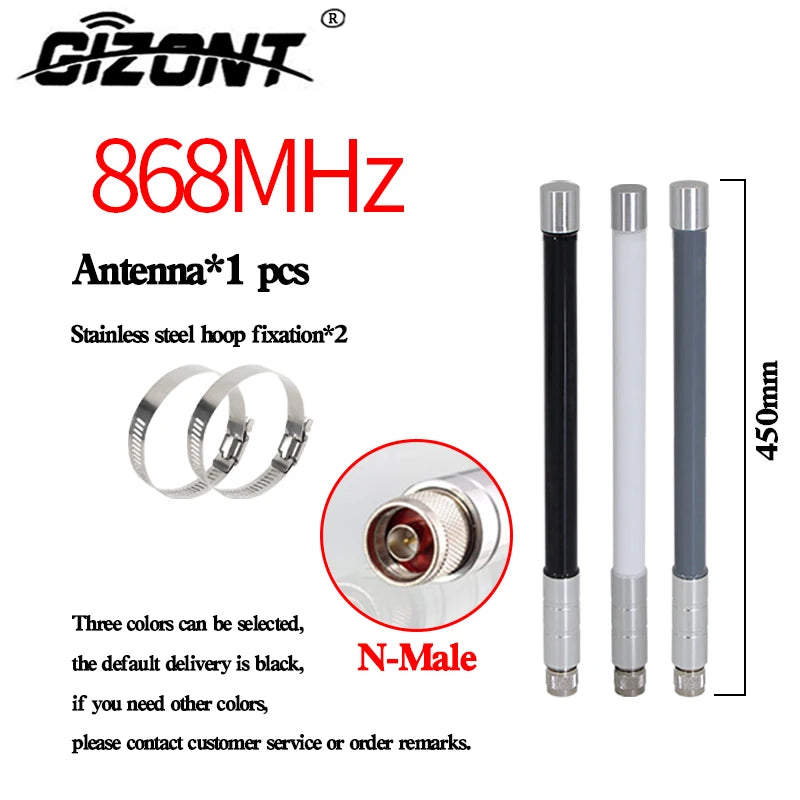

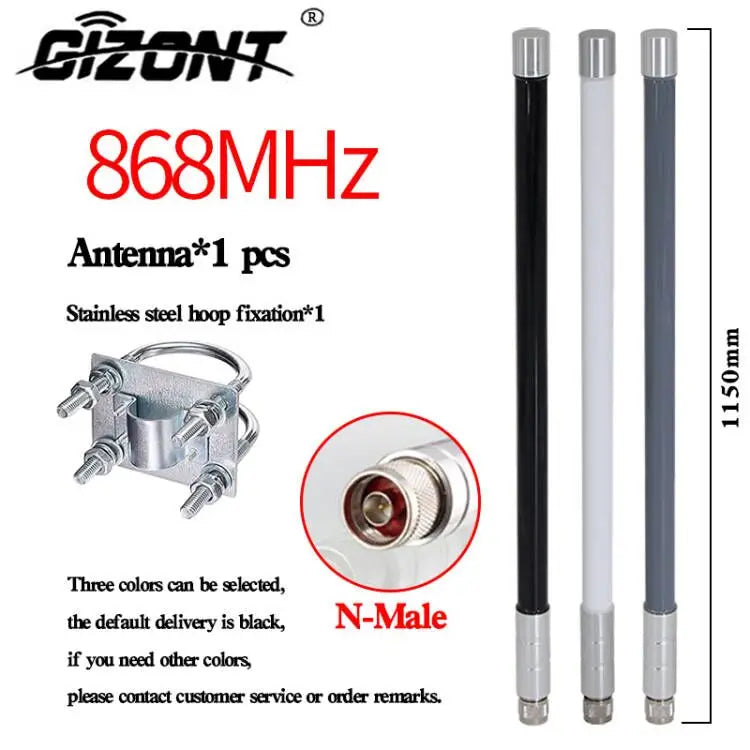

Antenna Height and Gain: 35CM（5.8dBi）/45CM（7dbi）/55CM(8dbi)/80CM(10dbi)/100CM(12dbi)/115CM(14dbi)
Antenna Diameter:2cm
Frequency: 868MHz
Radiation type: Omnidirectional
Polarization: Vertical

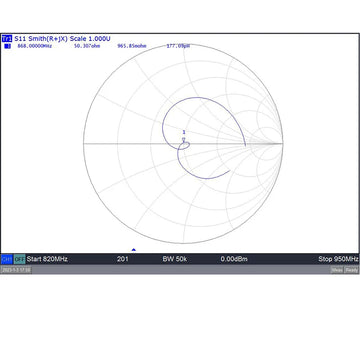

Nominal Impedance: 50 Ohm
Max Input Power: 50W

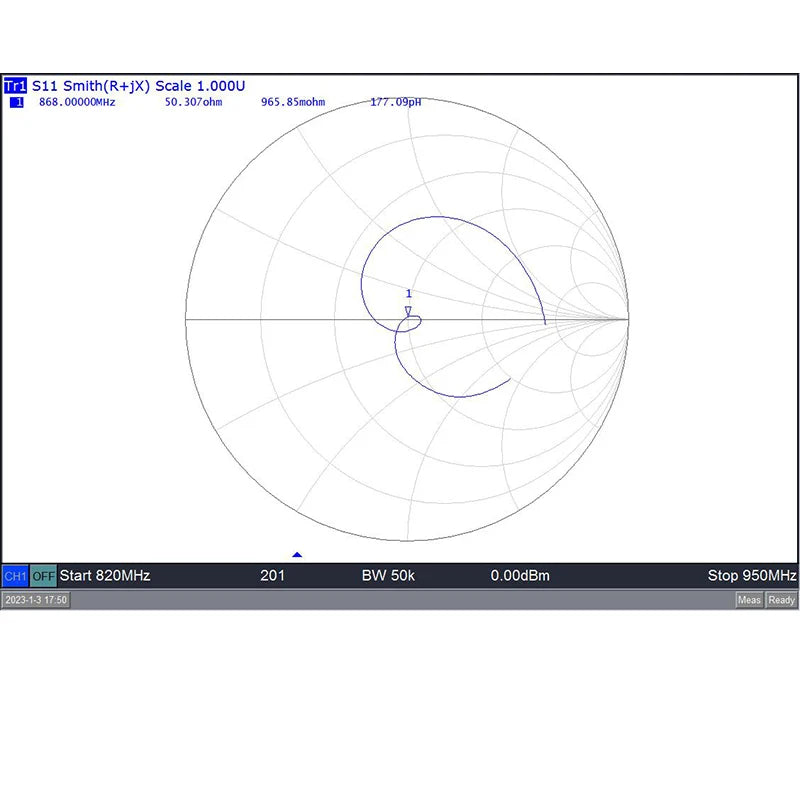

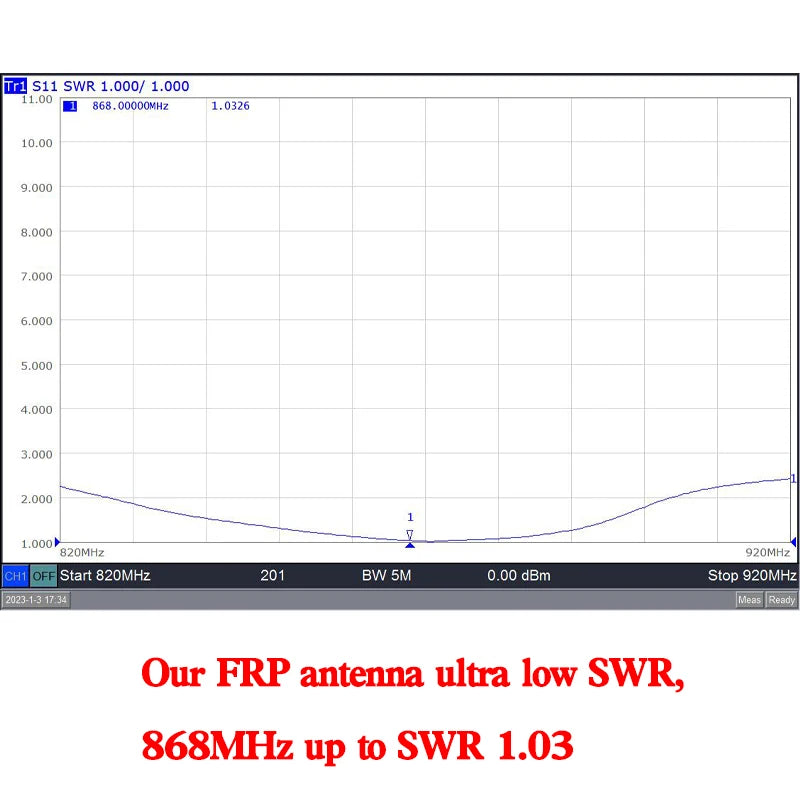

S.W.R.: ≤1.5

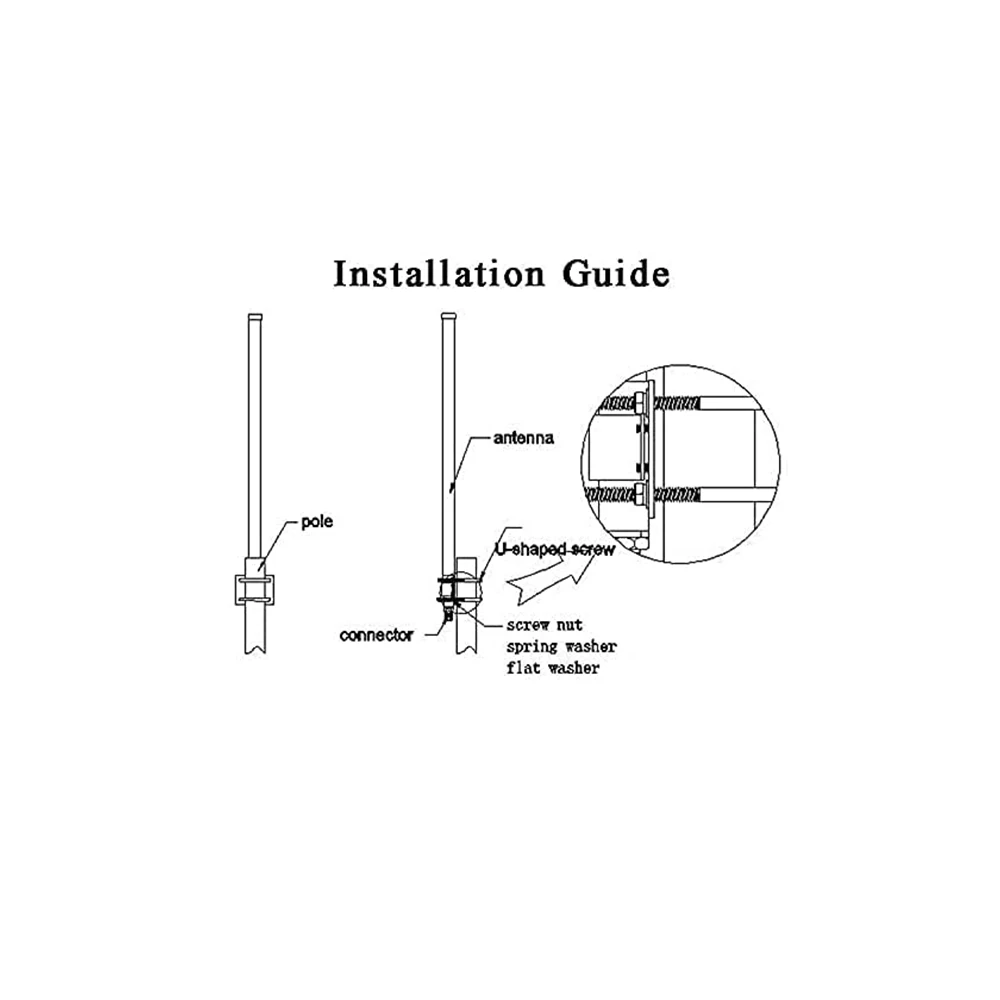

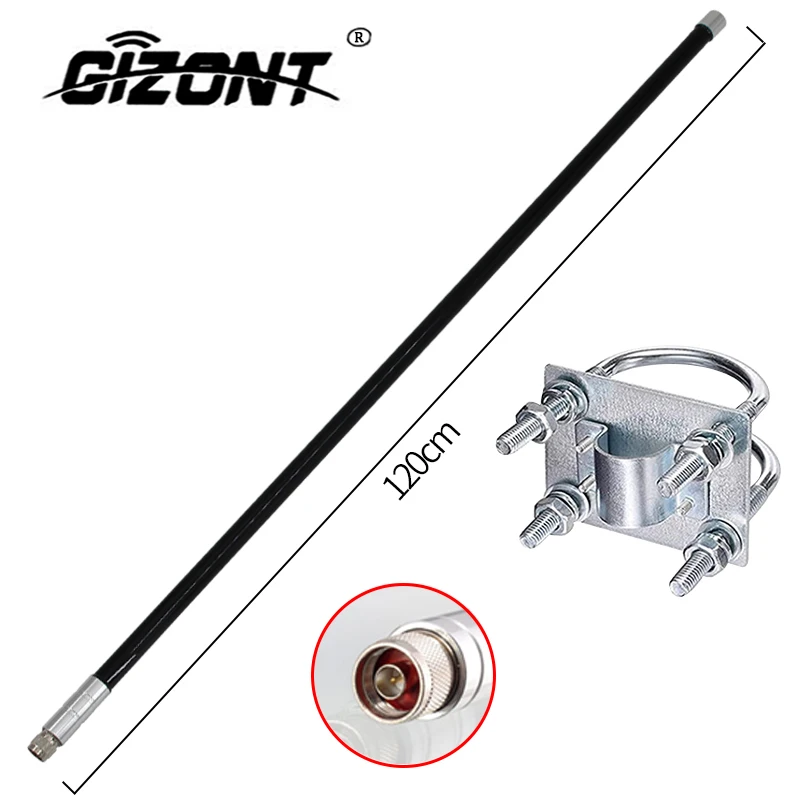

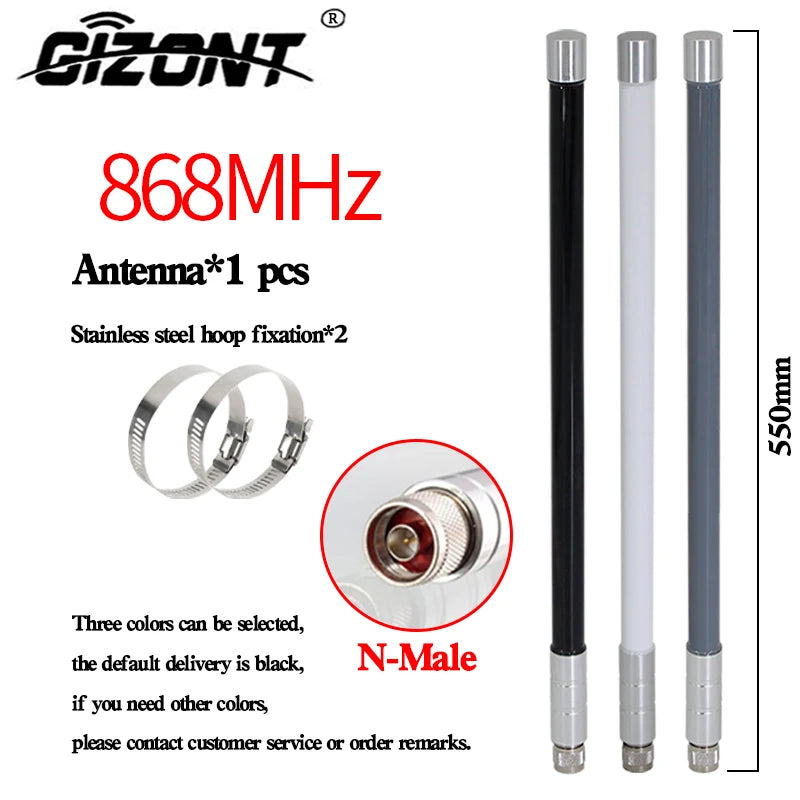

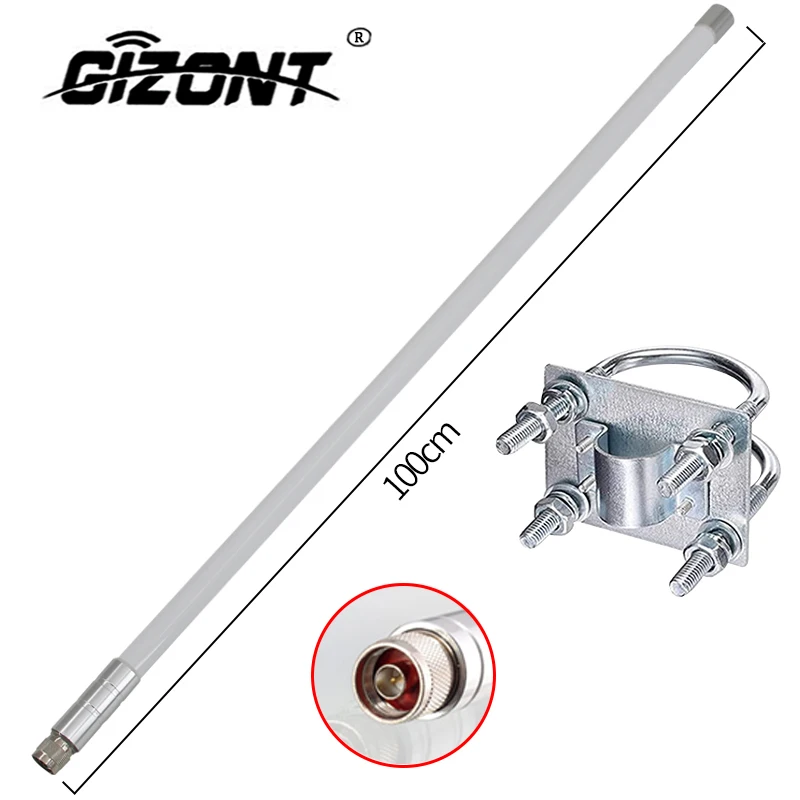

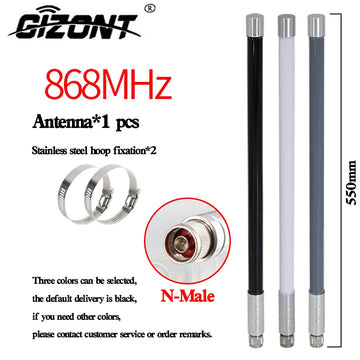

Fixing Method: 35cm/45cm/55cm 2pcs stainless mounts will be provided for each antenna.

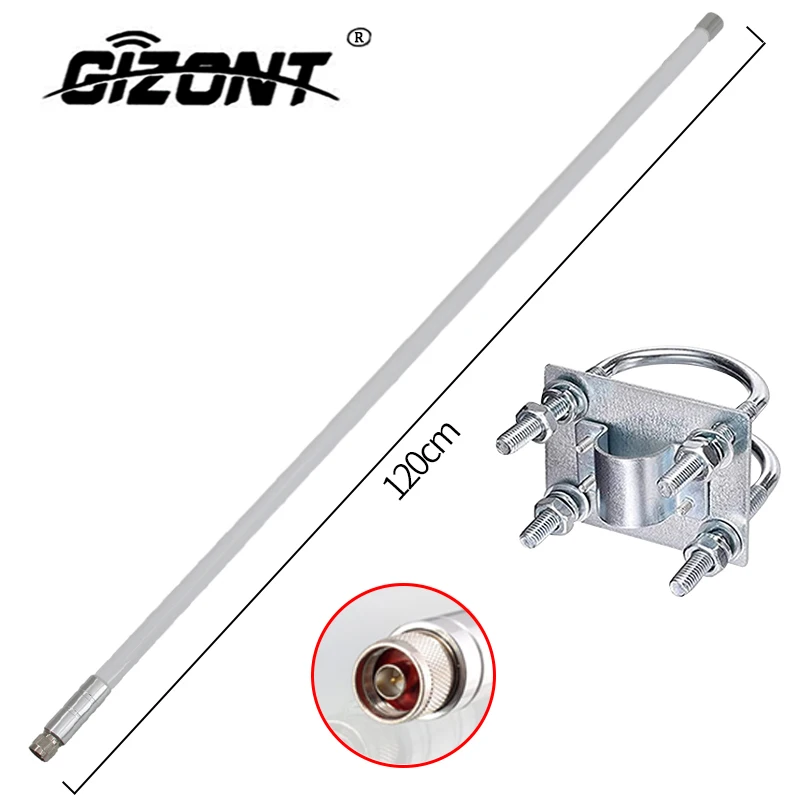

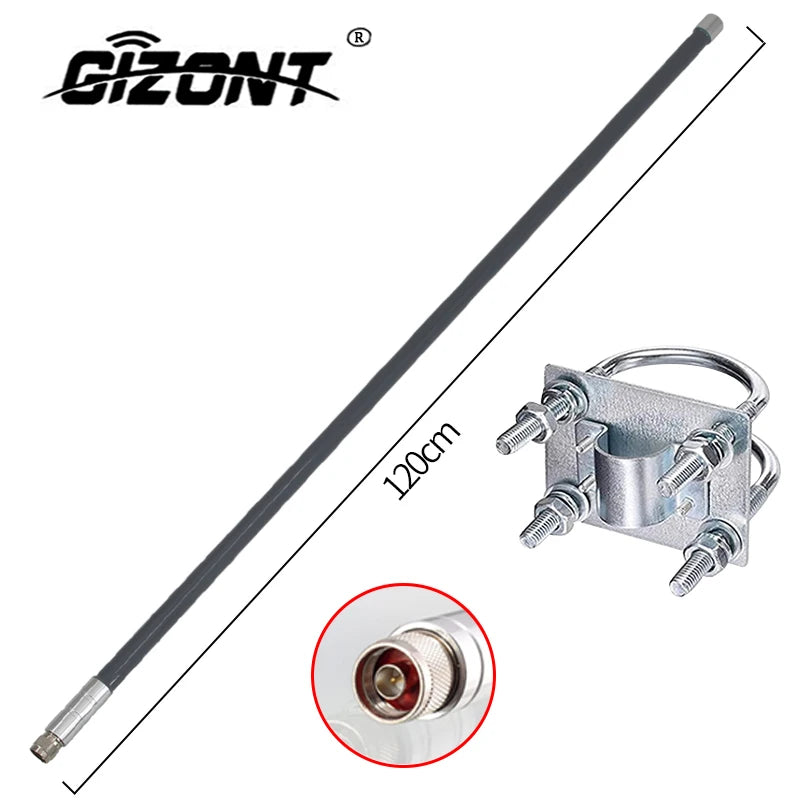

80CM/100CM/115CM each antenna is equipped with a clip code
Compatiable devices with EU868 version: Bobcat 300, RAK, SenseCAP M1, Nebra, Syncrobit SP, Linxdot, Clodpi Pro, LongAP and other LoRa, LoRawan
Need cable click the link below:
| Vendor: | Apsilon |
|---|---|
| Color: | 35CM antenna 1PCS, 45CM antenna 1PCS, 100CM antenna 1PCS, 115CM antenna 1PCS, 55CM antenna 1PCS, 80CM antenna 1PCS |
| Ships From: | CN |
| SKU: | 14:29#35CM antenna 1PCS;200007763:201441035 |
| Weight: | 200 g |
