ANENG GN701 Smart Bridge Tweezer Digital LCR Meter Resistance Capacitance Inductance Continuity Diode Tester Electrician Repair Apsilon

ANENG GN701 Smart Bridge Tweezer Digital LCR Meter Resistance Capacitance Inductance Continuity Diode Tester Electrician Repair

Availability:

Low stock: 1 left

€44,06€52,62

16

Color: without battery

without battery

Product variants

SPECIFICATIONS

Name: ANENG GN701 Smart Bridge Tweezer Digital LCR Meter Resistance Capacitance Inductance Continuity Diode Tester Electrician Repair
Brand: Apsilon
SKU: 14:10#without battery
Price: 44.06 EUR
Availability: InStock

AC Current: no

AC Voltage: no

Auto power off: Yes

Battery Included: no

Brand Name: ANENG

Certification: NONE

Choice: yes

Continuity Check: Yes

DC Current: no

DC Voltage: no

DIY Supplies: Electrical

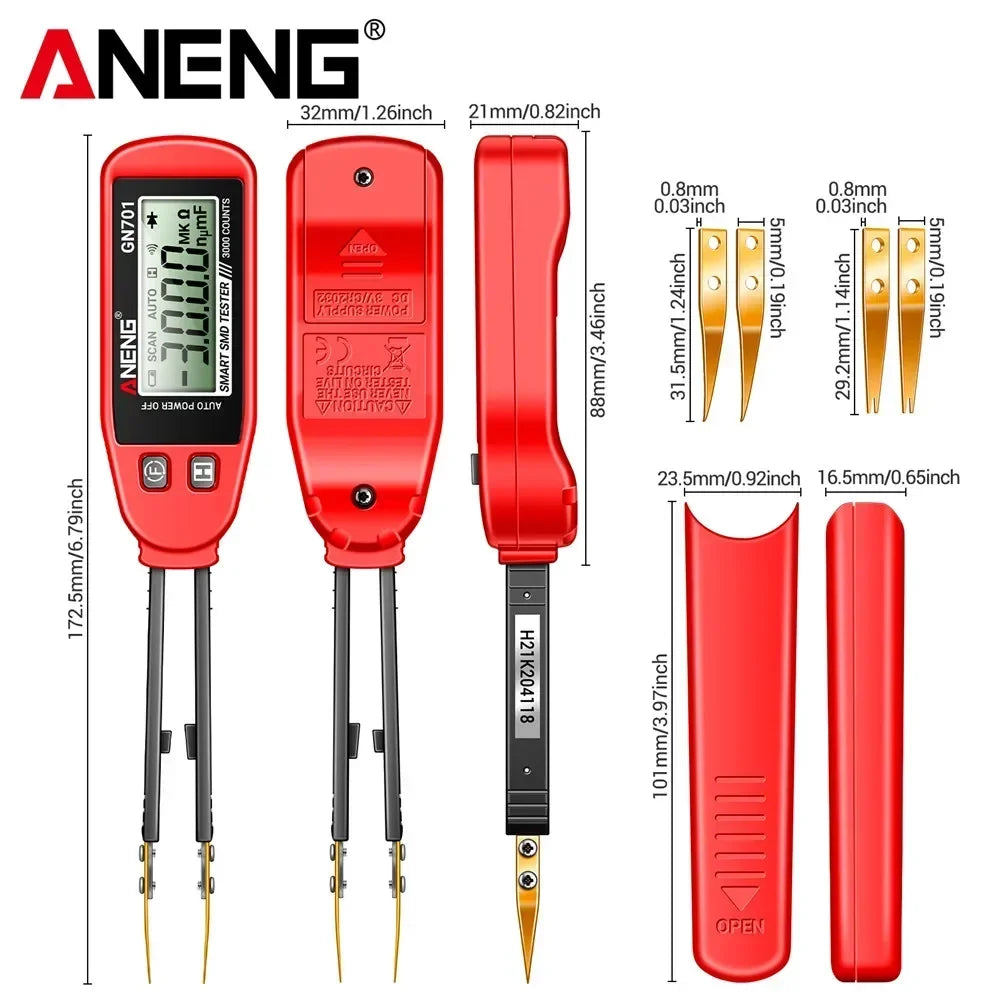

Dimensions: 175*32*20mm

Diode Check: Yes

Display: 3000 count LCD

Display Type: Digital Display

High-concerned chemical: none

Low battery Indication: Yes

Measuring Capacitance Range: 3nf/30nf/300nf/3uf/30uf/300uf/3mf/30mf

Measuring Inductance Range: no

Measuring Resistance Range: 300/3K/30K/300K/3M/30M

Model Number: ANENG GN701

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Scanning mode: Yes

Semi-finishedproduct: No

ANENG GN701 Mini Smart Tweezer LCR SMD ESR Tester Resistance Capacitance Continuity Diode Test Meter Multimeter Measurement Tester TooL

This tester is a handheld and battery operated very convenient small

Feature:
Auto range:Yes
Automatic scan mode:Yes
Low battery indicator:Yes
LCD Display 3000count:Yes

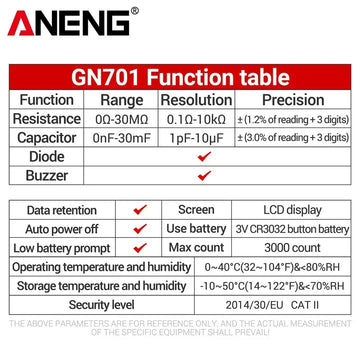

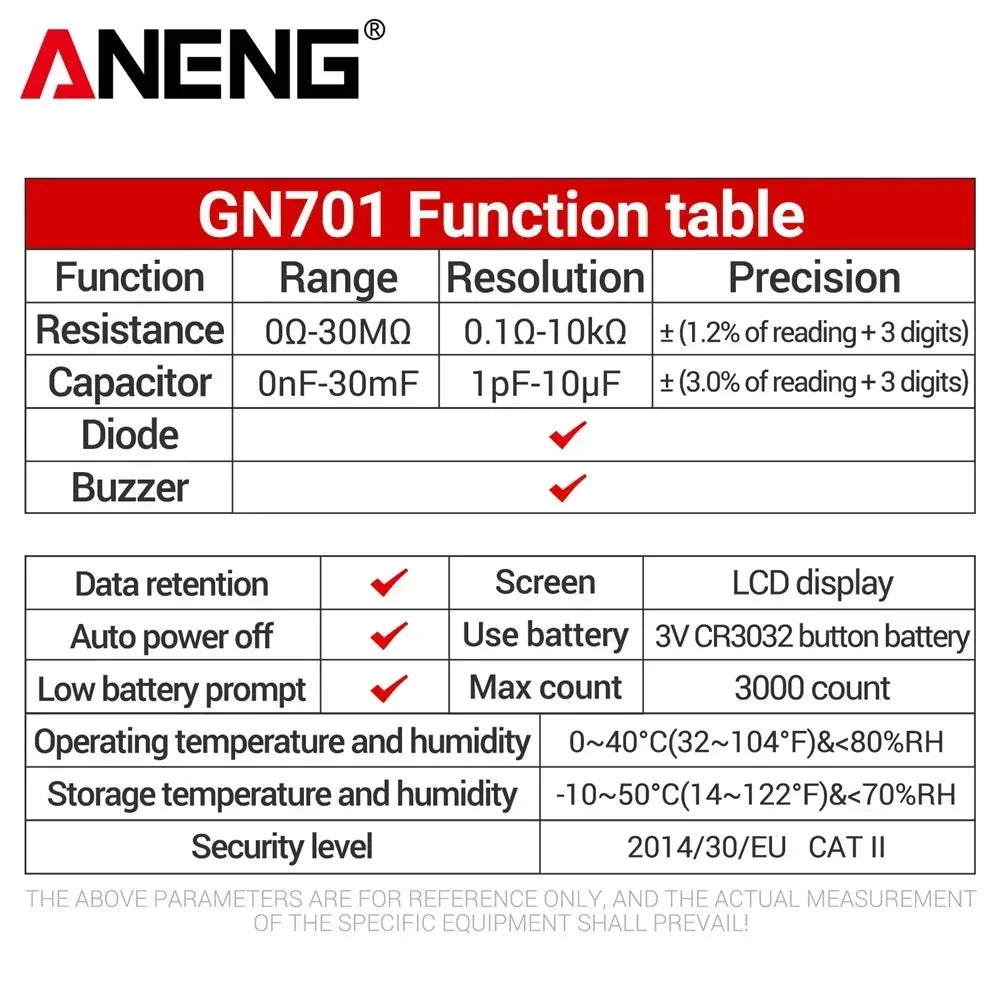

Function	Resolution	Function
Resistance	300Ω/3kΩ/30kΩ/300kΩ/3MΩ	+-(1.0% of reading +2 digits)
	30MΩ	+-(1.2% of reading +3 digits)
Capacitance	3nF/30nF/300nF/3uF/30uF	+-(2.5% of reading +3 digits)
	300uF/3mF/30mF	+-(3.0% of reading +3 digits)
Yes	Scanning mode	Resistance measurement
	Diode Check	Continuity Test
