ANENG GN703 Smart Tweezers LCR Meter Professional SMD ESR Test Capacitance Resistance Inductance Digital LCR Bridge Calibration Apsilon

ANENG GN703 Smart Tweezers LCR Meter Professional SMD ESR Test Capacitance Resistance Inductance Digital LCR Bridge Calibration

Availability:

Low stock: 8 left

€47,60€60,45

21

Color: GN703 Black

GN703 Black

Product variants

SPECIFICATIONS

Name: ANENG GN703 Smart Tweezers LCR Meter Professional SMD ESR Test Capacitance Resistance Inductance Digital LCR Bridge Calibration
Brand: Apsilon
SKU: 14:202074810#GN703 Black
Price: 47.6 EUR
Availability: InStock

AC Voltage: /

Battery Included: Yes

Brand Name: ANENG

Calibration: yes

Certification: CE

Charge spec: USB 5V/1A

Choice: yes

Continuity: yes

DC Voltage: /

DIY Supplies: Electrical

Data Hold: yes

Data Record: No

Diode: On Voltage <0.7V

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Language: Chinese/English

Measuring Capacitance Range: 1pF~22mF

Measuring Inductance Range: 1uH~10H

Measuring Resistance Range: 10mΩ~10MΩ

Model Number: ANENG GN703 LCR Bridge Tweezers tester

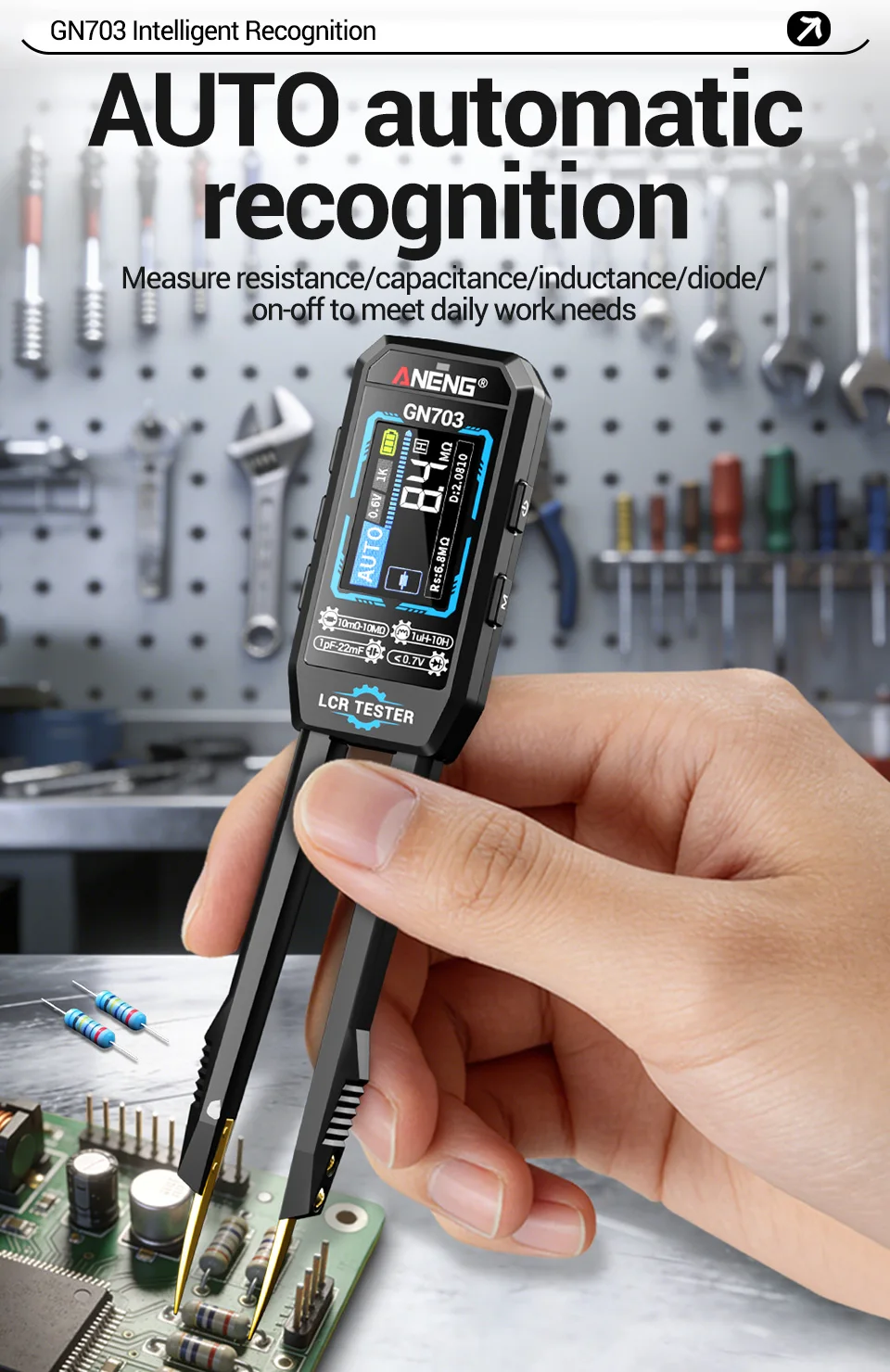

Operating Mode: Auto Range

Origin: Mainland China

Semi-finishedproduct: No

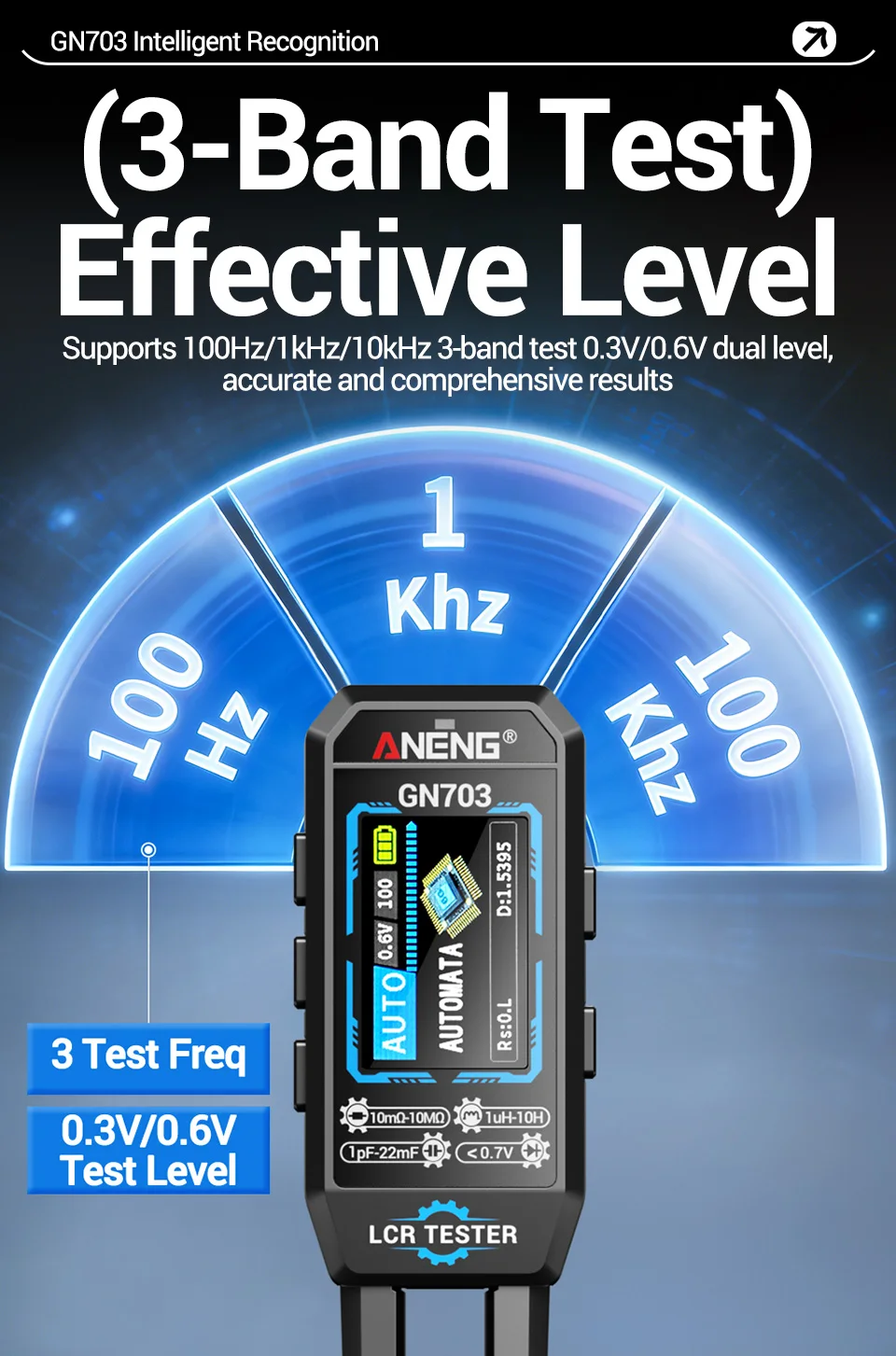

Test freq: 100Hz/1K/10K

Test level: 0.3V/0.6V

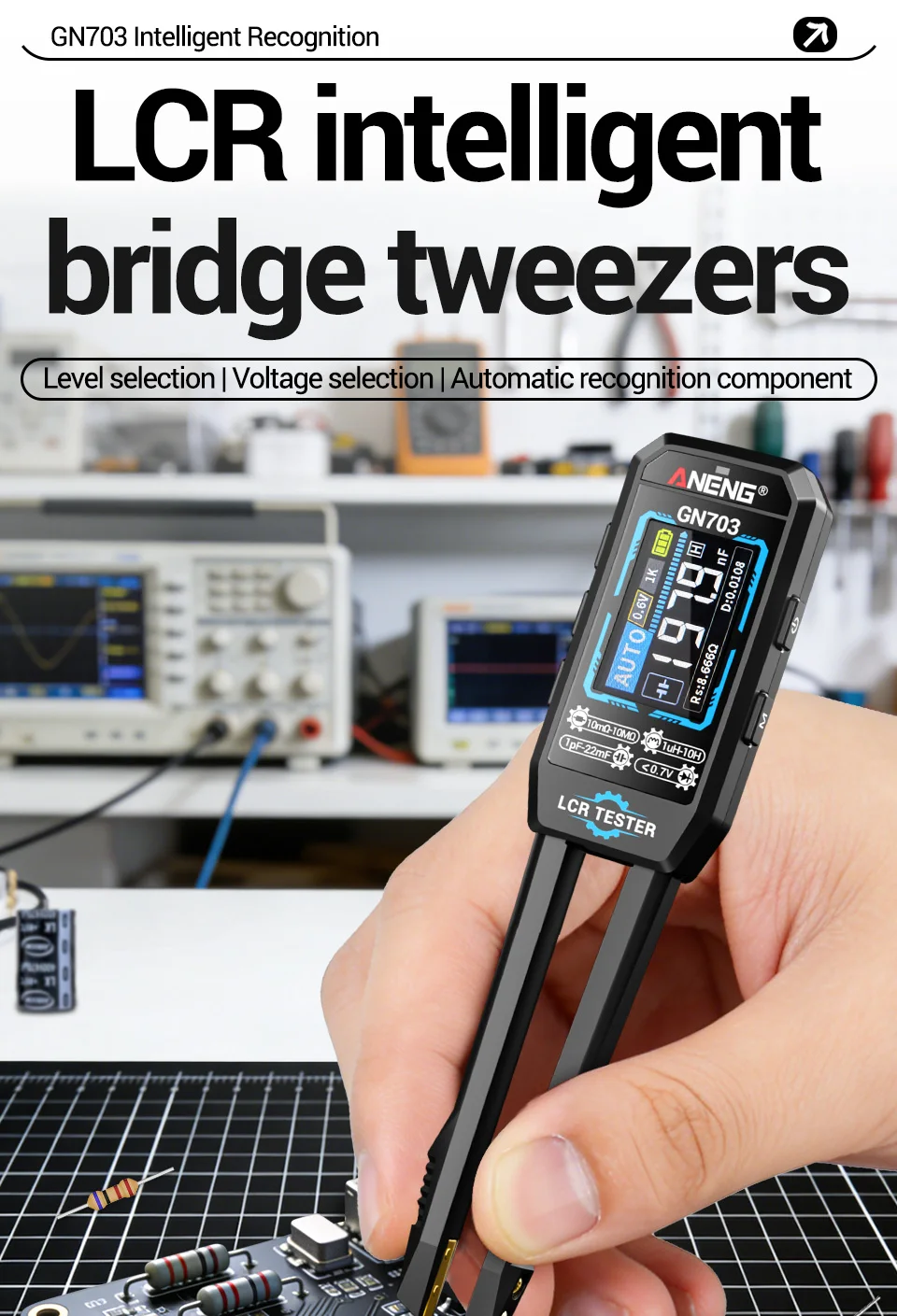

ANENG GN703 Smart LCR Tweezers SMD ESR Tester for Electronic Components Digital Capacitance Resistance Inductance Meter with Calibration

🔥Product Introduction:

The ANENG GN703 is a professional-grade digital LCR (Inductance, Capacitance, Resistance) meter designed for high-precision electronic component testing. It supports multiple test frequencies (100Hz/1kHz/10kHz) and provides accurate measurements for resistors, capacitors, and inductors across wide ranges. With features like data hold, calibration, USB direct charging, and a user-friendly bilingual interface, it is an essential tool for electricians, technicians, and DIY enthusiasts.

✅Professional LCR Tester ：

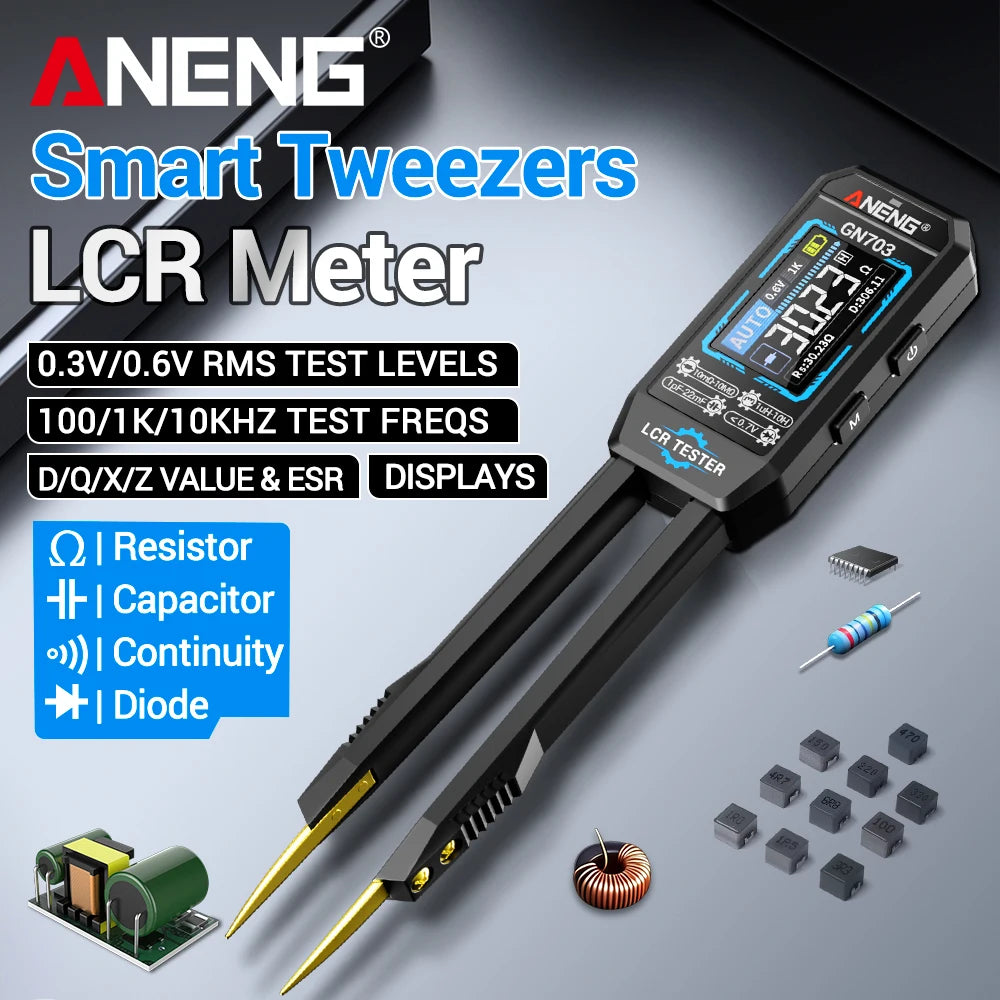

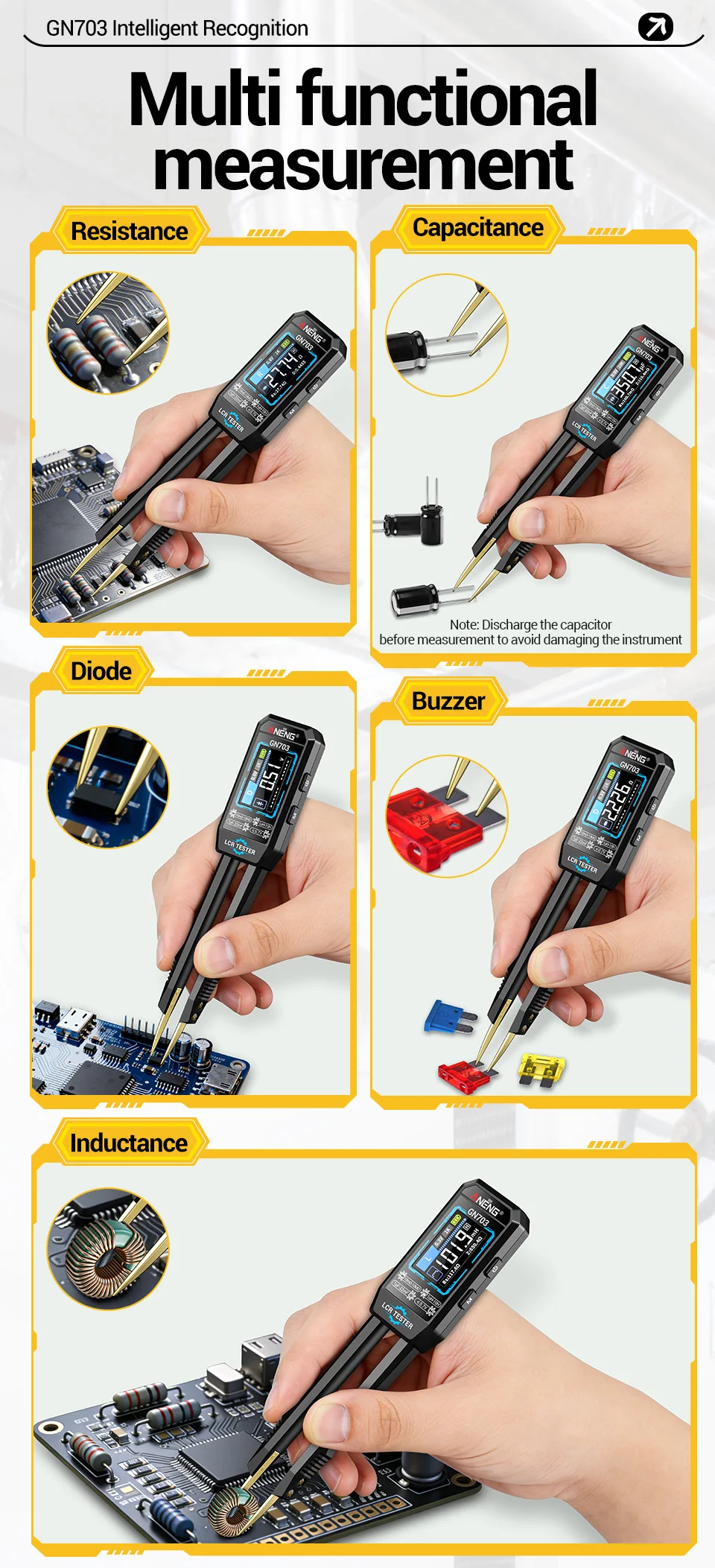

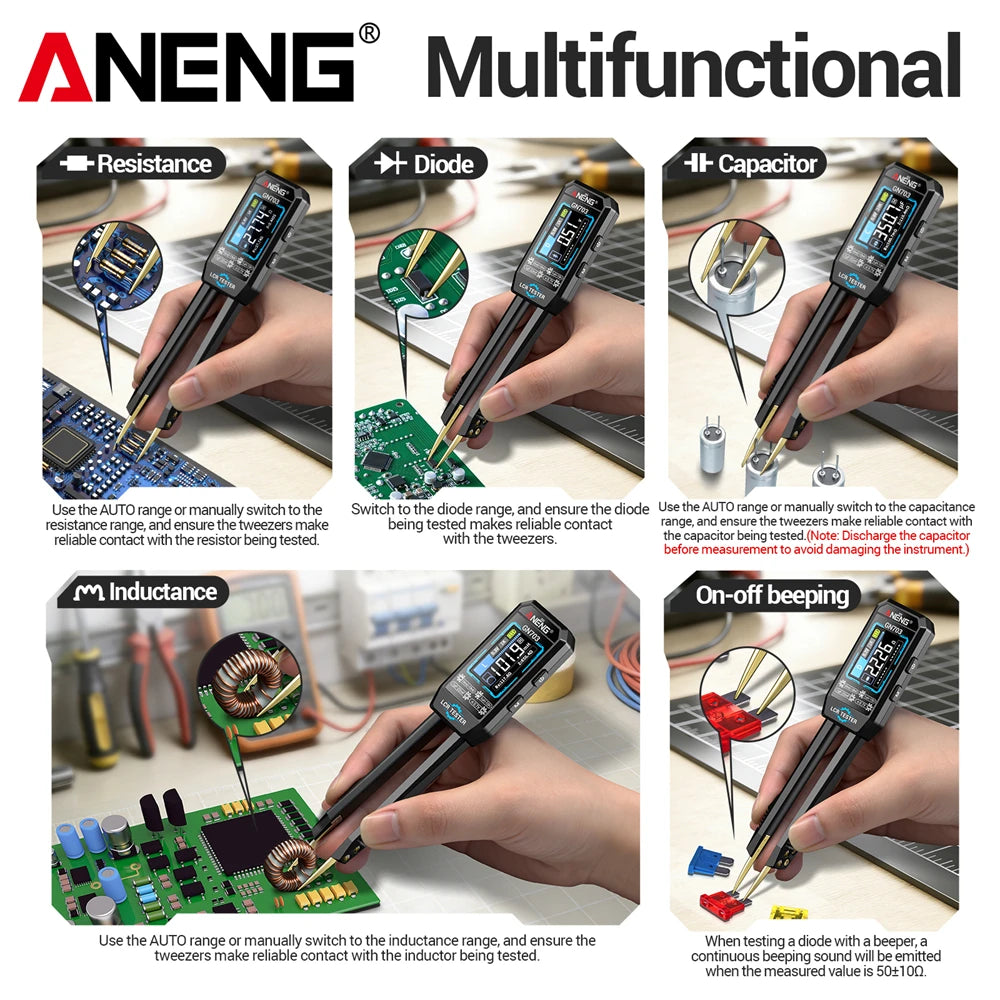

ANENG GN703 smart tweezers LCR meter accurately measures resistance (10mΩ~10MΩ), capacitance (1pF~22mF) and inductance (1uH~10H) with 3 test frequencies (100Hz/1KHz/10KHz), perfect for all SMD components.

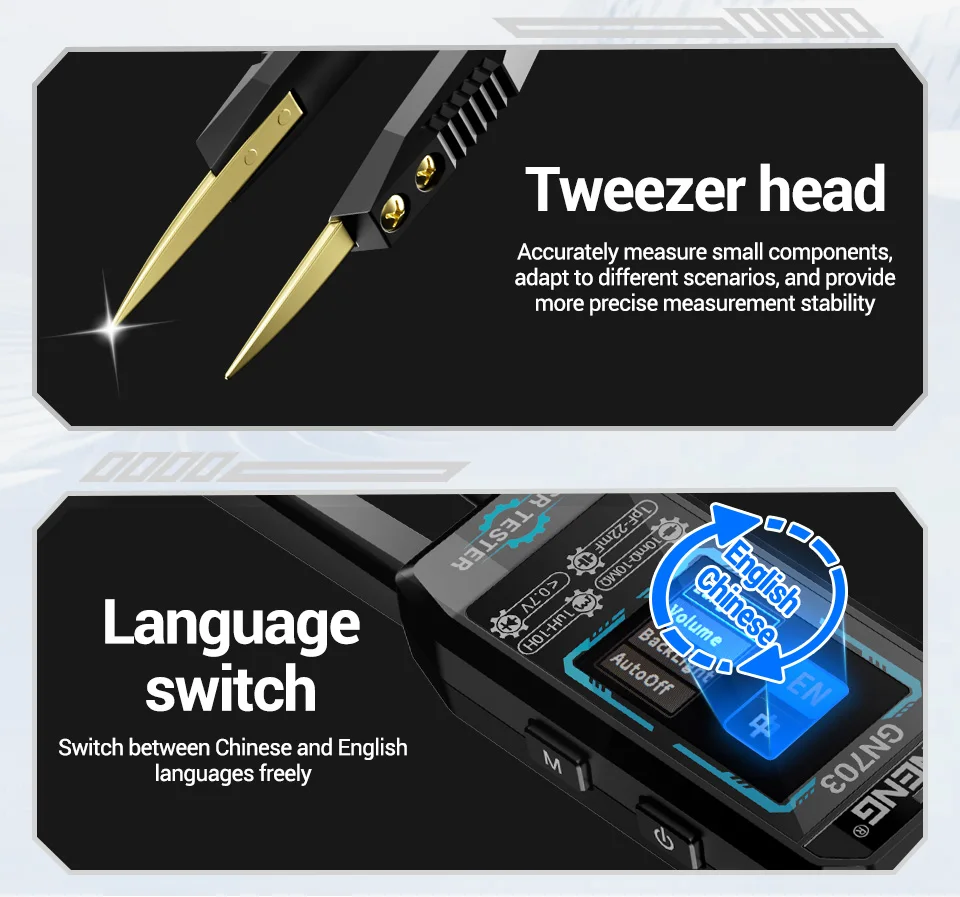

✅Tweezers Design for SMD Testing：

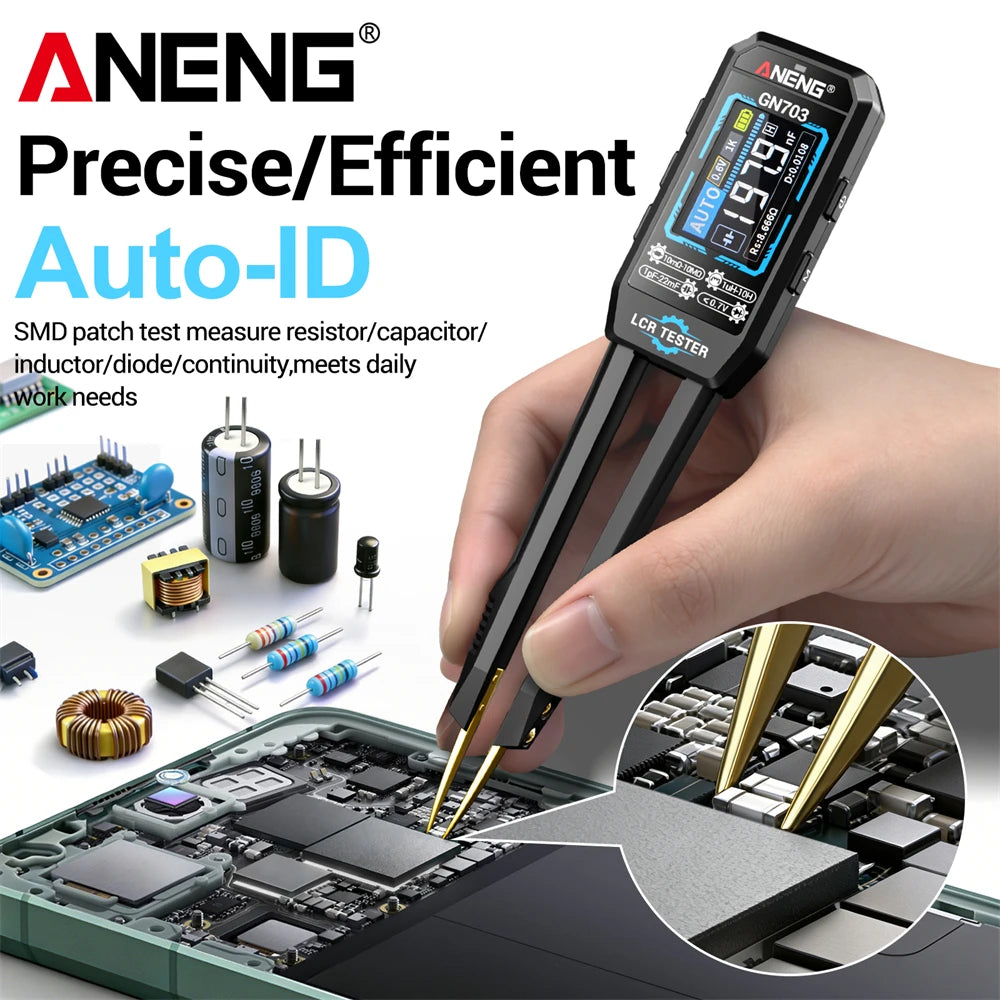

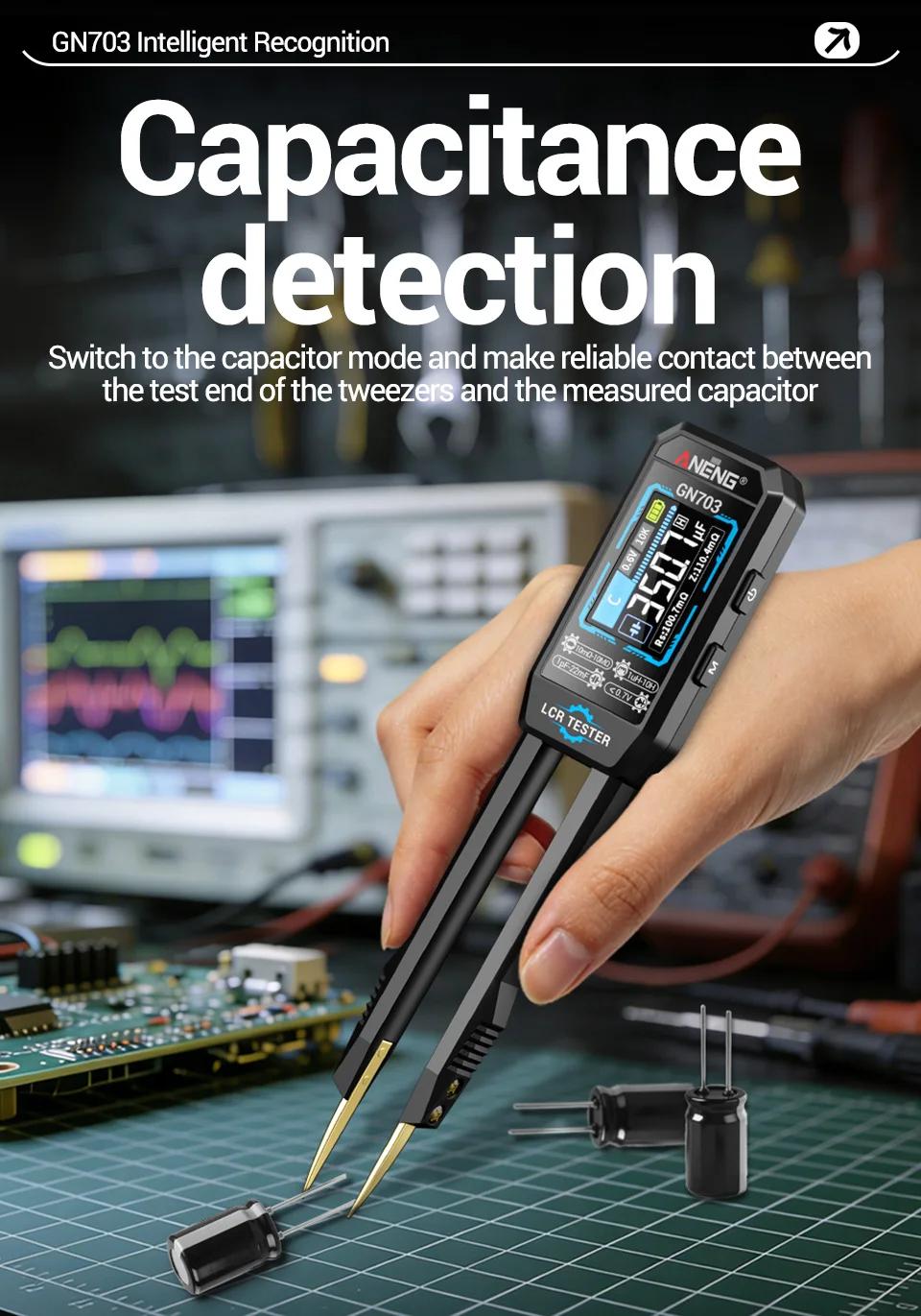

Integrated tweezers probe enables one-handed operation, no extra probes needed. Easily clip and test SMD chips, ideal for electronic repair, DIY and engineering projects.

✅High Accuracy & Calibration ：

Up to 0.5% measurement accuracy with professional calibration function, ensuring reliable and stable test results, comparable to desktop LCR bridges.

✅Portable & Rechargeable ：

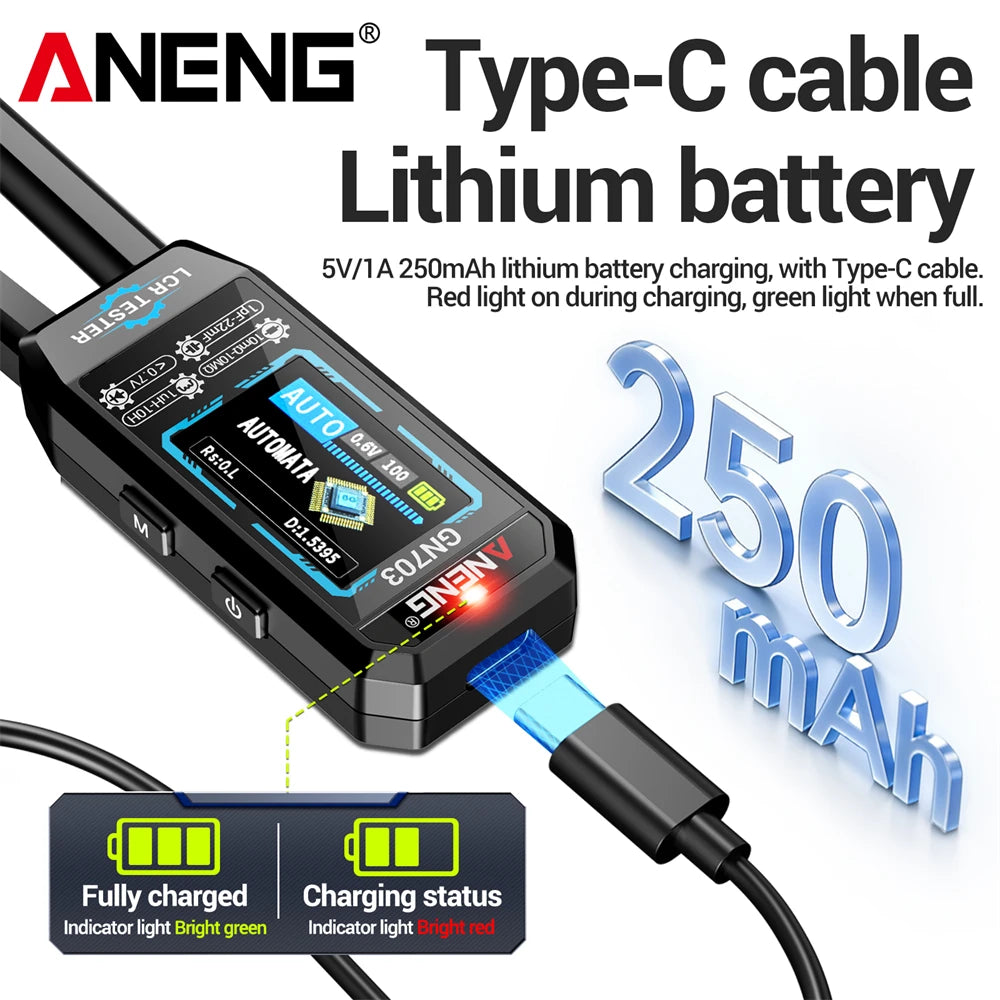

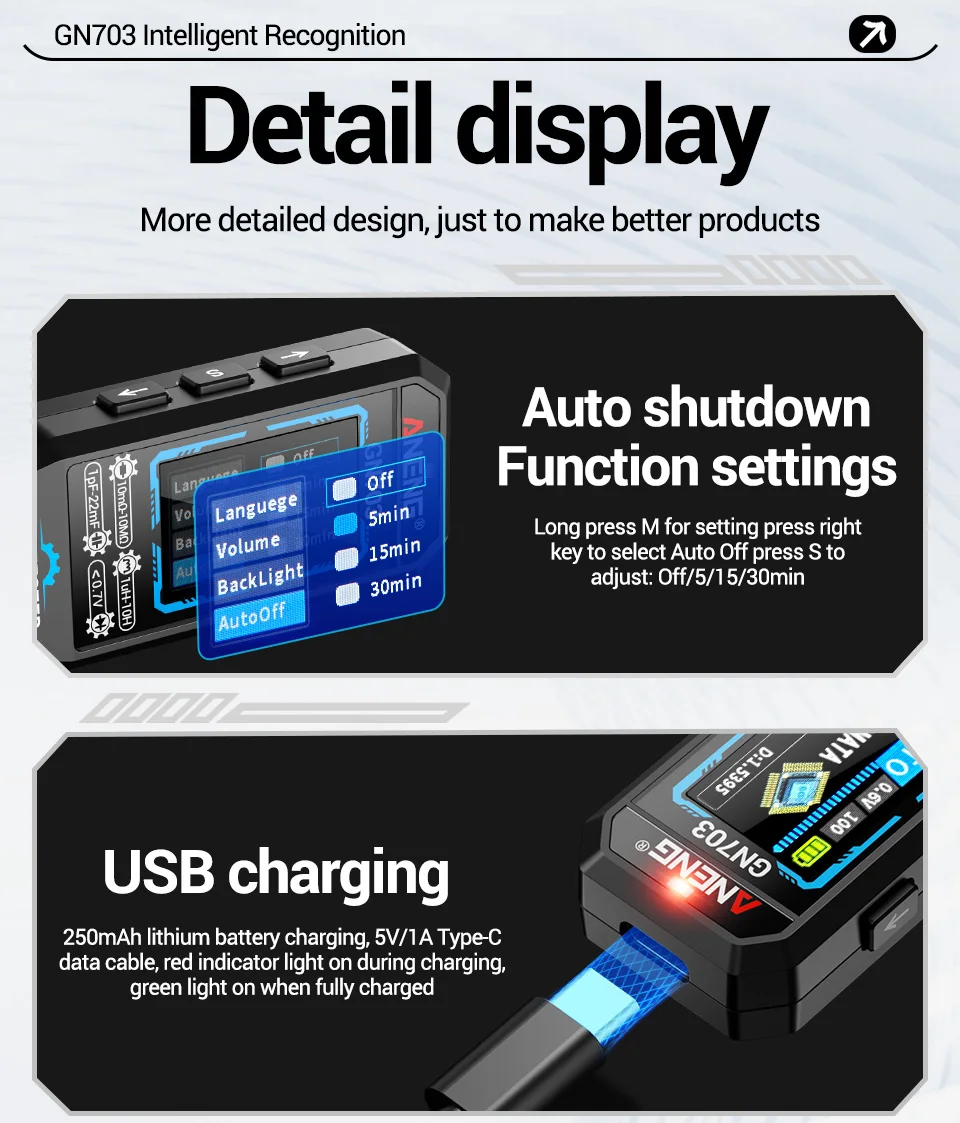

Ultra-light 50g design fits in your pocket, 250mAh rechargeable lithium battery with USB 5V/1A charging. Auto shutdown function saves power for long-time use.

✅User-Friendly Features ：

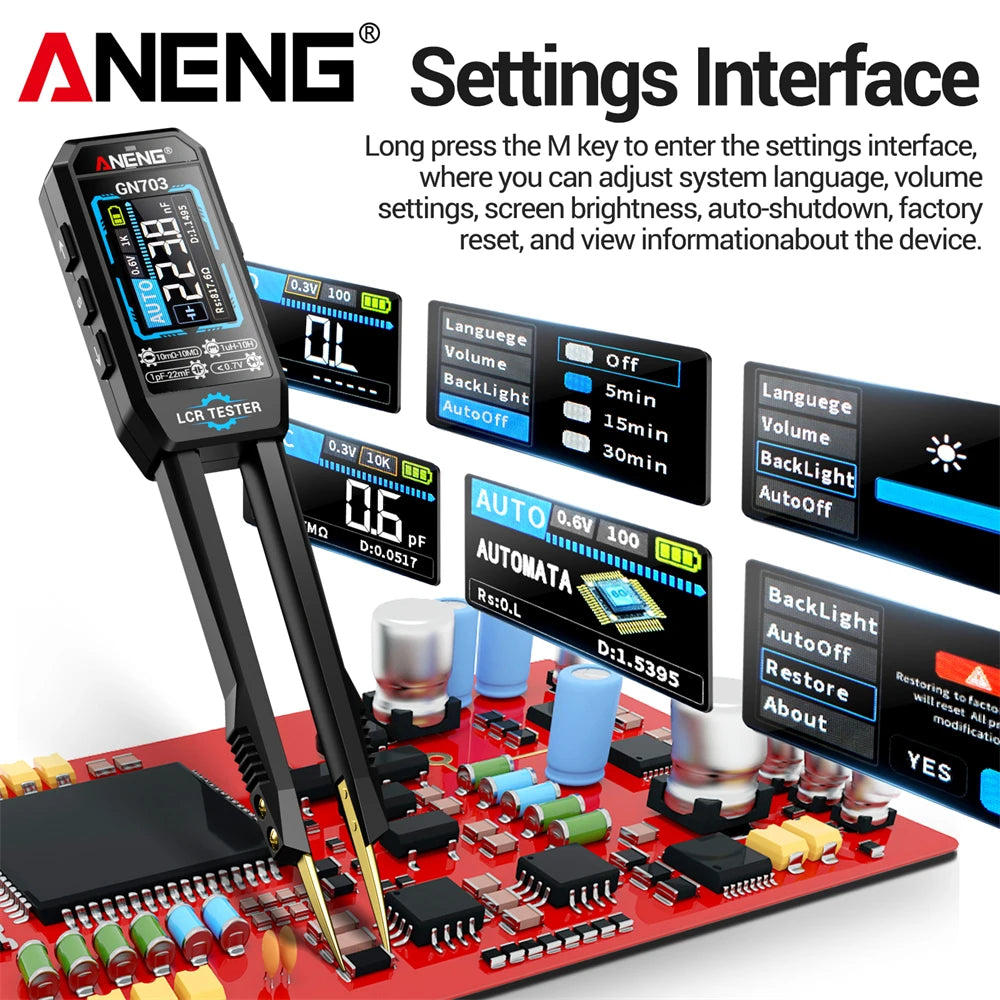

0-100% screen dimming, 0-5 volume adjustment, data hold, Chinese/English system, diode test, on-off beeping and factory reset, meeting all your testing needs.

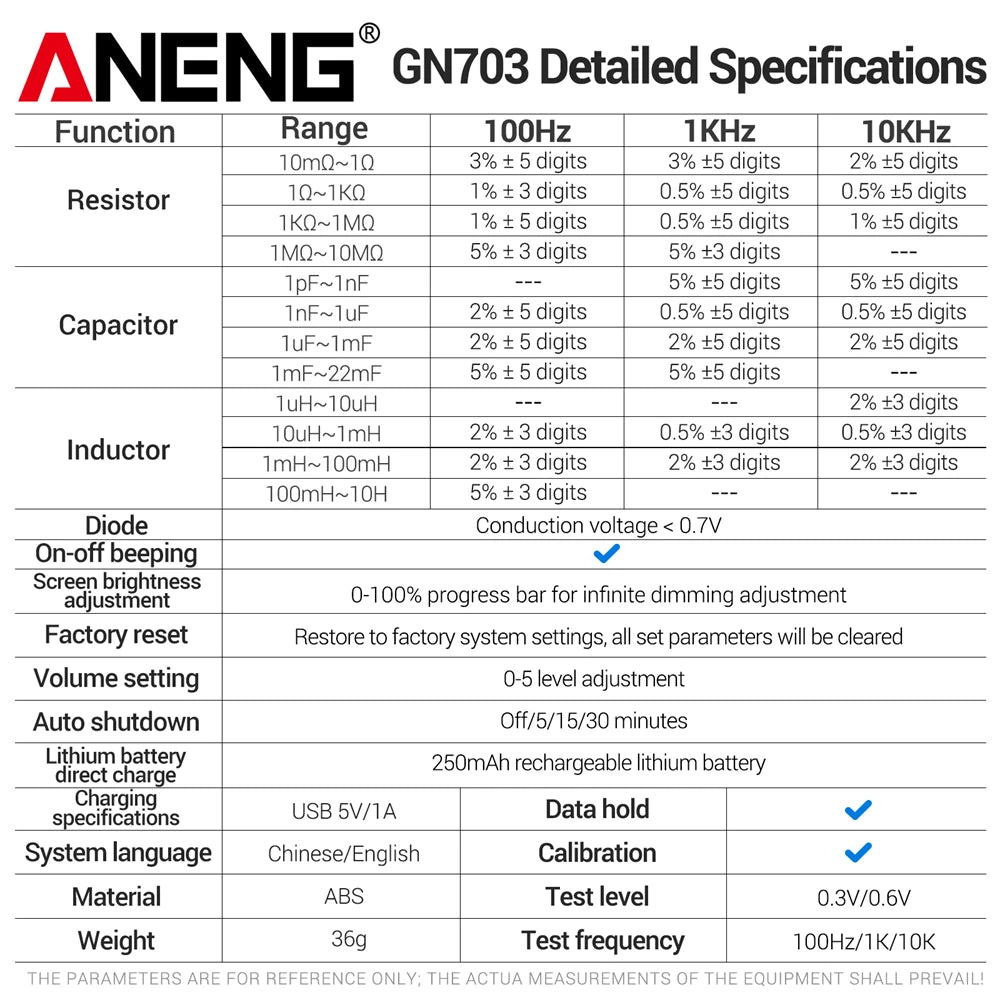

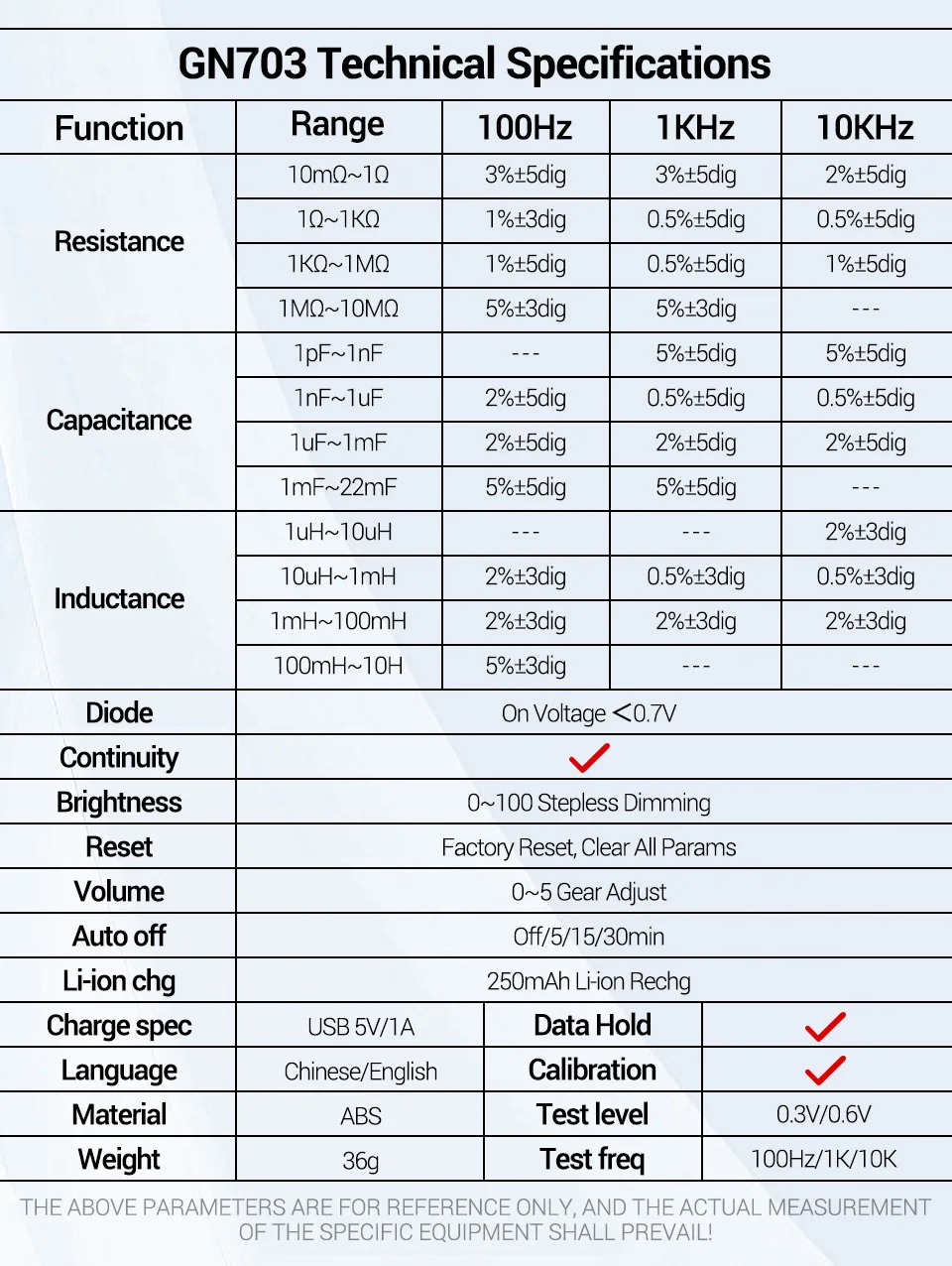

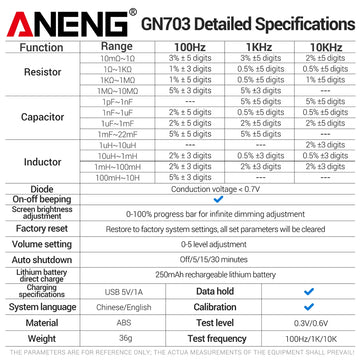

GN703 Technical Specifications

Function	Range	100Hz	1KHz	10KHz
Resistance	10mΩ~1Ω	3%±5dig	3%±5dig	2%±5dig
	1Ω~1KΩ	1%+3dig	0.5%±5dig	0.5%±5dig
	1KΩ~1MΩ	1%±5dig	0.5%±5dig	1%±5dig
	1MΩ~10MΩ	5%±3dig	5%±3dig
Capacitance	1pF~1nF		5%±5dig	5%±5dig
	1nF~1uF	2%±5dig	0.5%±5dig	0.5%±5dig
	1uF~1mF	2%±5dig	2%±5dig	2%±5dig
	1mF~22mF	5%±5dig	5%±5dig
Inductance	1uH~10uH			2%±3dig
	10uH~1mH	2%±3dig	0.5%±3dig	0.5%±3dig
	1mH~100mH	2%±3dig	2%±3dig	2%±3dig
	100mH~10H	5%±3dig
Diode	On Voltage< 0.7V
Continuity	√
Brightness	0~100 Stepless Dimming
Reset	Factory Reset,Clear All Params
Volume	0~5 Gear Adjust
Auto off	Off/5/15/30min
Li-ion chg	250mAh Li-ion Rechg
Charge spec	USB 5V/1A	Data Hold	√
Language	Chinese/English	Calibration	√
Material	ABS	Test level	0.3V/0.6V
		Test freq	100Hz/1KHz/10KHz

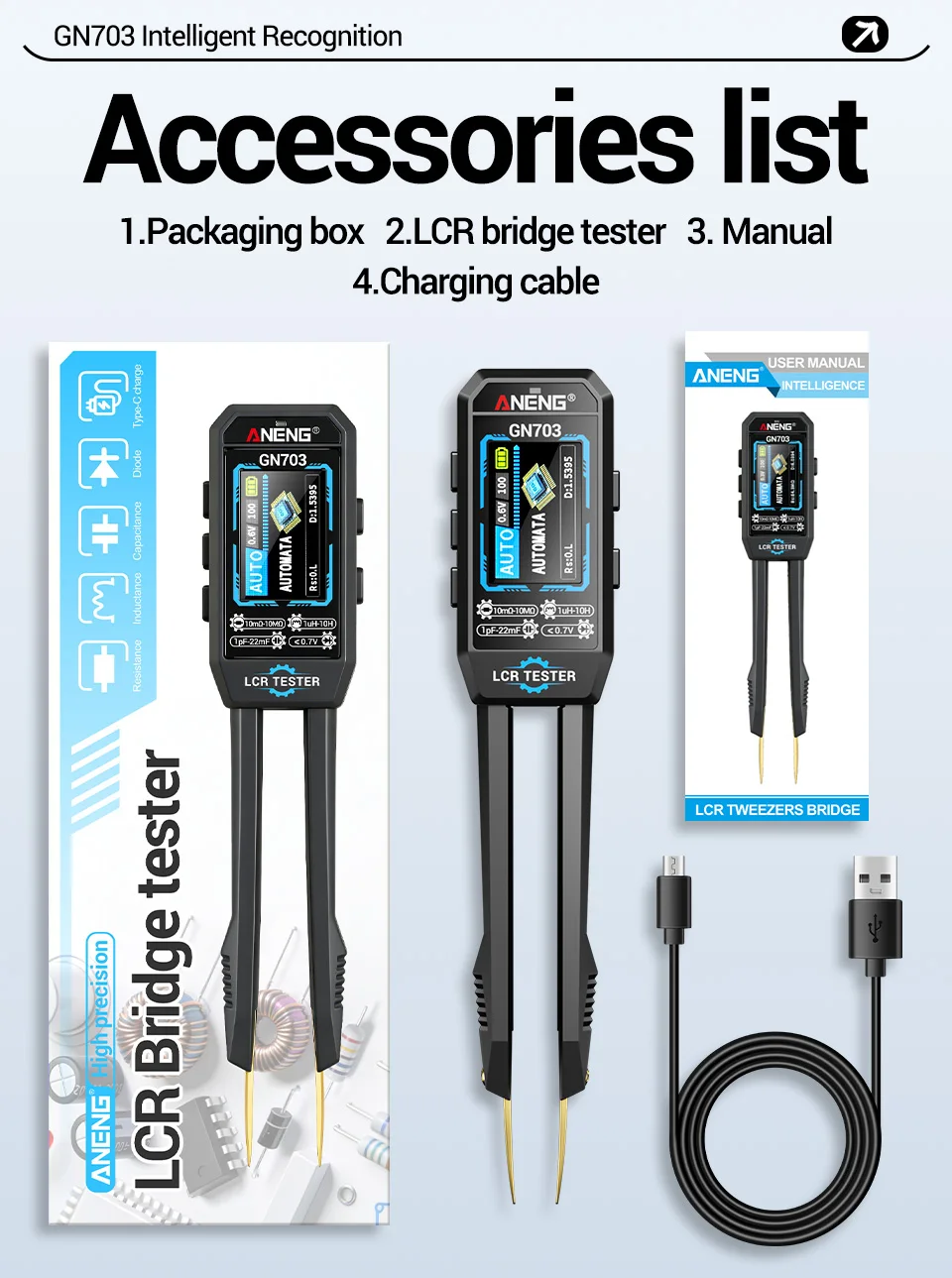

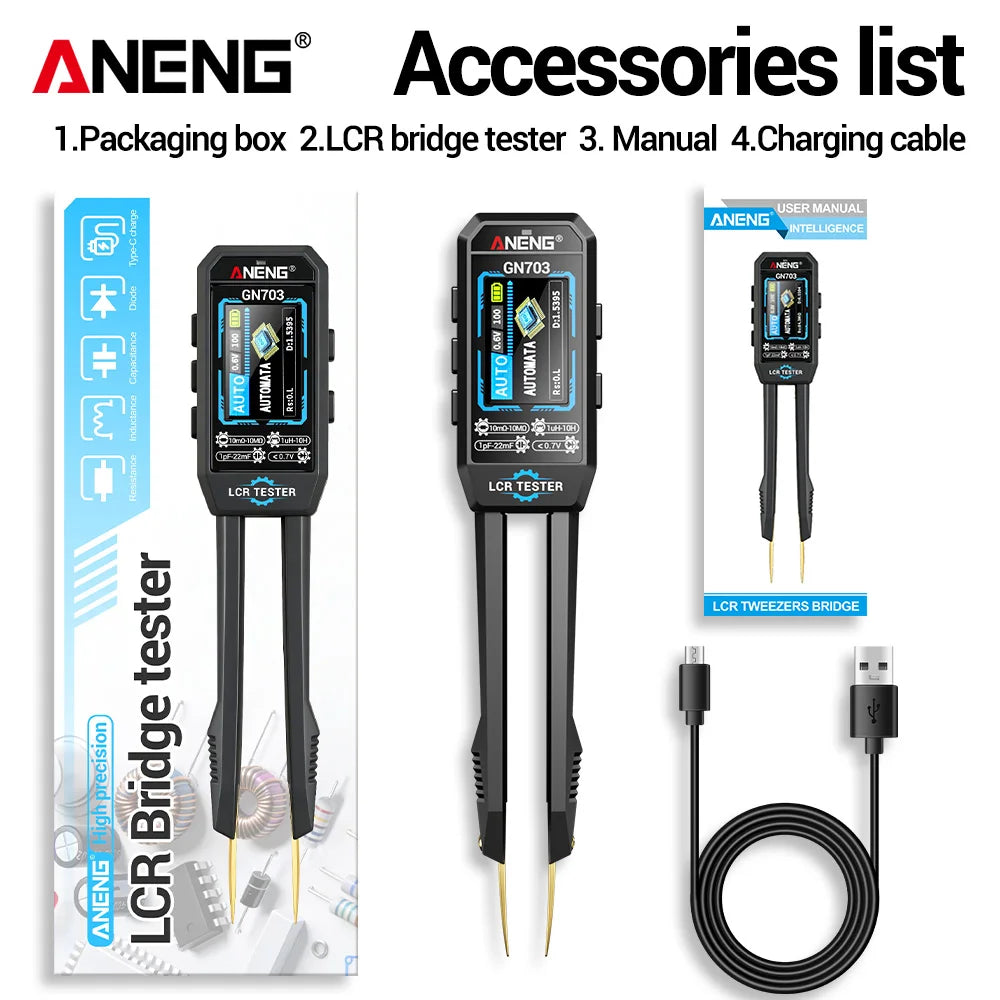

Packing List:

1 * Packaging box

1 * LCR bridge tester

1 * Manual

1 * Charging cable

Safety Precautions

To avoid possible electric shock, fire, and personal injury, please read the safety precautions before use:

1) Do not measure voltage to avoid damaging instruments and personal injury.

2) Do not use the instrument or high-temperature environments, and do not input voltage.

3) Do not use this product around gases and vapors or in humid environments.

4) Waste batteries and scrapped instruments used for instrument replacement cannot be disposed of together with household waste.Please handle them in accordance with relevant national or local laws and regulations.
