SPECIFICATIONS

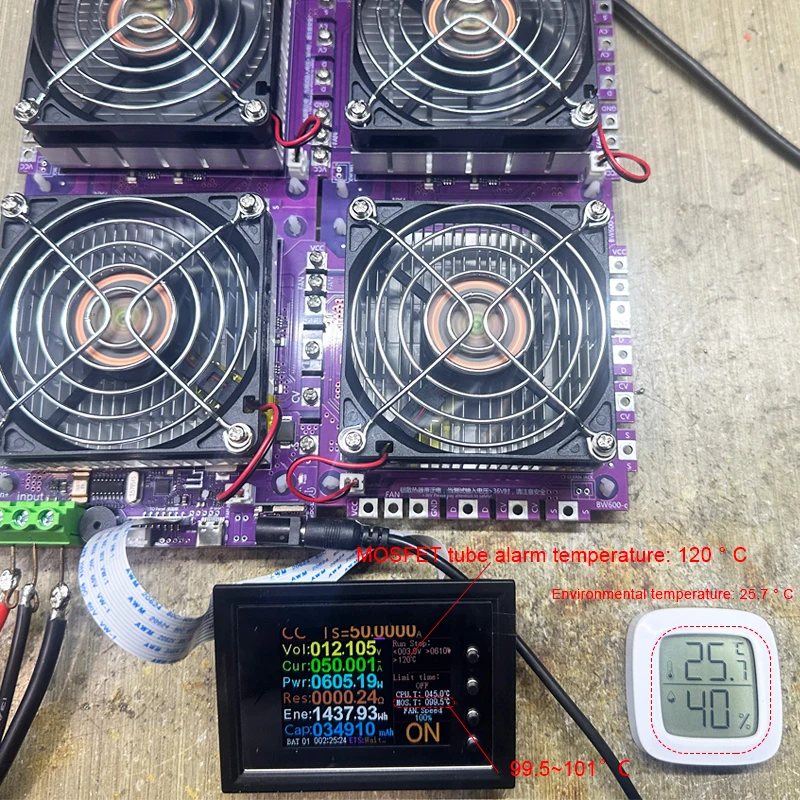

50A 600W test effect, tested at an ambient temperature of 25.7 ° C!

50A 600W test effect, tested at an ambient temperature of 25.7 ° C!

Product User Manual:

http://en.atorch.cn/upload/20250906173122.pdf（Update available）

When 600W,Voltage At 12V, it current can test 50A

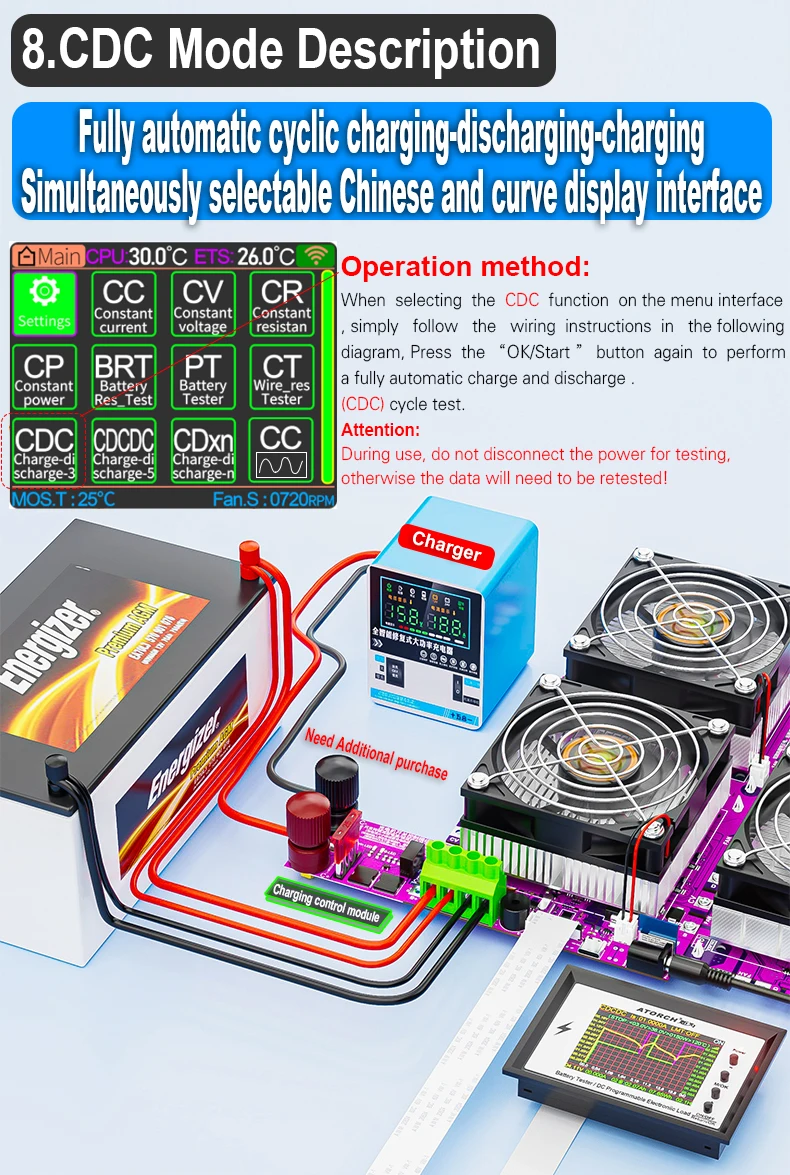

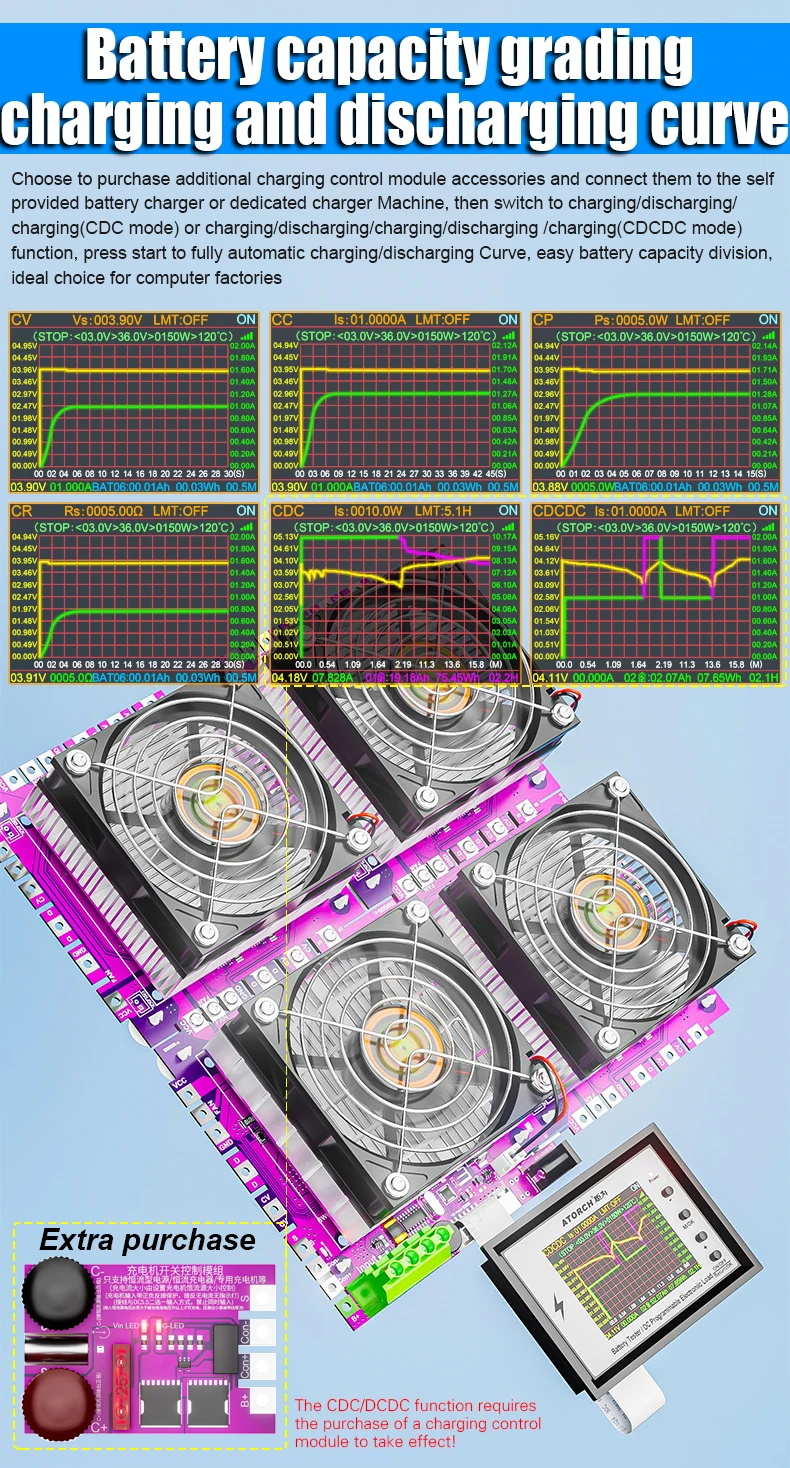

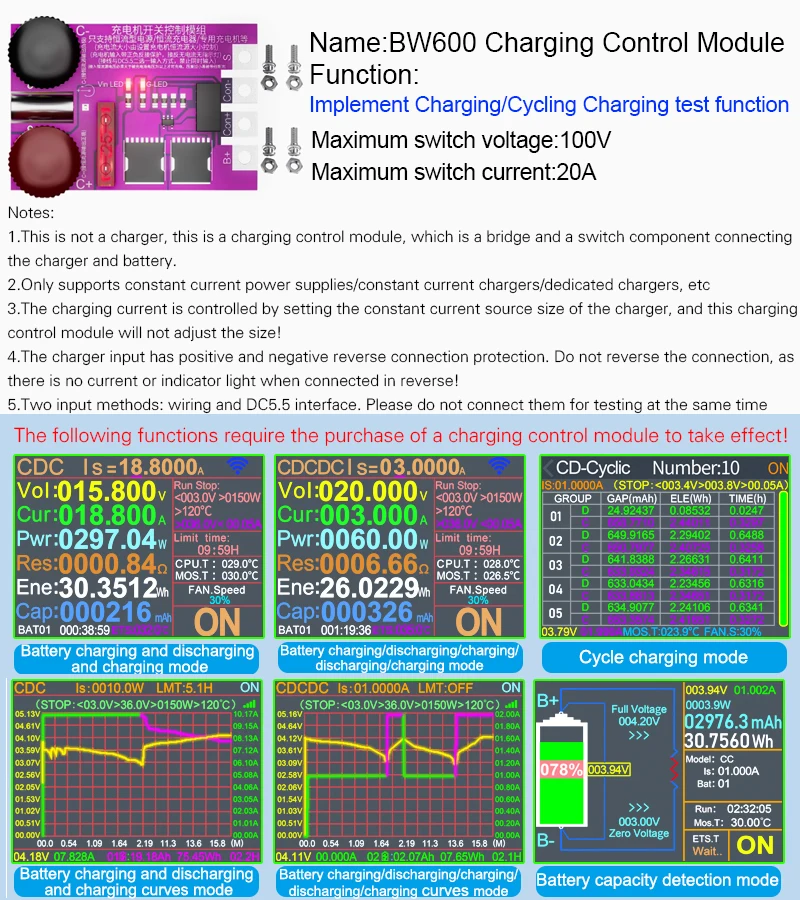

The BW600 series has upgraded to the latest feature, which supports battery charging mode measurement!
Need to purchase BW600 charging module separately!
The maximum charging current is 20A!

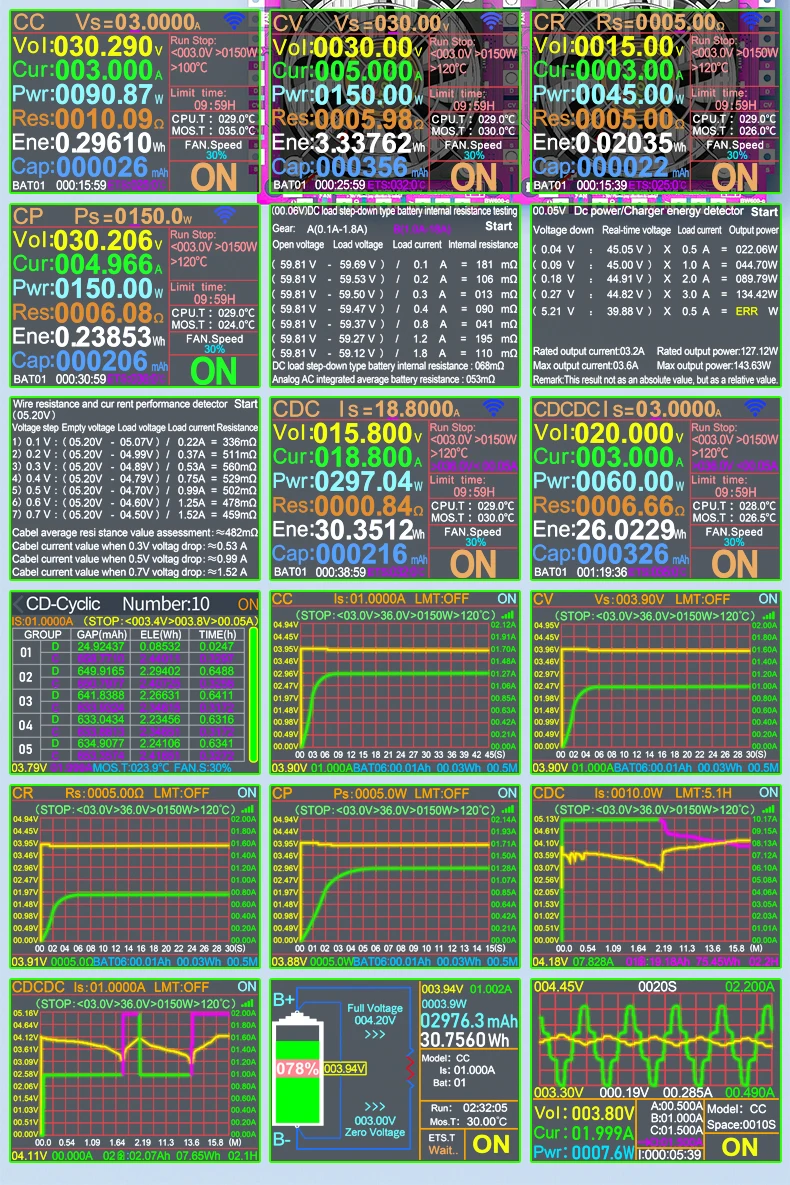

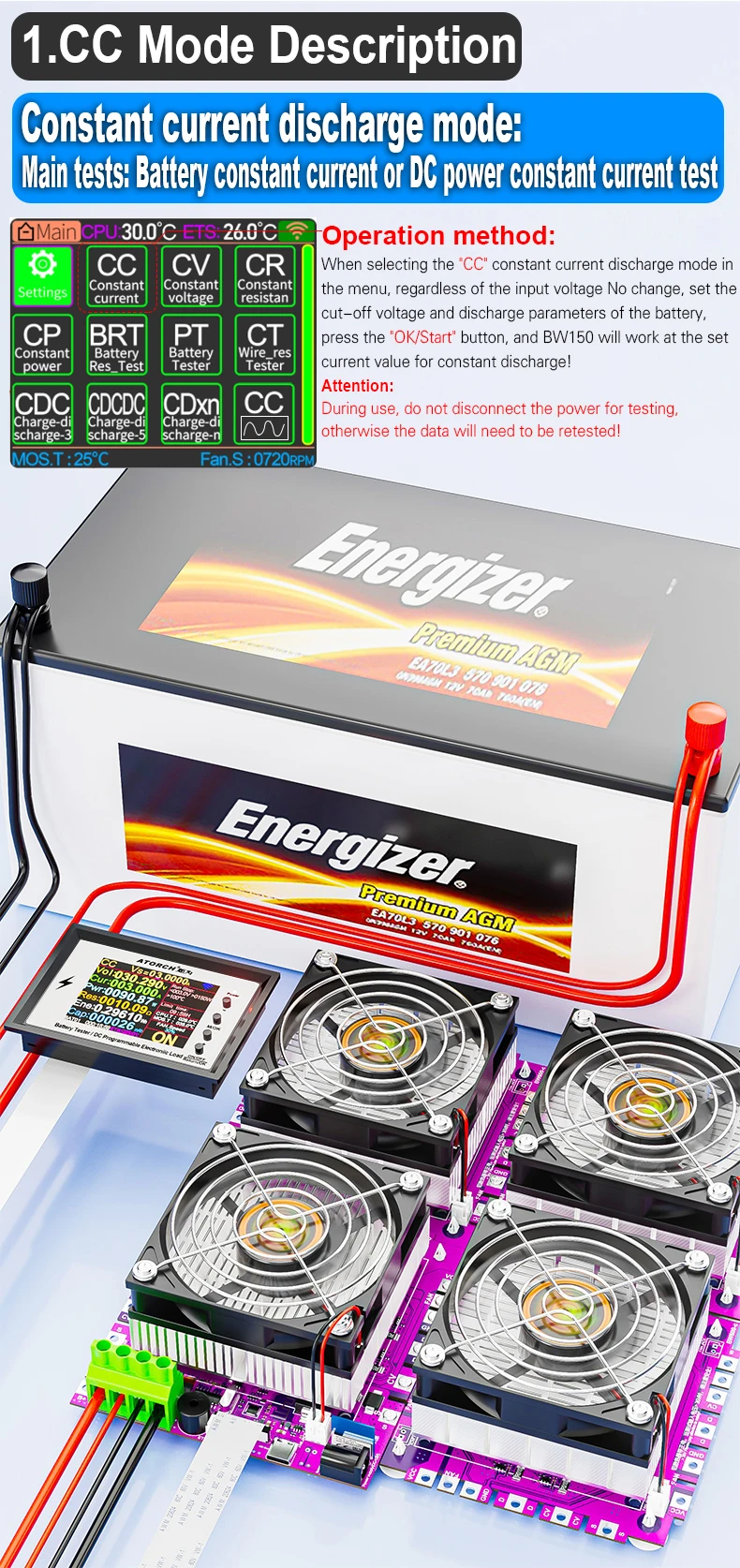

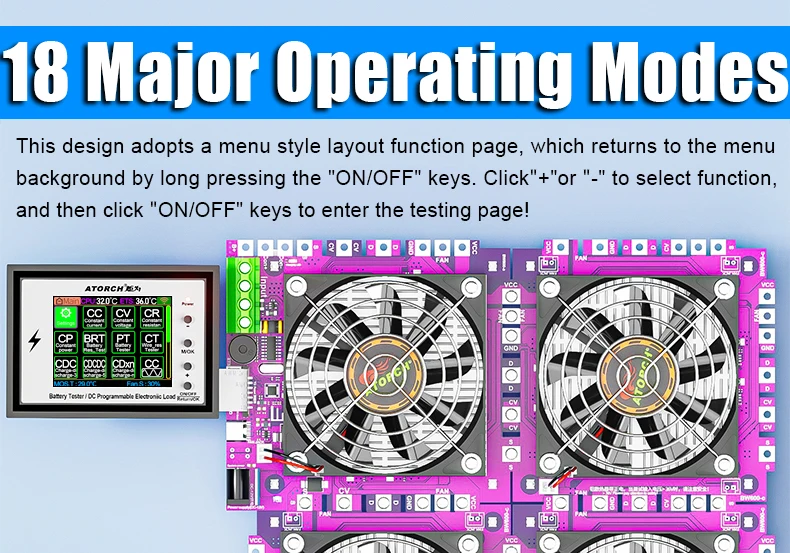

Rich and colorful measurement functions

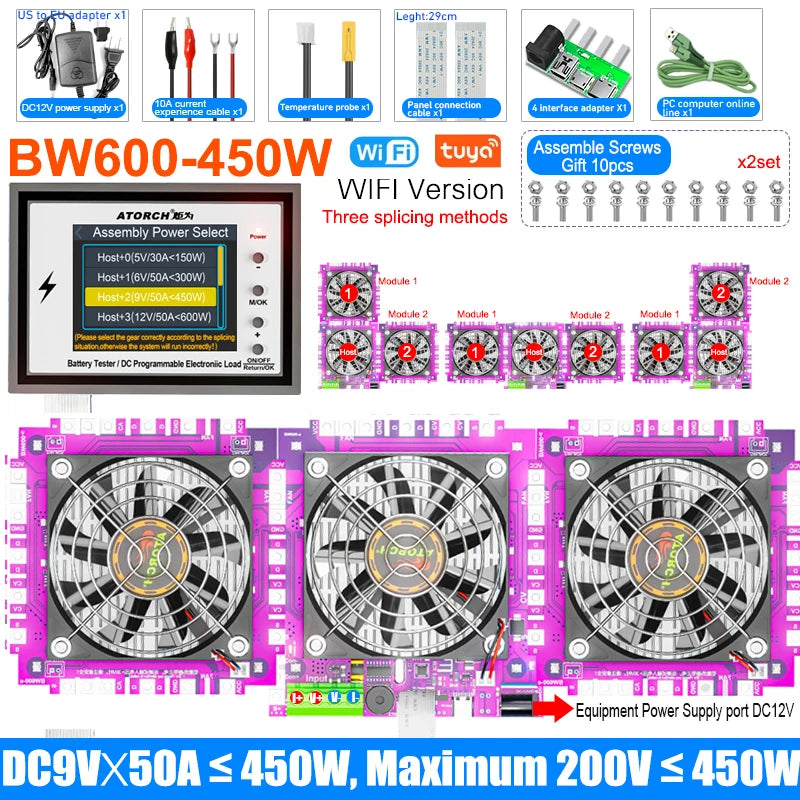

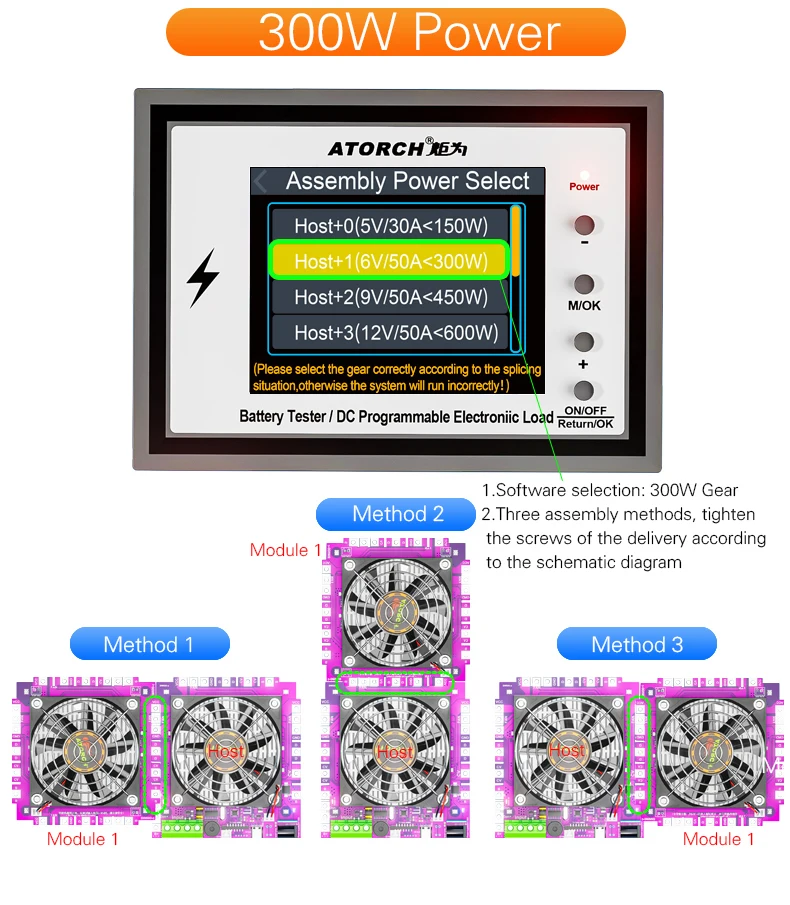

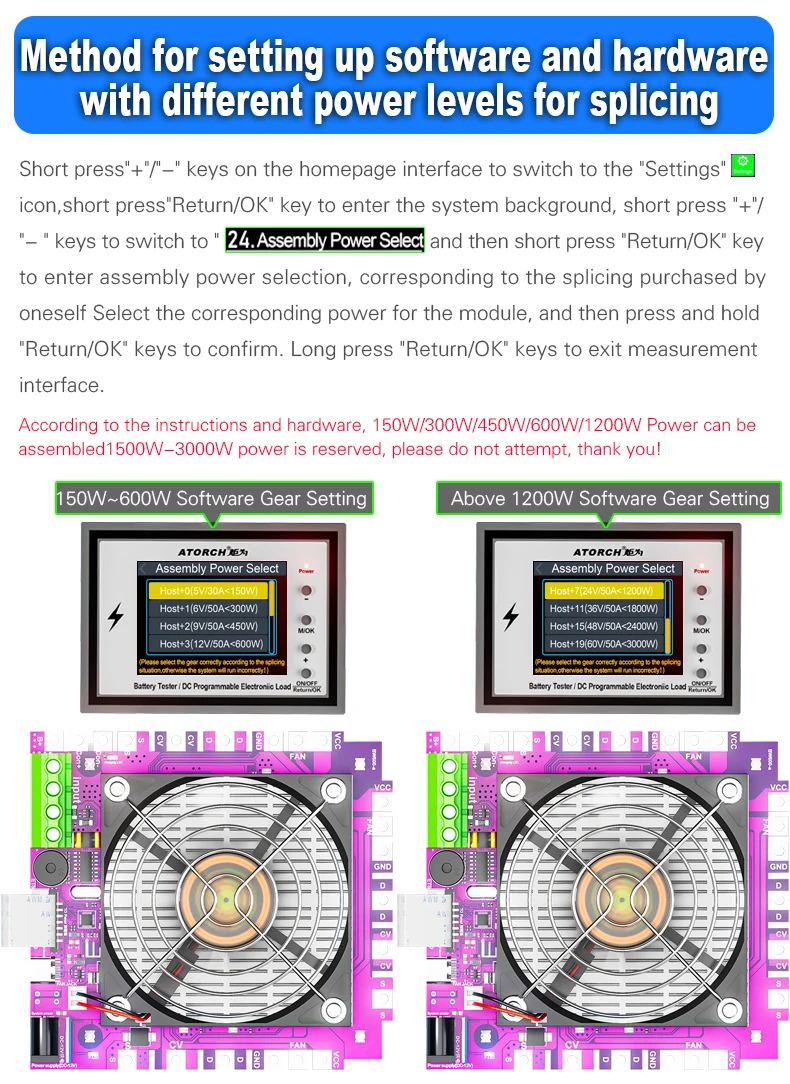

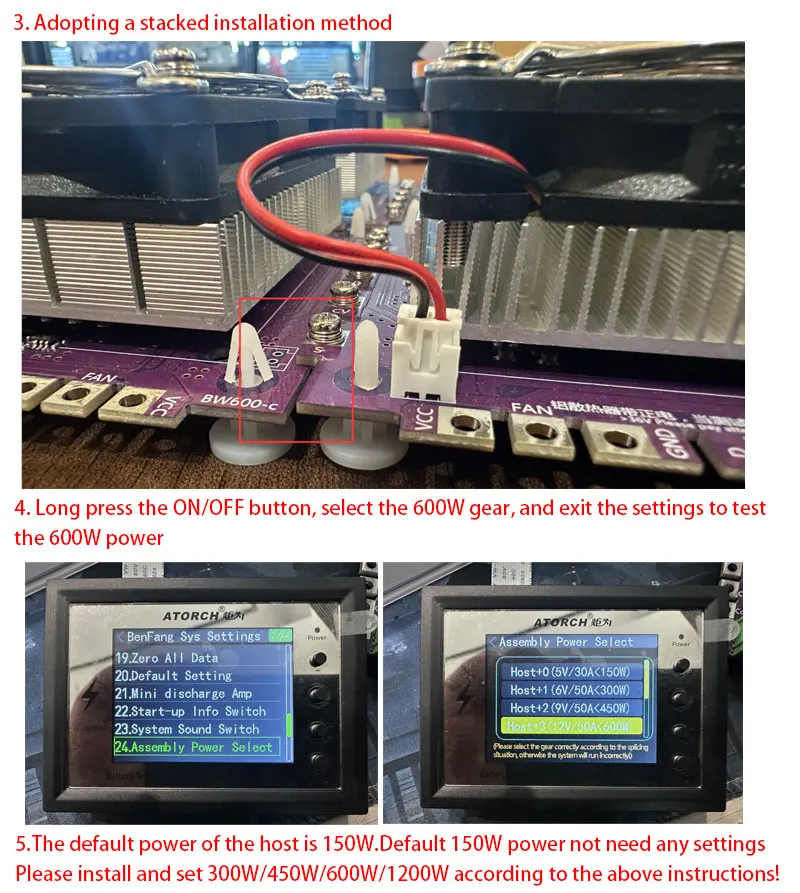

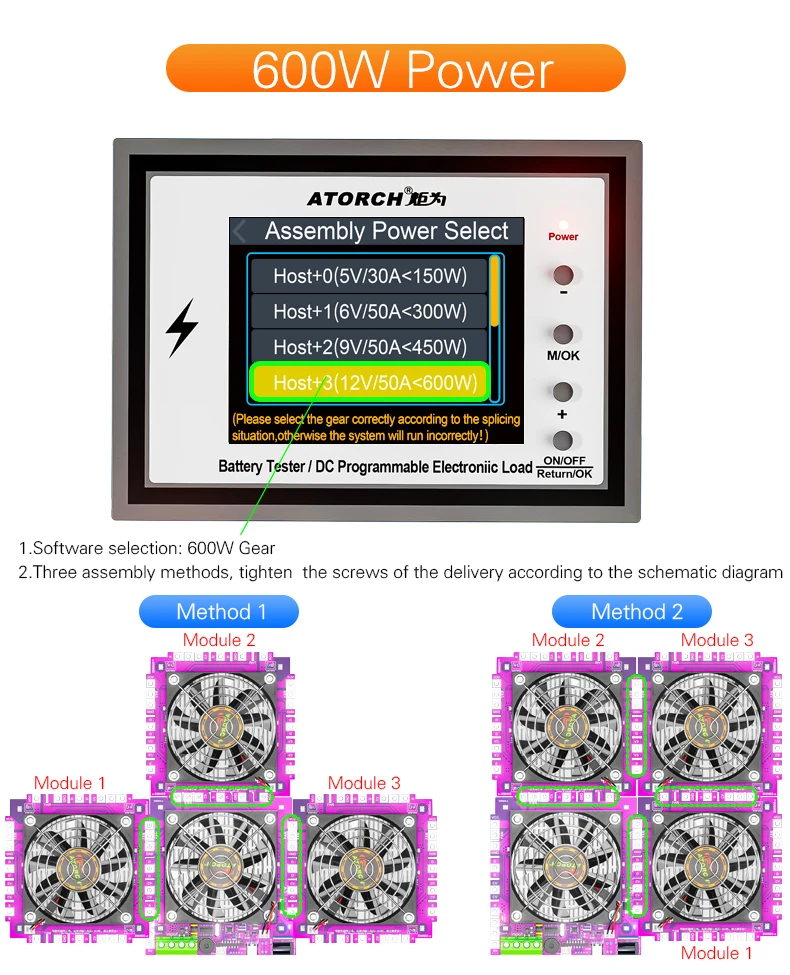

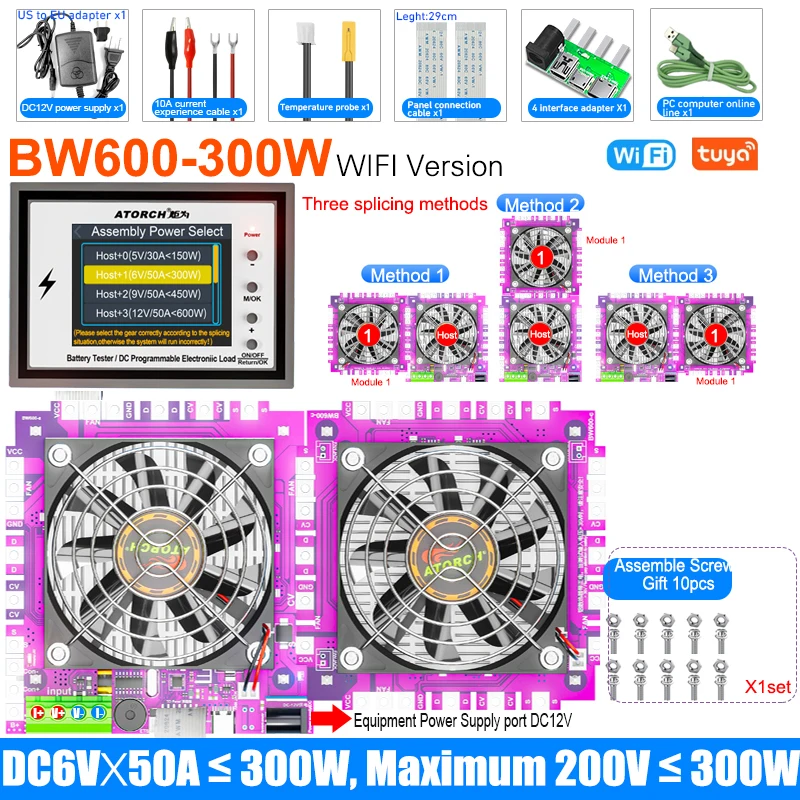

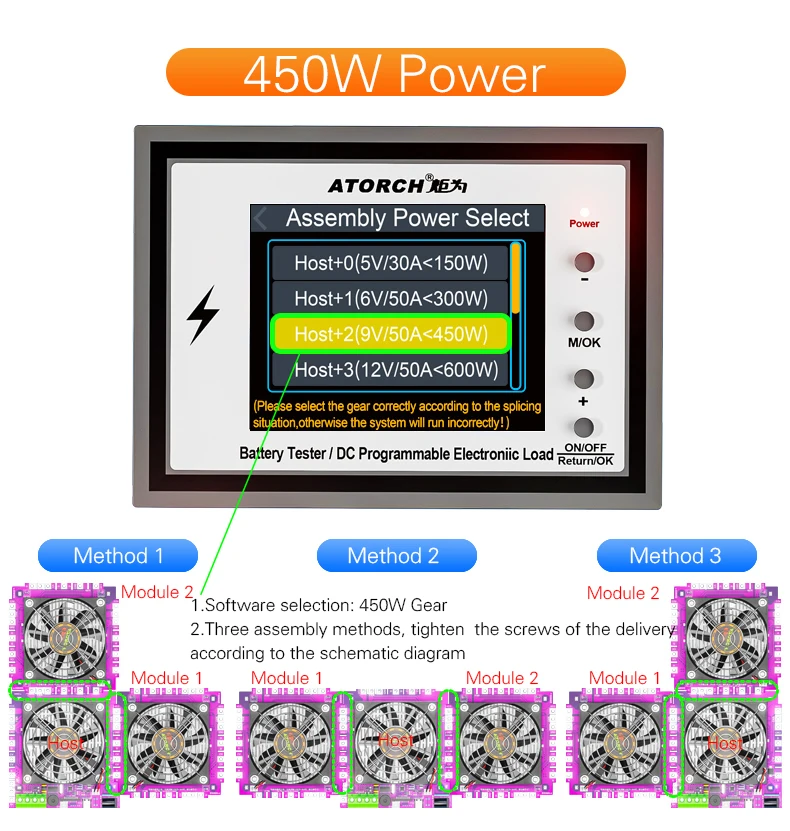

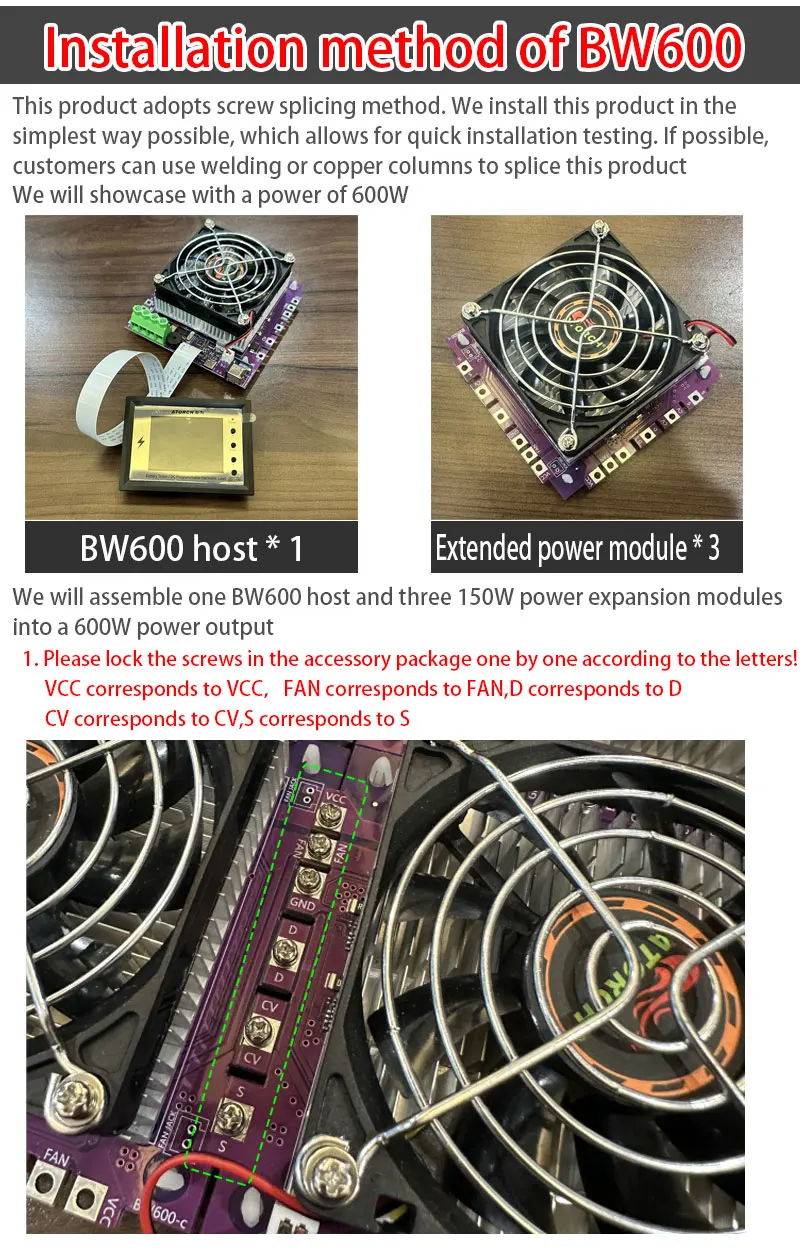

Product jumper position and Setting method(150W~600W)

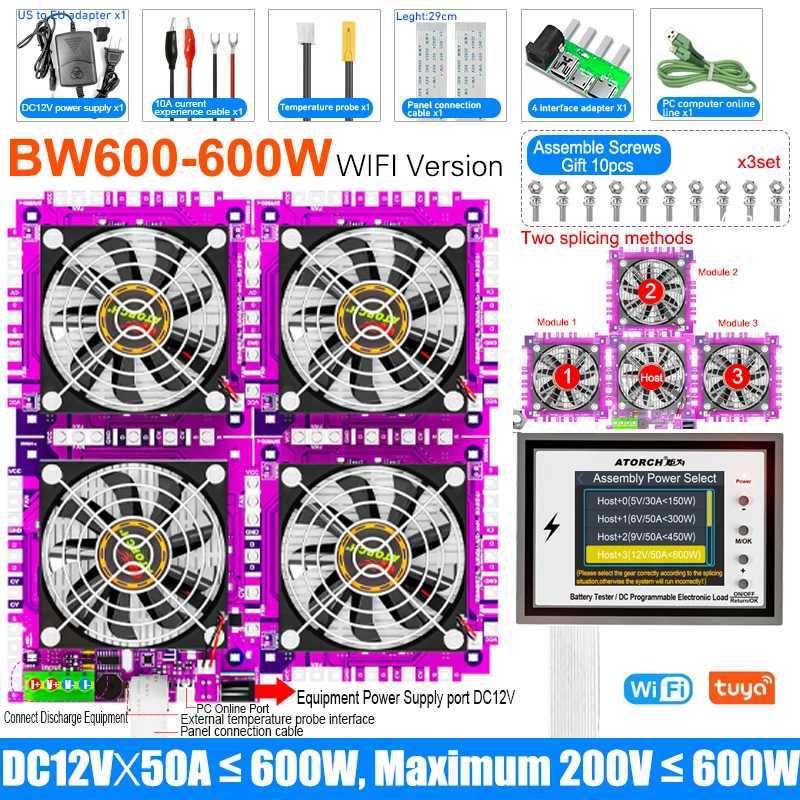

(DIY 150W / DIY 300W / DIY 450W / DIY 600W)

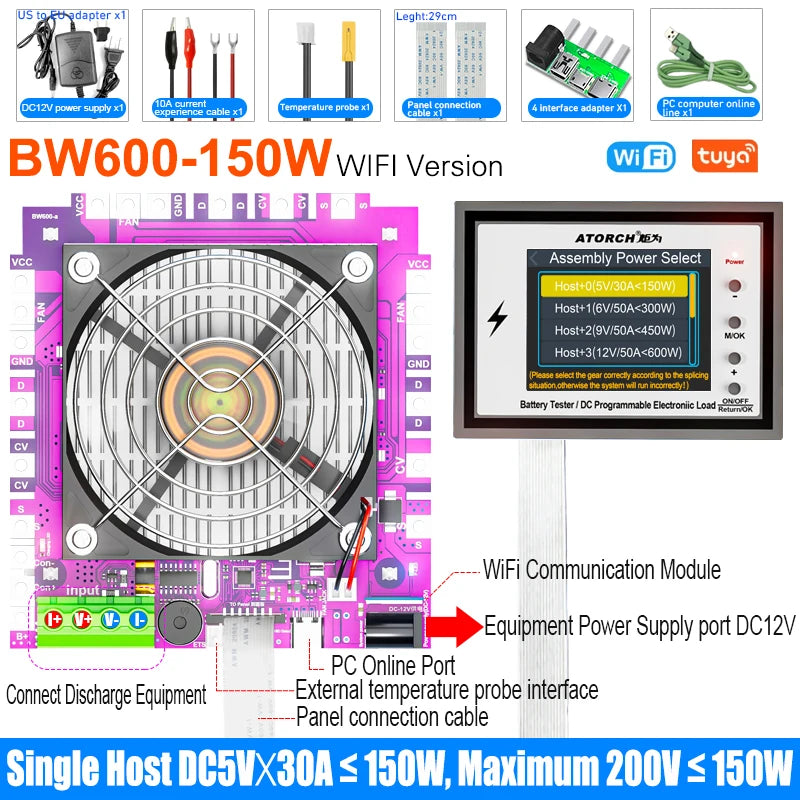

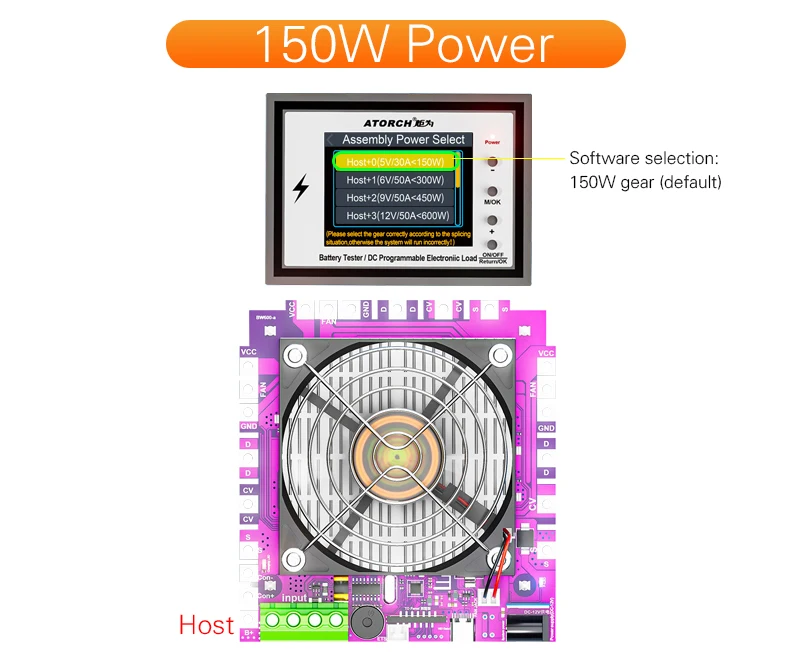

When product leave the factory, the default is: 150W (the jumper has been set to 150W)
When this product is at different powers, you need to set the jumper, please follow the following method to set！
@150W 0.02~30A (V*A<150W)
@300W 0.02~50A (V*A<300W)
@450W 0.02~50A (V*A<450W)
@600W 0.02~50A (V*A<600W)

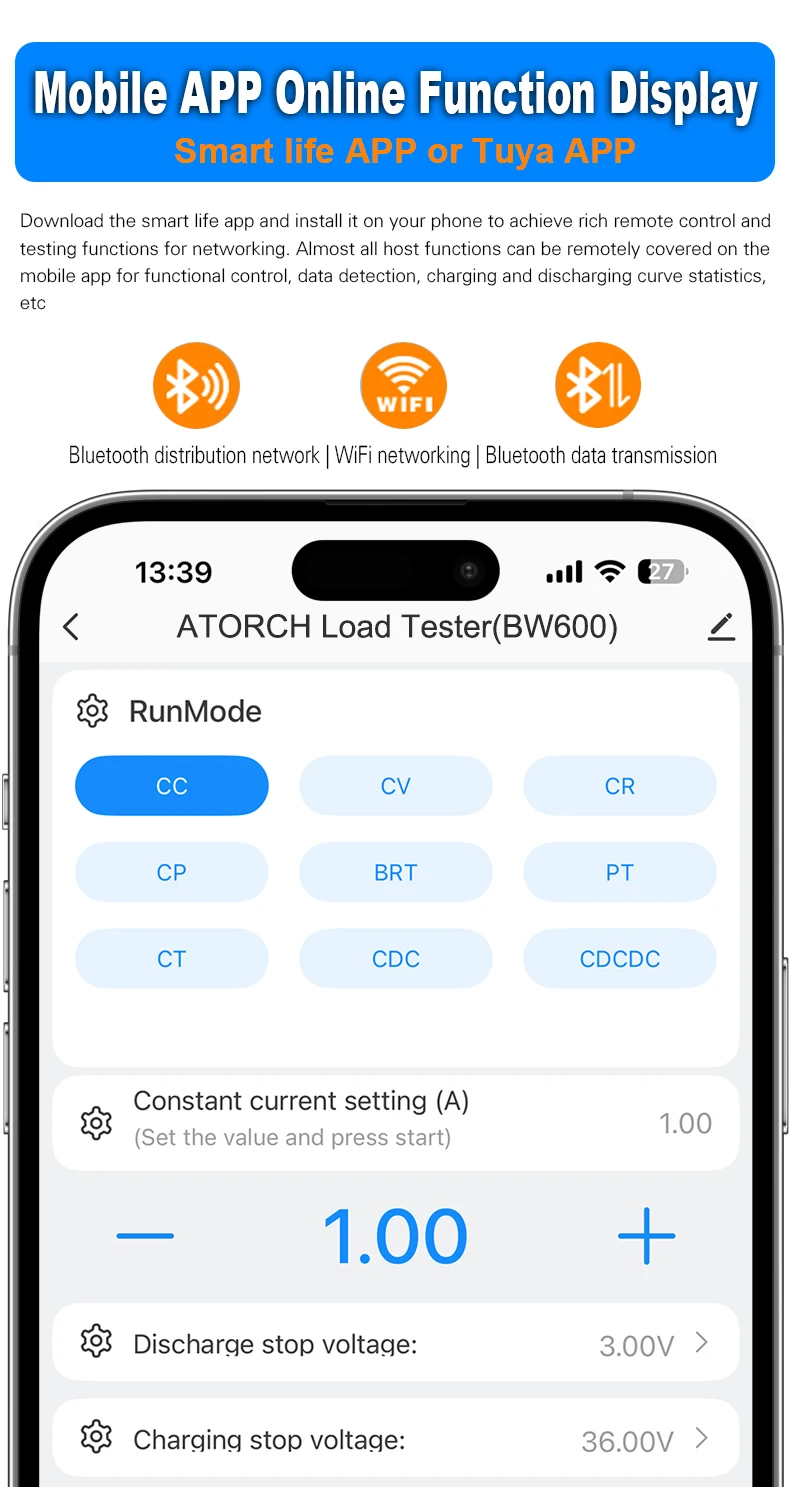

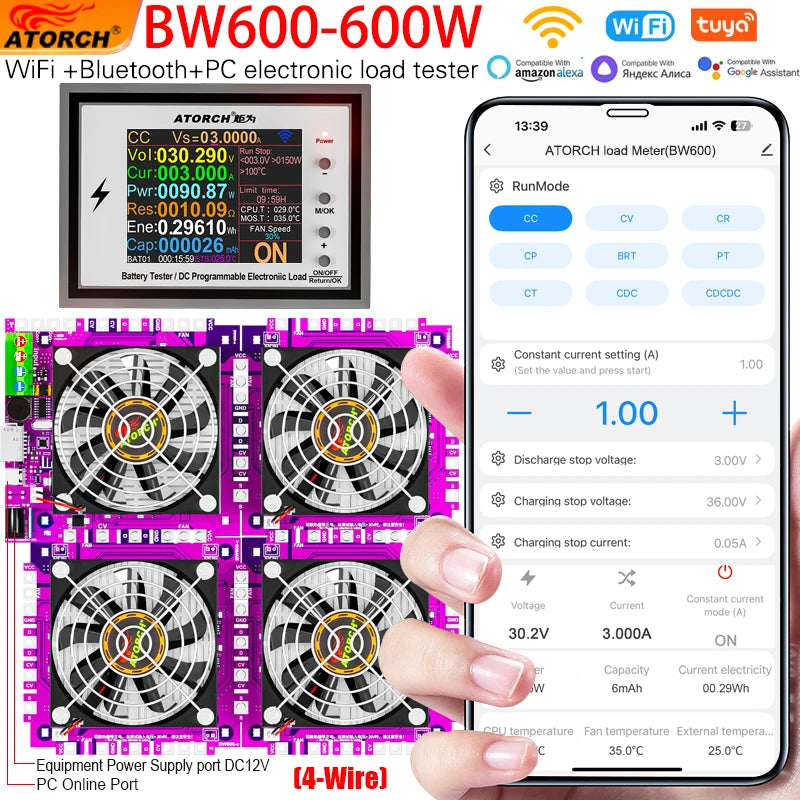

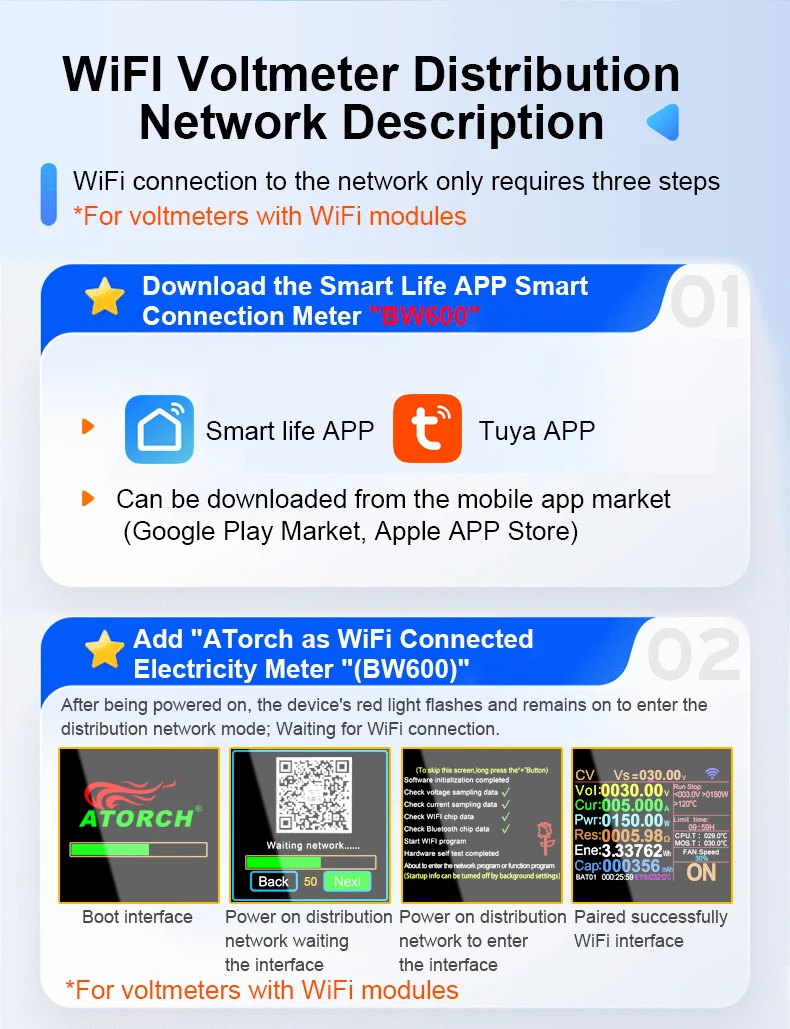

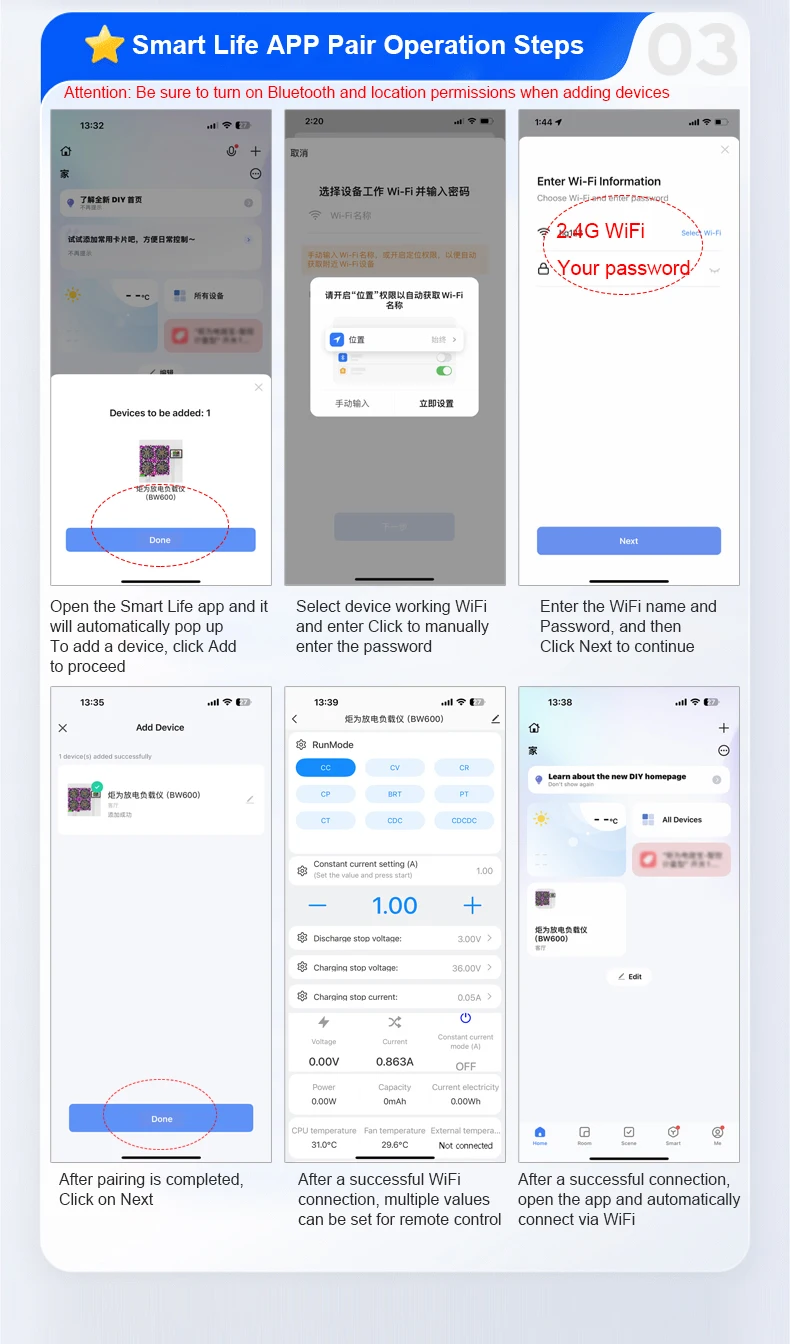

WiFi online operation pairing method

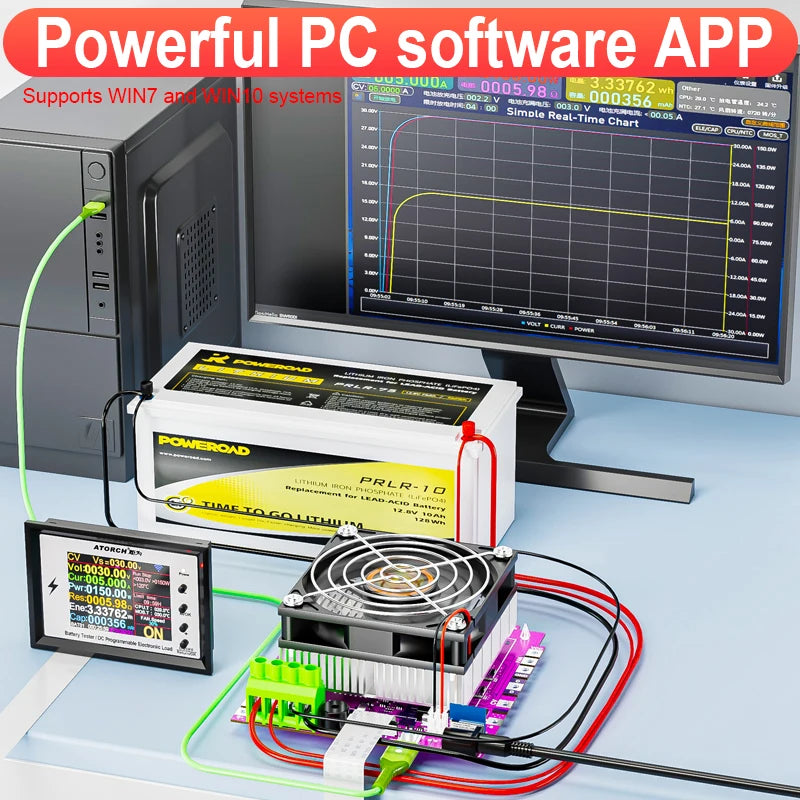

About SOFTWARE QUESTIONS:

1. The APP crashes on my phone, what is the problem ?
A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can place order, or else do not buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and Win 10 above for now. For APP, it only support android 5.0 and above.

2. Why are there _BLE and _SPP modes and which one to choose?
A：Our APP adopts the latest connection technology, please do not pair in Bluetooth mode, directly click on the E-test (Android APP name) APP provided by us, click the Bluetooth symbol, E_test (Apple APP) select the _BLE Bluetooth name to proceed connect, that's it ok!
_BLE:is connected in mobile mode
_SPP:is connected in PC computer mode

3.What is the computer pairing password?
A：Password is "0000" or "1234"

4.Does it support WIFI mode?
A：Support

5.Why does the mobile phone appear blank when opening your APP, and the signal list of _BLE cannot be displayed?
A：Please turn on the GPS positioning of your mobile phone, or in the mobile phone settings, find our APP, open the location information or storage information permission, again reconnect, that's it ok!

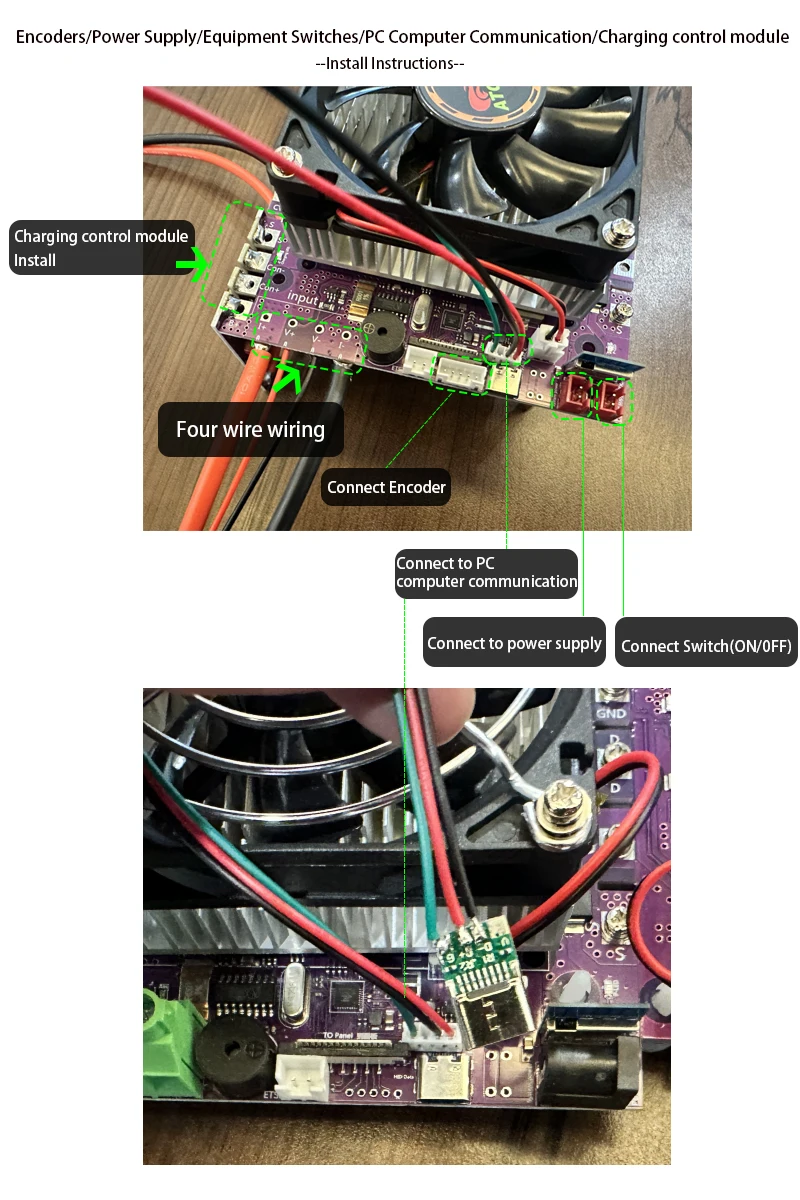

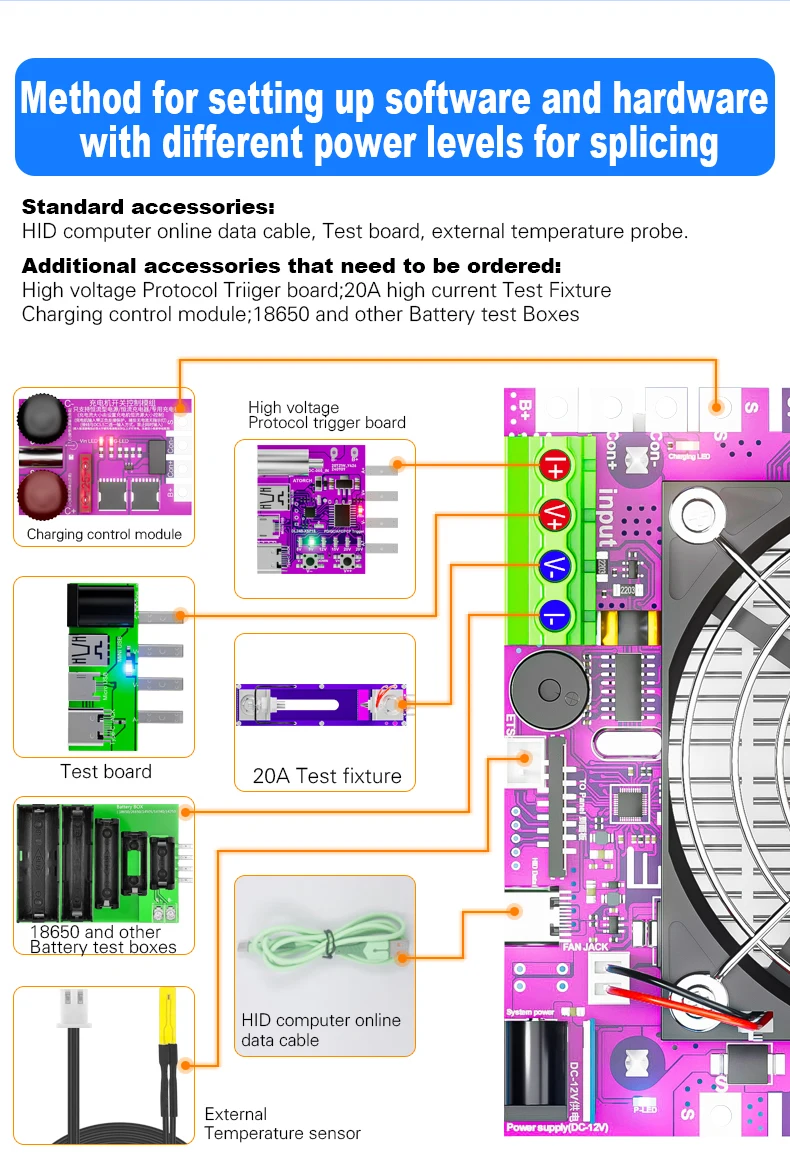

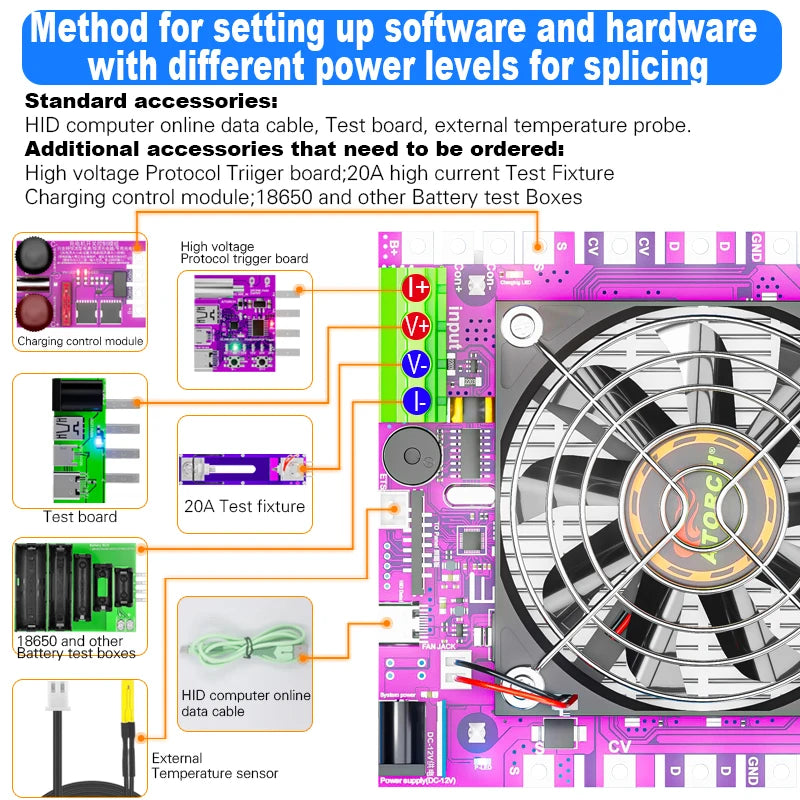

This section is about modifying the encoder and installing the charging control module, as well as the communication position, power supply, and switch position of the PC computer,
The accessories shown in the picture require additional purchase and are not for sale!
