SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Certification: NONE

Choice: yes

DIY Supplies: Electrical

Digital Channels: 1

Display Resolution: 1024*600 Pixels

High-concerned chemical: none

IS Battery Demountable: No

Model Number: Digital Oscilloscope

Origin: Mainland China

Semi-finishedproduct: Yes

Features:

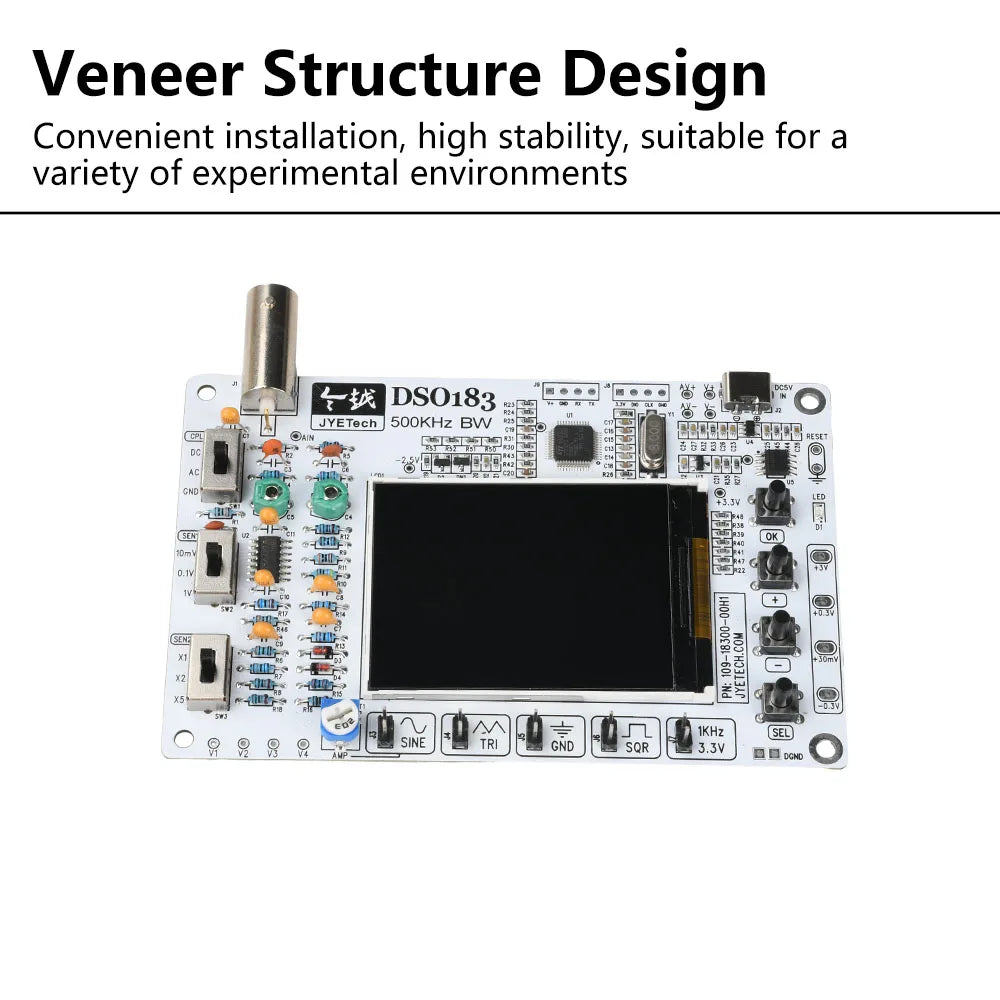

1. Single-board structure design: compact integrated structure, convenient installation, high stability, suitable for a variety of experimental environments

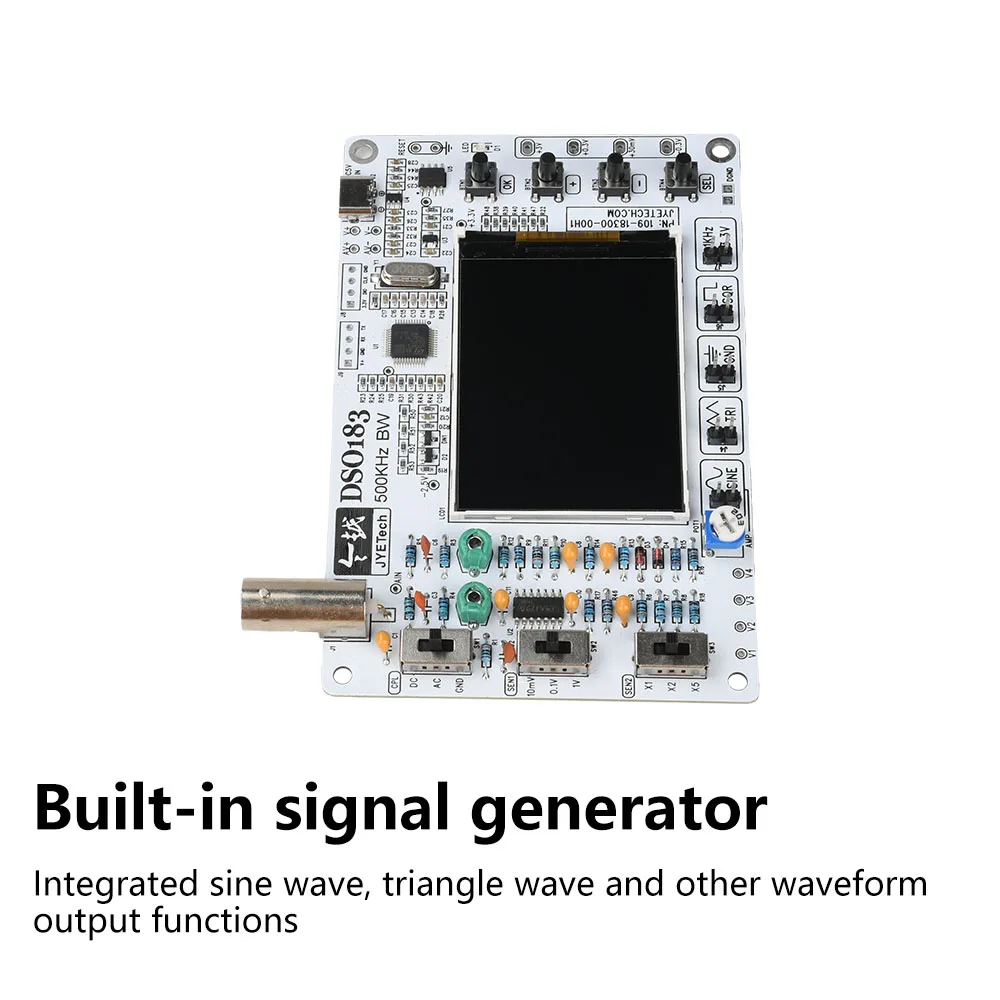

2. Built-in signal generator: integrates sine wave, triangle wave and other waveform output functions to meet diversified testing needs.

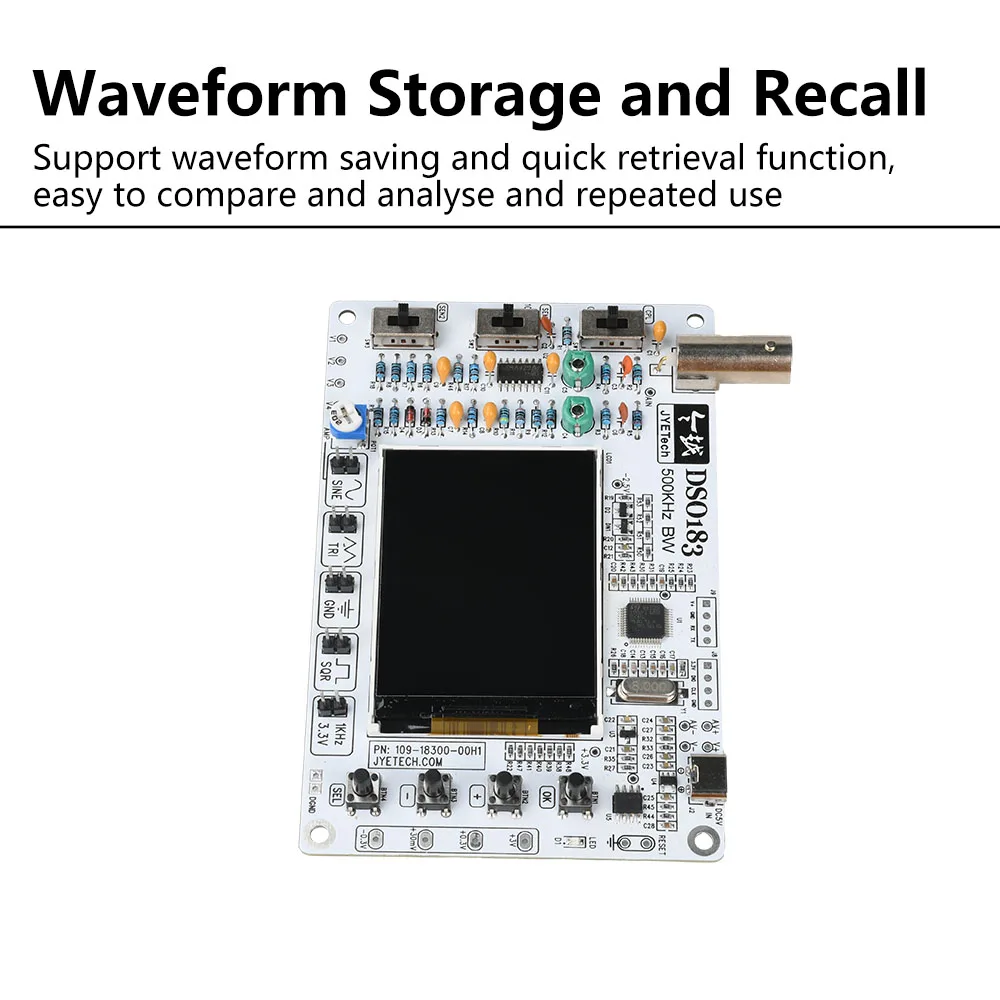

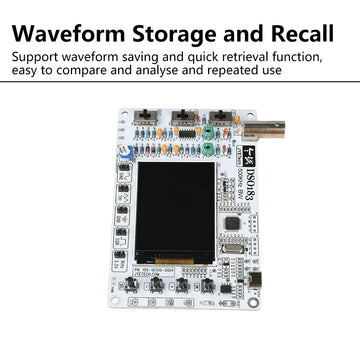

3. Waveform storage and recall: supports waveform saving and quick call-out function, which is convenient for comparative analysis and repeated use.

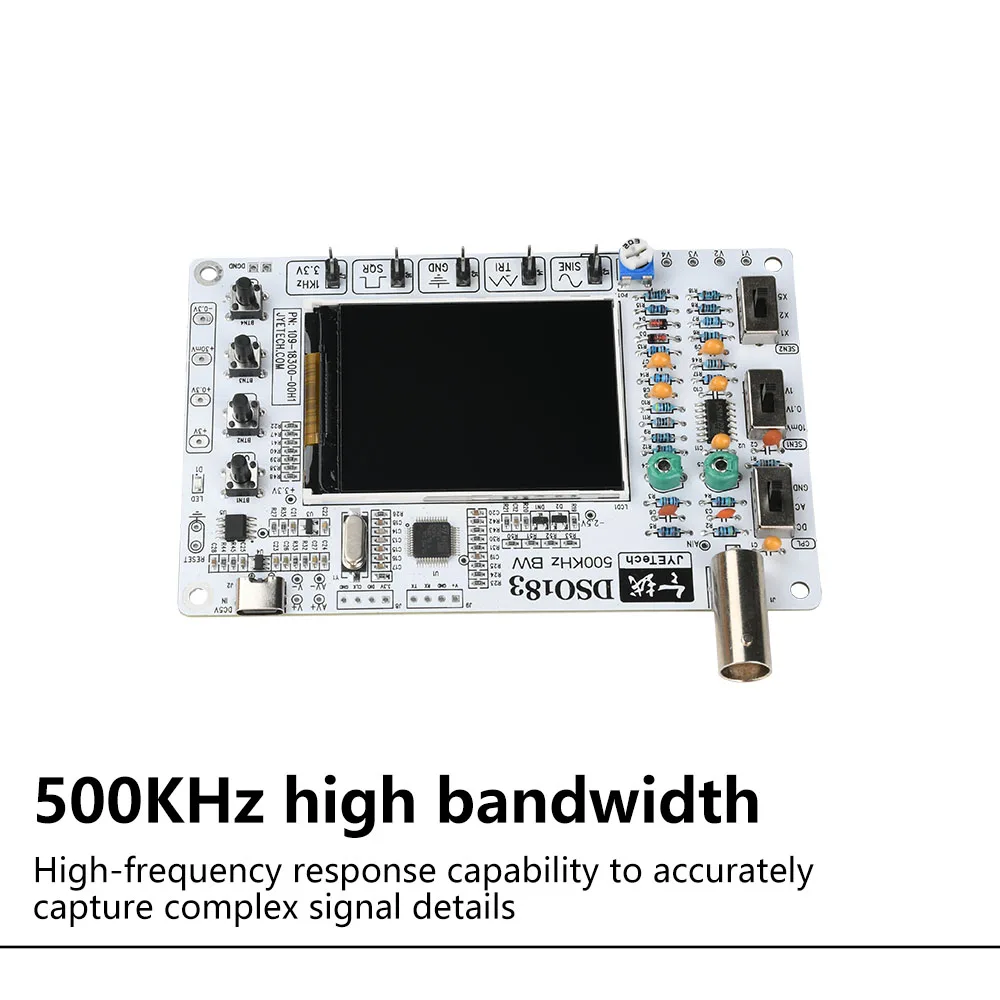

4.500KHz high bandwidth: high-frequency response capability, accurately capture the details of complex signals.

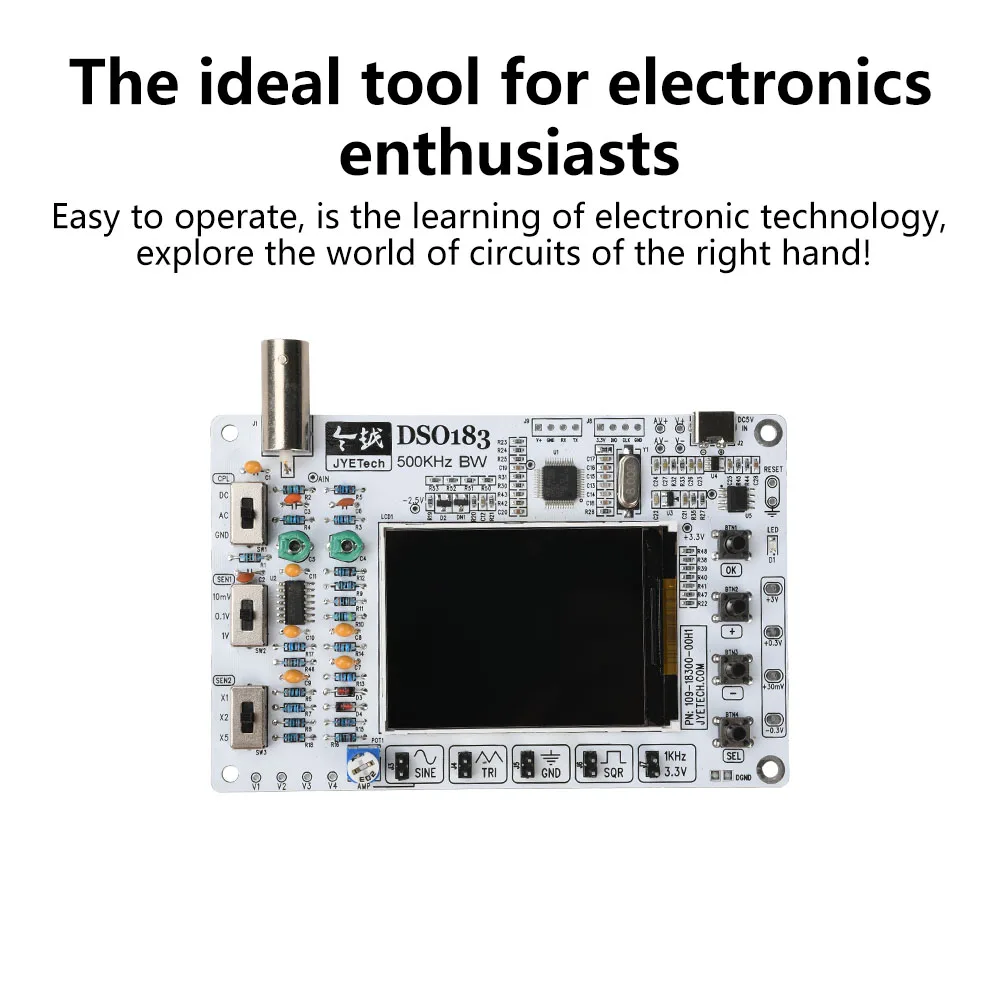

5. Ideal tool for electronic enthusiasts: easy to operate, powerful, a powerful assistant for learning electronic technology and exploring the world of circuits.

Bandwidth: 500KHz

ADC Accuracy: 12Bit

Real-time Sampling Rate: 1.5Msps

Waveform Buffer Length: 1024 points

Vertical Sensitivity Range: 10mV/gram-5V/gram

Input Impedance: 1MΩ

Maximum Input Voltage: 50Vpk

Coupling Mode: DC, AC, GND

Horizontal Time Base Range: 1us/gram-500s/gram

Trigger Mode: Auto, Conventional , Single

Trigger Edge: 1us/gram-500s/gram

Power Supply: DC 5V (via USB [Type C interface])

Current Consumption: <100mA

Product Dimensions: 118*76*12mm

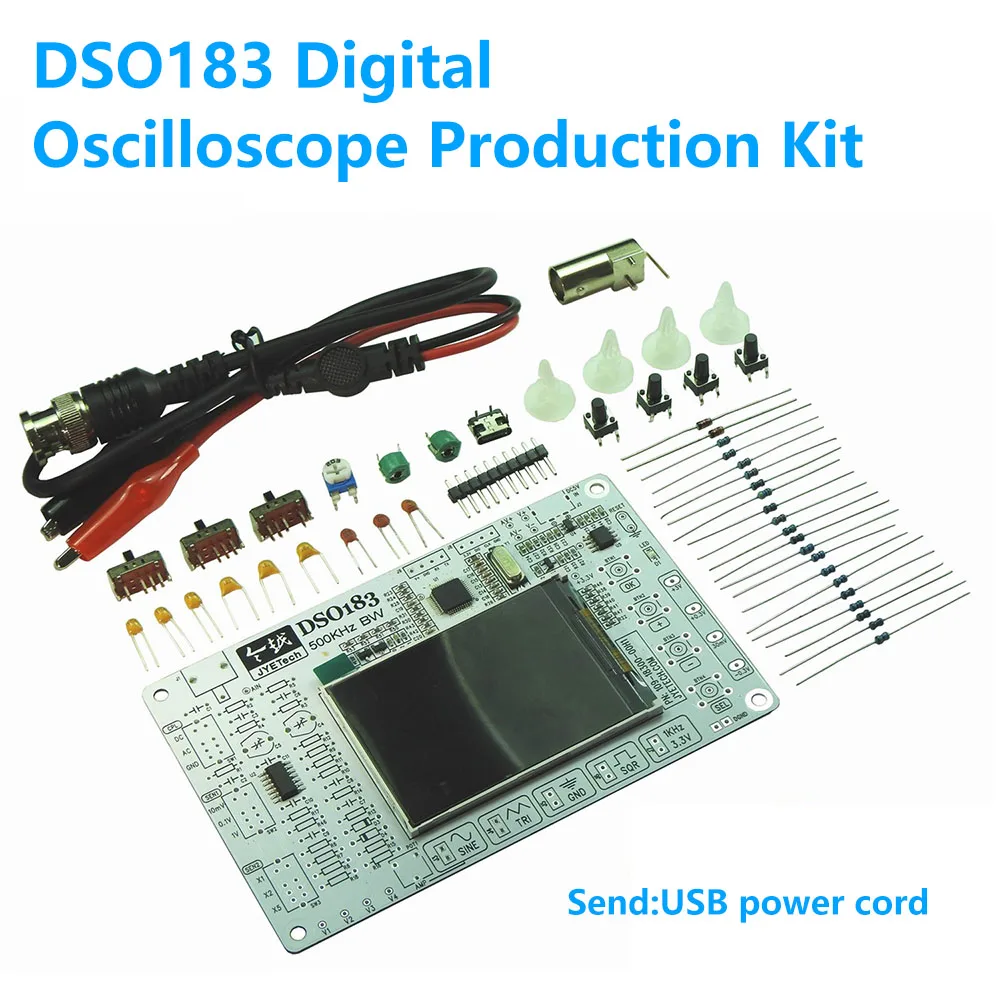

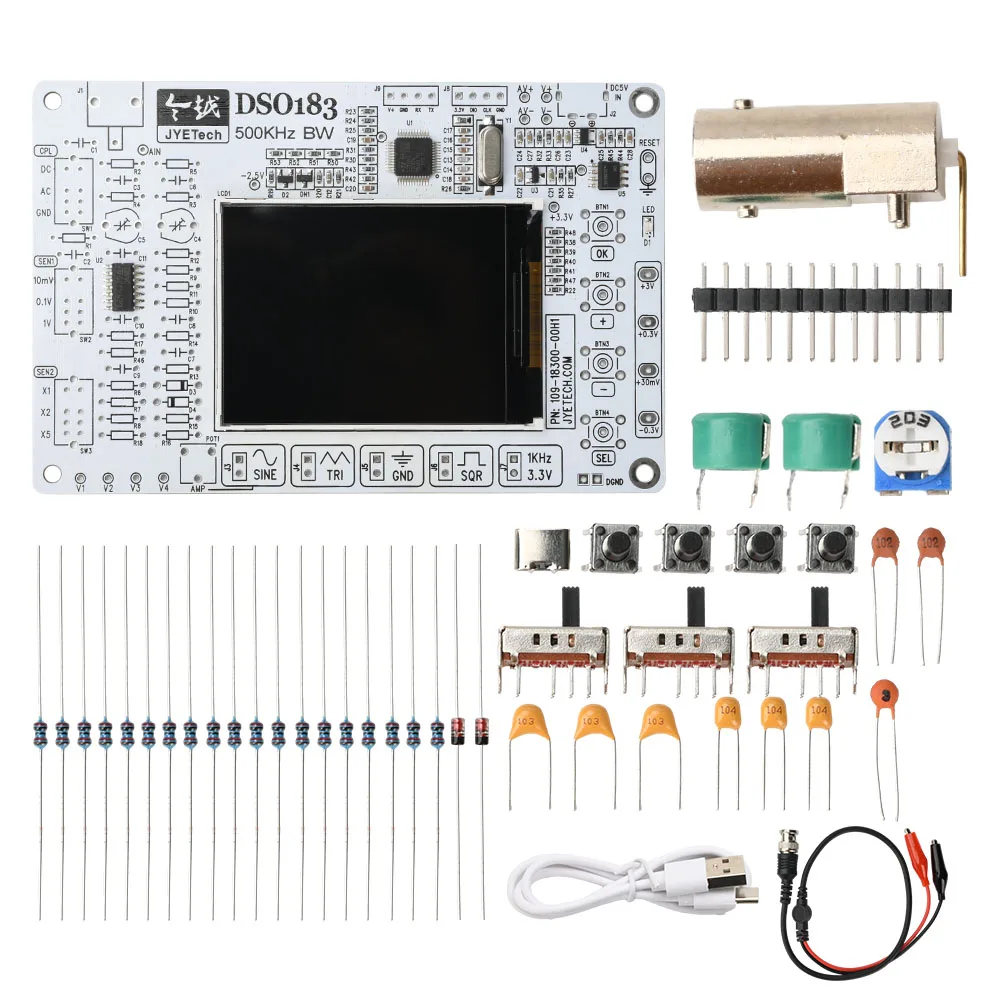

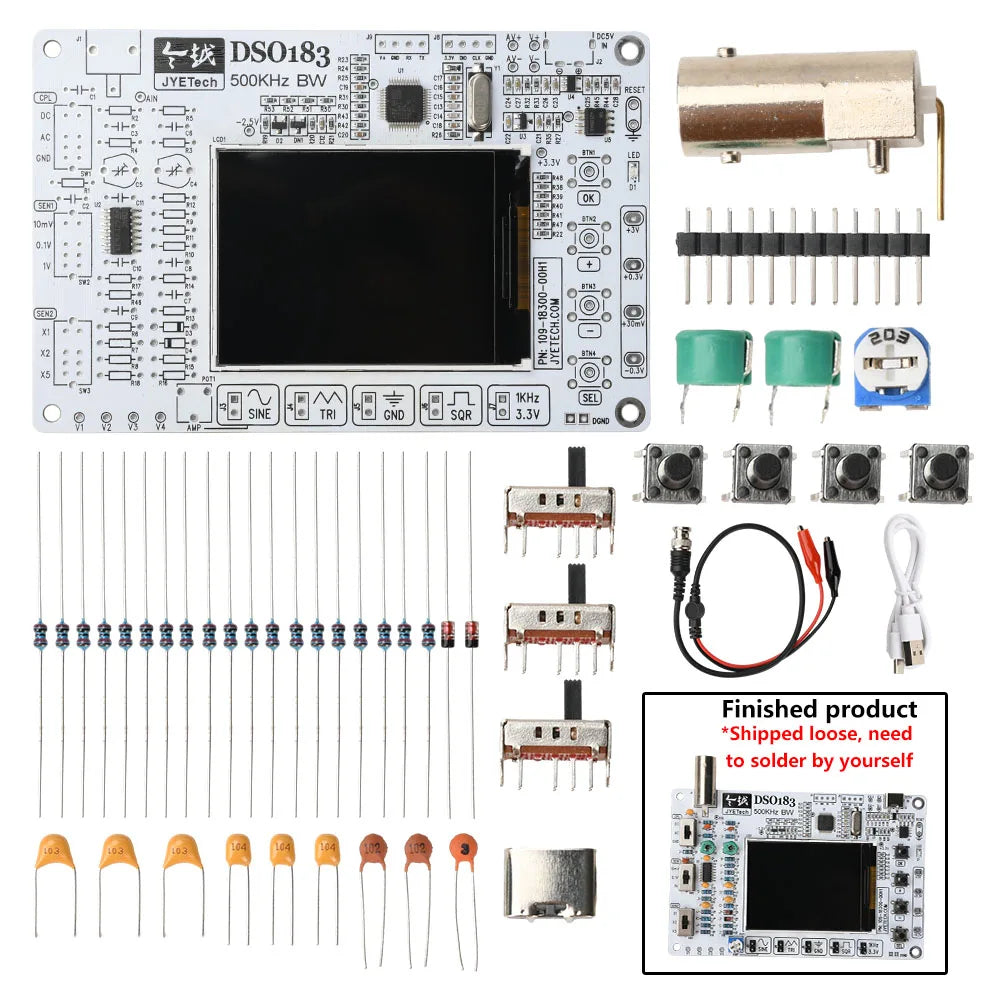

Package include:

DIY loose parts*1
