Air Volume: 65.26
Bearing: Fluid Bearing
Blade Quantity: 9
Brand Name: NONE
Certification: CE,RoHS
Choice: yes
Fan Life: 100000 hrs
Fan Size: 120mm
Fan Speed: 700 - 2400
High-concerned chemical: none
Model Number: ZB-360
Noise: 30dBA
Origin: Mainland China
Package: Yes
Power (W): 4.44
Power Interface: 4PIN
Series: ZB-360

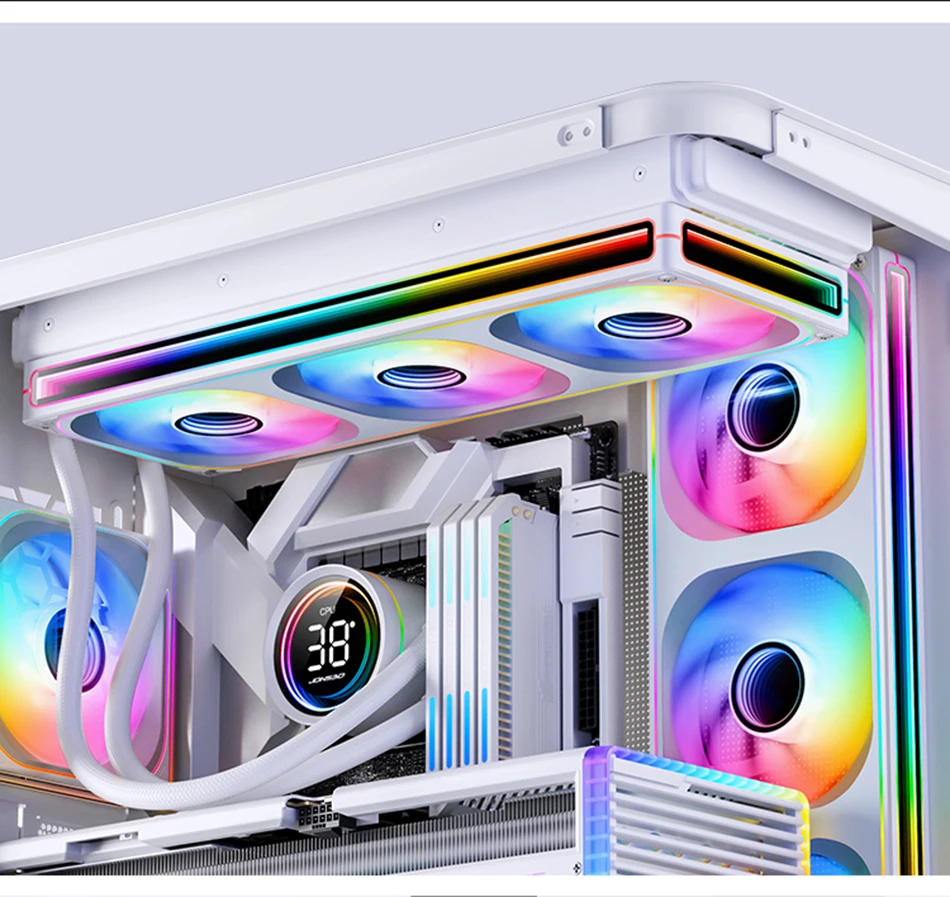

Used For: Case,Radiator
Voltage: 12V
ZA/ZB-360 fans require your motherboard or controller to support at least 68 LED chips (some motherboards support adjusting the number of LED chips)

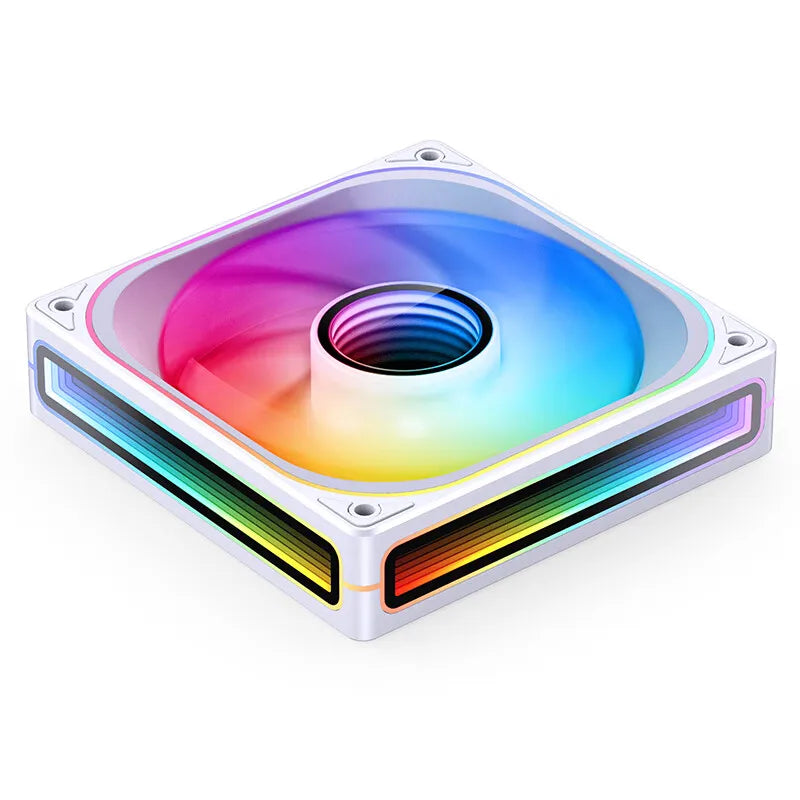

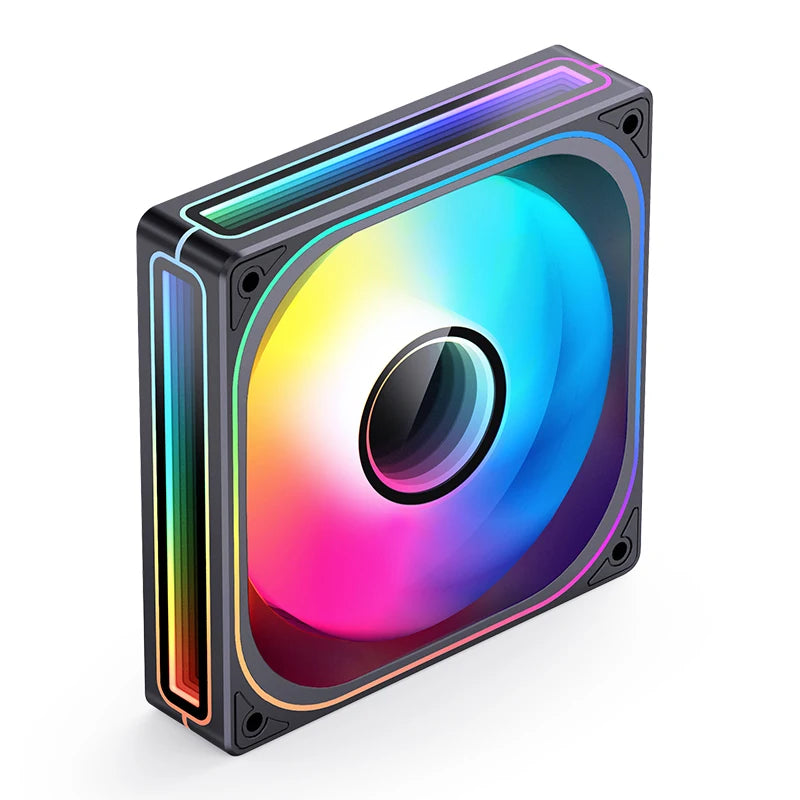

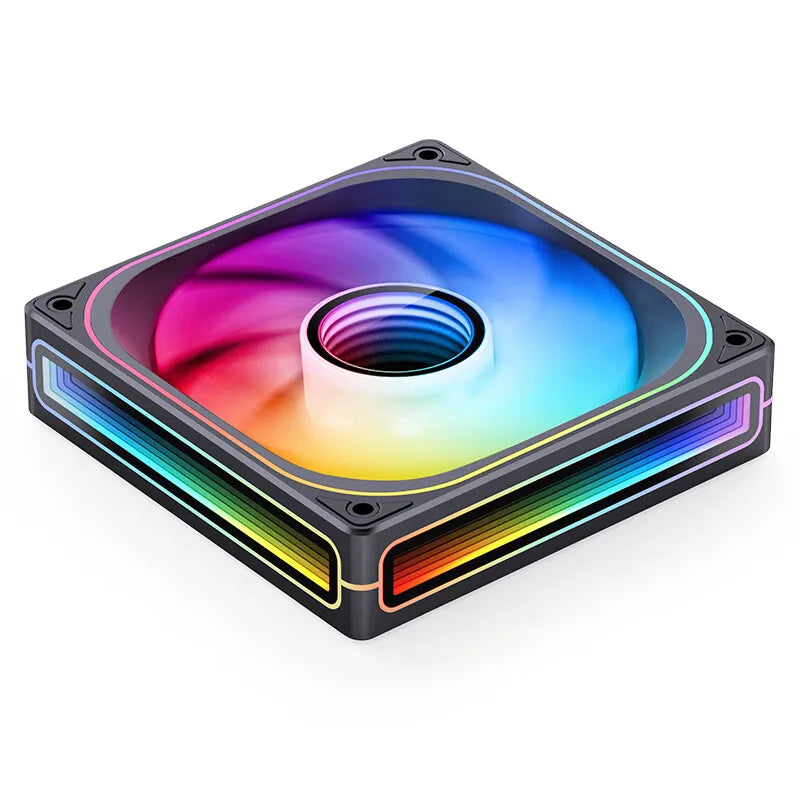

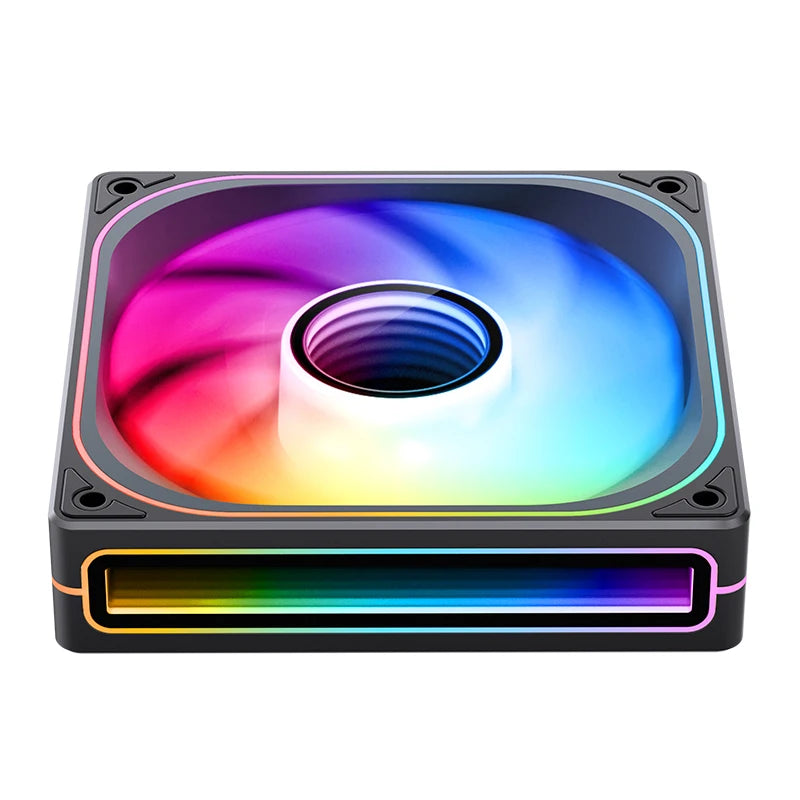

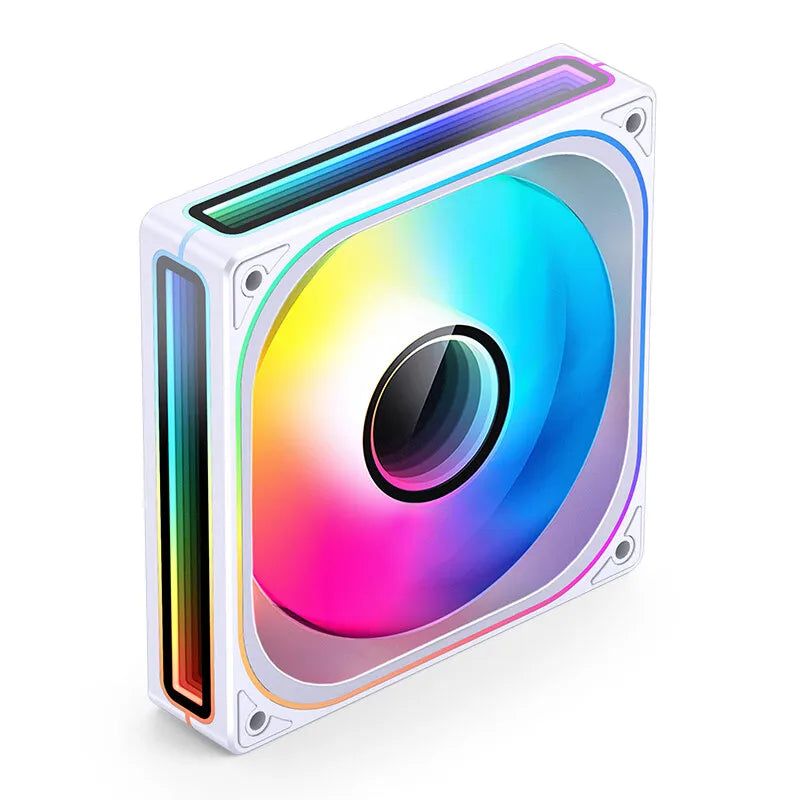

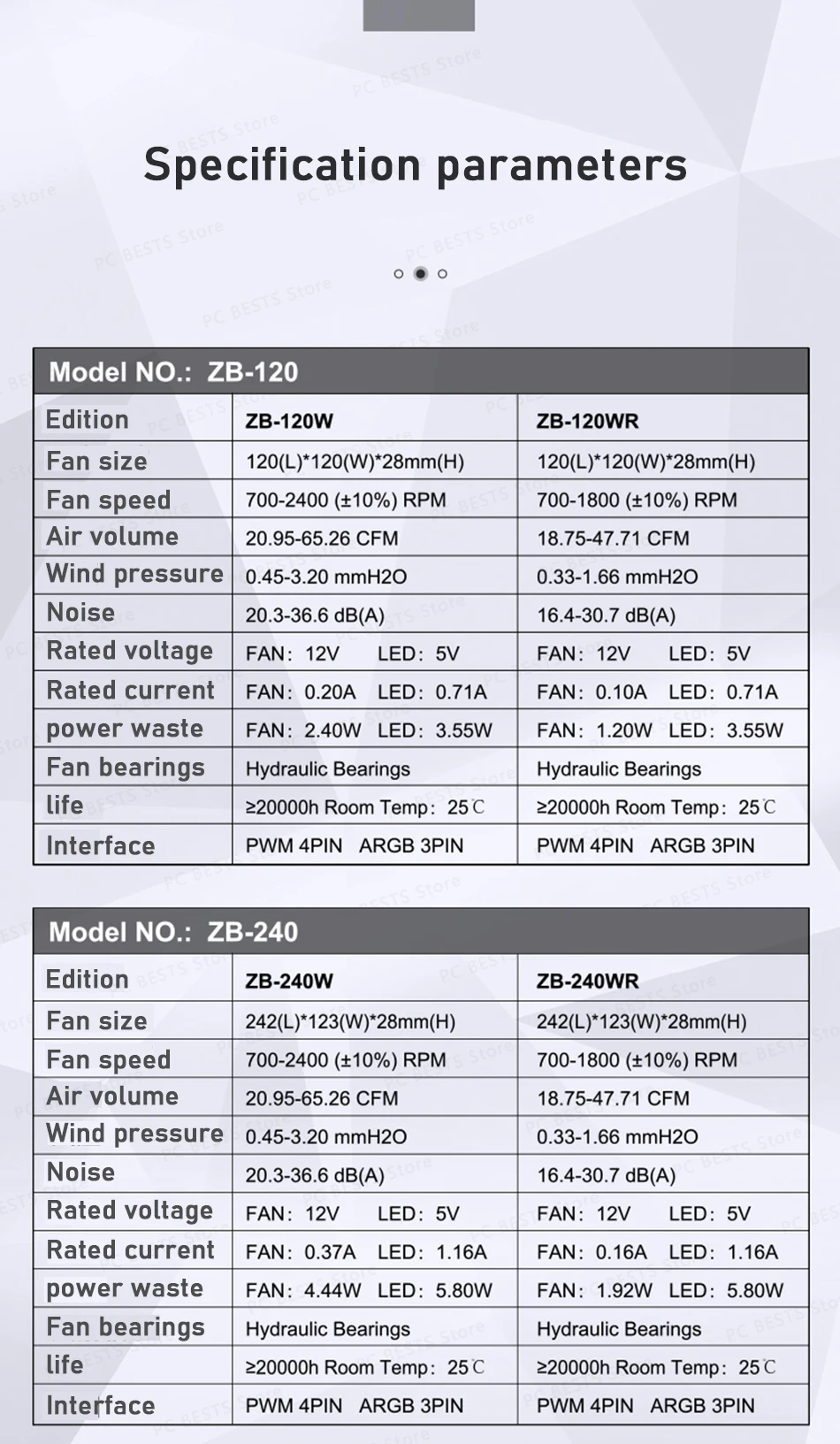

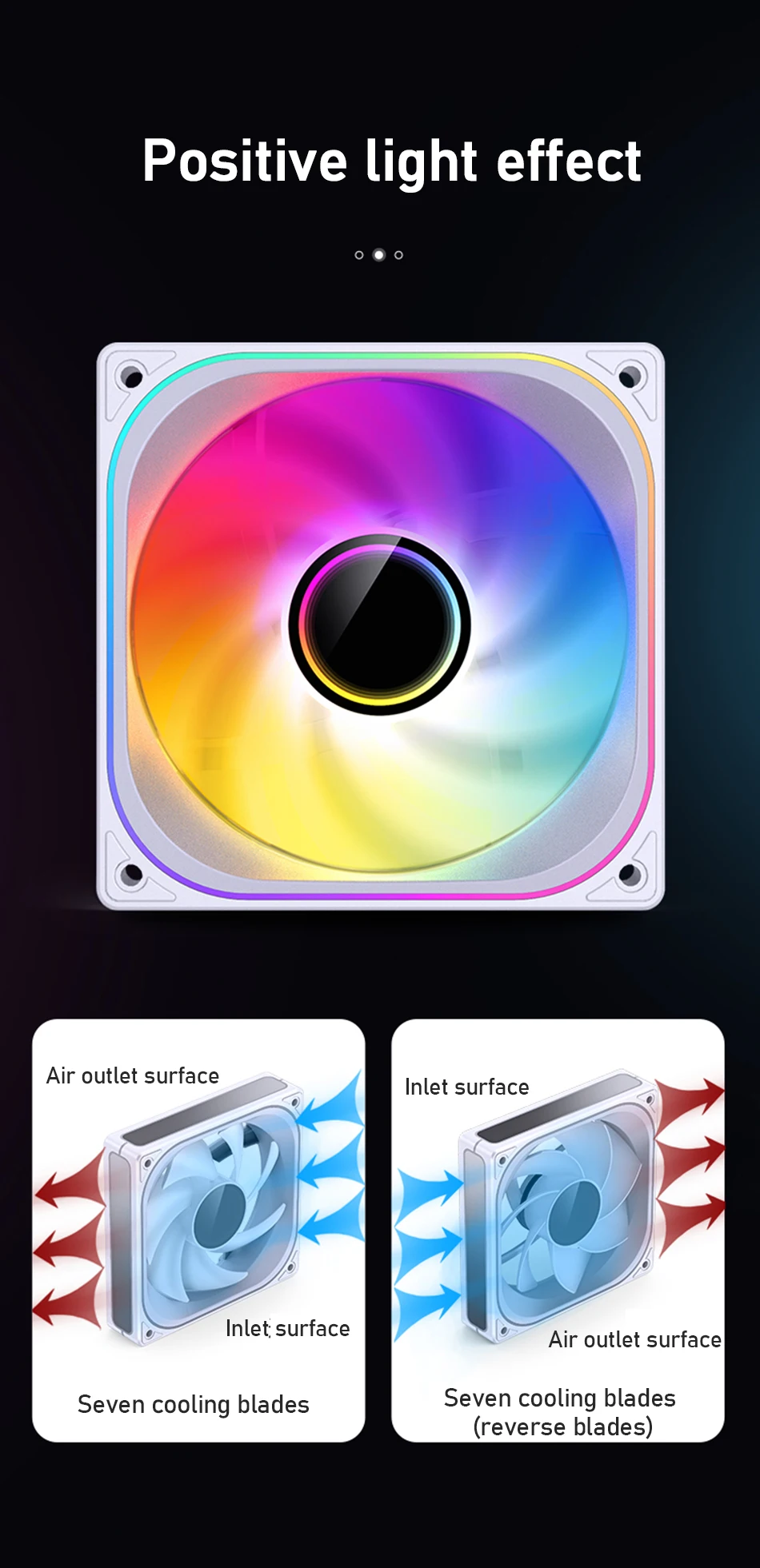

ZB-120
Fan size: 120mm (L) * 120mm (W) * 28mm (H)

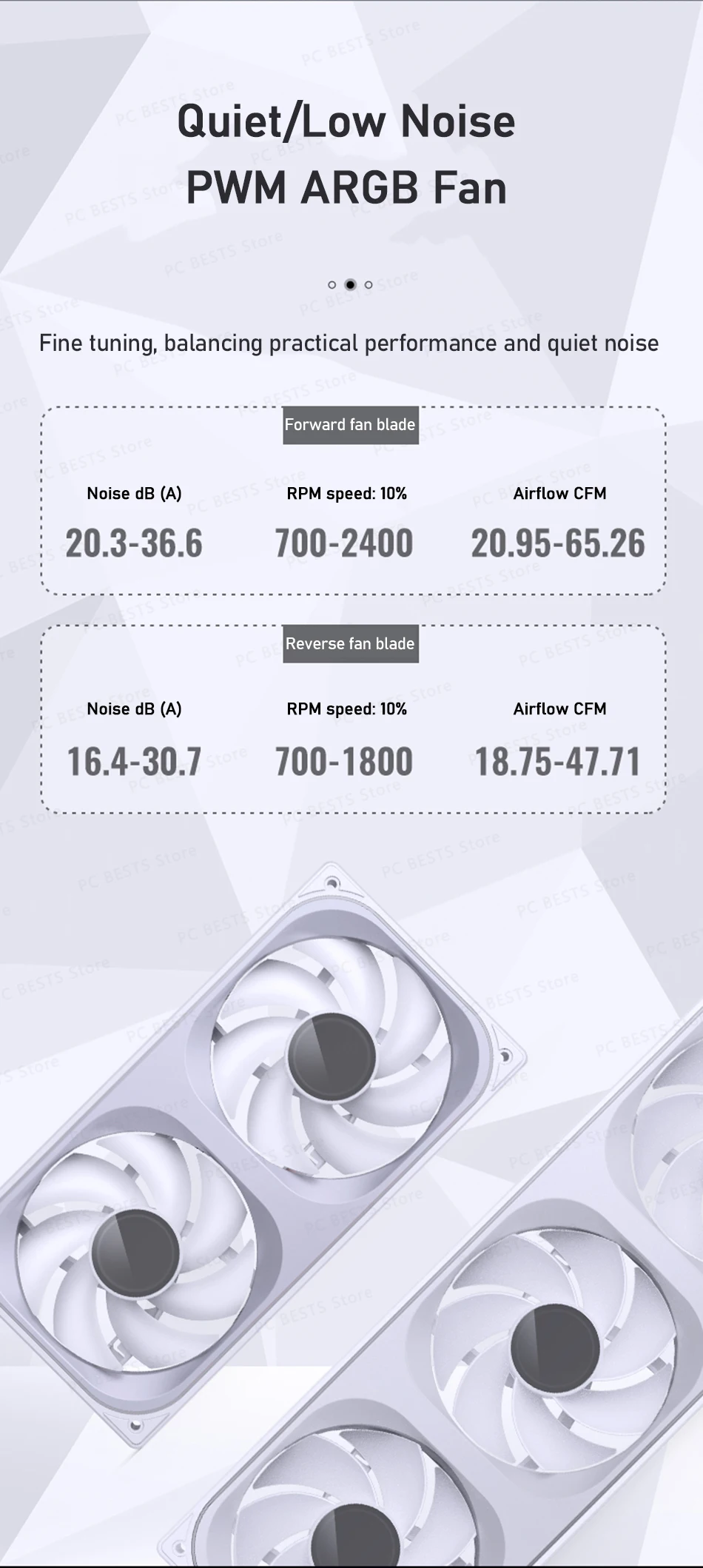

Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.20A LED 0.71A
Power: FAN 2.40W LED 3.55W
MTTF：≥ 20000h Room Temp: 25 ℃

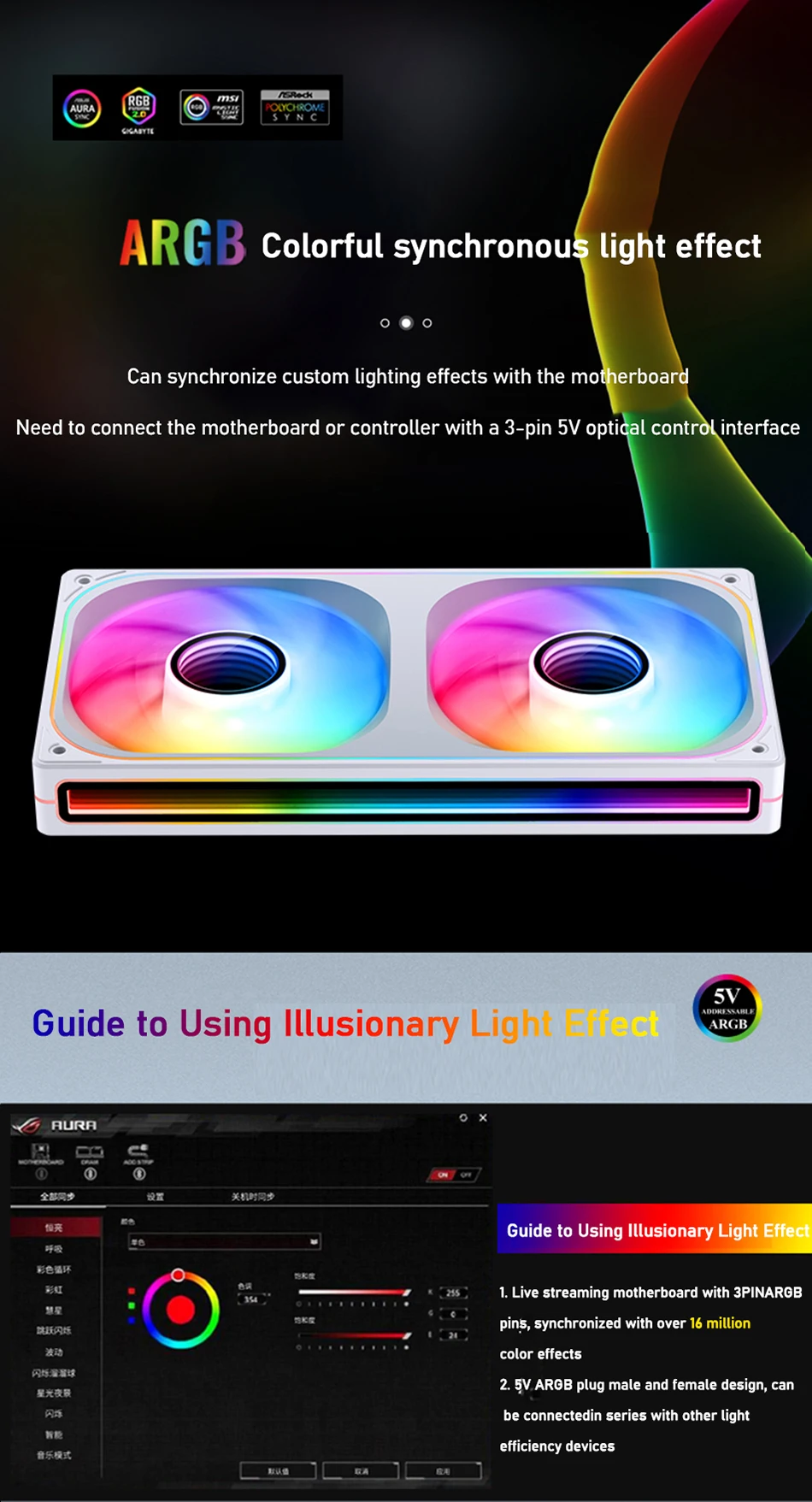

Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
*Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).

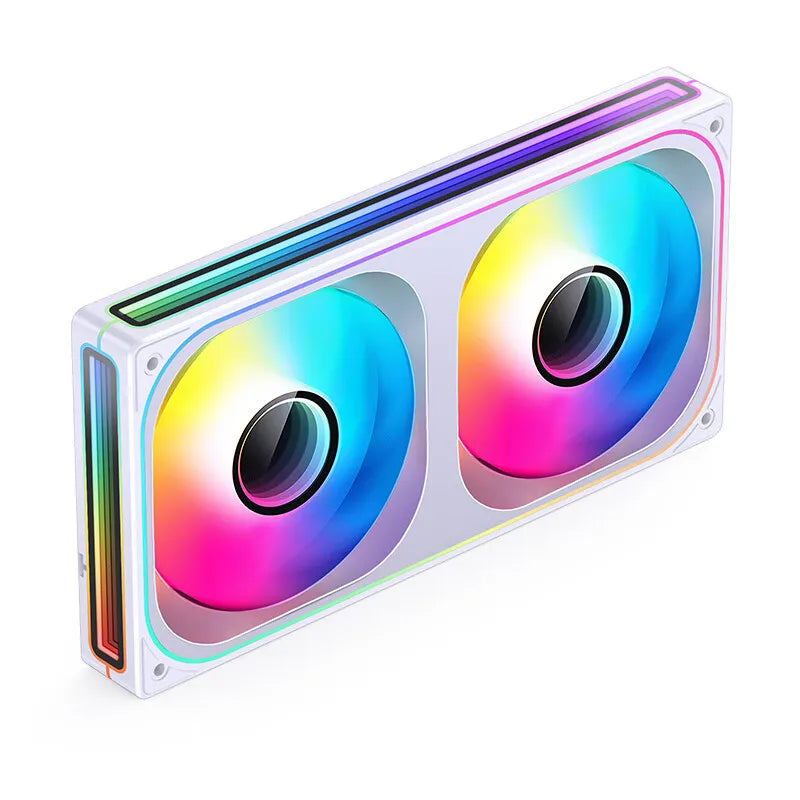

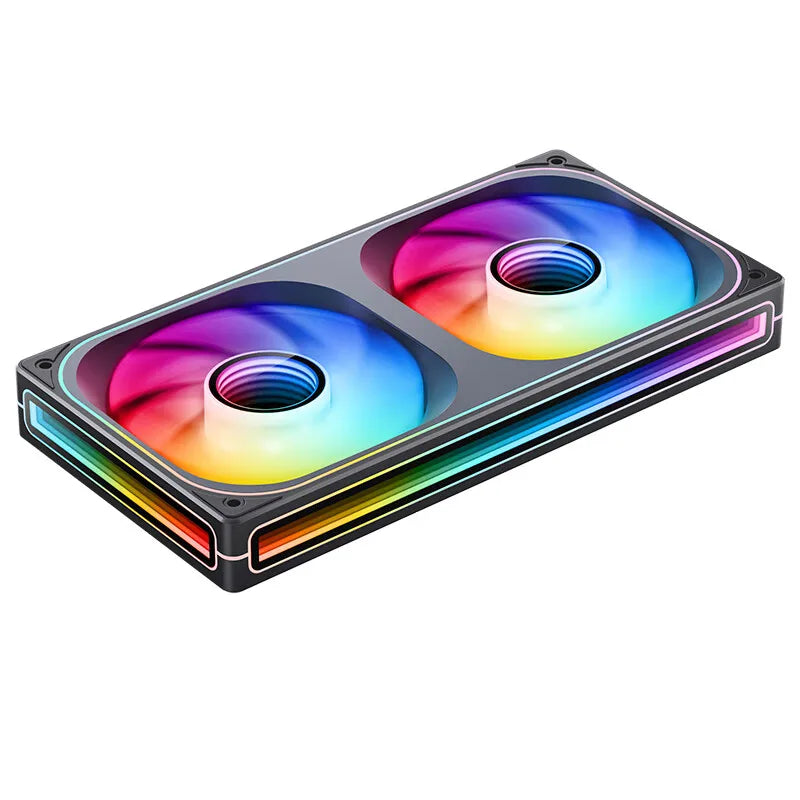

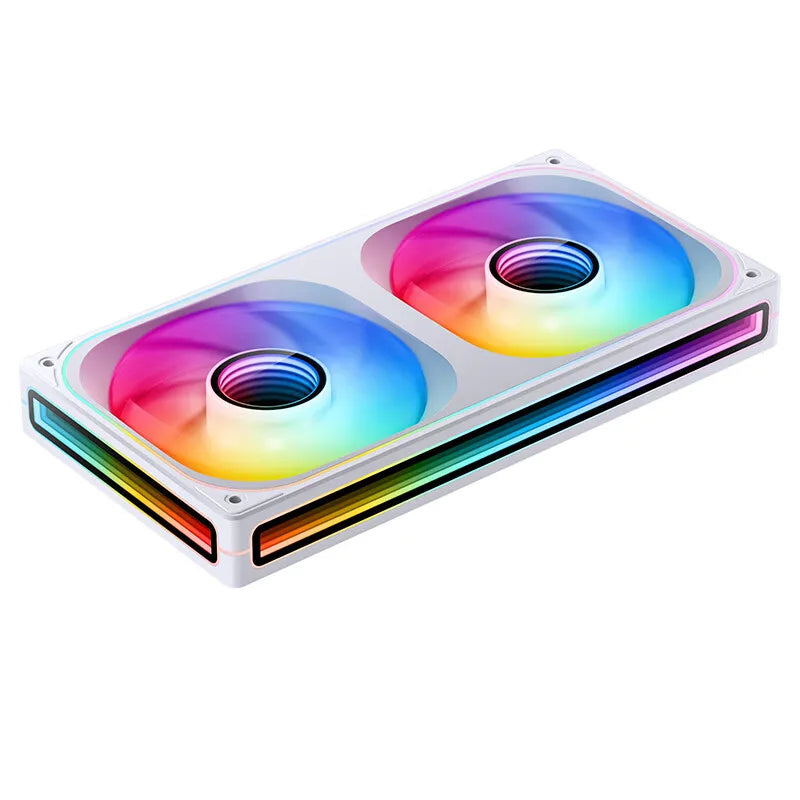

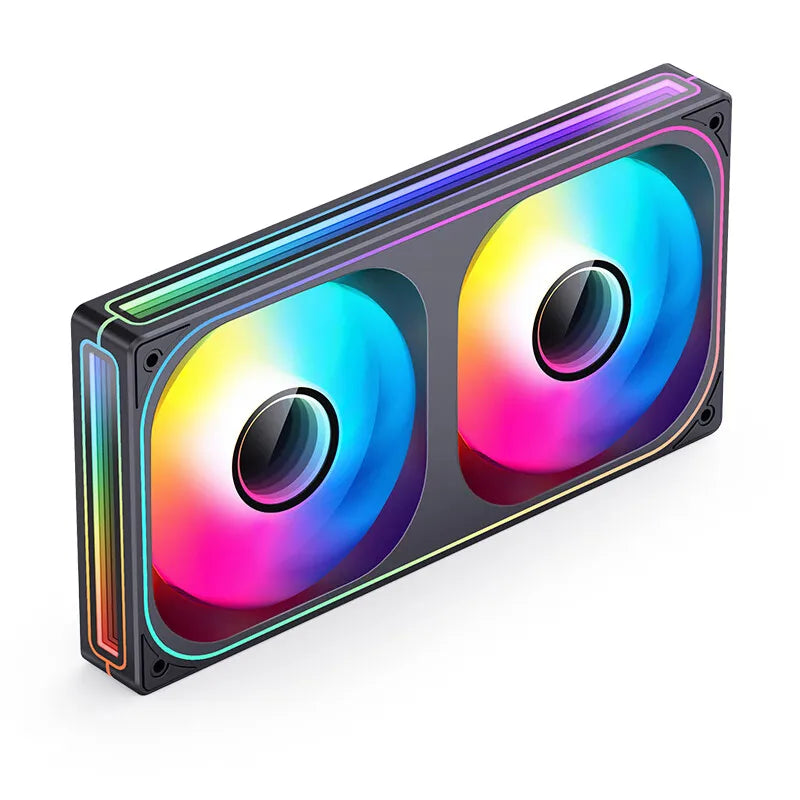

ZB-240
Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.37A LED 1.16A
Power: FAN 4.44W LED 5.80W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
*Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).

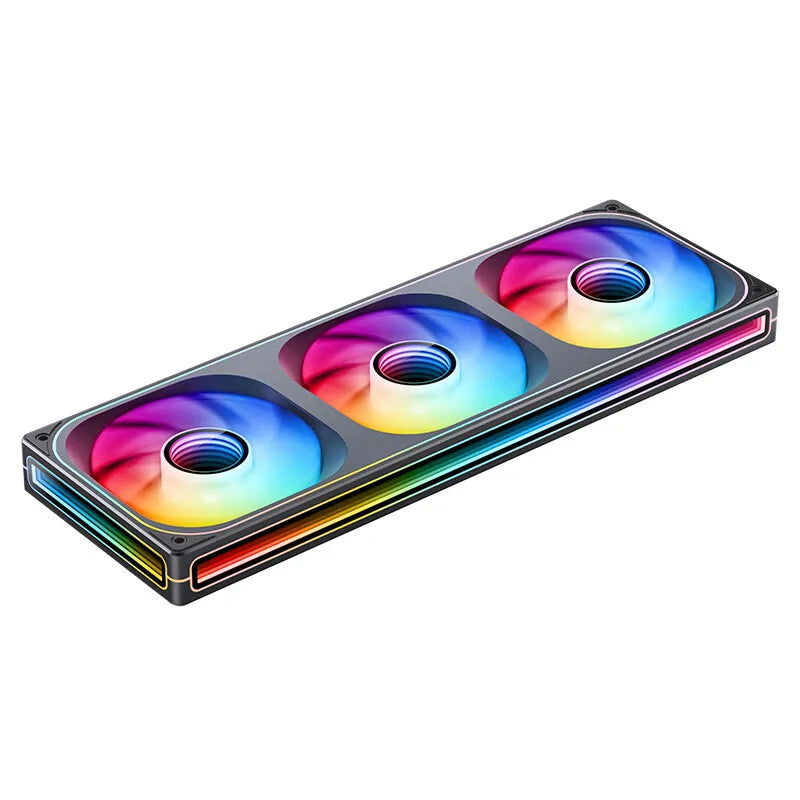

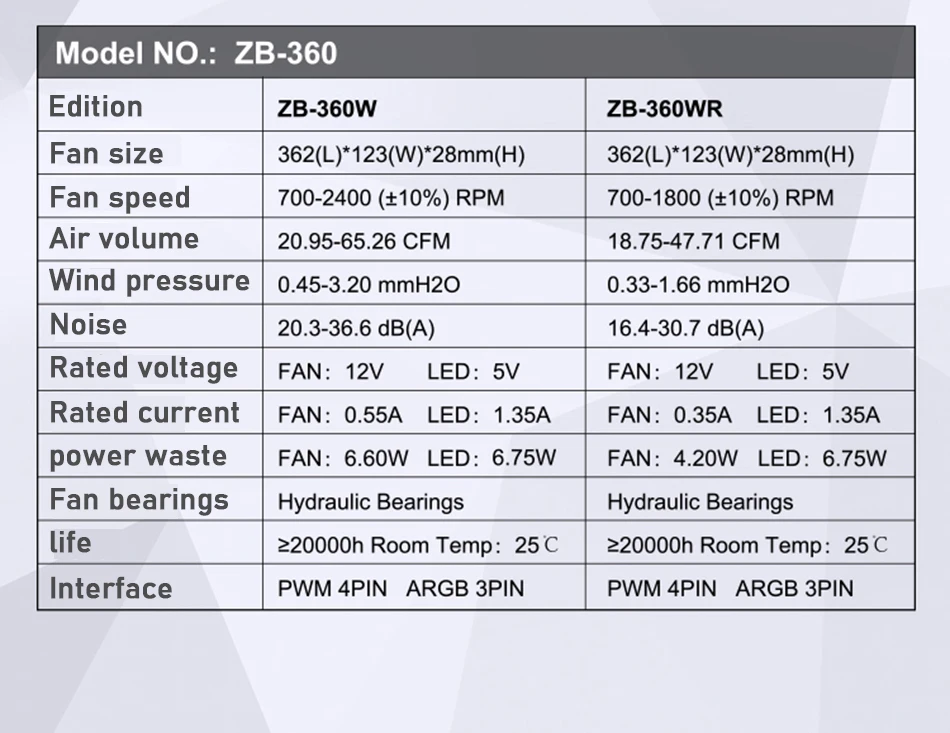

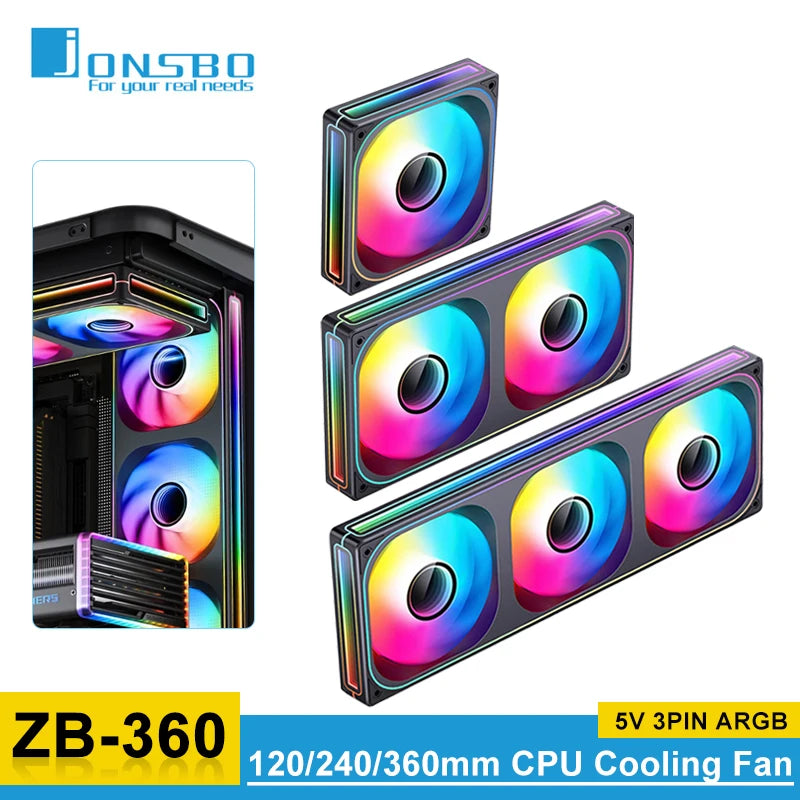

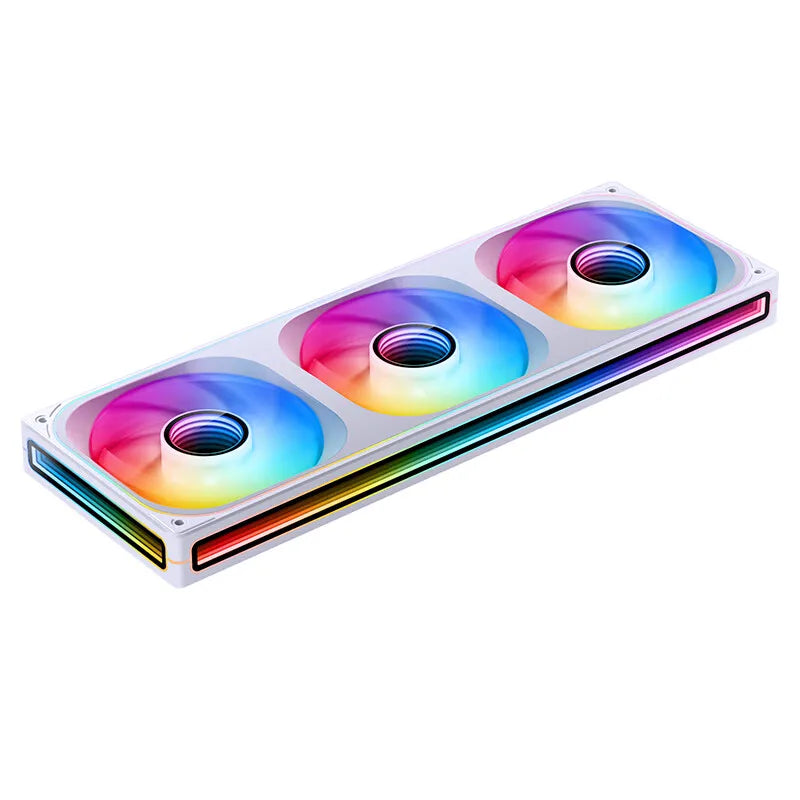

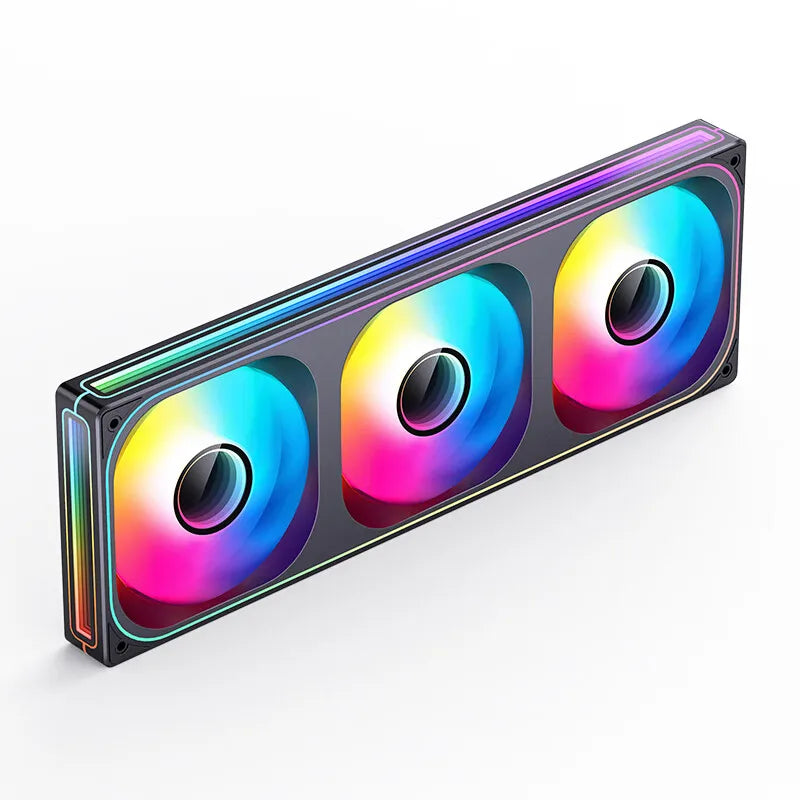

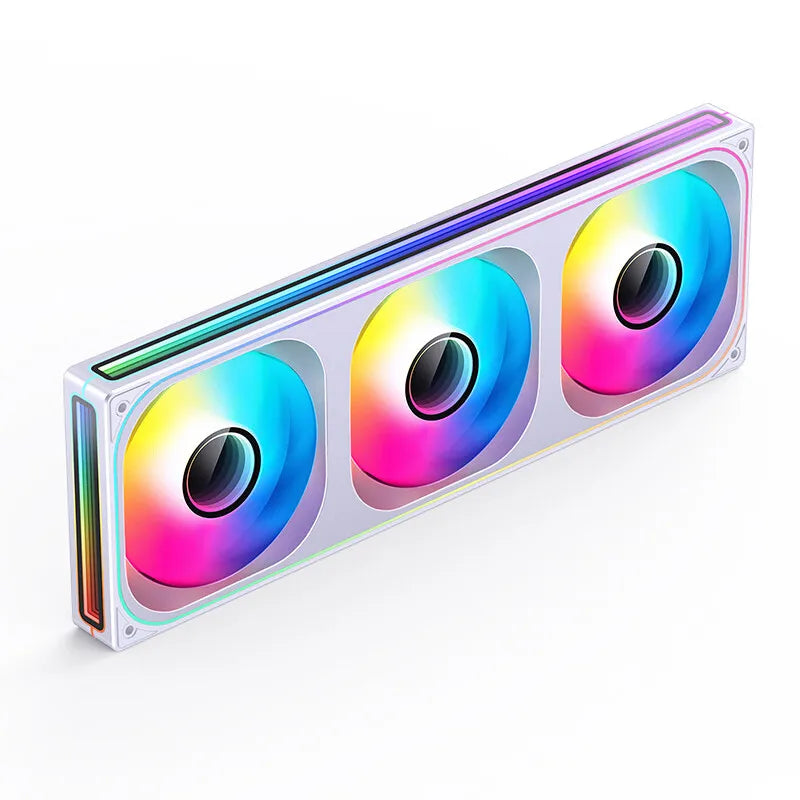

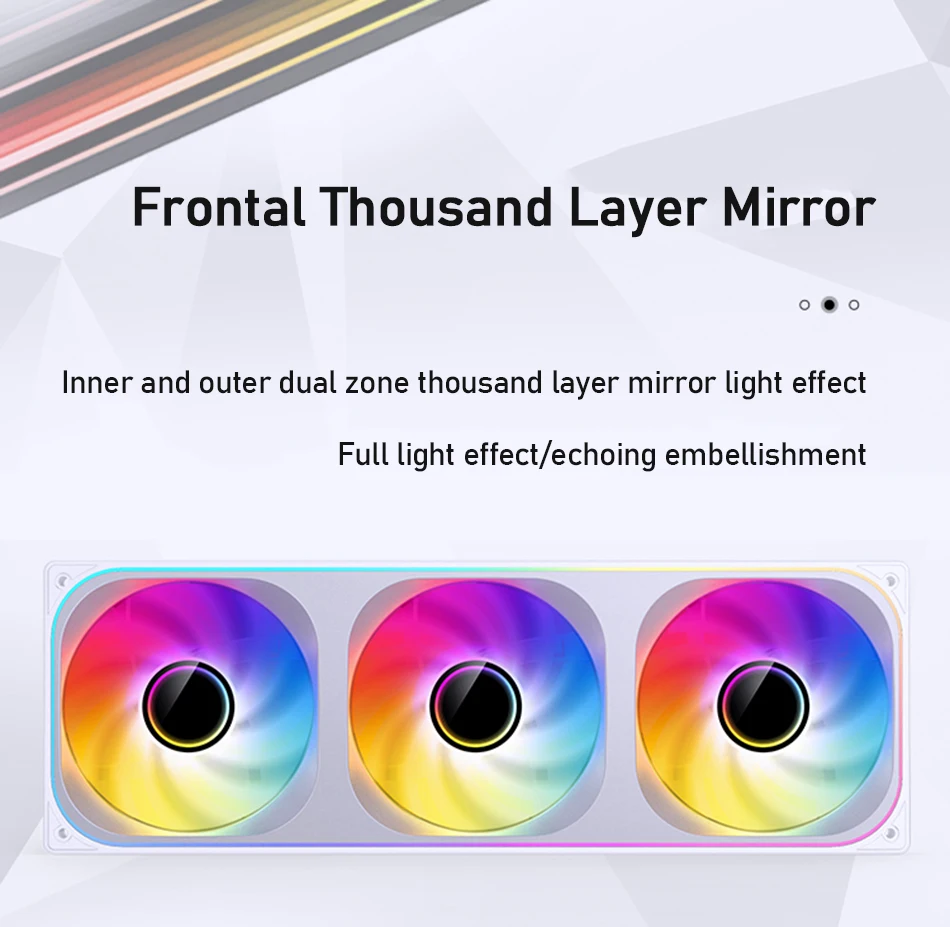

ZB-360
Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.55A LED 1.35A
Power: FAN 6.60W LED 6.75W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
*Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).
| Vendor: | Apsilon |
|---|---|

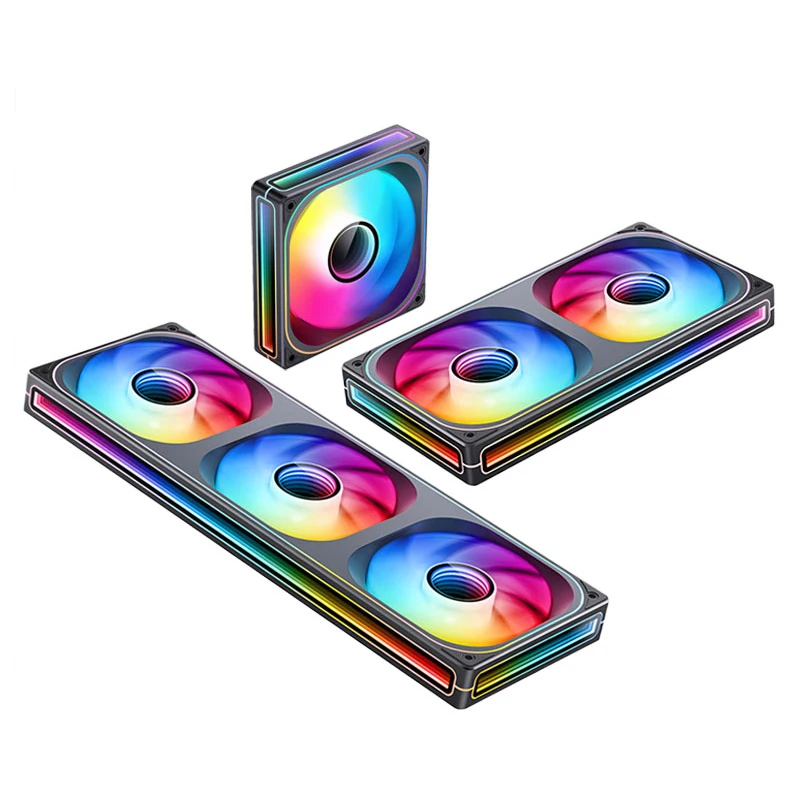

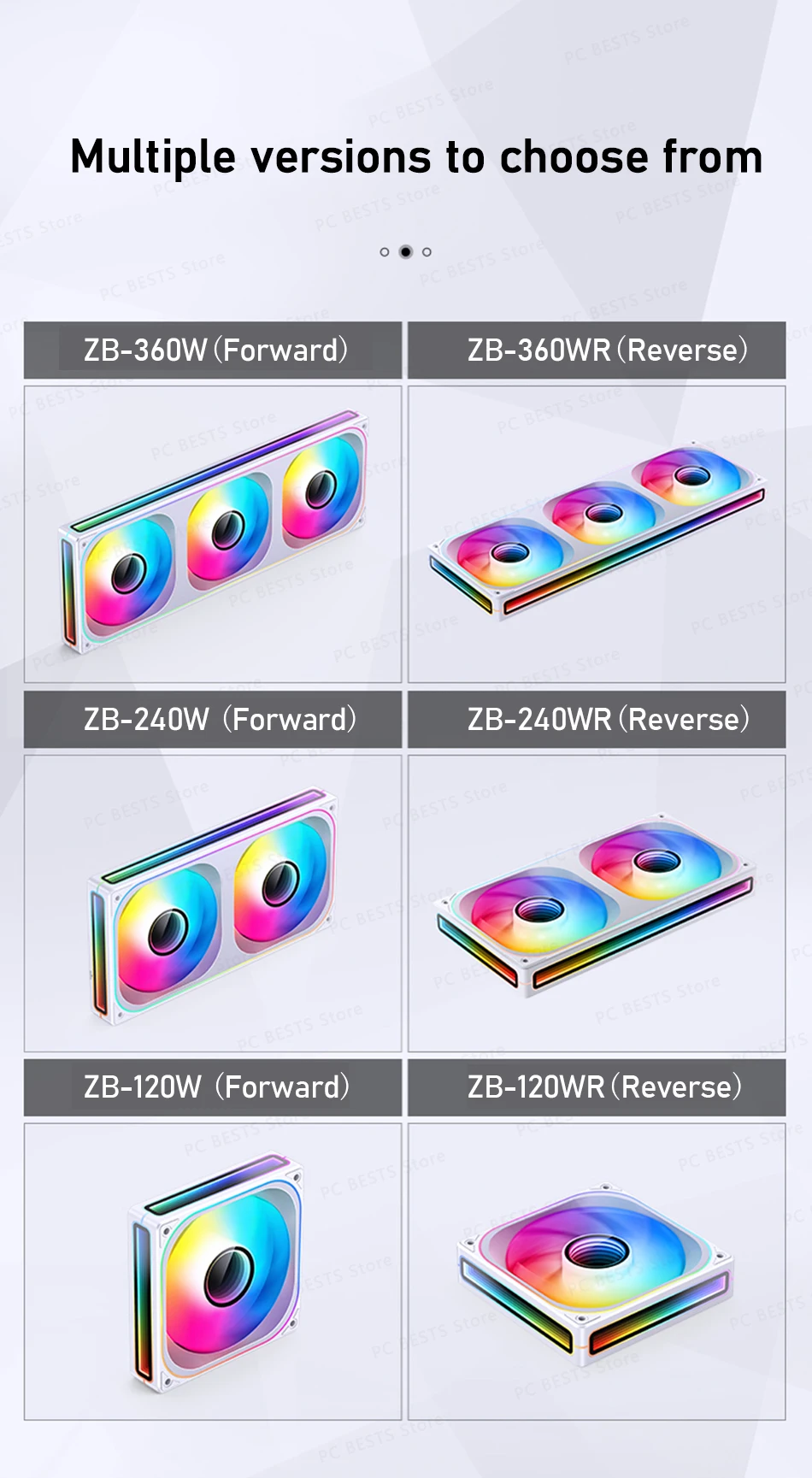

| Color: | ZB-240BR, ZB-240W, ZB-240WR, ZB-360B, ZB-360BR, ZB-360W, ZB-360WR, ZB-120B, ZB-120BR, ZB-120W, ZB-120WR, ZB-240B |
| Blade Color: | Other |
| RGB Support: | A-RGB |
| SKU: | 14:200021498#ZB-240BR;200000544:4;272514294:151425550 |
| Weight: | 752 g |
