Air Volume: 65.26
Bearing: Fluid Bearing
Blade Quantity: 7
Brand Name: Jonsbo
Certification: CE,RoHS
Choice: yes
Fan Life: 50000 hrs
Fan Size: 120mm
Fan Speed: 700 - 2400
High-concerned chemical: none
Lines: 4 LINES
Model Number: ZB-120/240/360
Noise: 30dBA
Origin: Mainland China
Package: Yes
Power (W): 3.55
Power Interface: 5v-3pin ARGB
Series: ZB-120/240/360
Used For: Case
Voltage: 12V

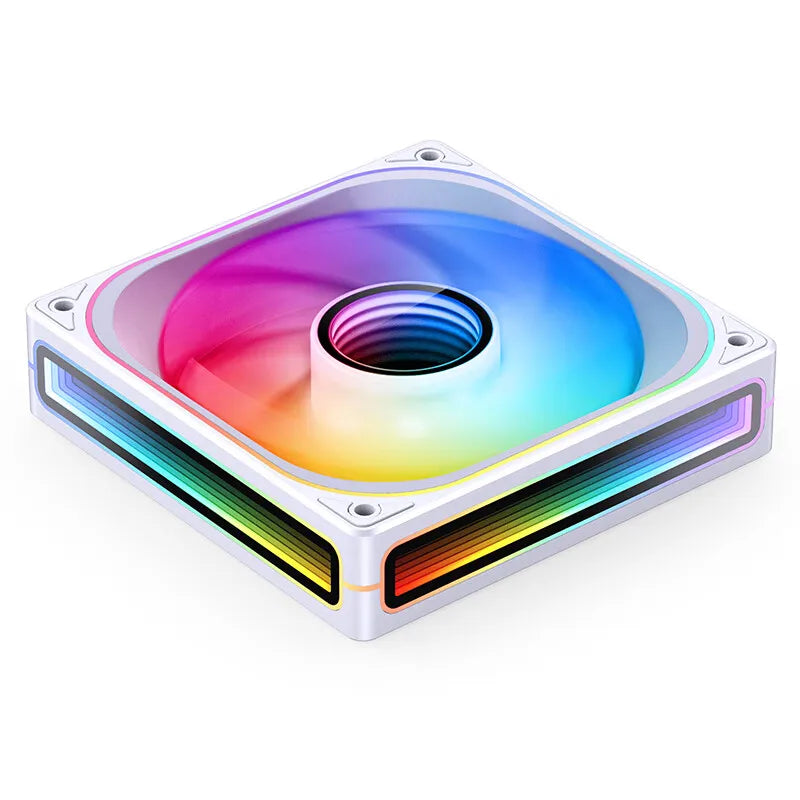

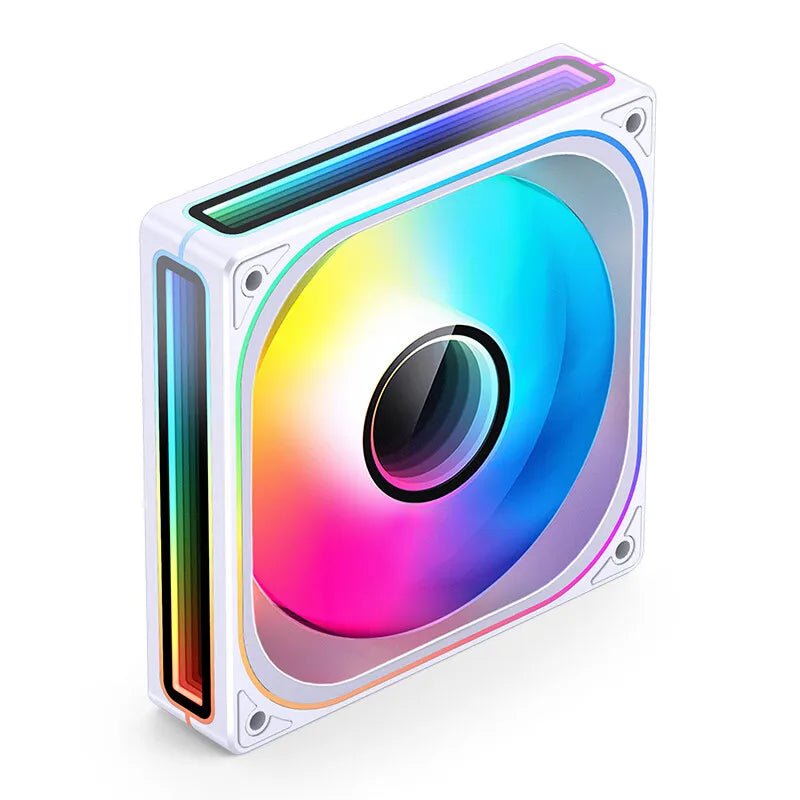

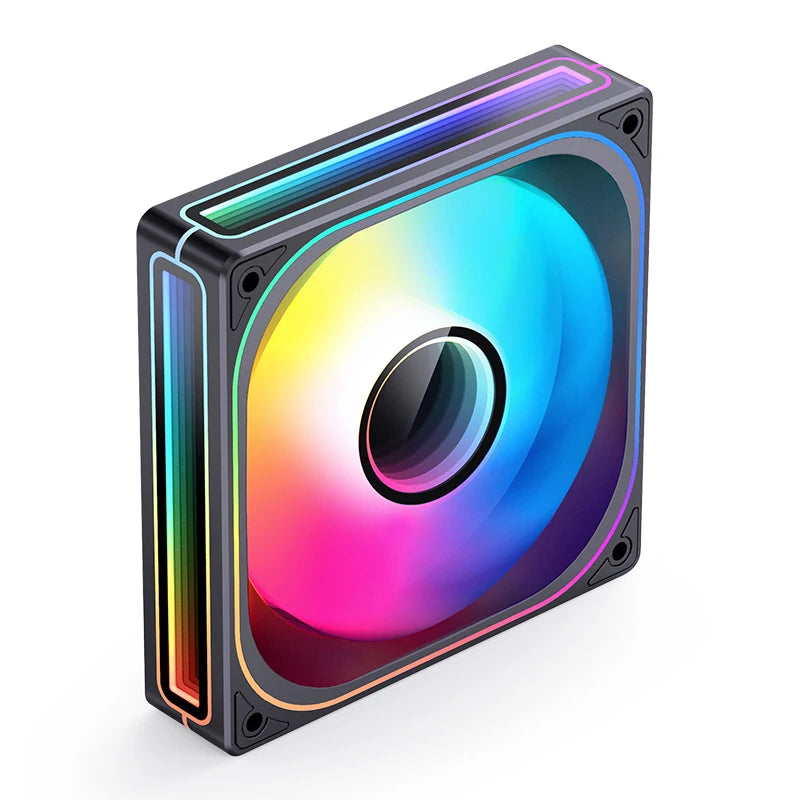

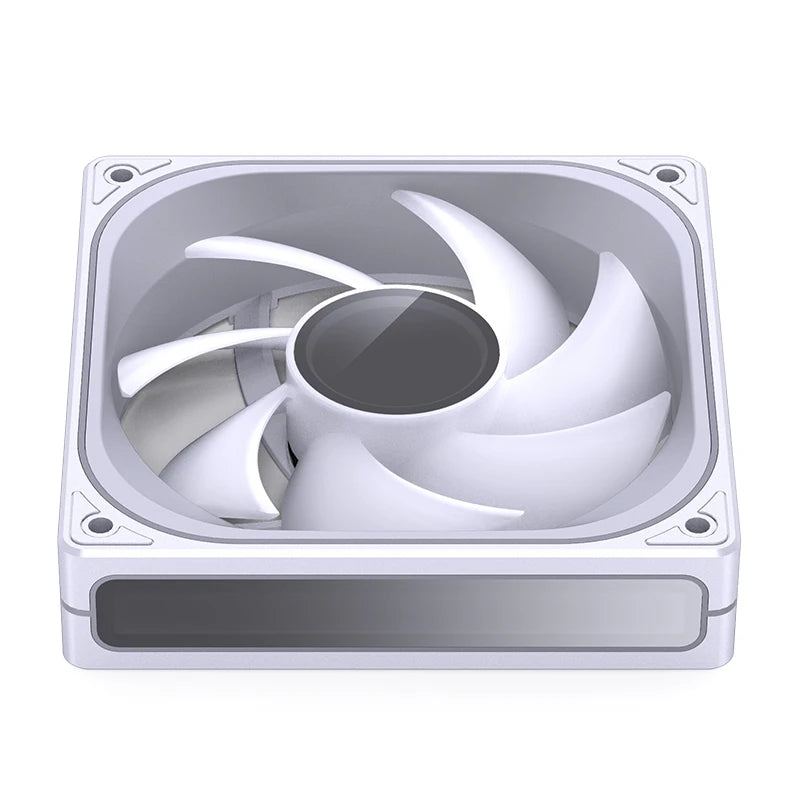

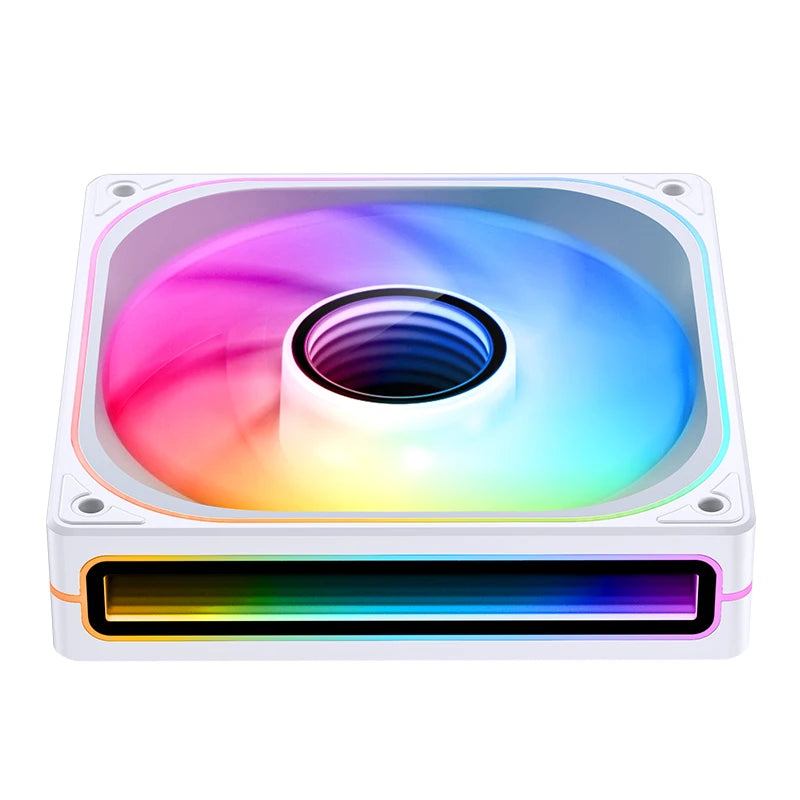

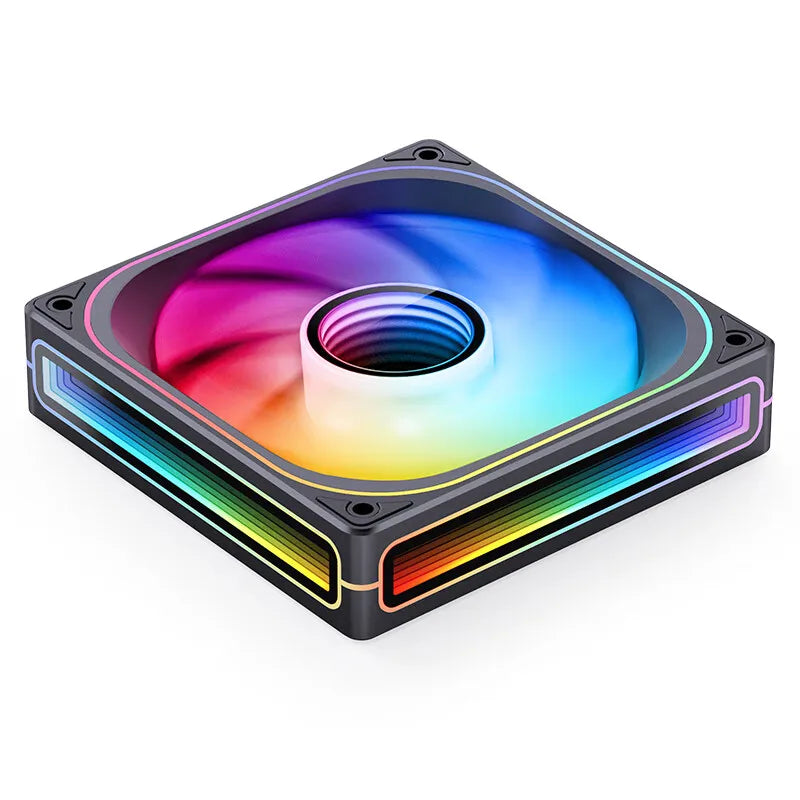

ZB-120
Model: ZB-120B Black and White/Forward and Reverse
Fan size: 120mm (L) * 120mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.20A LED 0.71A
Power: FAN 2.40W LED 3.55W
MTTF：≥ 20000h Room Temp: 25 ℃

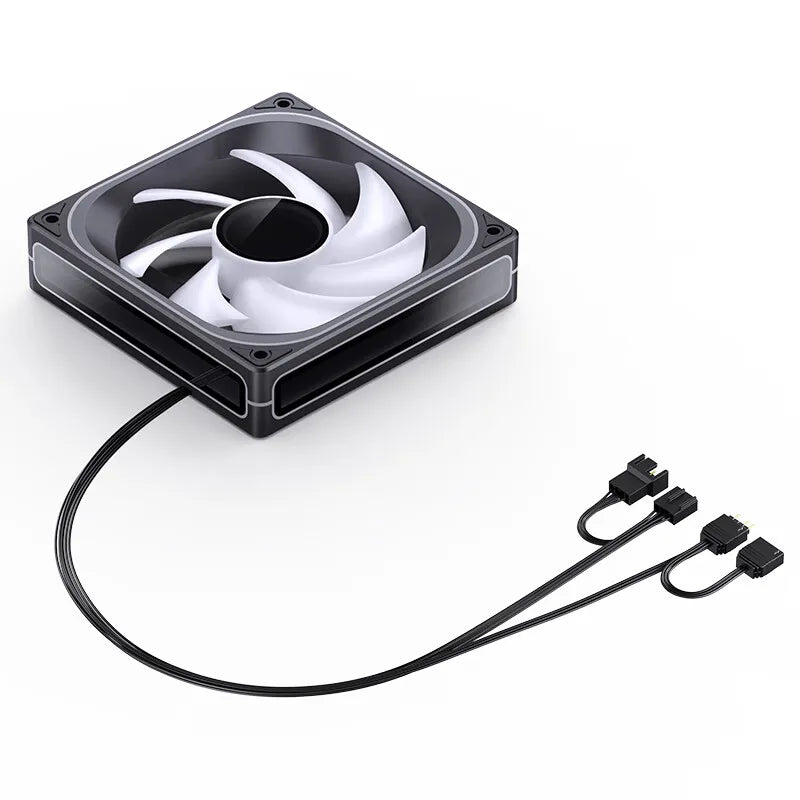

Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis

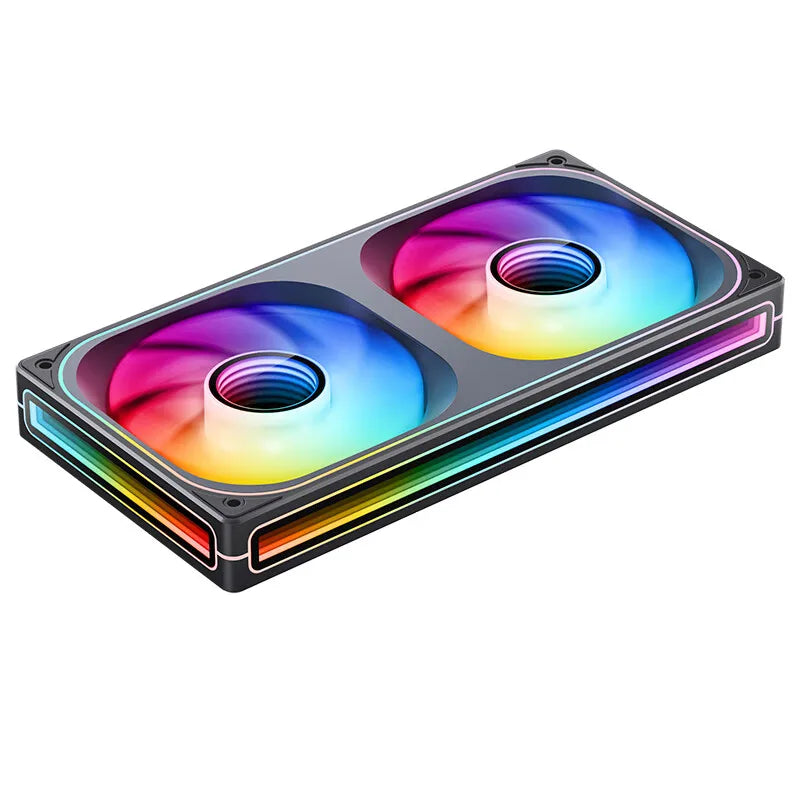

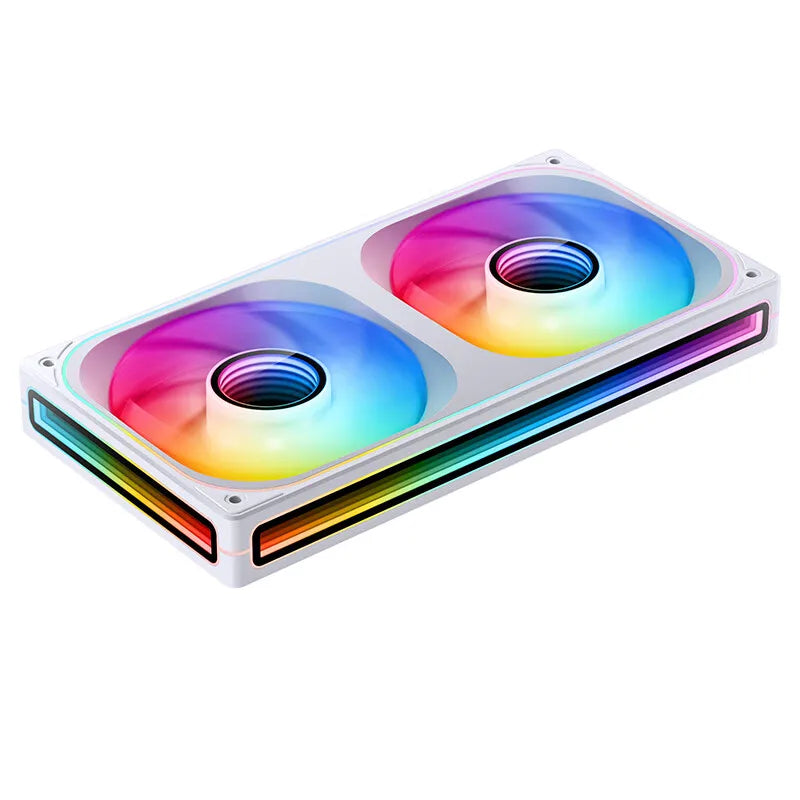

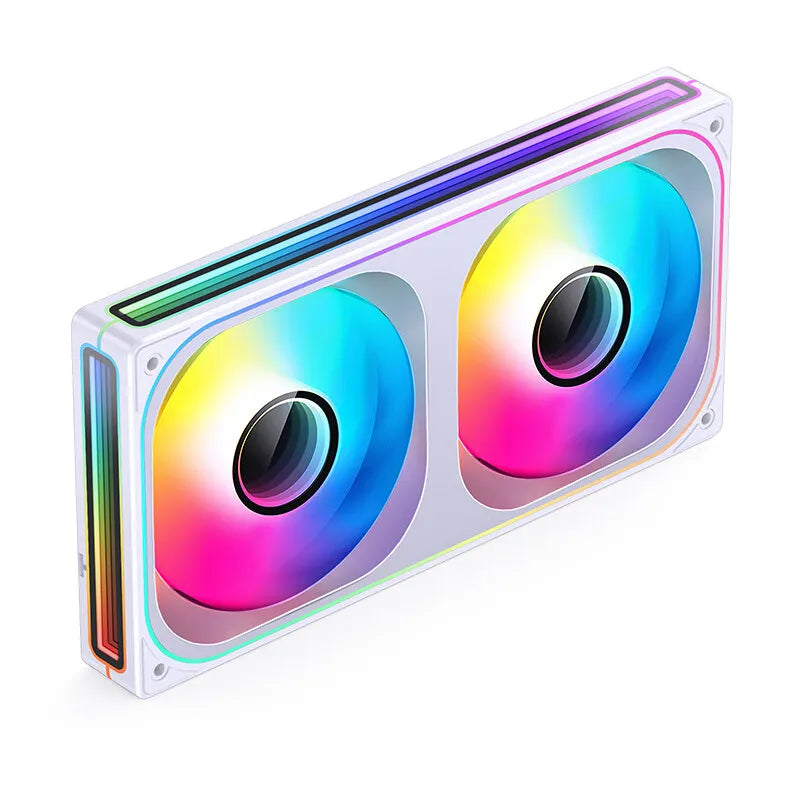

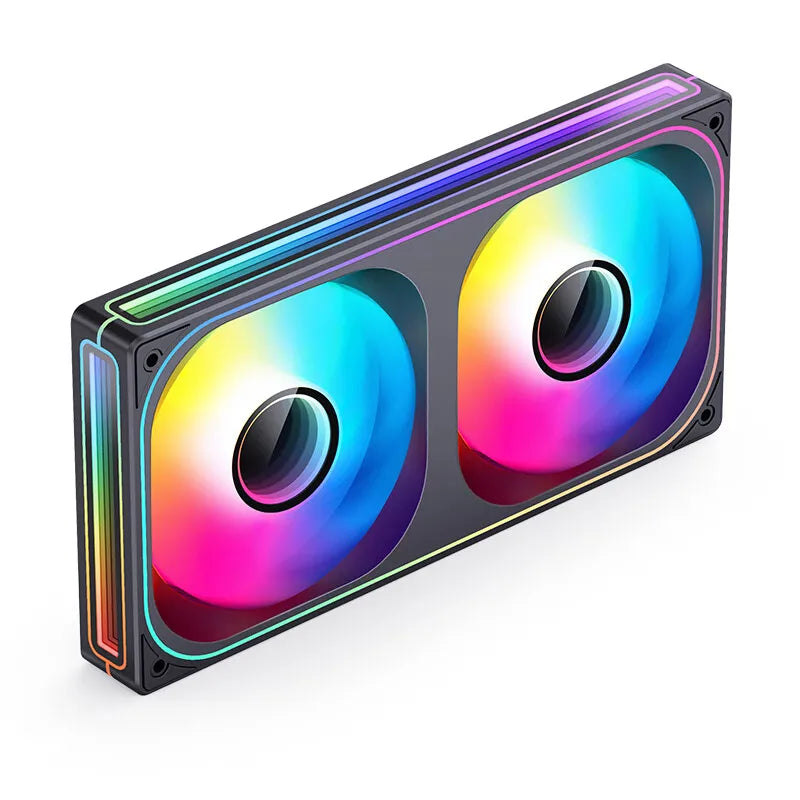

ZB-240
Model: ZB-240B Black and White/Forward and Reverse
Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.37A LED 1.16A
Power: FAN 4.44W LED 5.80W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 52 around+18 parallel axis

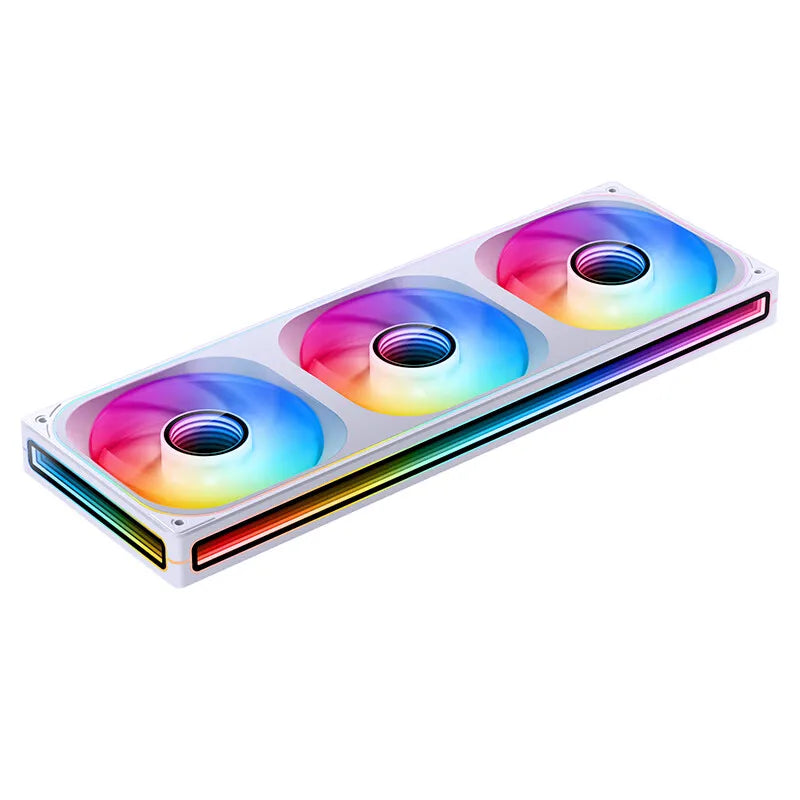

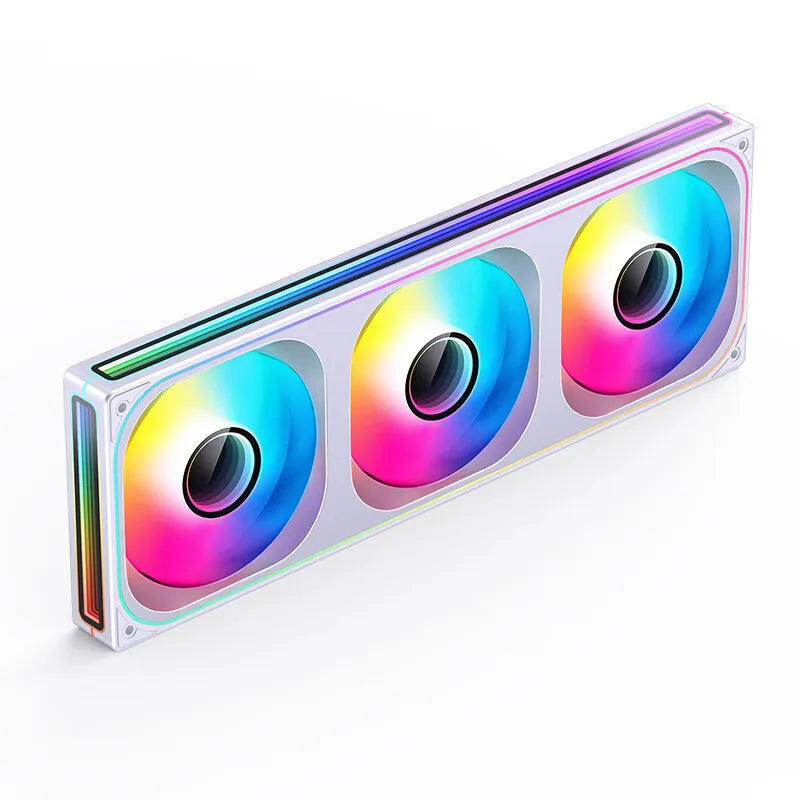

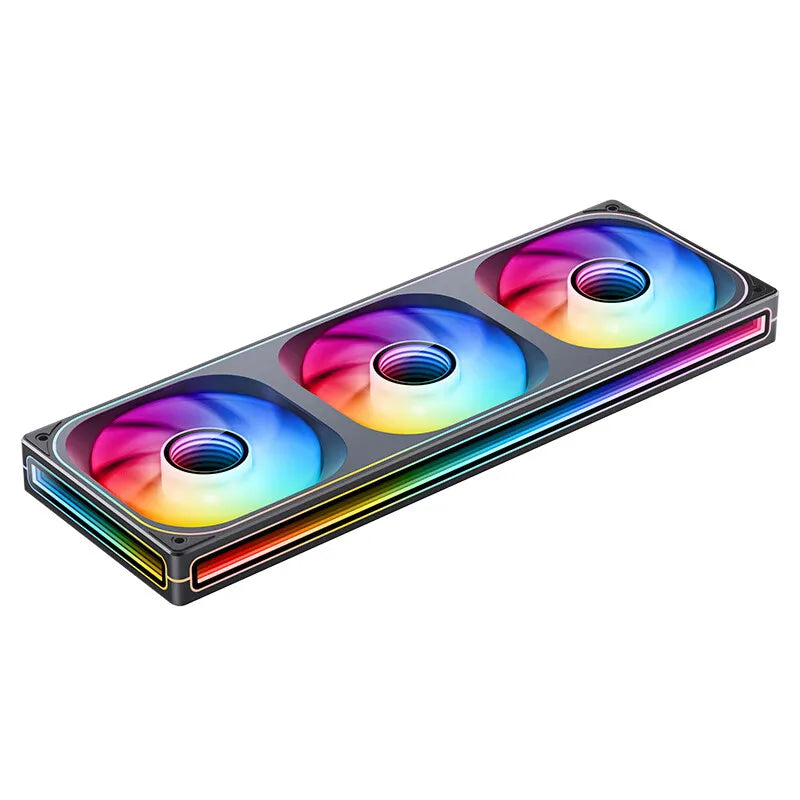

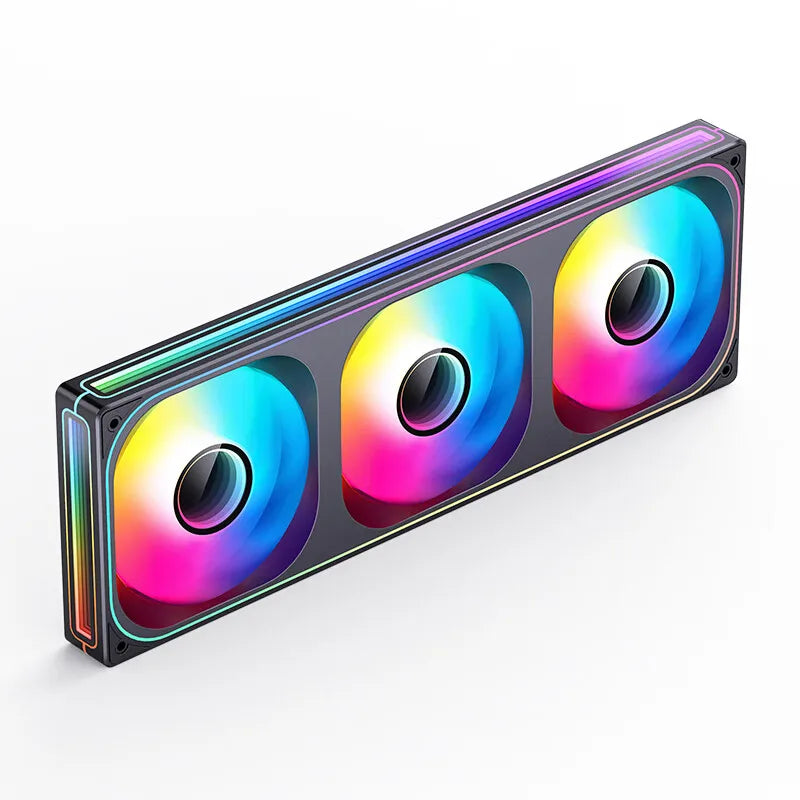

ZB-360
Model: ZB-360B Black and White/Forward and Reverse
Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.55A LED 1.35A
Power: FAN 6.60W LED 6.75W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Attention: The ZA/ZB-360 fan requires your motherboard or controller to support at least 68 light bead (some motherboards support adjusting the number of light bead)
| Vendor: | Apsilon |
|---|---|
| Color: | ZB-120BR, ZB-120W, ZB-120WR, ZB-240B, ZB-120B, ZB-360W, ZB-360BR, ZB-360WR, ZB-240W, ZB-240BR, ZB-240WR, ZB-360B |
| Blade Color: | Other |
| Ships From|RGB Support: | China Mainland|A-RGB |
| SKU: | 14:29#ZB-120BR;200000544:4;200007763:201336100;272514294:151425550 |
| Weight: | 246 g |
