Battery Included: no
Brand Name: NONE
Choice: yes
DIY Supplies: Electrical
Data Record: No
Display Type: Digital Only
High-concerned chemical: none
Model Number: KWS-X1 Voltage Current Meter
Origin: Mainland China
Semi-finishedproduct: No
Voltage range: Other

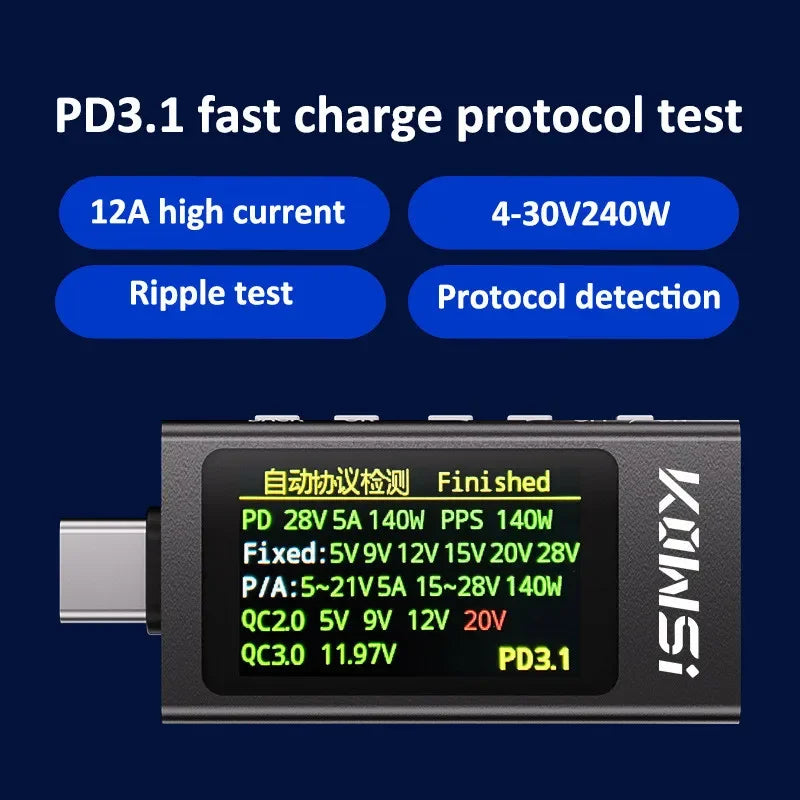

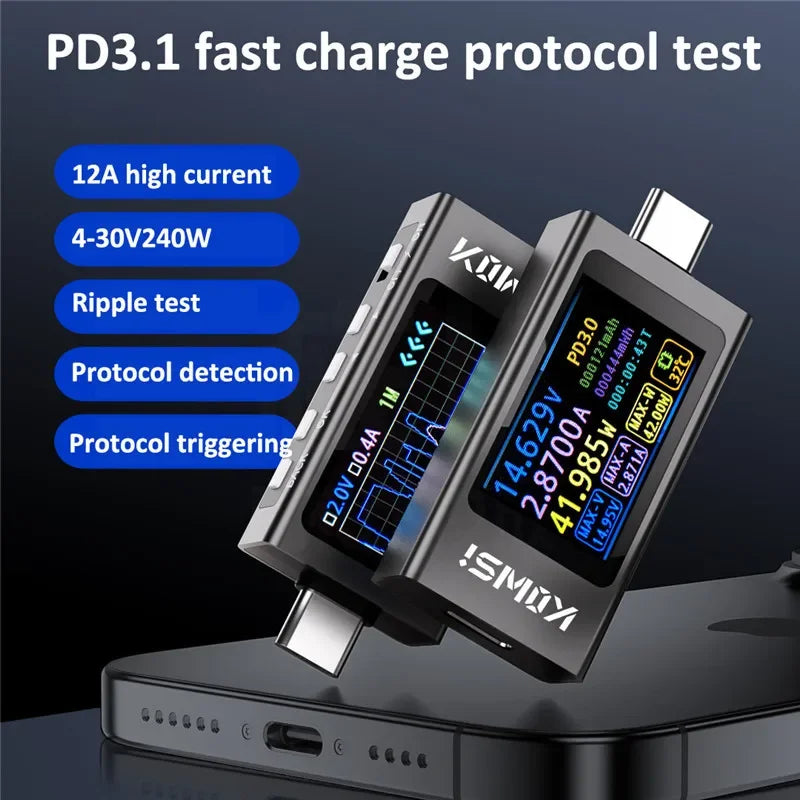

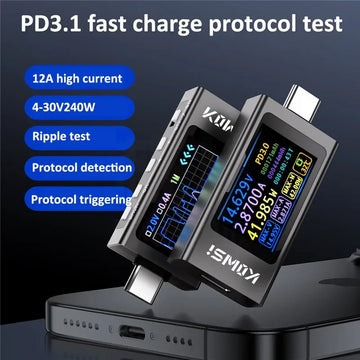

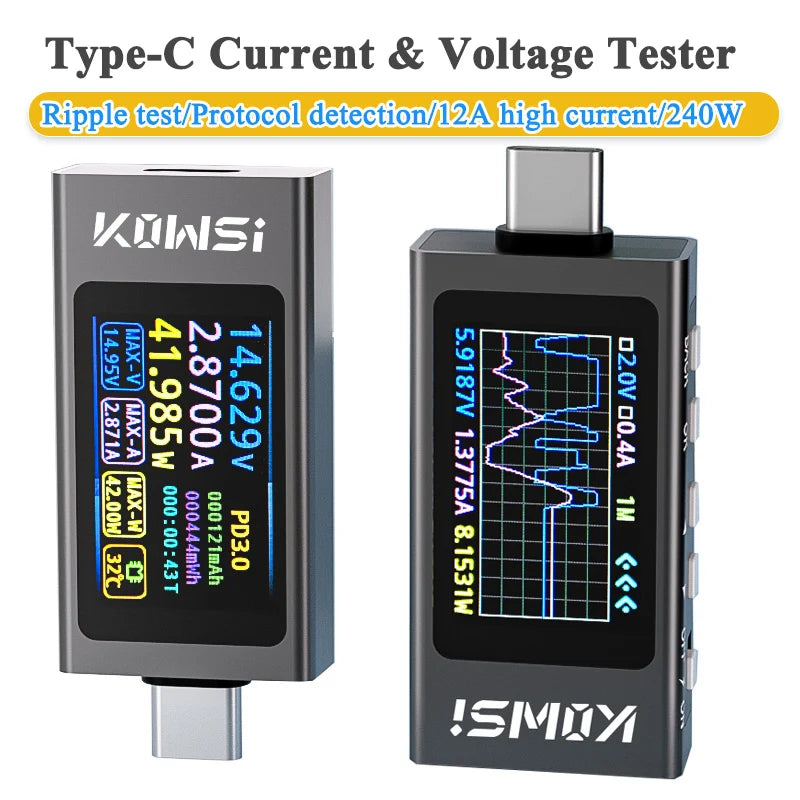

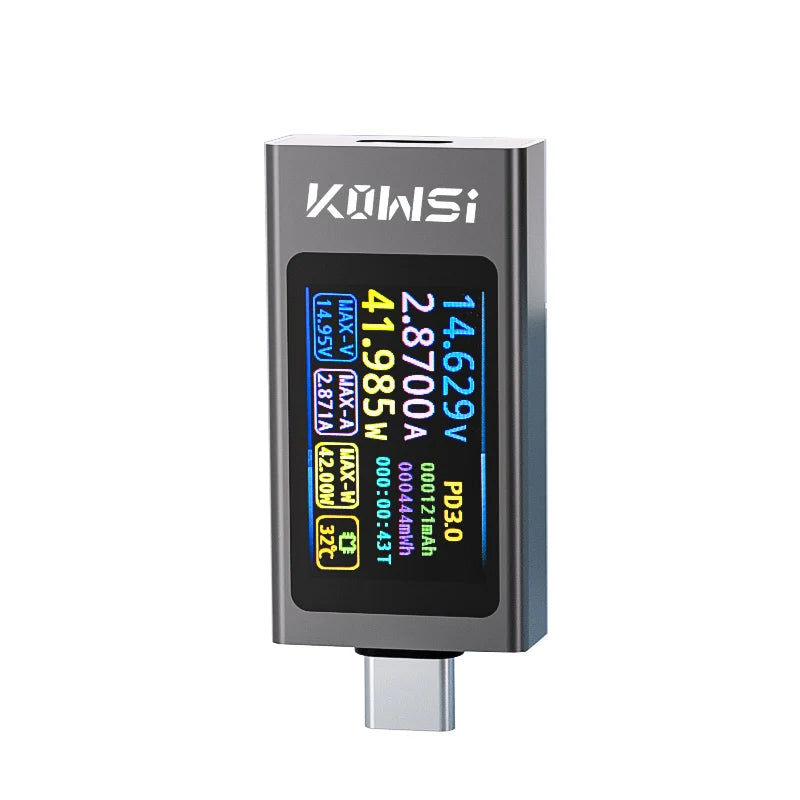

KWS-X1 4V-30V 12A Type C Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement
Descriptions:

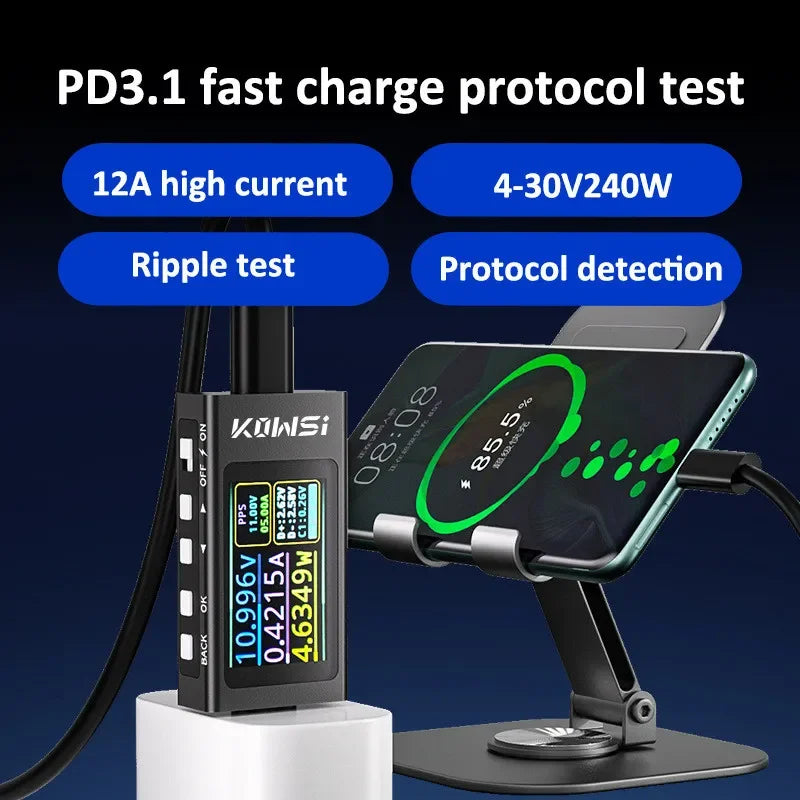

1. CNC metal case, dustproof and drop-proof, HD IPS display, real-time charging power detection.
2. 3 kinds of display page, make the function more strengthened, click the button to change the page.

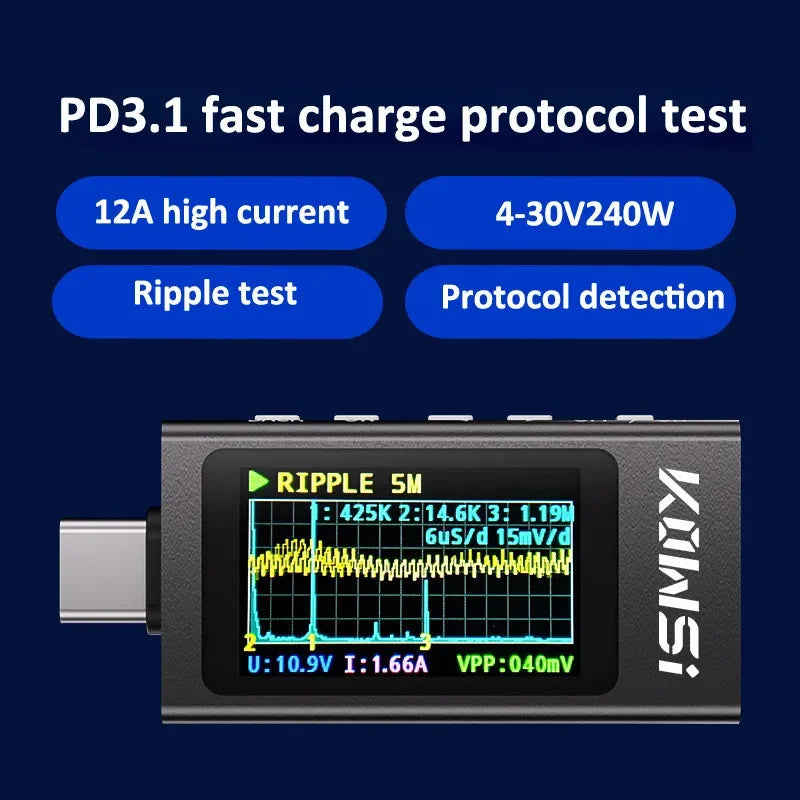

3. Multi-function full protocol, curve measurement, ripple measurement, protocol test (automatic test, PD single decoy).
4. Highly reliable and safe Type-C voltage and current testing meter and fast charging trigger meter for mobile communication terminals.
5. Fully compatible with fast charging protocol and Qualcomm QC3.0/4.0 protocol, compatible with a variety of protocols fast charging, support PD/OC2.0/3.0/4.0, MTK and other protocols.
6. Support automatic protocol detection, PD2.0, 3.0, PPS, QC2.0, 3.0, FCP, SCP, AFC, PE, DASH VOOC, SuperVooc and so on.
Product parameters:
Absolute withstand voltage: 0~40V
Absolute current: 0~16A
Absolute power: 0~380W
Measuring voltage: 3.3~40V (typical: 4-30V)
Measuring current: 0~12A
Measuring power: 280W
Temperature measurement range: 0~99℃
Sampling frequency: 2~5MHz
Product size: 54.96*24.45*11.15mm
Package list:
1 * Type-C tester
| Vendor: | Apsilon |
|---|---|
| Color: | KWS-X1 |
| SKU: | 14:350850#KWS-X1 |
| Weight: | 31 g |
