Brand Name: MOES
Case Temp: Tc:+80℃(Max.)
Choice: yes
Communication method: Zigbee,Wi-fi
Dims (WxDxH): 40x40x18mm
Frequency band: 2.412-2.484GHZ
High-concerned chemical: none
IP Rating: IP20
Maximum radio transmit power: <+16dBm
Operation Range: <70m
Operation Temp: -10℃~65℃
Origin: Mainland China

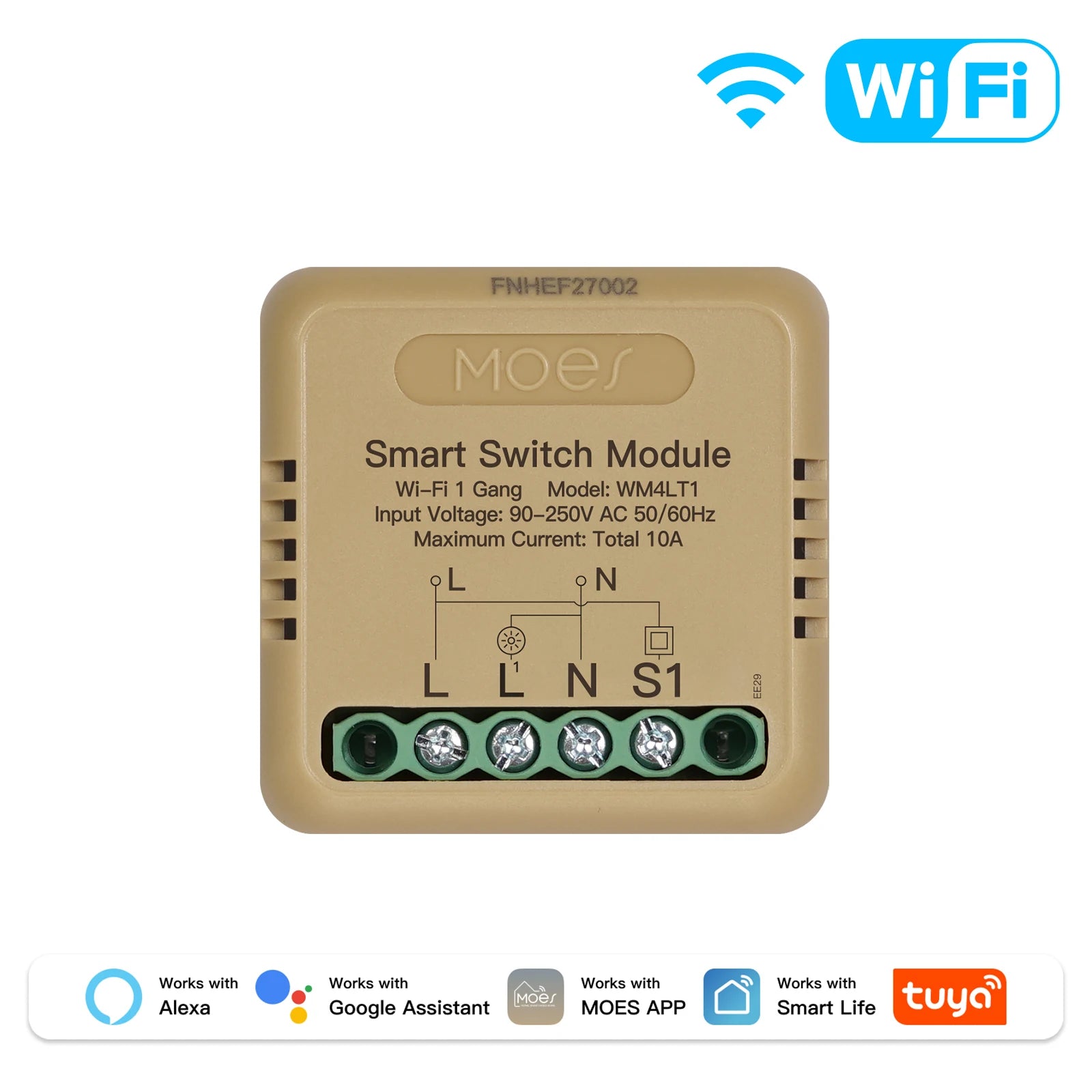

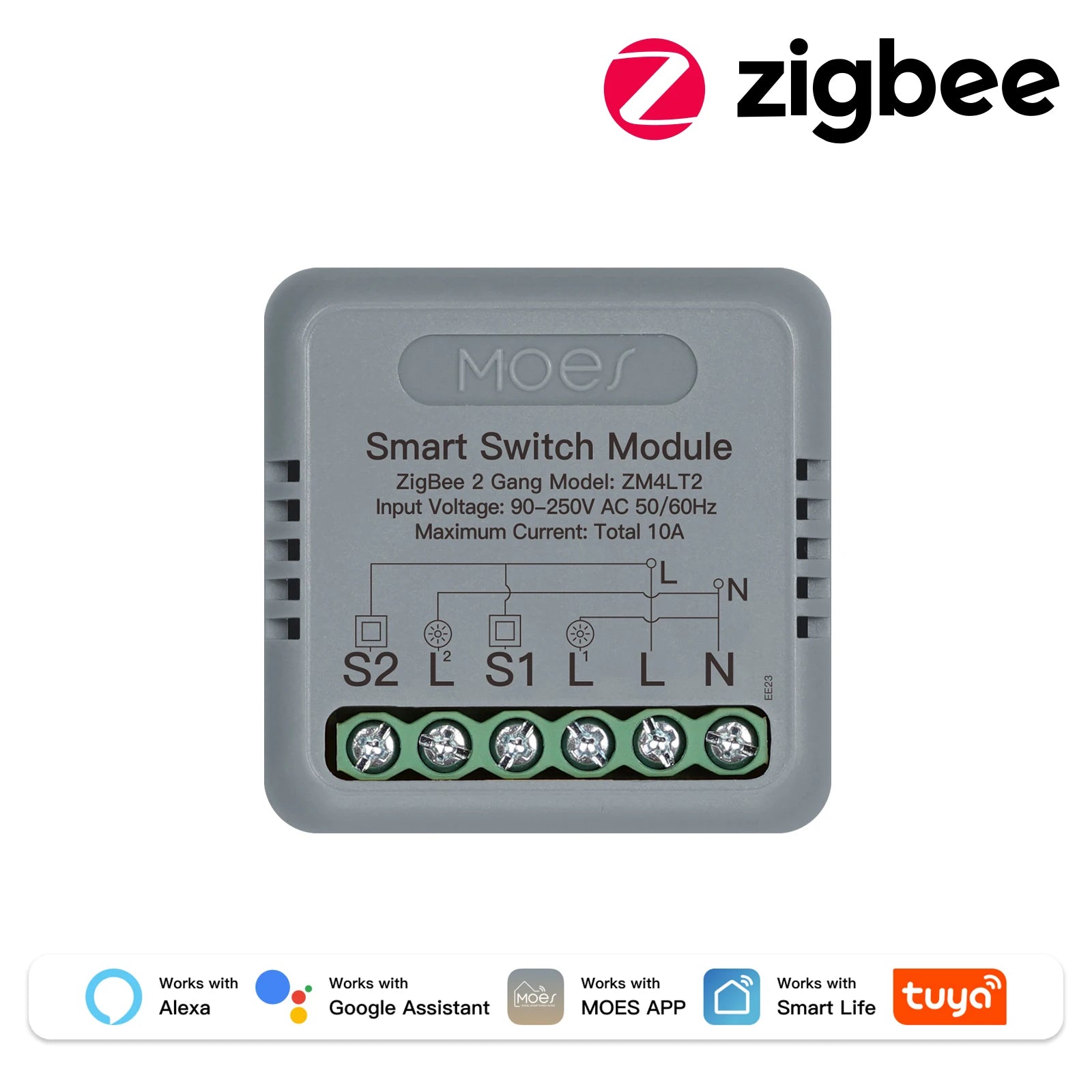

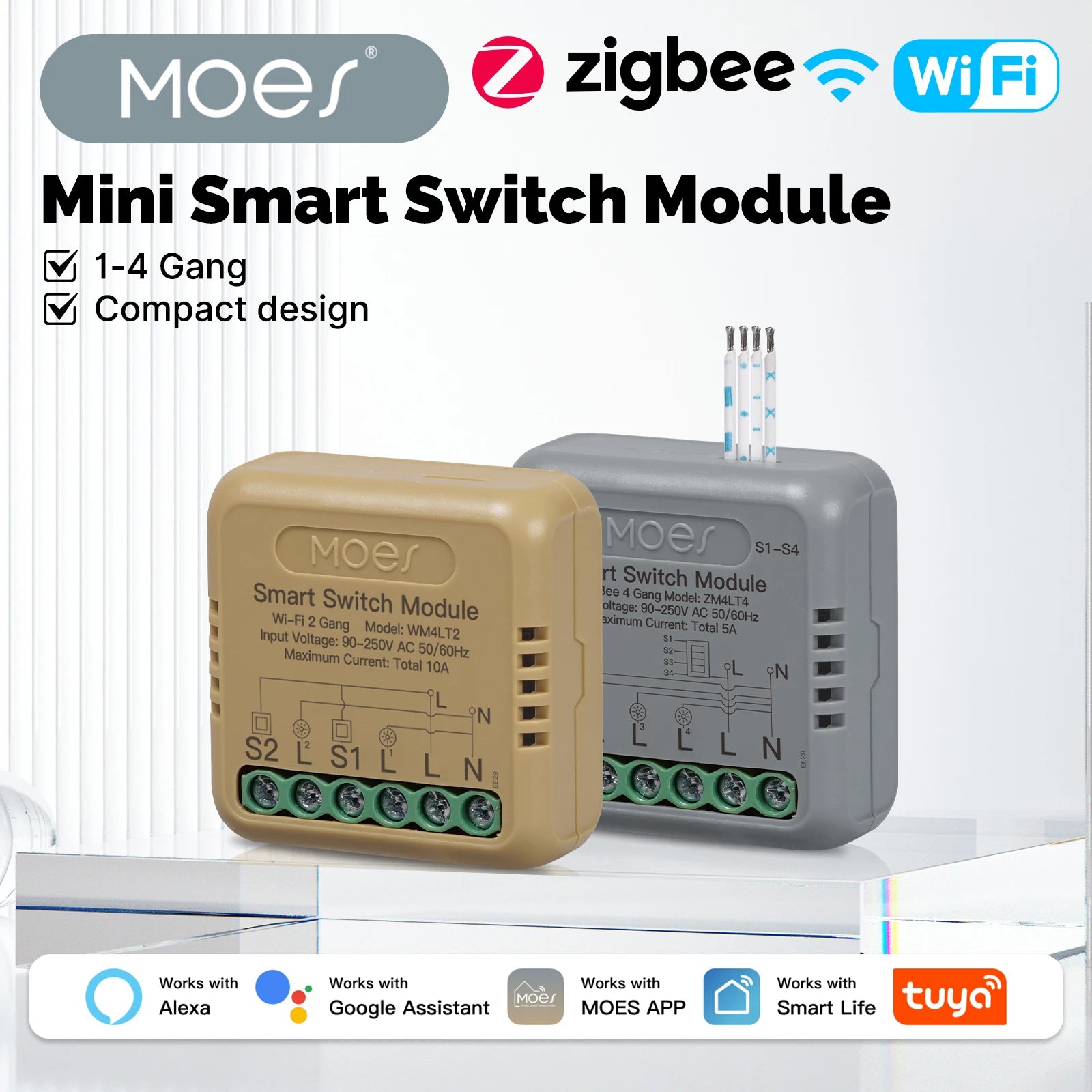

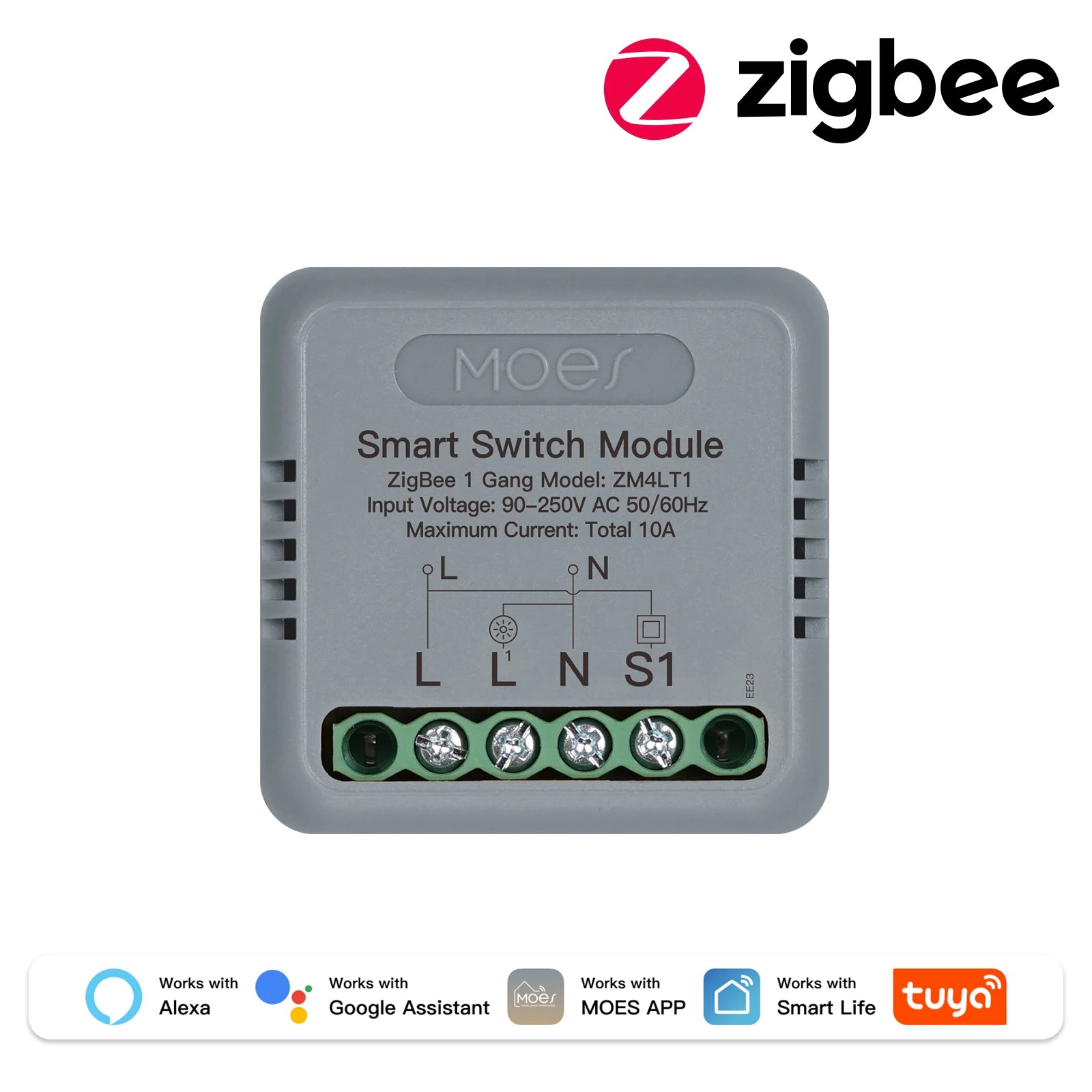

Product Type: Smart Switch Module
Voltage: 90-250V AC 50/60Hz
Wireless Protocol: Wi-Fi/Zigbee
Note:
The module comes in two protocols: WiFi and Zigbee. The Zigbee version requires a Zigbee gateway to function (the gateway must be purchased separately). Please confirm the desired version before purchasing.

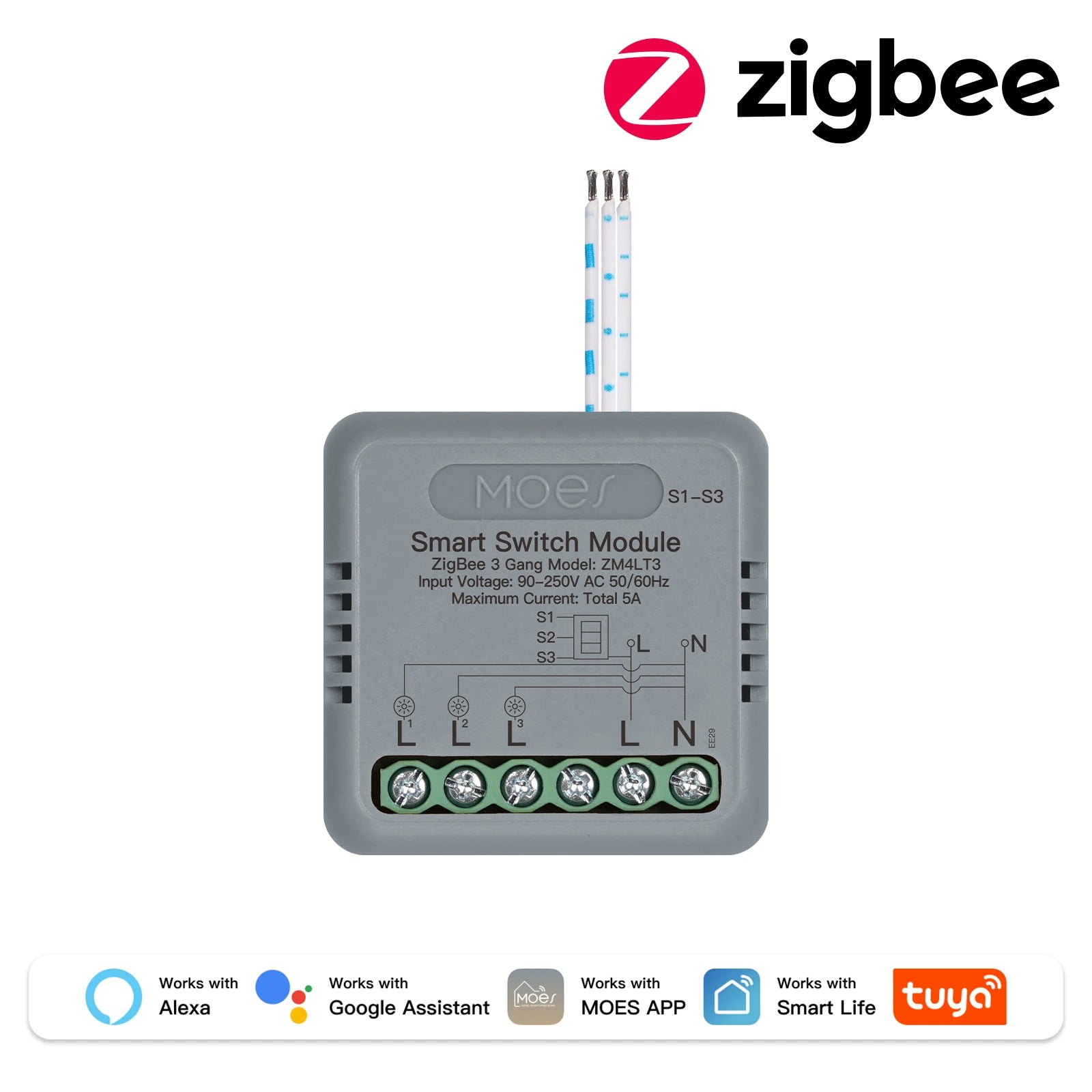

The 3-gang/4-gang modules are designed with outgoing wires, while the 1-gang/2-gang modules are standard (without outgoing wires).

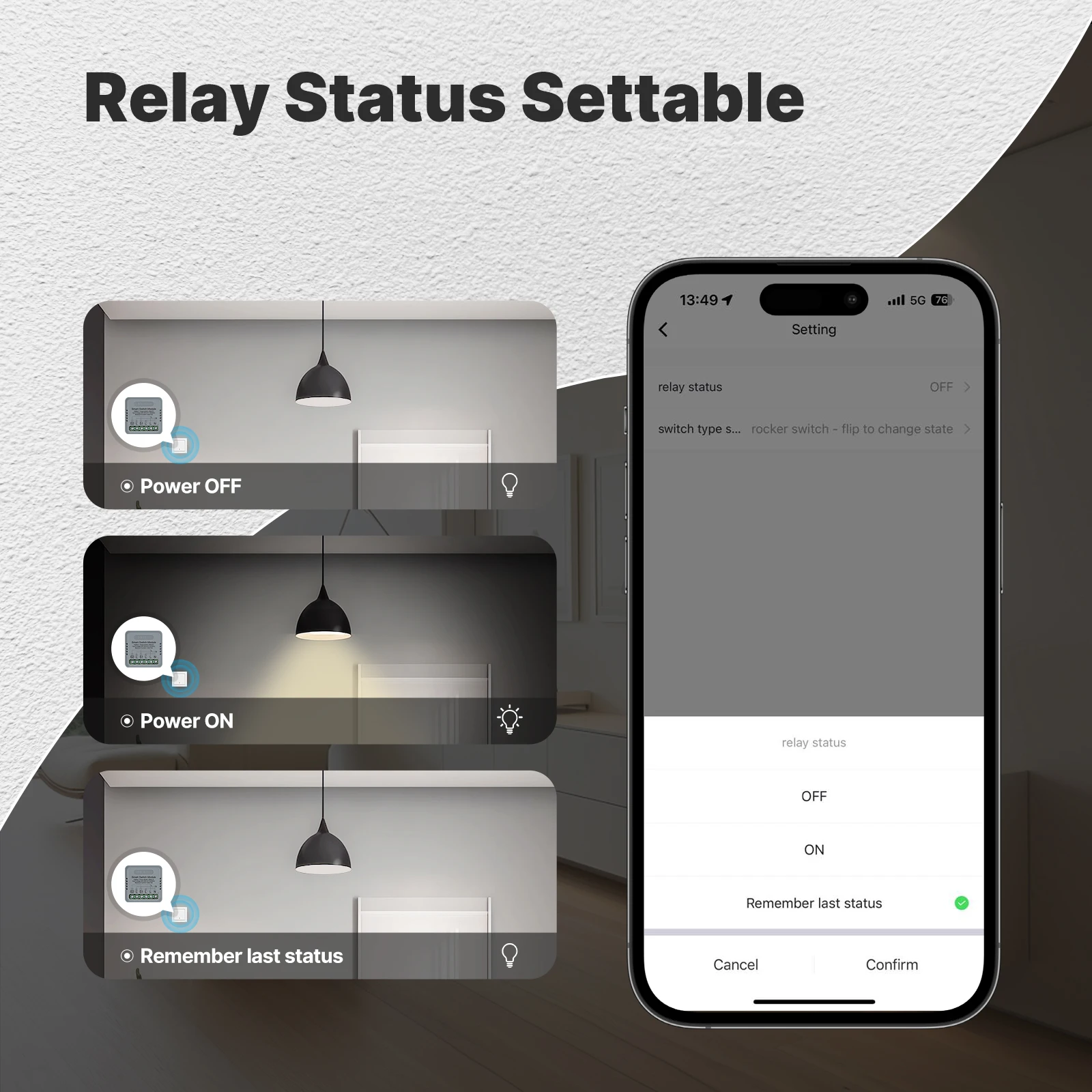

Relay Status Settable
According to your living habits and needs, set the device on/off after the power on or maintain the original switch state, so that your home equipment can operate normally.
Full Features, Friendly Price
With up to 4 independent channels in a compact design, it offers full functionality without taking up space.
Two Switch Types Optional
You can choose from rocker switch and reset switch freely, perfectly applicable for different home switches.
Switch State Synchronous
The loaded devices can be controlled according to the original on/off state of the wired switch. After setting the state synchronization, the on/off operation position is fixed and will not change due to the on/off operation of the APP.
Note: This function is only for rocker switch.

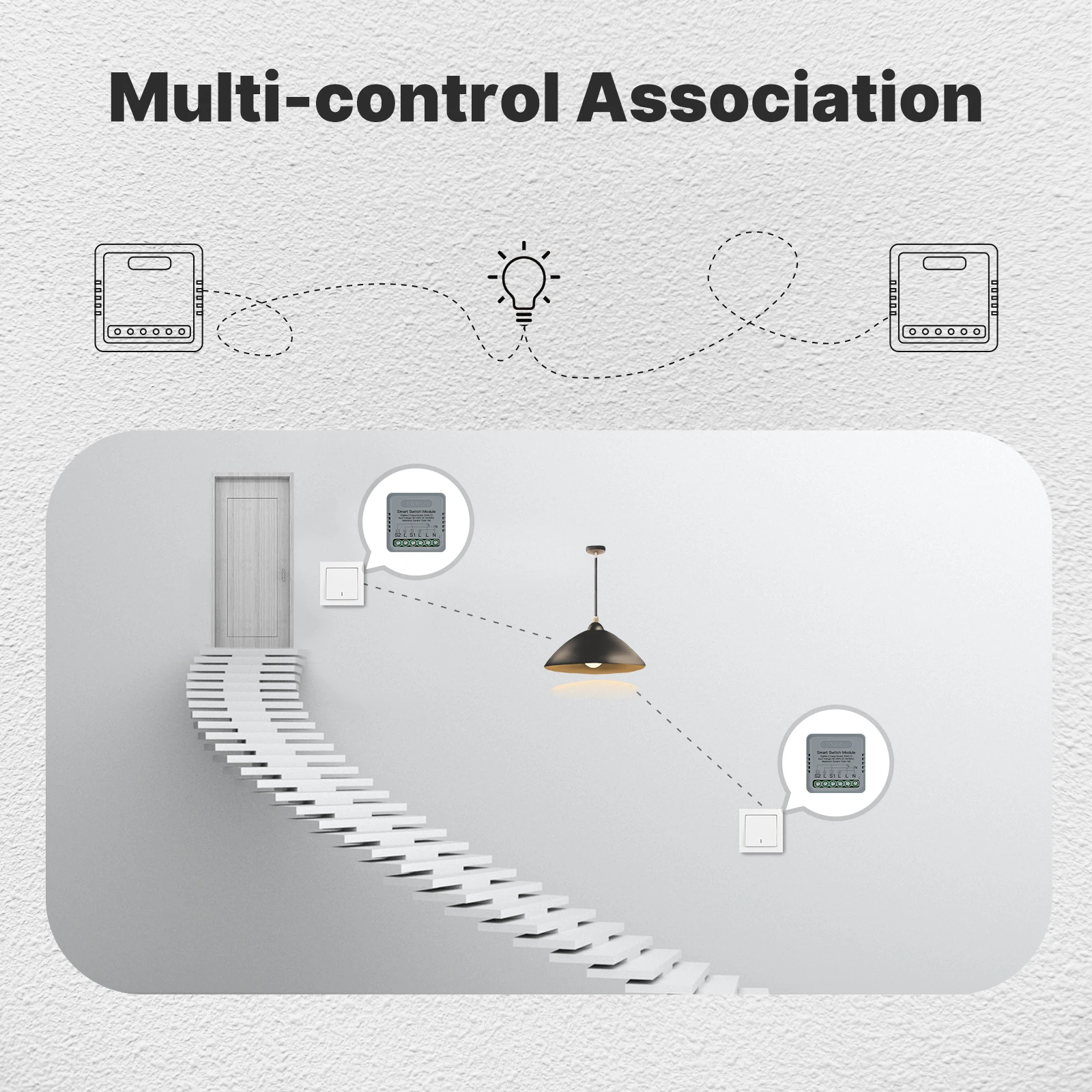

Multi-control Association
No worry about rewiring trouble, you can realize double control or even multiple control on one light after setting in App.

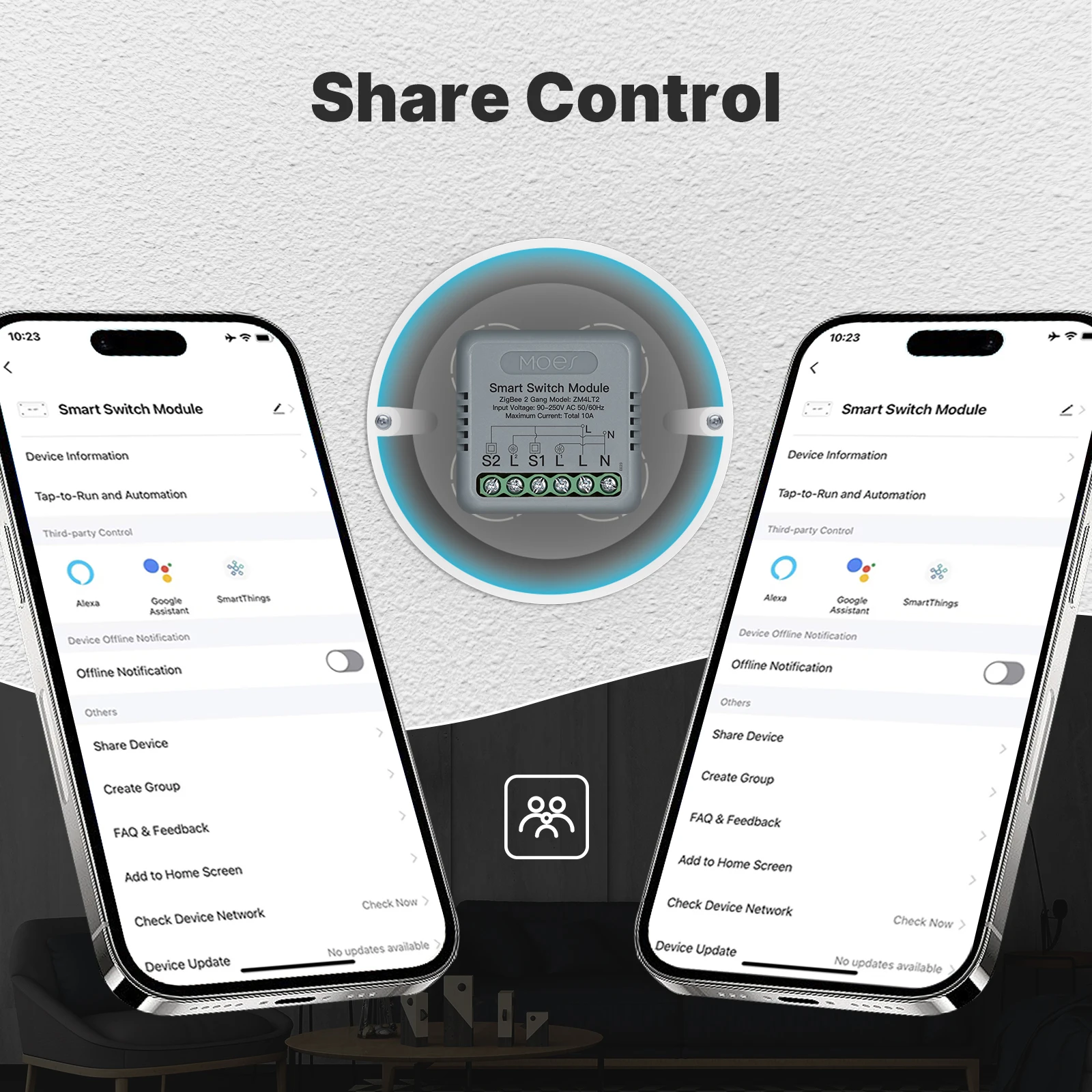

Share Control
Share the smart control with your family members to build your smart home together.

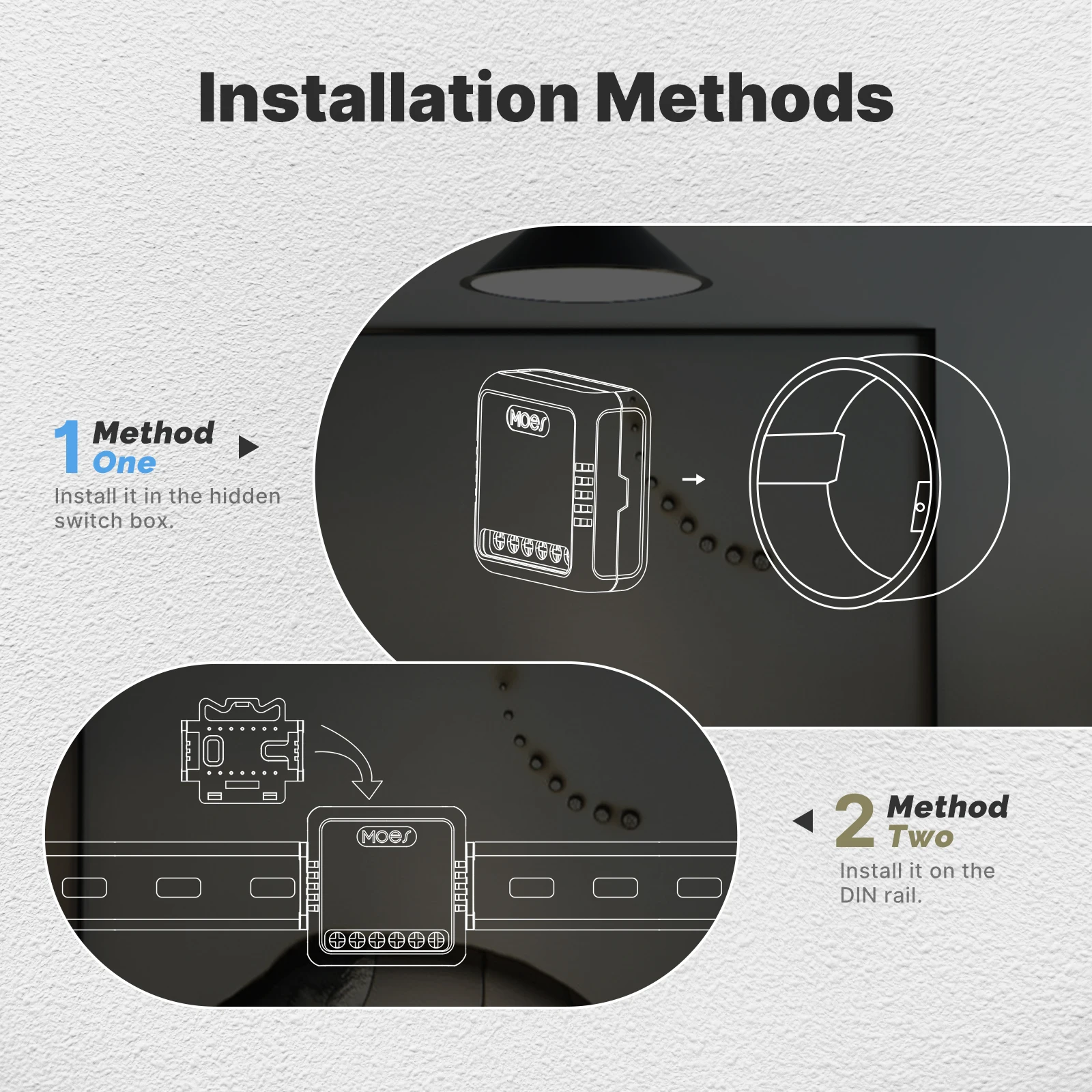

Installation Methods
The switch module supports different installation methods. Its bracket can be clipped onto the din rail as well as be fixed into the wall by screws to make sure the switch module to install in soundly.

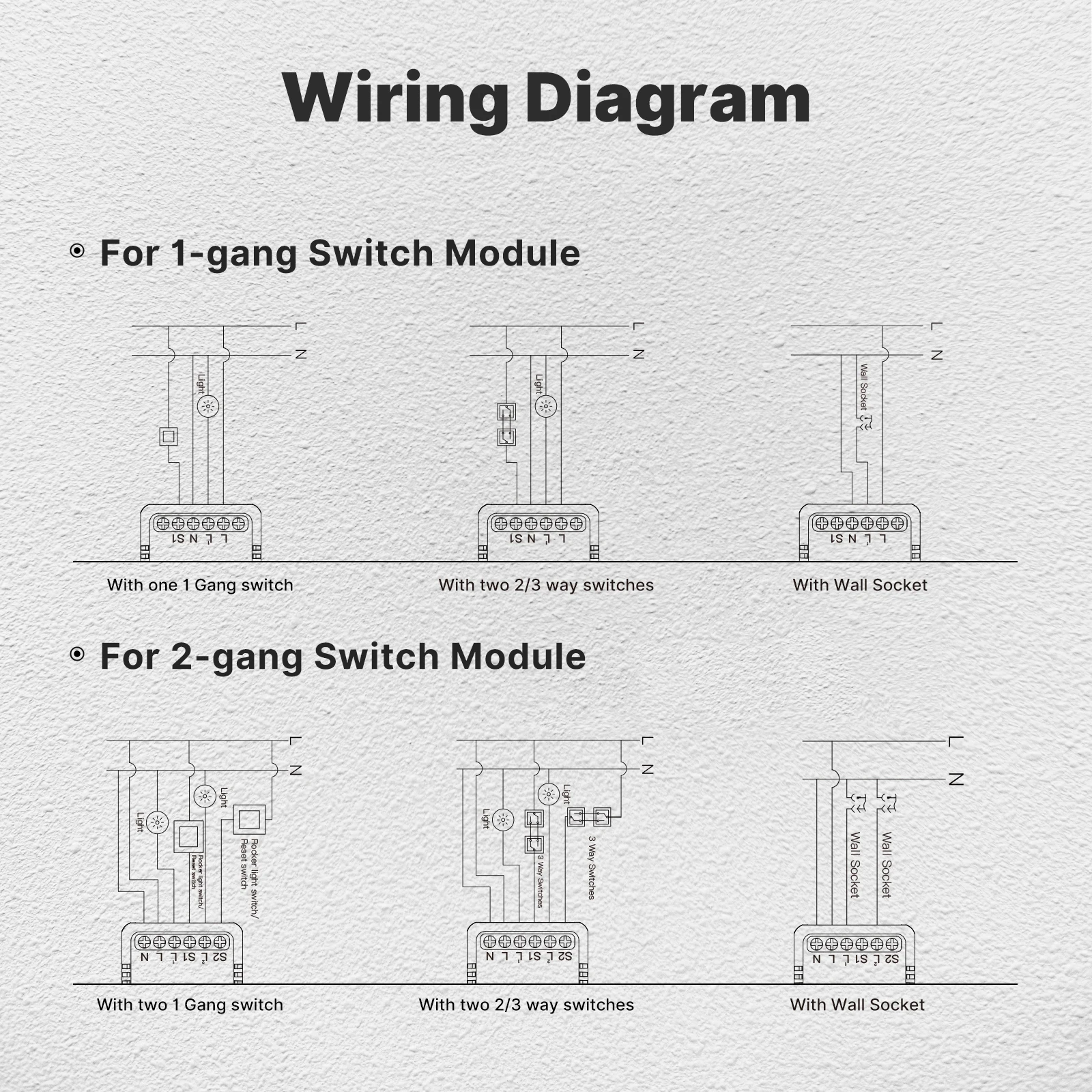

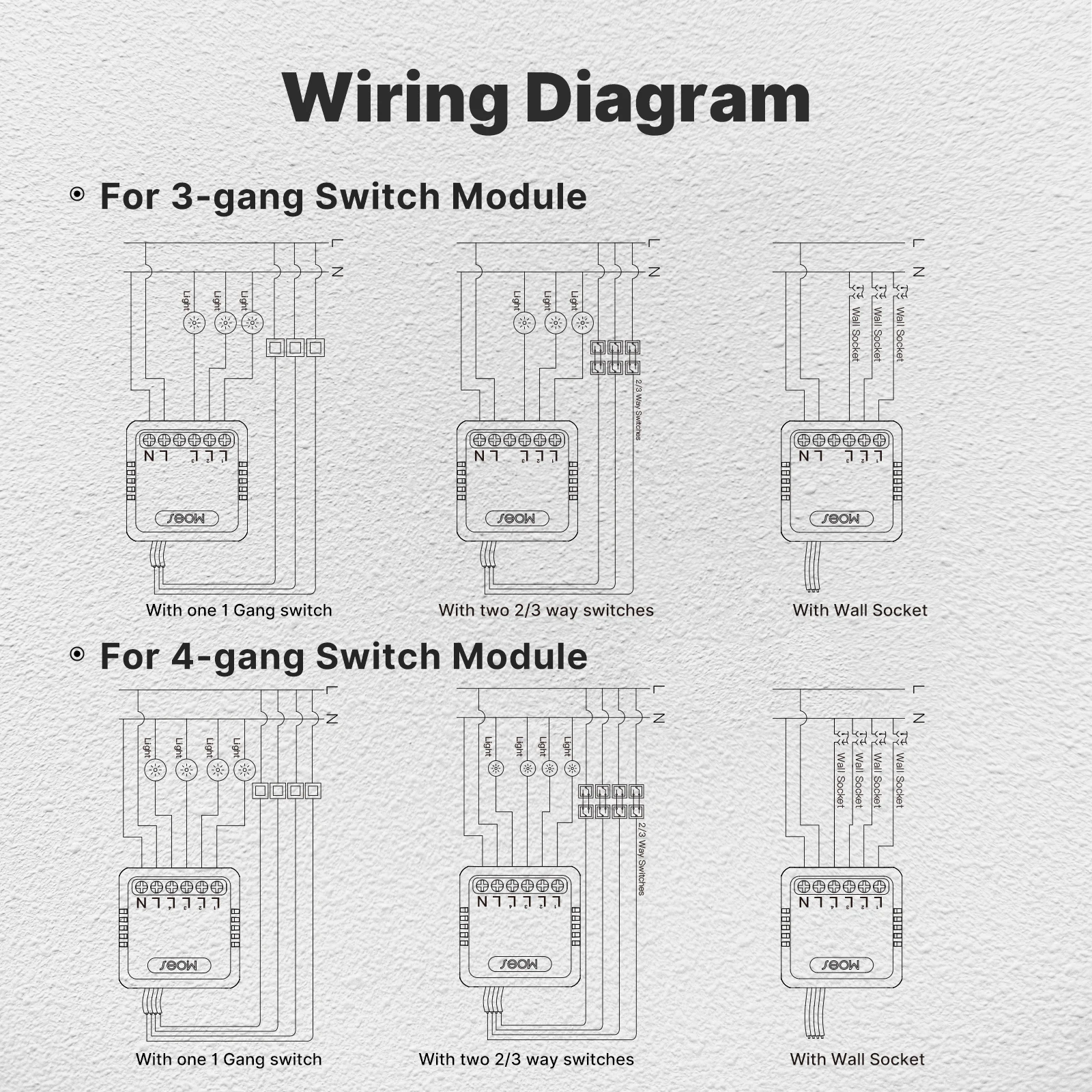

Wiring Diagram
There are three connection methods for 1-4-way switches, which are suitable for transforming traditional switches and sockets into intelligent ones.

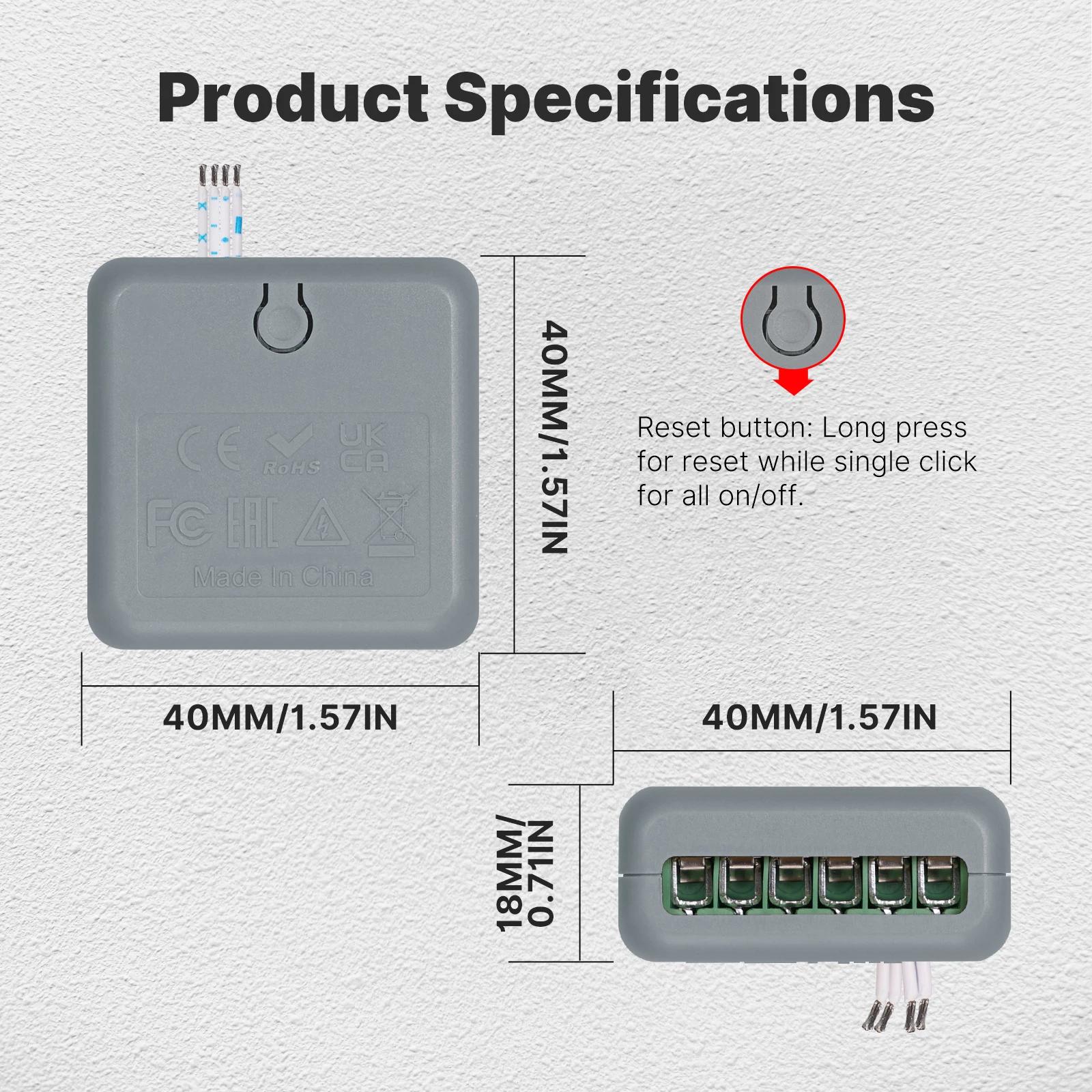

Product Specifications
Technical Specifications:
Product Type: Smart Switch Module
Voltage: 90-250V AC 50/60Hz
Wireless Protocol: Wi-Fi/Zigbee
Operation Temp.: -10℃~65℃
Case Temp.: Tc:+80℃(Max.)
Operation Range: <70m
Dims (WxDxH): 40x40x18mm
IP Rating: IP20
Frequency band: 2.412-2.484GHZ
Maximum radio transmit power: <+16dBm
