SPECIFICATIONS

Features

Identify the true or false coin according to the material, diameter and thickness of the COIN, the accuracy is high
Accept 6 different kinds of coin at the same time, CPU process control, automatically remembers the set of sample COIN
Can be applied in game machines, vending machines, coin‑operated telephone, coin‑operated washing machines, coin‑operated toy cars, massage chairs, etc
Can add the function of cumulative signal output and time control, prohibiting coin acceptor
Anti‑phishing, anti‑mixed coin, anti‑shock, anti‑high frequency, and can connect counter
Specification

Features:

Identify the true or false coin according to the material, diameter and thickness of the COIN, the accuracy is high.
Accept 6 different kinds of coin at the same time, CPU process control, automatically remembers the set of sample COIN.
Can be applied in game machines, vending machines, coin-operated telephone, coin-operated washing machines, coin-operated toy cars, massage chairs, etc.
Can add the function of cumulative signal output and time control, prohibiting coin acceptor.
Anti-phishing, anti-mixed coin, anti-shock, anti-high frequency, and can connect counter.
Prevent phishing and other means of cheating, cheat alarm.


Specifications:

Back shell material: PC Plastic
Identify Accuracy Rate: 95%
Applying Coin Diameter: 18-31mm/0.71-1.22inch

Applying Coin Thickness: 1.8mm-2.8mm
Atmospheric Pressure: 85Kpa-106Kpa
Working Current: 50mA
Moment Maximum Current: 350mA (less than 0.5S)
Humidity: ≤95%
Storing Temperature: -20℃--+85℃
Operating Temperature: -10℃--+60℃
Recognition Speed: ≤0.6sec

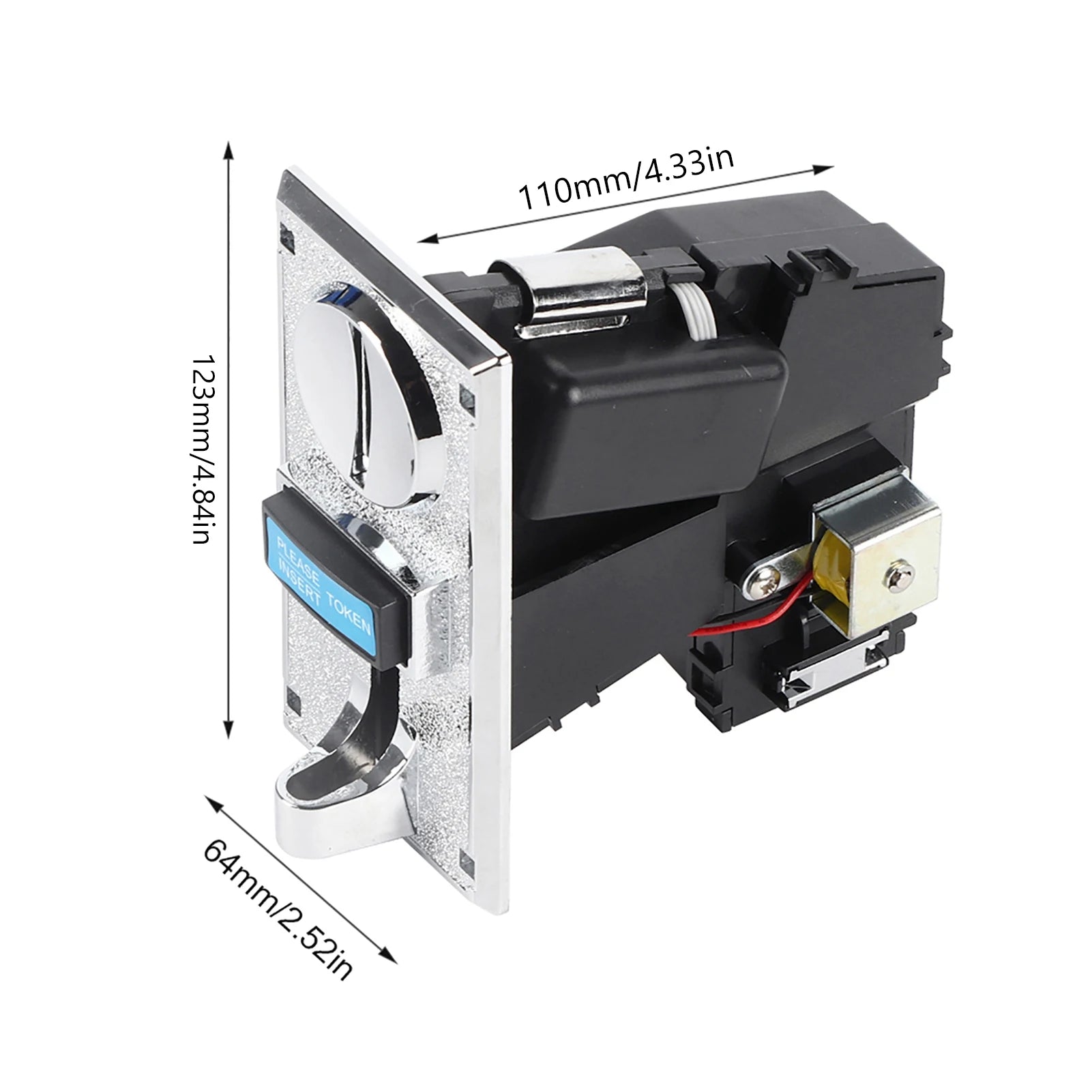

Product size: 64 x 124 x 110mm/2.52 x 4.88 x 4.33inch

Screw hole: 5 x 5mm/0.20 x 0.20inch

Hole pitch: 46 x 97mm/1.81 x 3.82inch

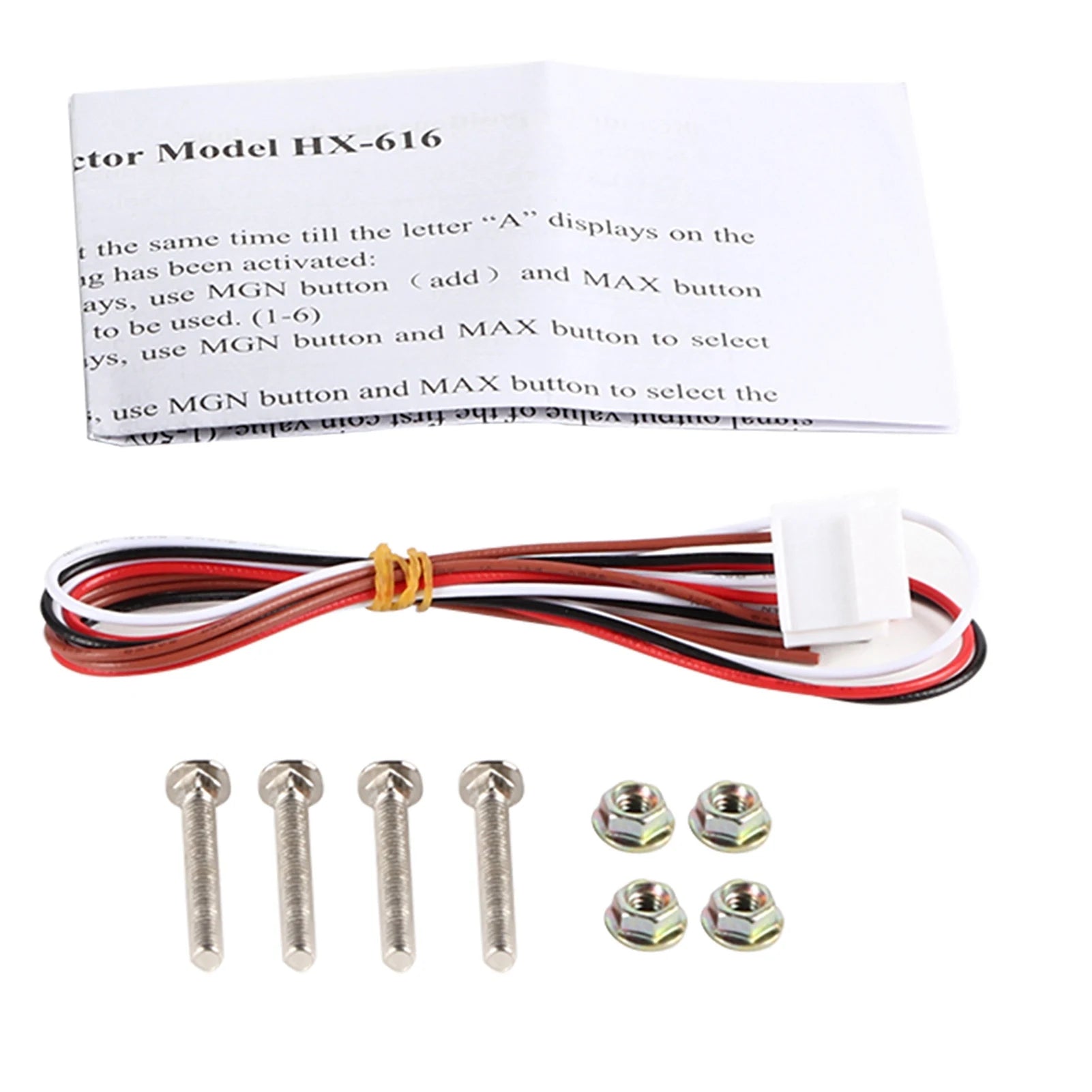

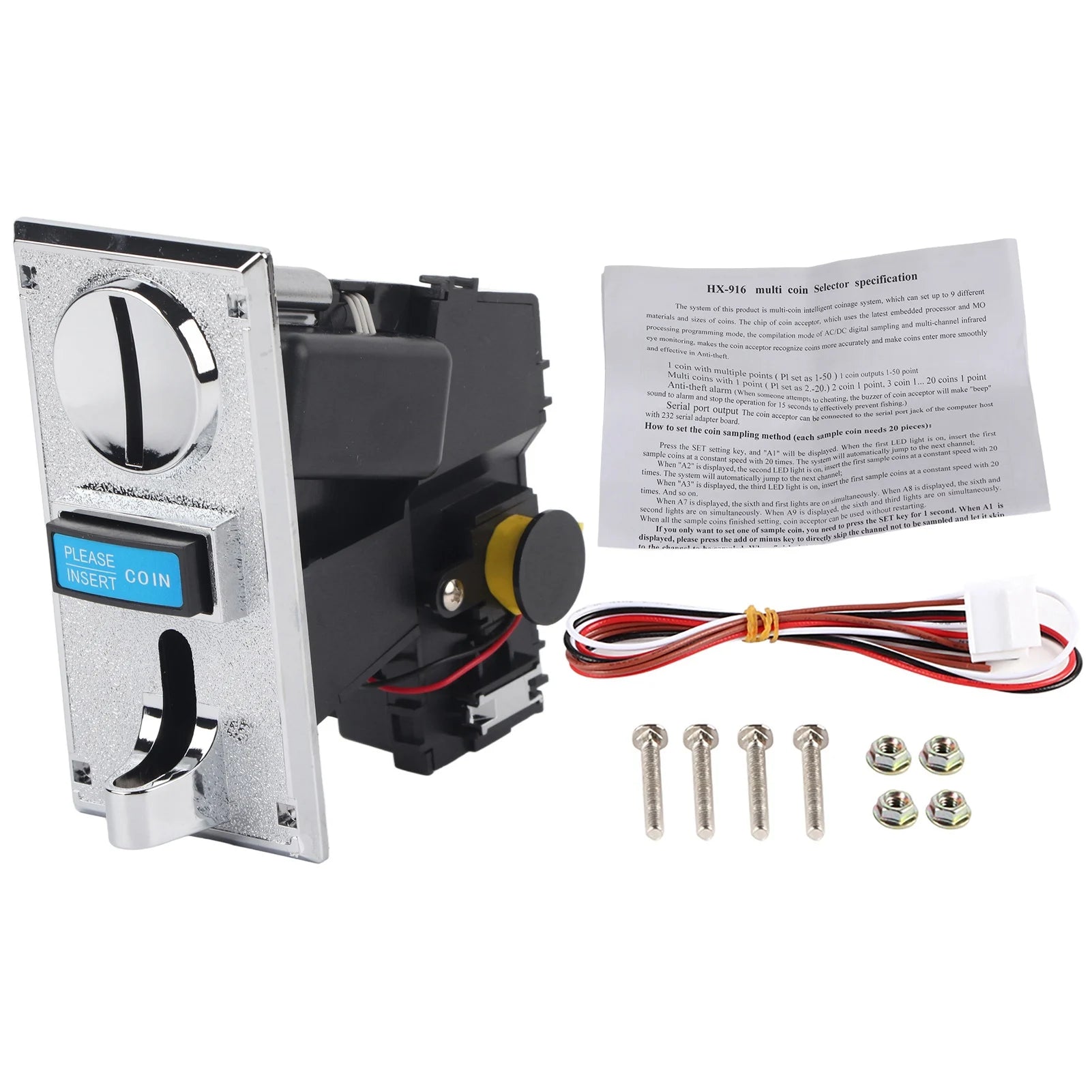

Package includes:

1 x coin acceptor

4 x Screw

4 x Nut

1 x Connection Line

1 x User Manual

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
