SPECIFICATIONS

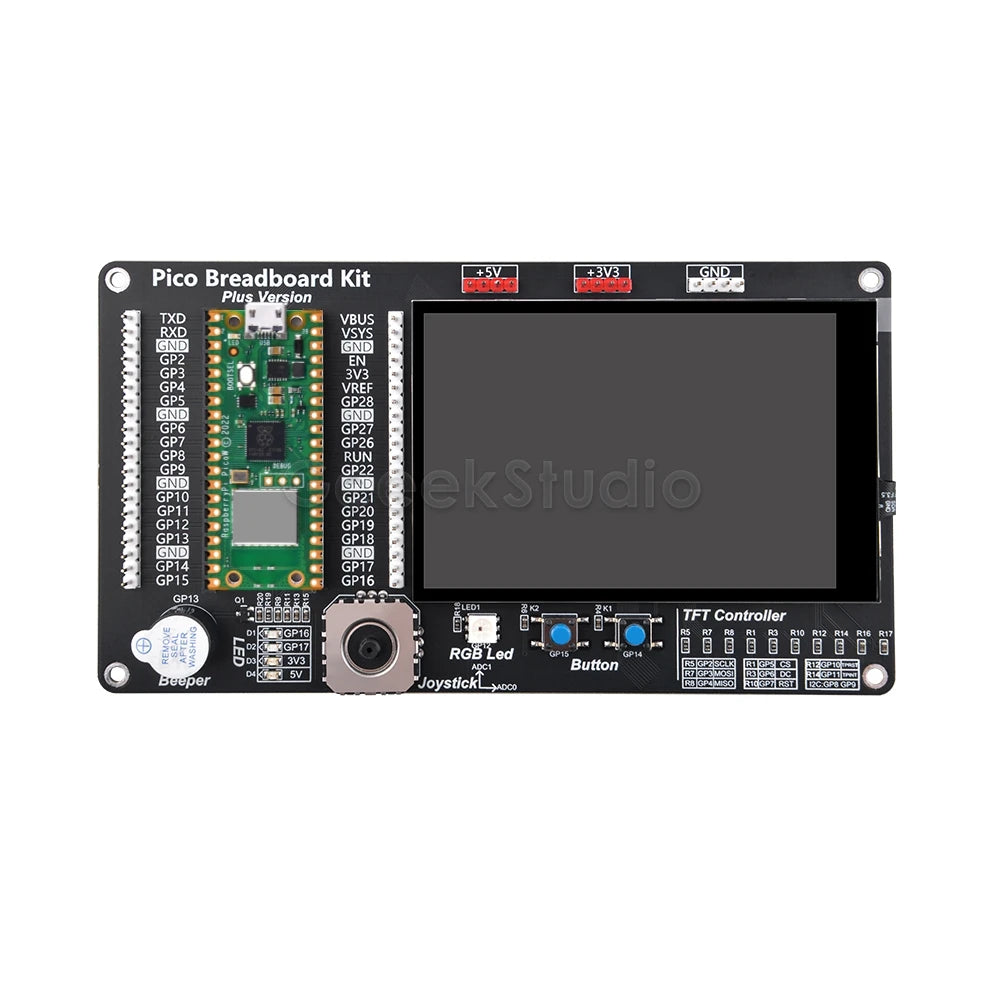

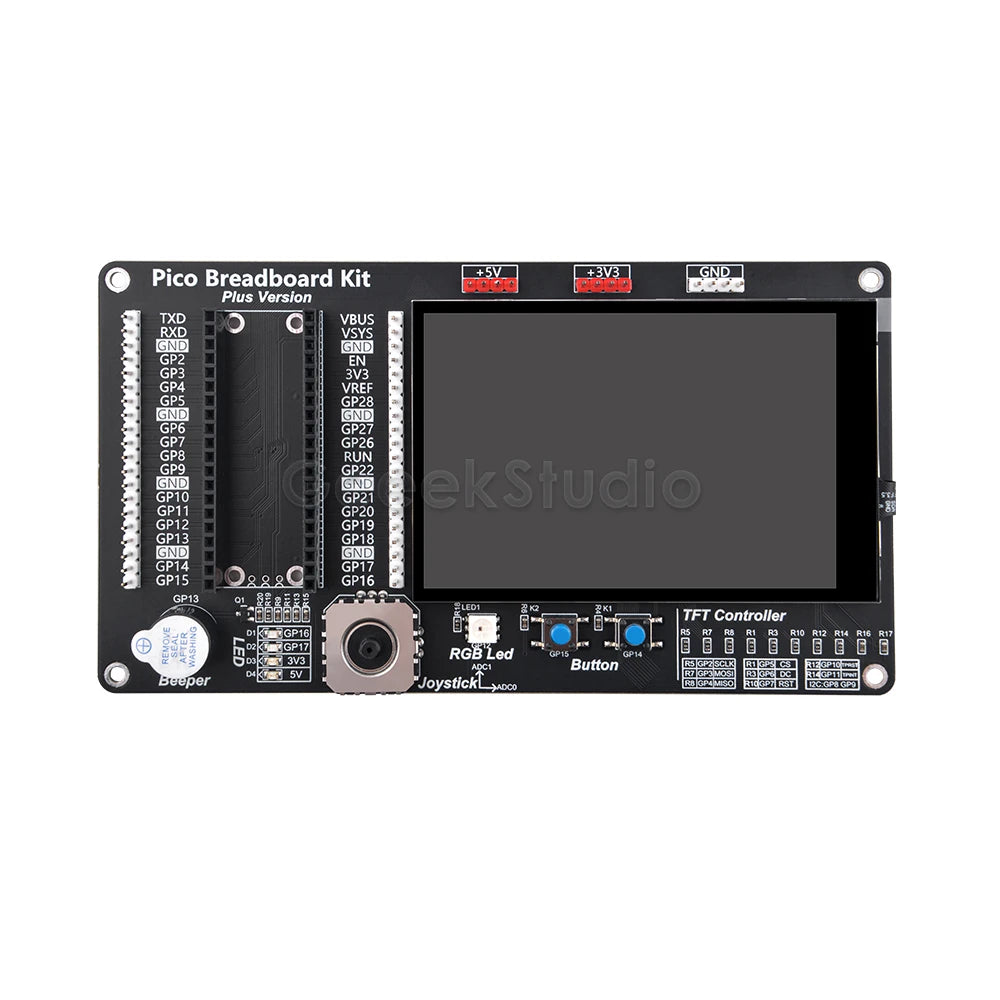

Pico Breadboard Kit Plus version

Product Description

The Pico Breadboard Kit with a 3.5-inch touch screen, mini PSP joystick, RGB light, buzzer, and two buttons is a versatile electronics kit designed for prototyping and experimentation. This compact kit combines various components to create interactive projects and offers a user-friendly interface.

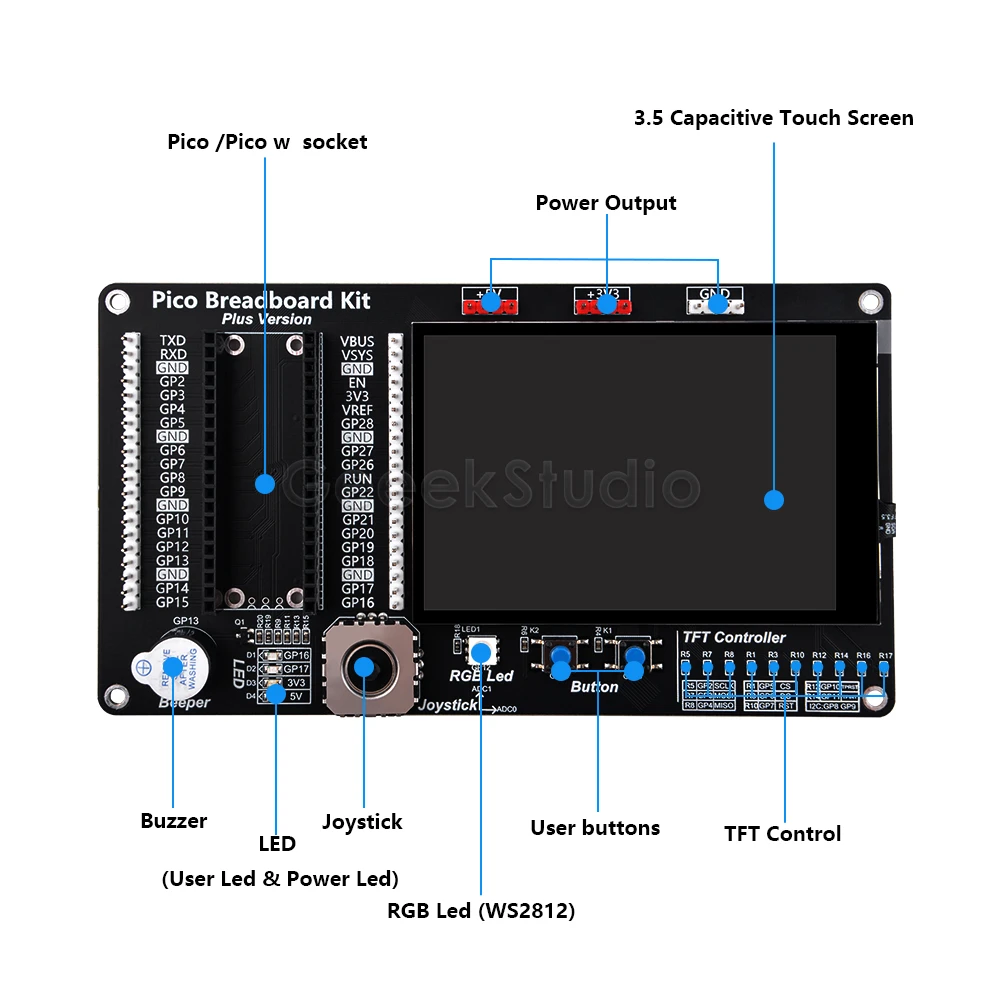

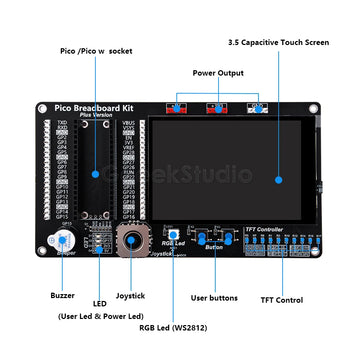

Product Features

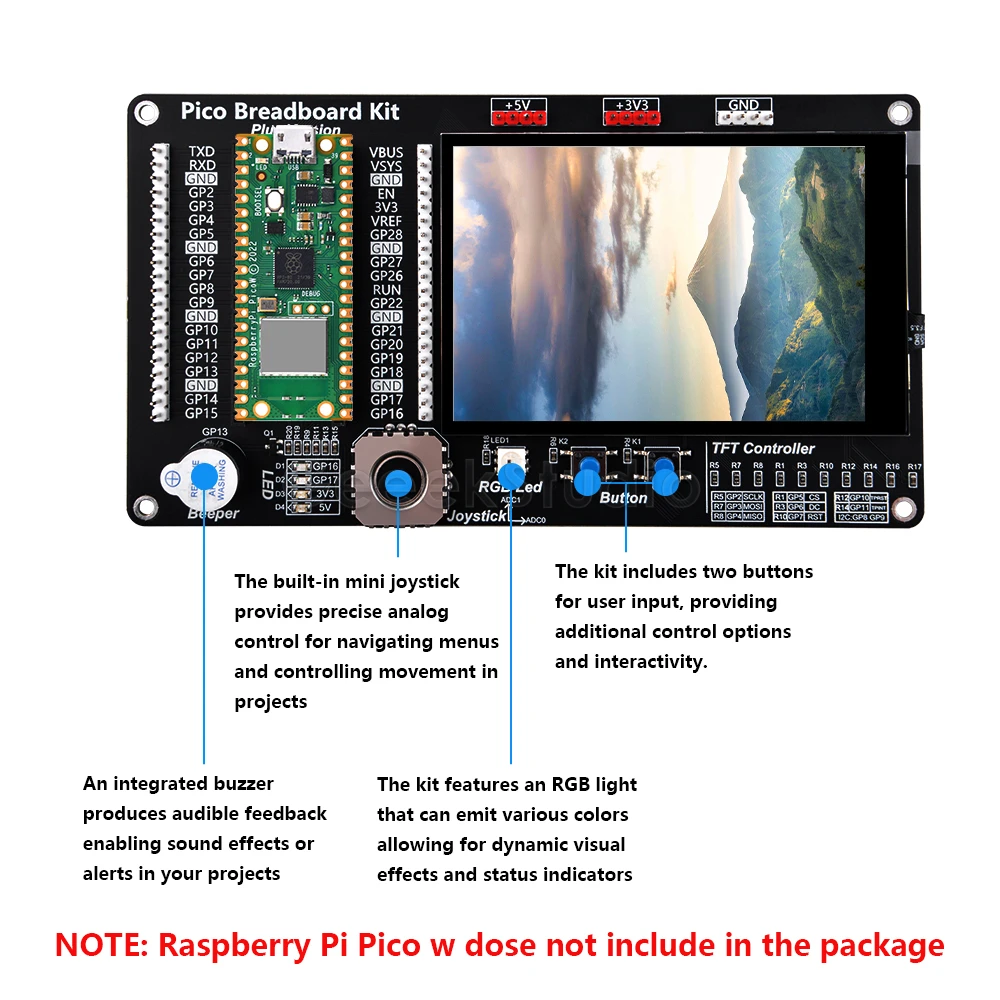

• 3.5-inch Capacitive Touch Screen: The kit includes a high-resolution touch screen for displaying visual outputs and receiving user input.

• Mini PSP Joystick: The built-in mini joystick provides precise analog control for navigating menus and controlling movement in projects.

• RGB Light: The kit features an RGB light that can emit various colors, allowing for dynamic visual effects and status indicators.

• Buzzer: An integrated buzzer produces audible feedback, enabling sound effects or alerts in your projects.

• Two Buttons: The kit includes two buttons for user input, providing additional control options and interactivity.

• Label: Drop the jumper, all the information is marked on the PCB and can also be disconnected by removing the 0R resistor.

Specifications

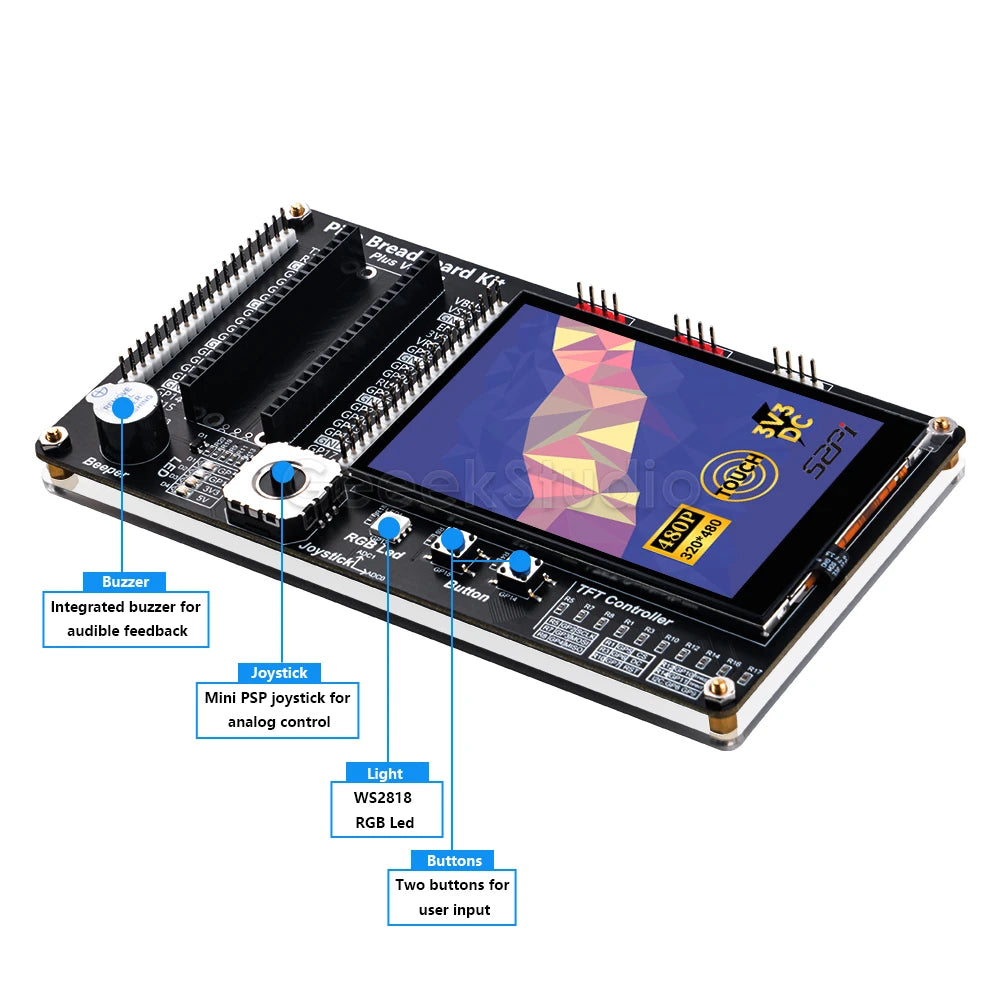

• Joystick: Mini PSP joystick for analog control

• Light: RGB light for color output

• Buzzer: Integrated buzzer for audible feedback

• Buttons: Two buttons for user input

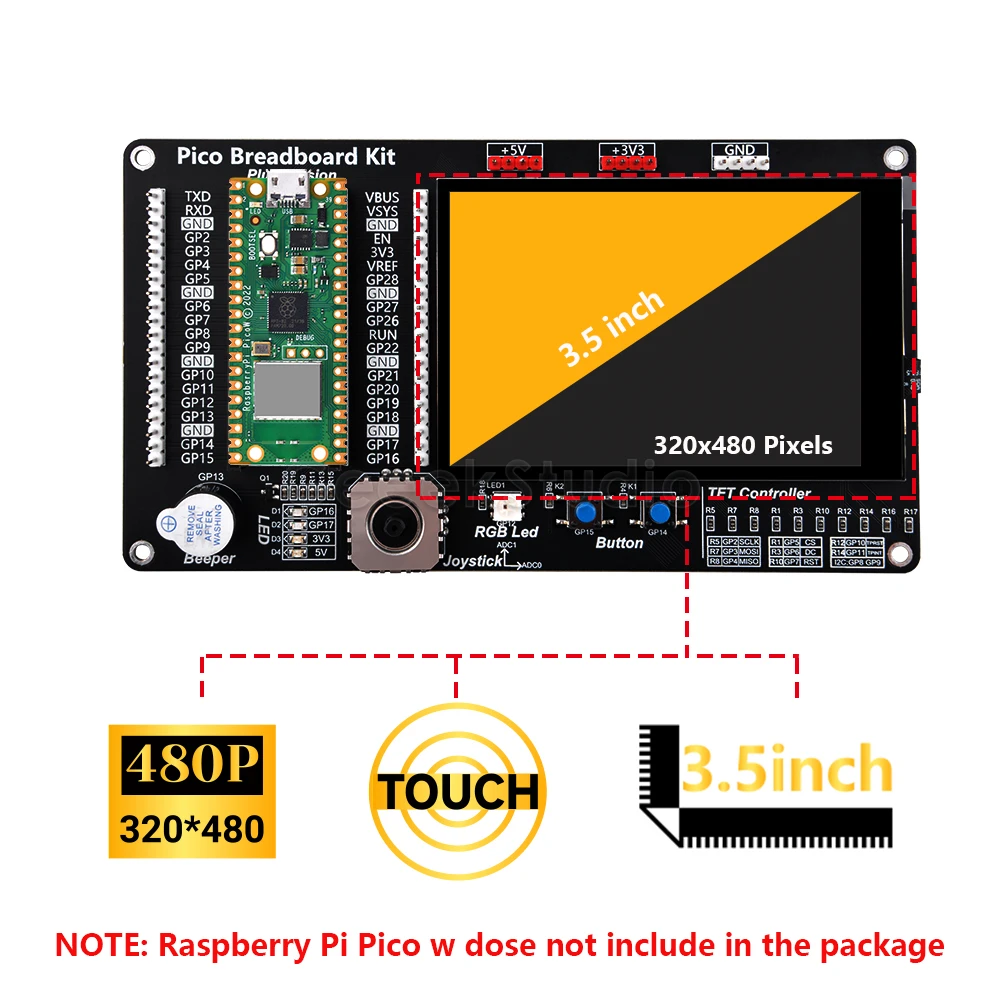

• TFT Size: 3.5 inches TFT

• TFT Resolution: 320x480 Pixels

• TFT IC: ST7796SU1 (*May vary with lot*)

• TFT Touch Type: Capacitive Touch Screen

• Weight: 0.25kg

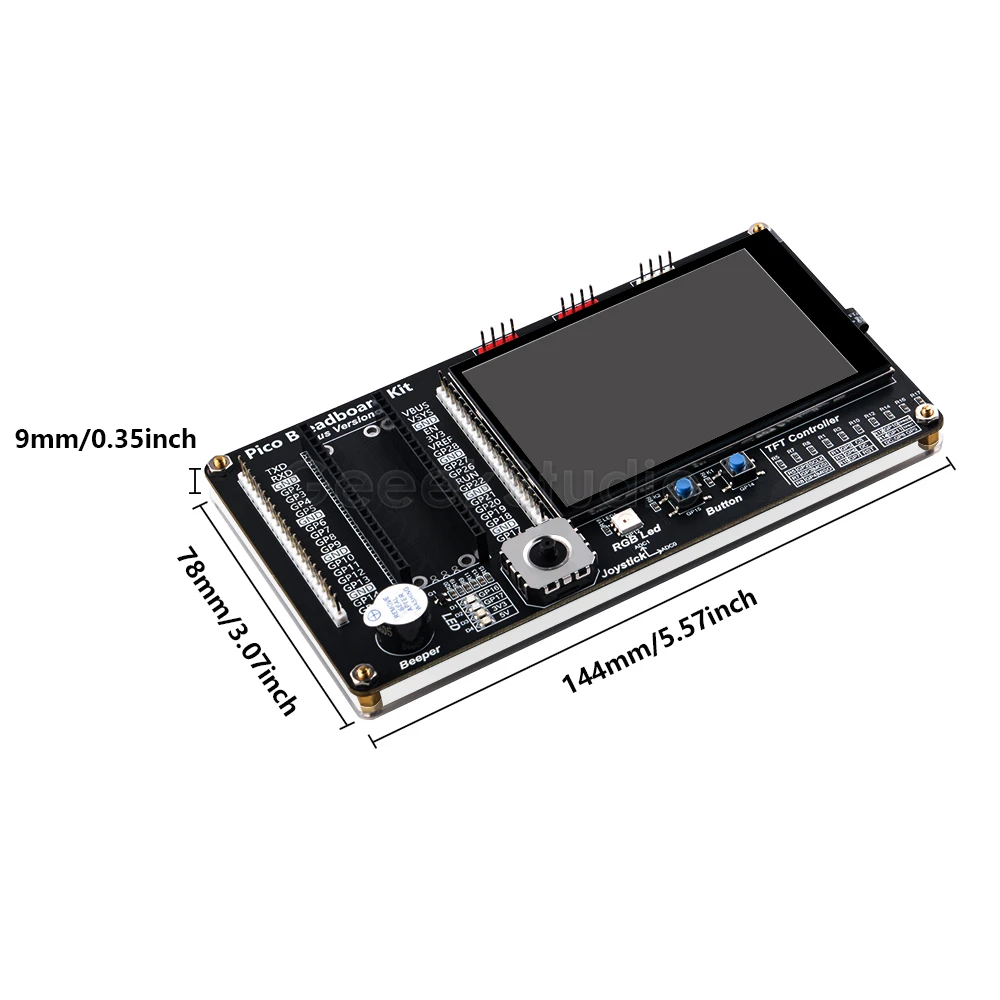

• Package Size：Appro. 190mm*110mm*25mm

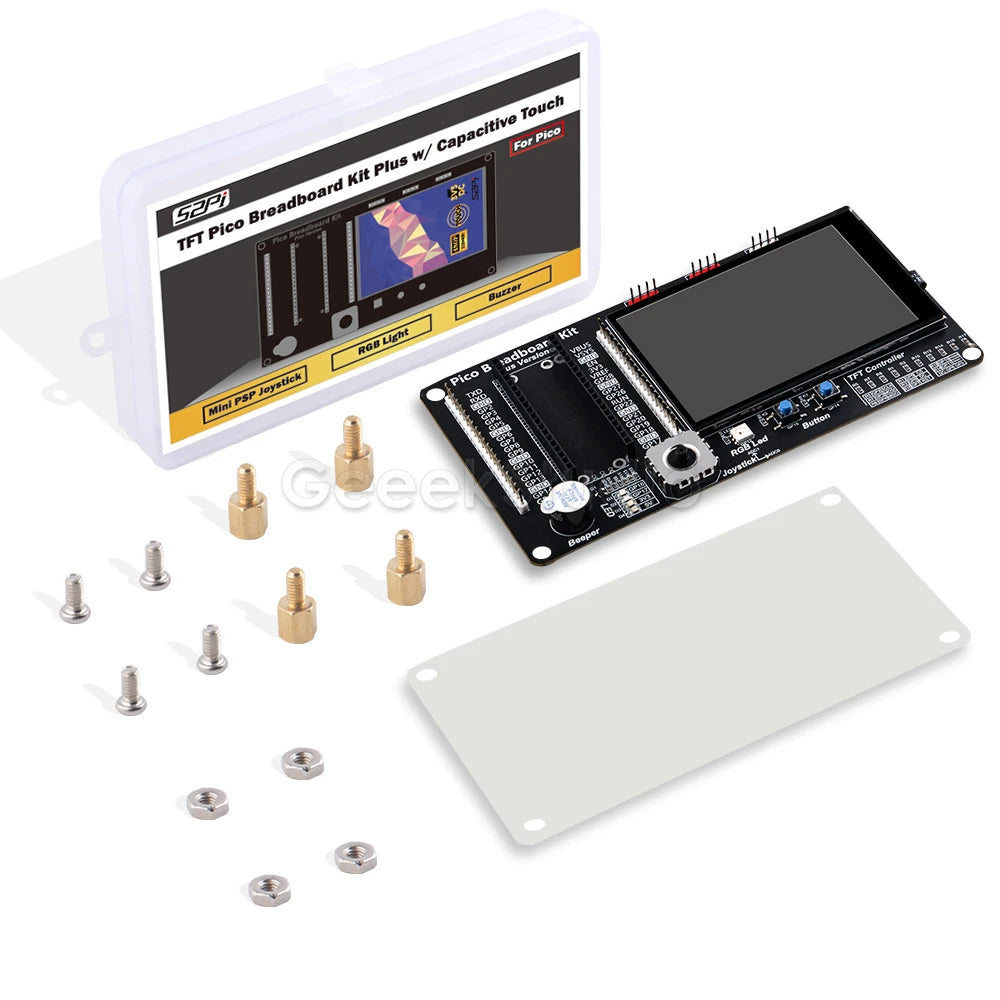

Package Includes

• 1 x Pico Breadboard Kit Plus version

• 1 x 3.5" Capacitive Touch TFT (already installed on the kit)

• 4 x Copper pillar

• 4 x M2.5 Screw

• 4 x M2.5 nuts

• 1 x Acrylic panel
