3*extended USB ports: compatible with USB 2.0 / 1.1
Accessory Type: Extension Board
Battery Included: no
Brand Name: SHCHV
Choice: yes
Compatible With: Raspberry Pi Zero w 2w
High-concerned chemical: none
Incorporates RTL8152B Ethernet chip: support 1*RJ4
Model Number: ETH/USB HUB HAT (B)
Origin: Mainland China
Pogo pin design: for direct connecting with Pi Zero/Zero W/Zero WH
Typical Application Fields: Communication Hardware
semi_Choice: yes
Suitable for Raspberry Pi series

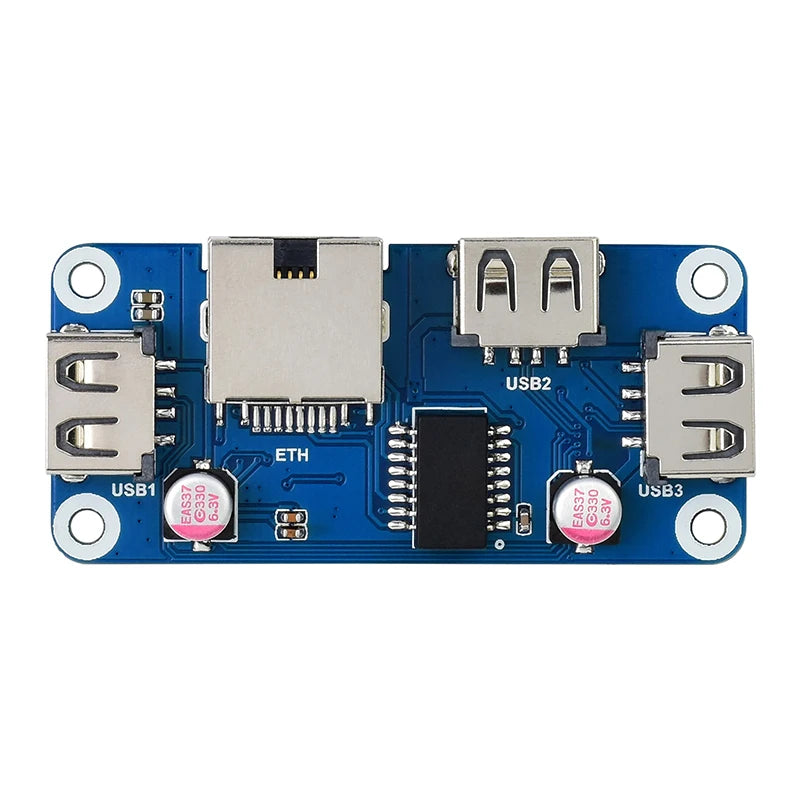

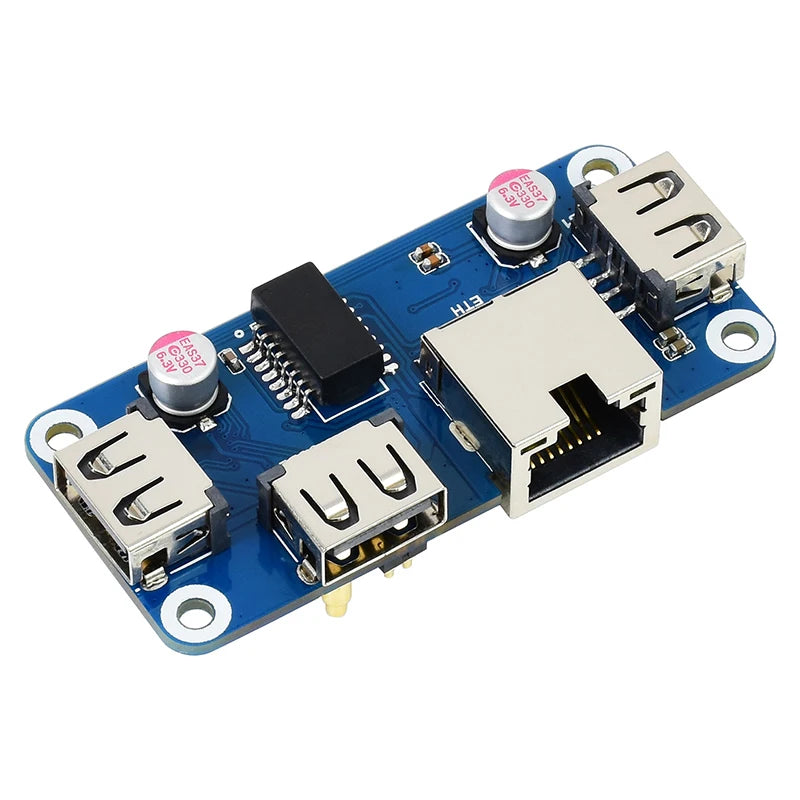

1x RJ45 Ethernet Port | 3x USB 2.0 Ports
The ETH/USB HUB HAT (B) is an Ethernet and USB HUB designed for Raspberry Pi, providing 1x RJ45 Ethernet port and 3x USB 2.0 ports. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards through a USB cable.
3x extended USB ports, compatible with USB 2.0 / 1.1
Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation

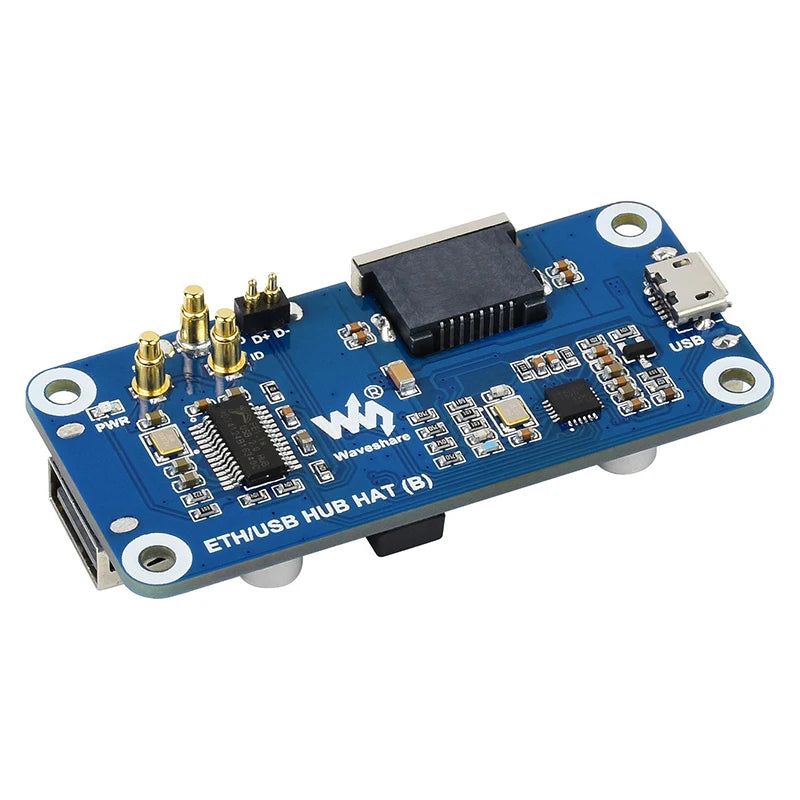

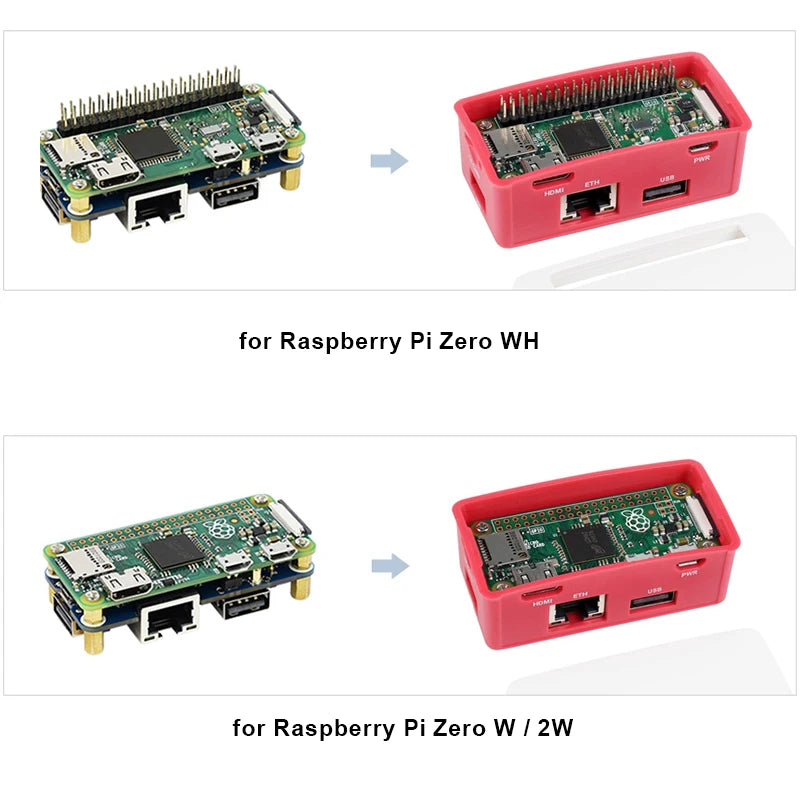

Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable
Specialized Pogo Pin For Zero Series, Plug-And-Play, Without Preventing Other HATs
Normal USB HUB Connector For Other Raspberry Pi Boards Or PC
1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1

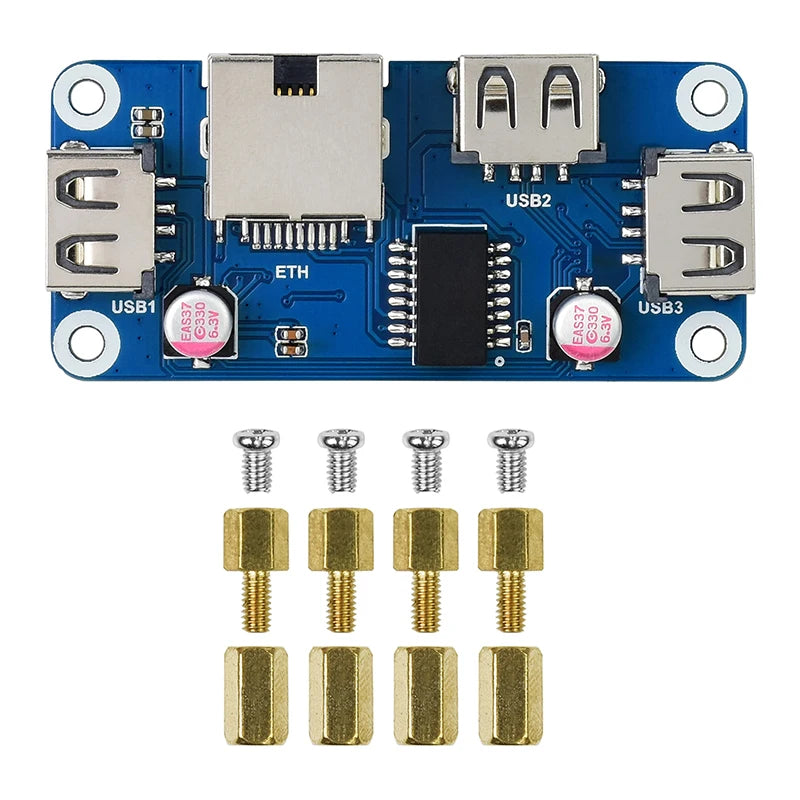

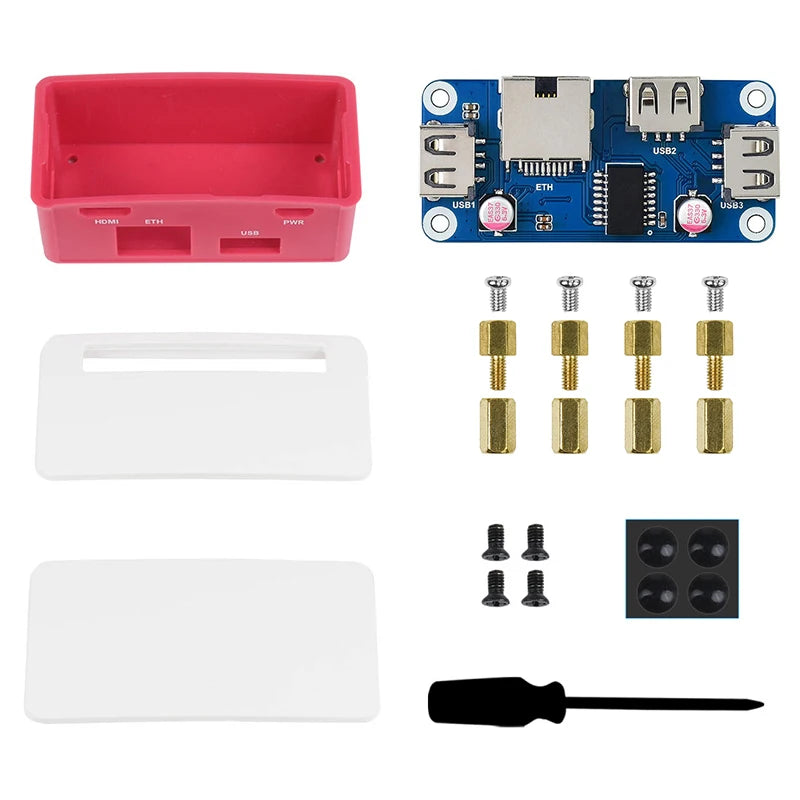

ETH/USB HUB HAT (B) x1
Screws pack x1
| Vendor: | Apsilon |
|---|---|
| Color: | HUB HAT with Case, HUB HAT |
| Ships From: | CN |
| SKU: | 14:193#HUB HAT with Case;200007763:201441035 |
| Weight: | 160 g |
