SPECIFICATIONS

AC Current: 10A

AC Voltage: 600V

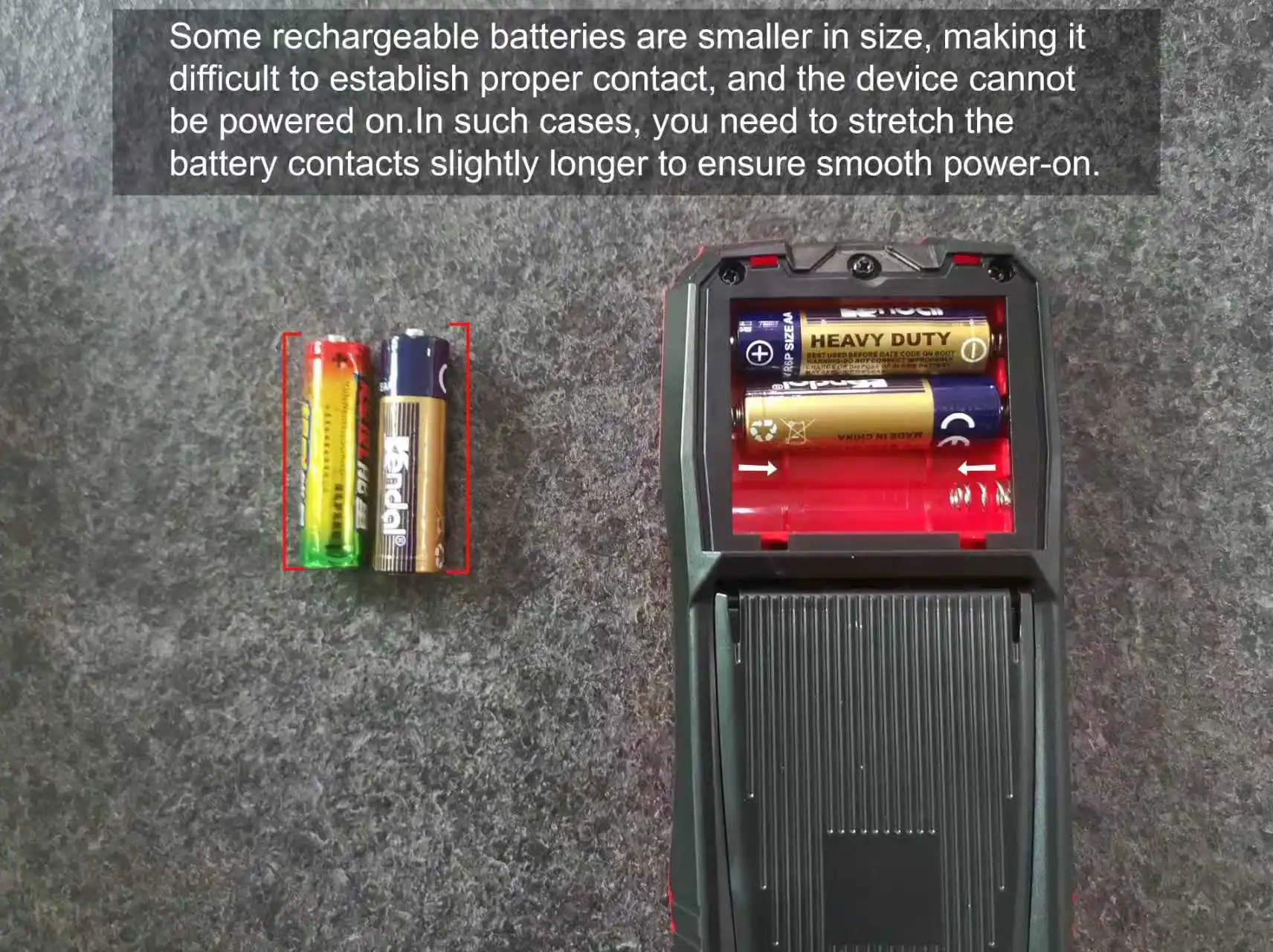

Battery Included: no

Brand Name: TOOLTOP

Capacitance: 100uF

Choice: yes

Continuity test: support

DC Current: 10A

DC Voltage: 600V

DIY Supplies: Electrical

Diode: Voltage is about 1.5 V

Duty cycle: 0%~100%

Frequency: 5Mhz

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: No

bandwidth: 1MHz

sampling rate: 2.5Msps

Note:This multimeter has an automatic range. It is normal for the screen to display fluctuations when not measuring. If the display reads zero when the test lead are shorted, then the instrument is working properly.

Features：

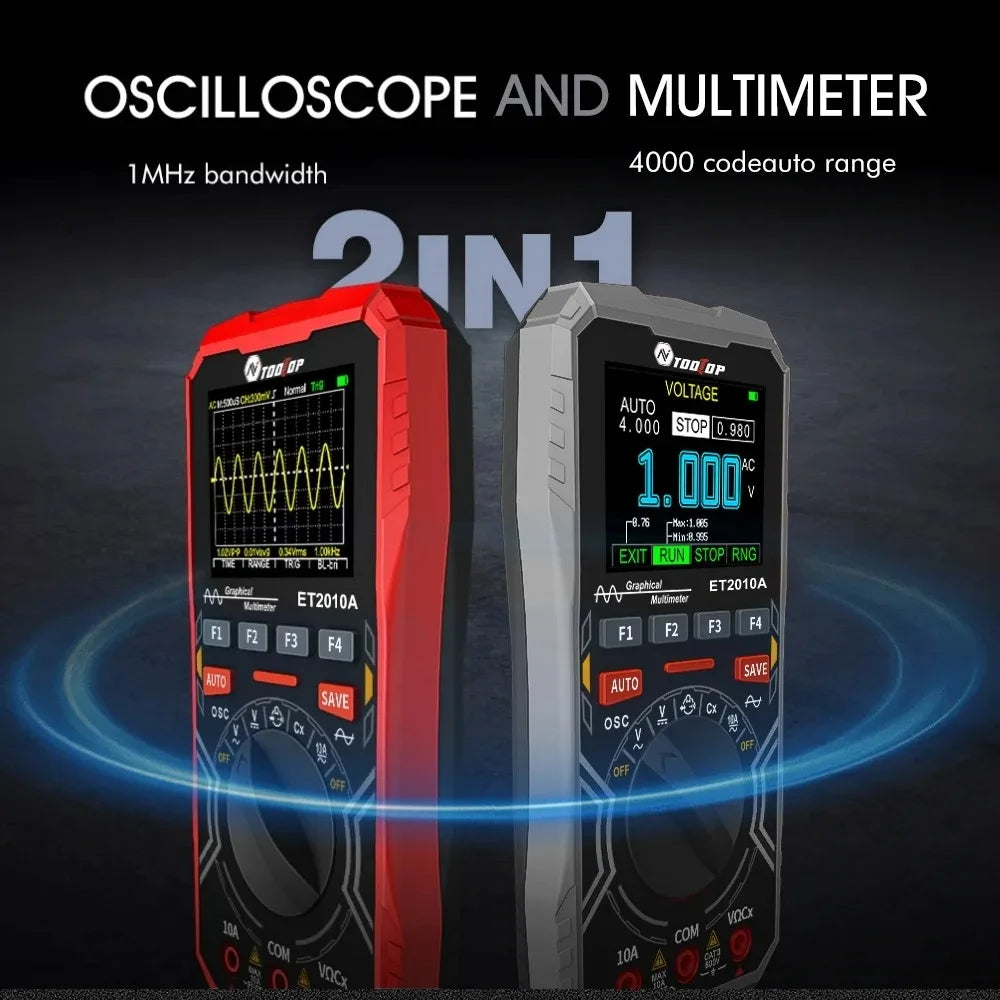

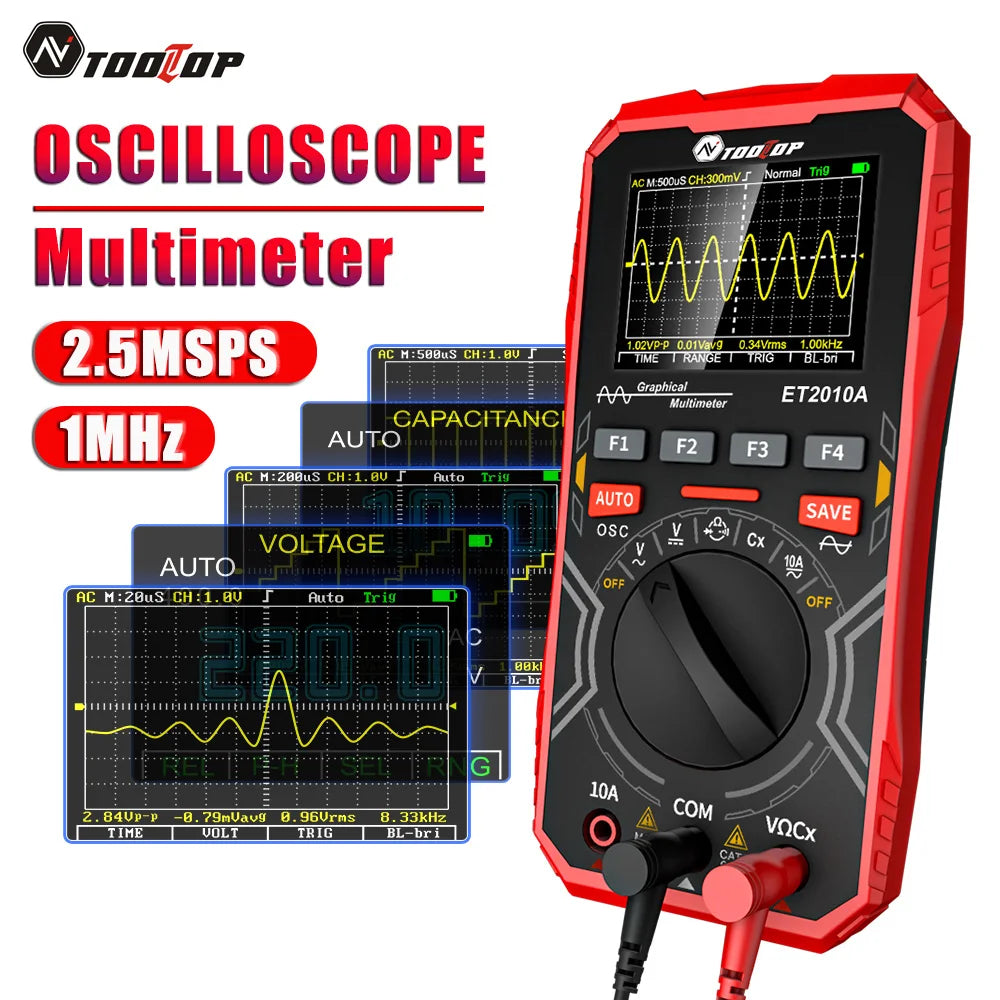

◆ 2.5Msps high-speed sampling, 1MHz analog bandwidth, 4000 count digital multimeter.

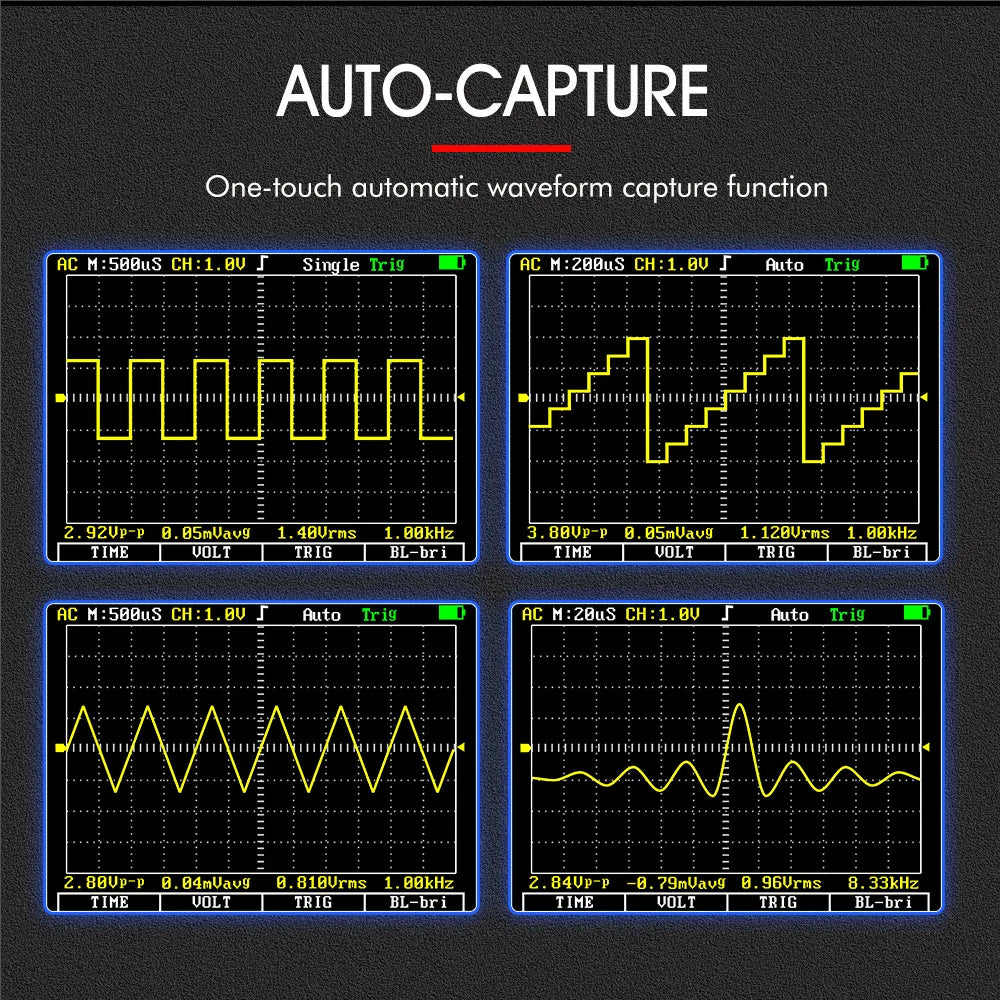

◆ One-click visual wave, there are three waveform scanning modes: automatic/conventional/single.

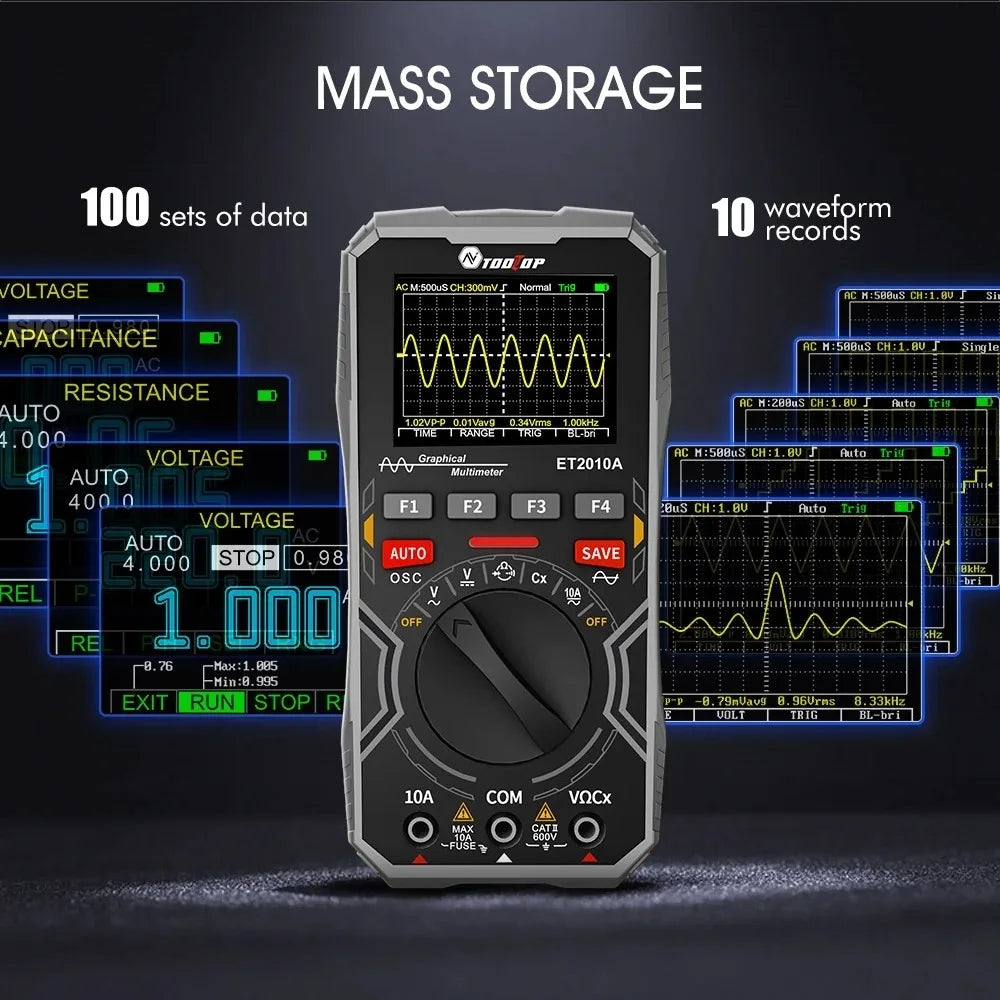

◆Save function for data and waveform in the measurement; a total of 100 sets of data and 10 waveform can be saved.

◆ When measuring waveforms, you can set parameters independently, such as: time base, amplitude, waveform scanning mode, etc.

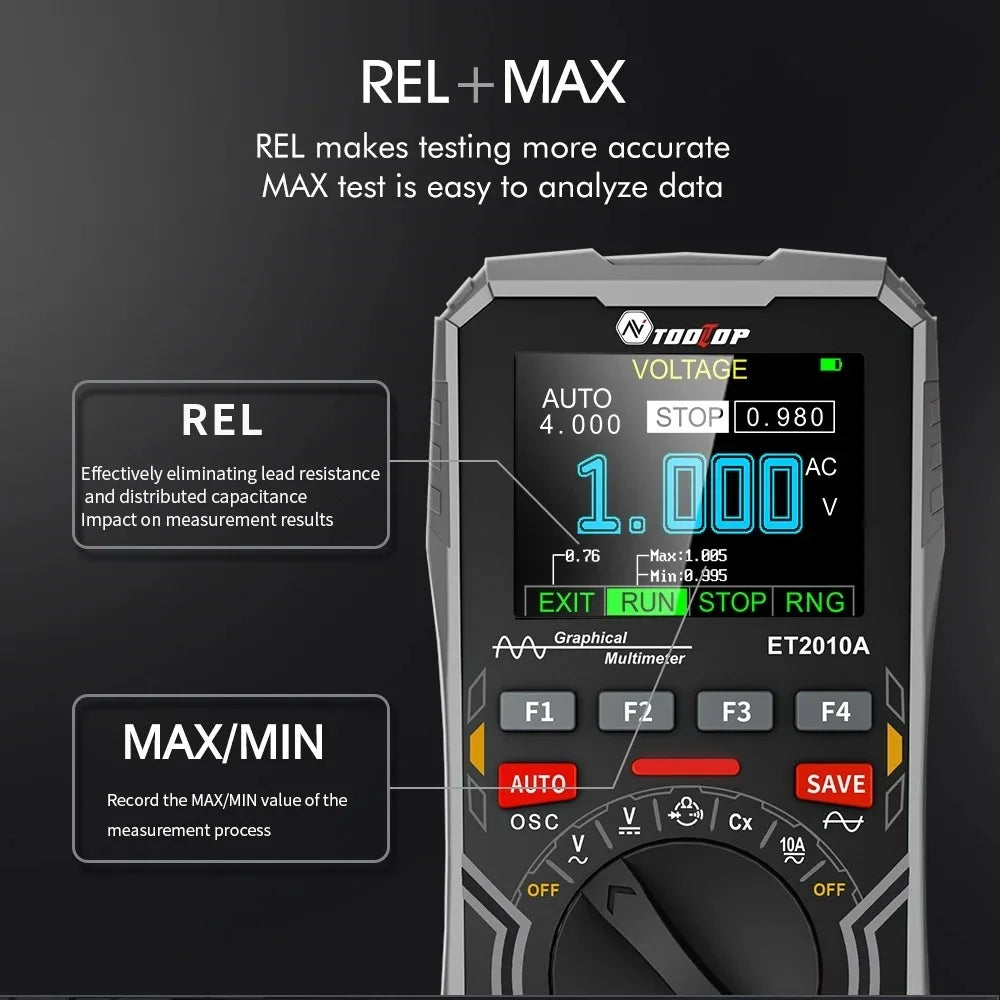

◆REL, effectively eliminate the lead resistance, distributed capacitance and interference signal.

◆ Multimeter functions include DC/AC voltage/current, resistance, capacitance, frequency, duty cycle,diode continuity test.

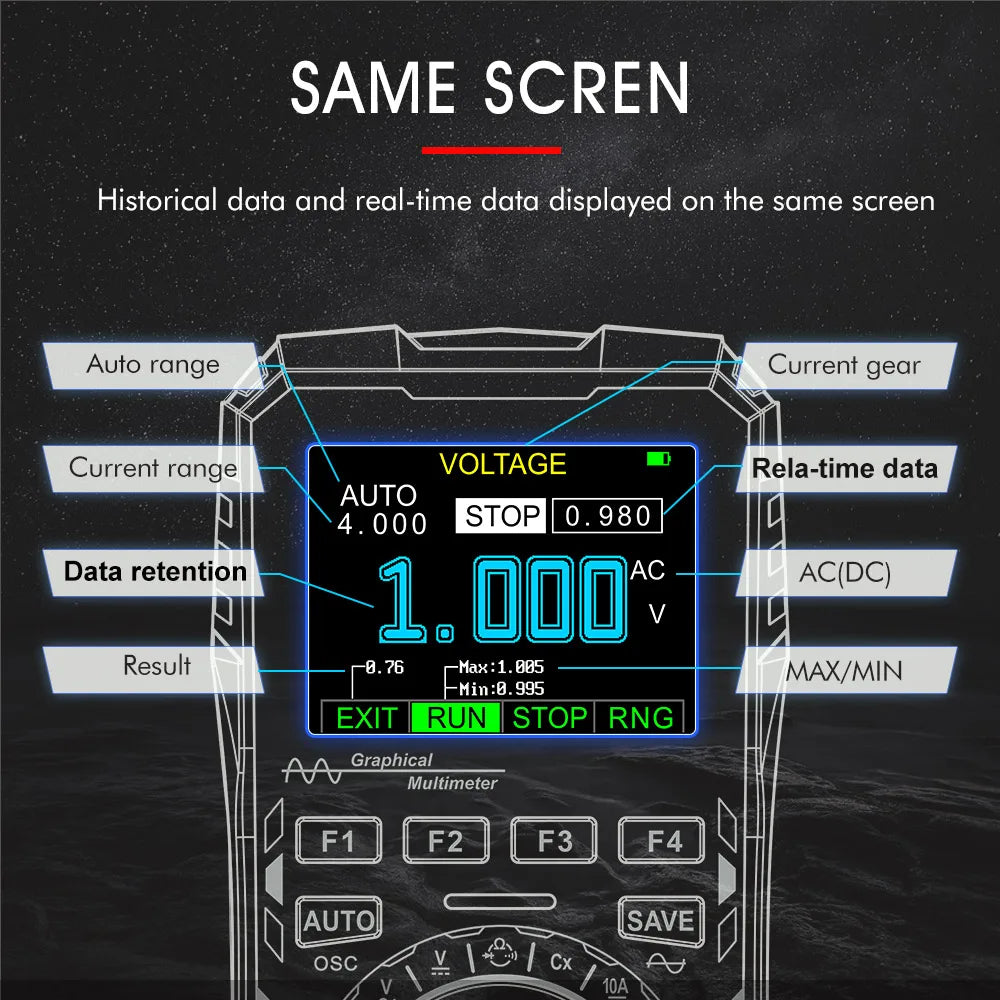

◆Automatic/manual switching for measuring range and display of measurement data and historic data on the same screen.

◆ Overload protection 10A double protective tube, dual protection of the instrument.

◆ Automatic shutdown in case of no operations for 15 minutes: bright backlight and clear display.

◆ Adopt 2.4 inch color screen display, the display effect is clear.

◆Higher reliability: no adjustment of potentiometer is required for panel calibration and internal storage calibration.

Specifications:

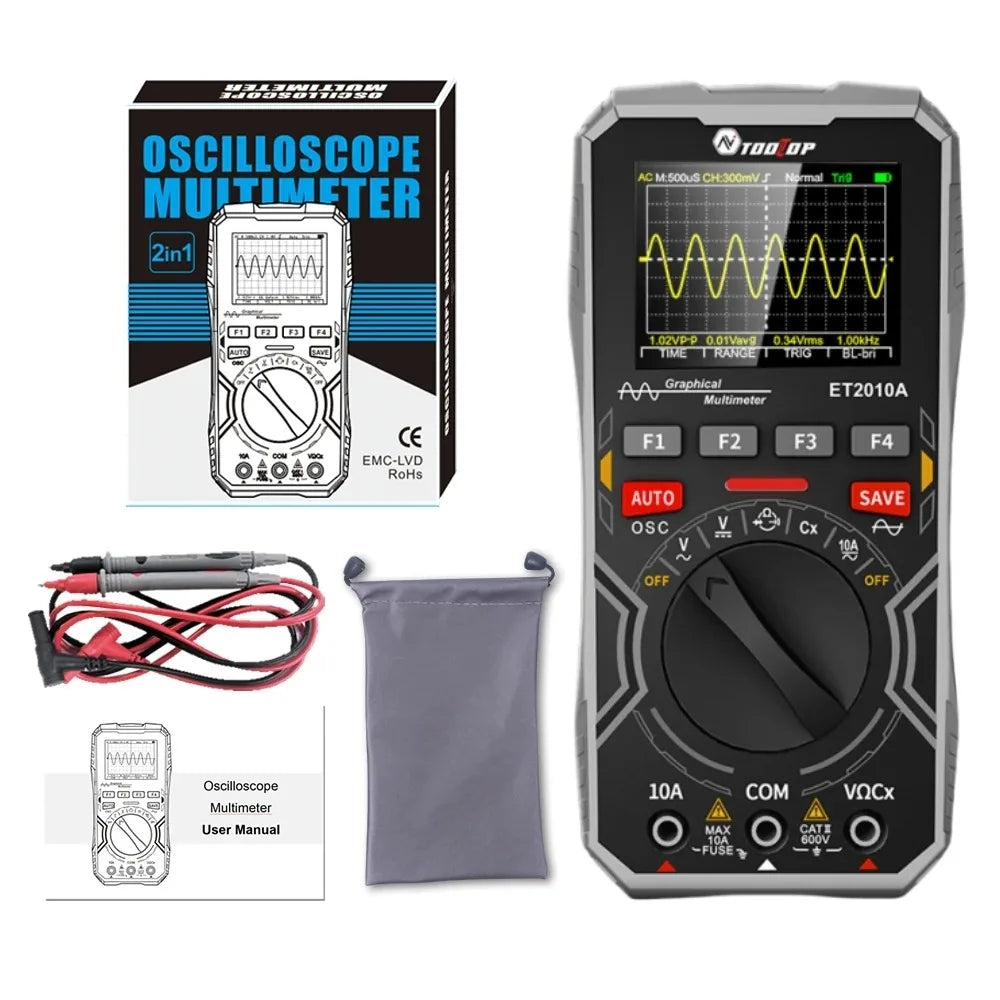

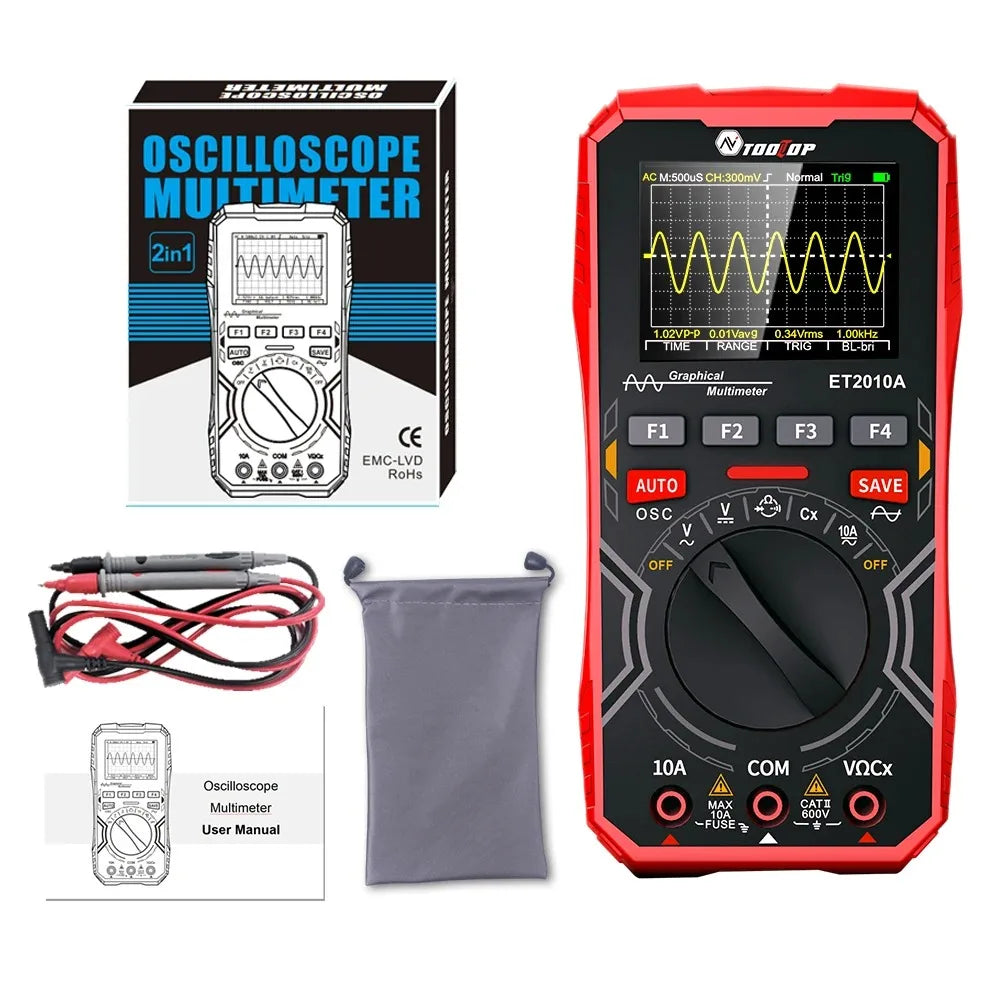

Package List:

1 X Oscilloscope multimeter

1 x One pair of test leads

1 x English manual

1 x Packaging box
