Accessory Type: Extension Board
Battery Included: Yes
Brand Name: spotpear
Choice: yes
Compatible With: Raspberry Pi Zero
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Education and Learning
semi_Choice: yes
Power Your Pi Zero Seamlessly From Power Connection OR The Backup Batteries
Supports Recharging And Regulated 5V Output At The Same Time, I2C Monitoring
SAFETY CAUTIONS
Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

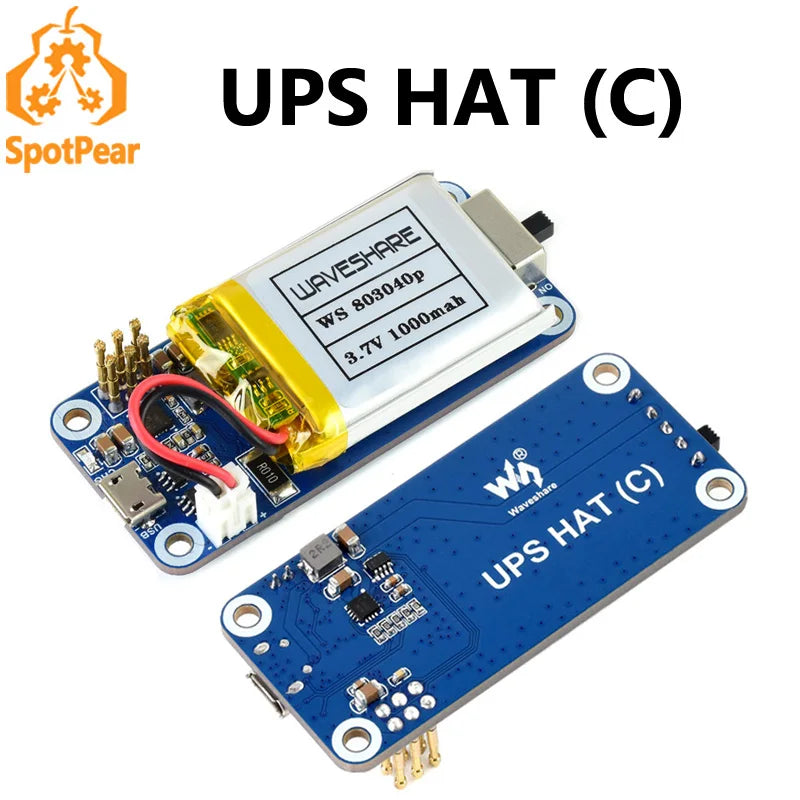

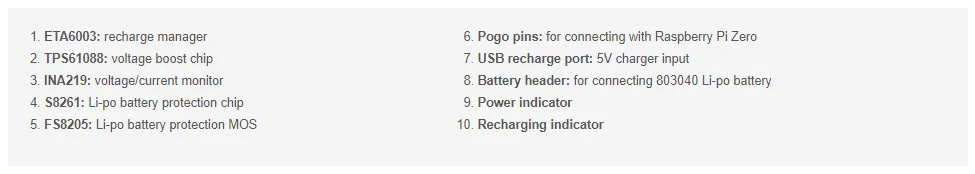

The UPS HAT (C) is an uninterruptible power supply module specialized for Raspberry Pi Zero series. It incorporates Li-po battery switching charger with path management, voltage boost chip, and voltage/current monitor which allows monitoring the battery operating status via I2C bus.

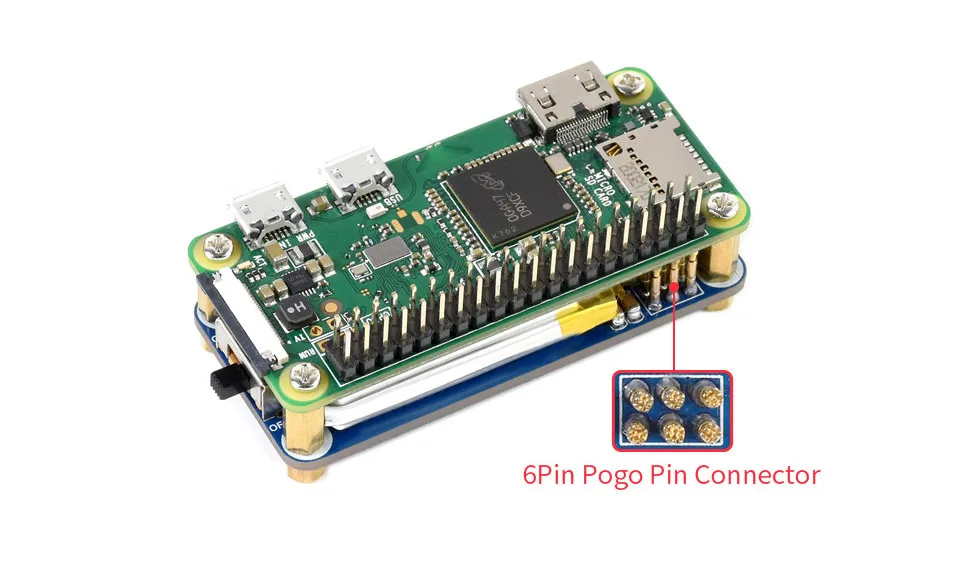

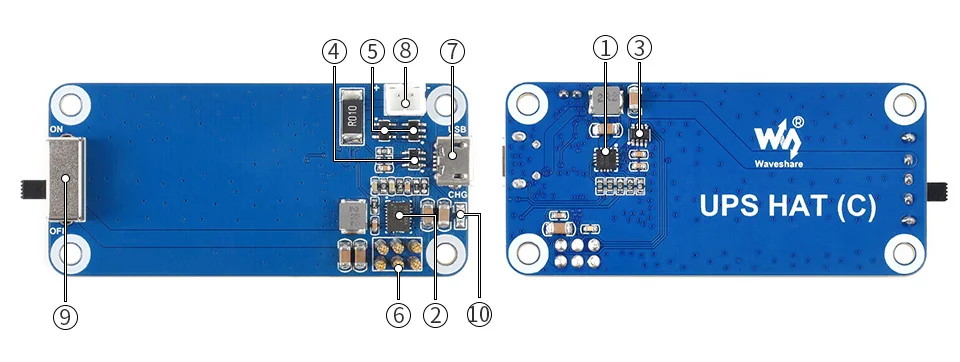

Onboard spring pogo pins for connecting with Raspberry Pi Zero series boards
Li-po battery recharge chip, with dynamic path management, more stable power supply
Voltage boost chip, providing regulated 5V power output

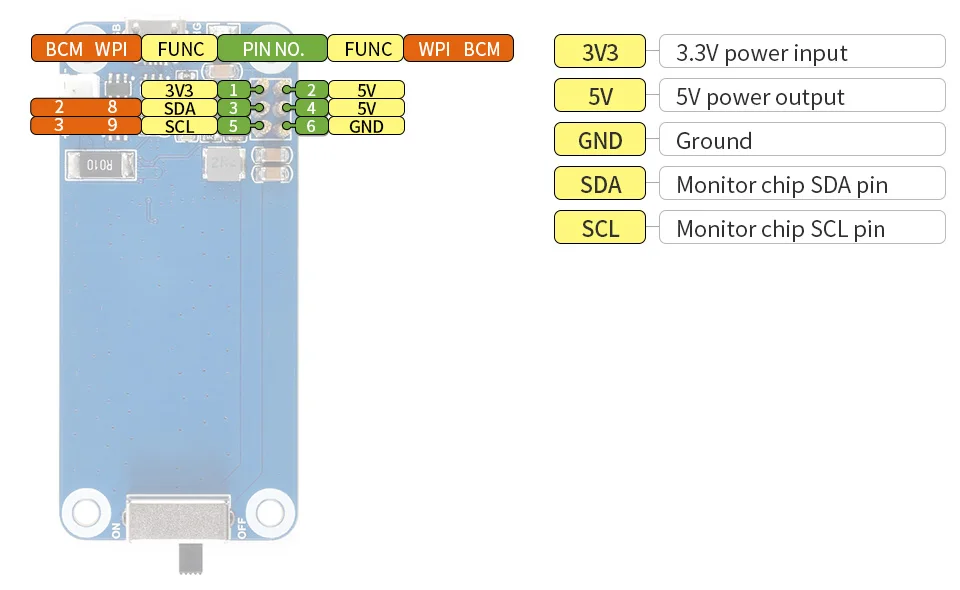

I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, and short circuit protection, more safe and stable
Recharging indicator for monitoring the battery operating status
Comes with development resources and manual
It is able to recharge the battery and provide power output at the same time from external power supply
Automatically switch over to battery output if external power supply is unavailable, keeps the system running without any trouble

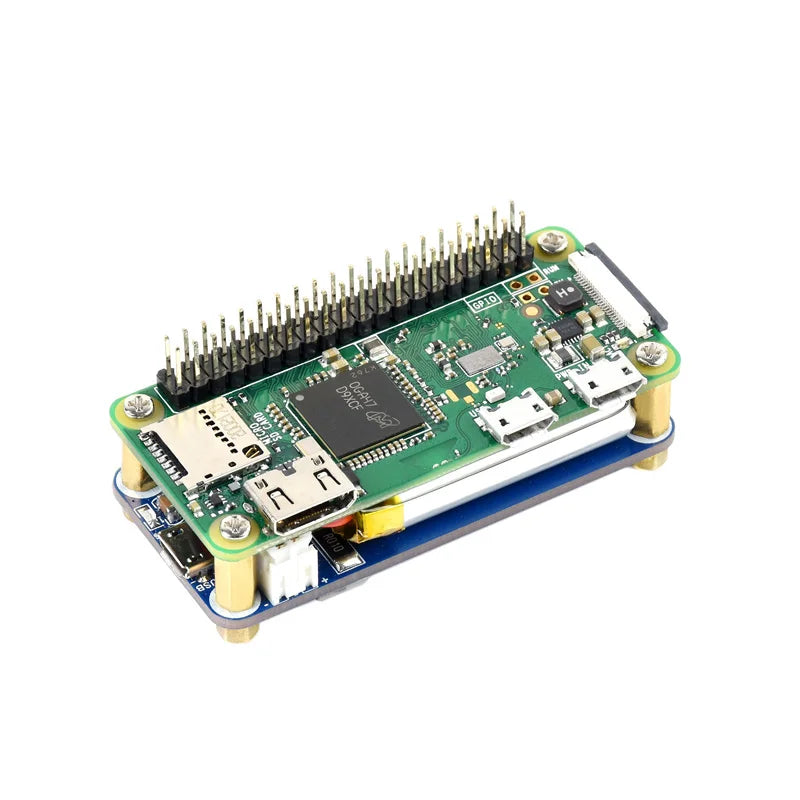

Supports Raspberry Pi Zero Series (Pinheader Should Be Soldered),

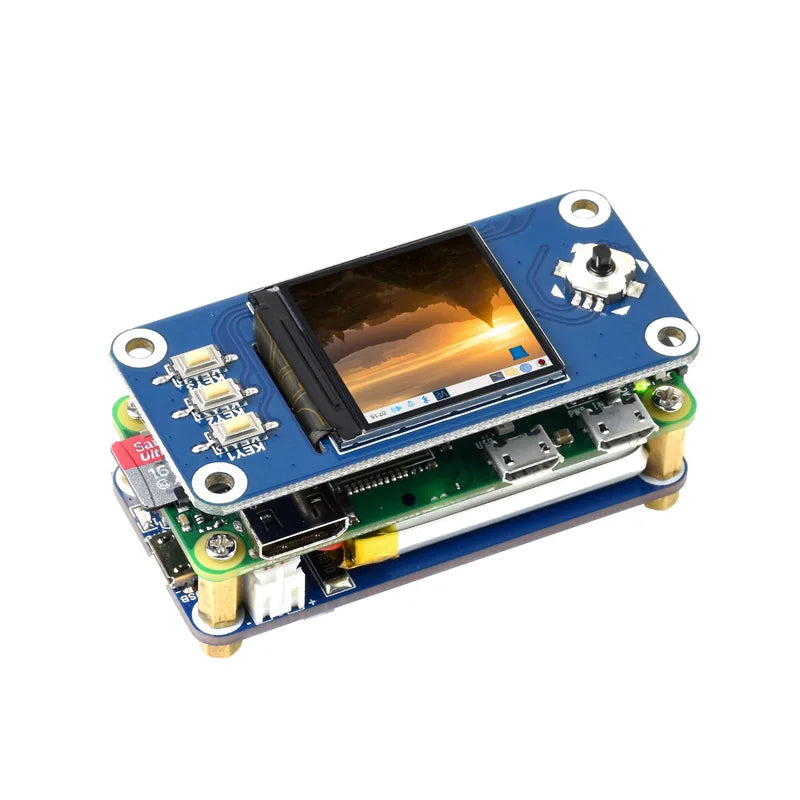

Allows Attaching Other HATs On The Top

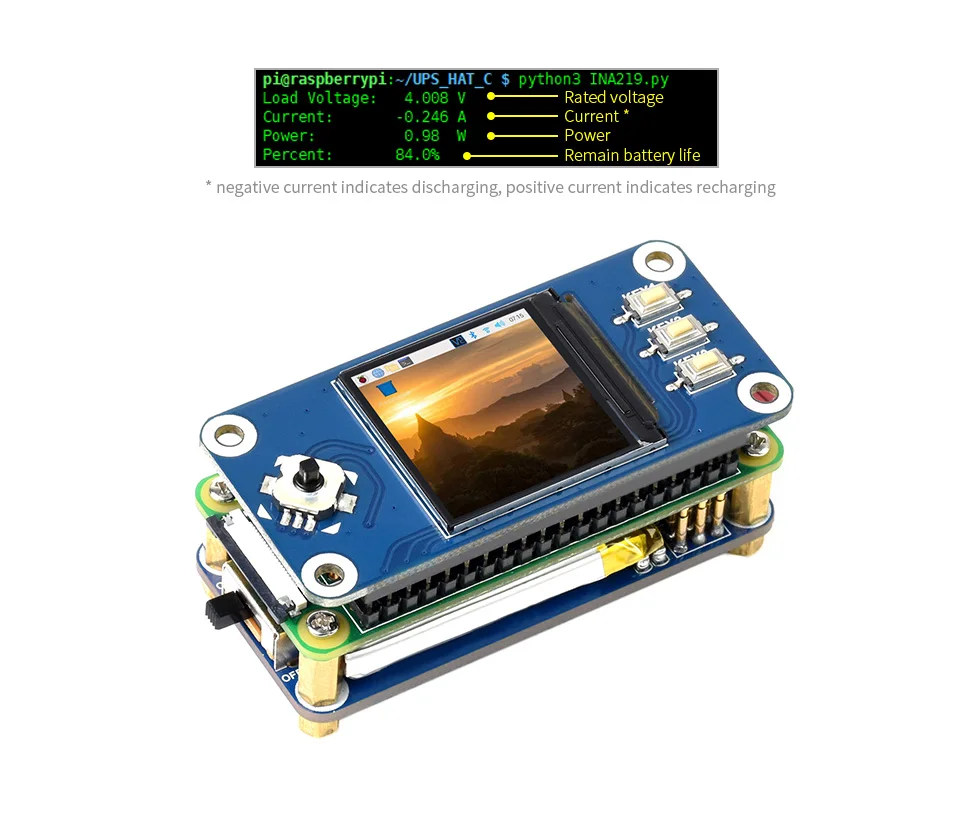

Monitoring The Battery Voltage, Current, Power, And Remaining Capacity Via I2C
When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

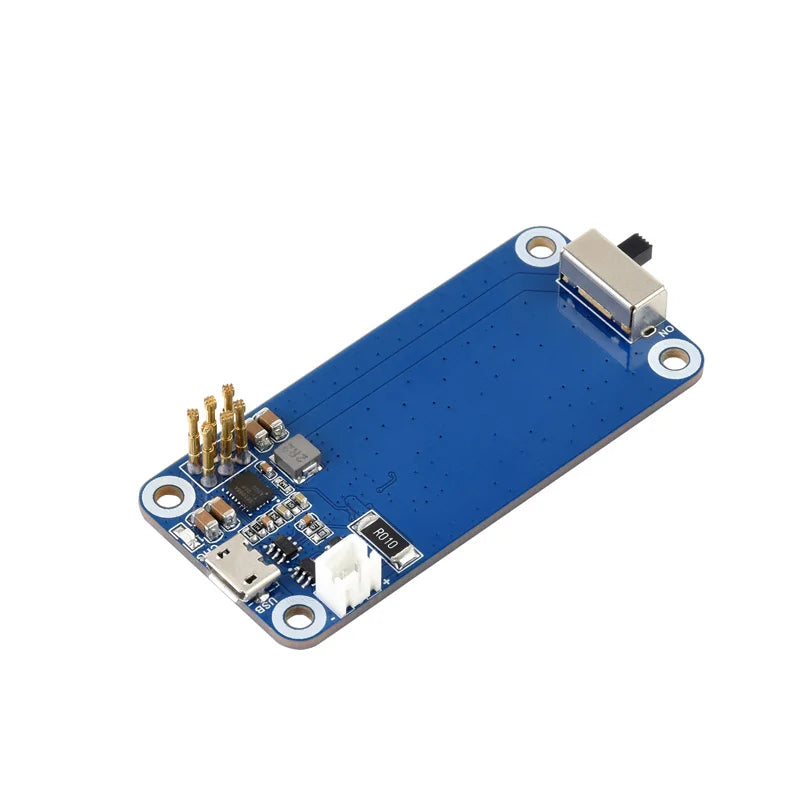

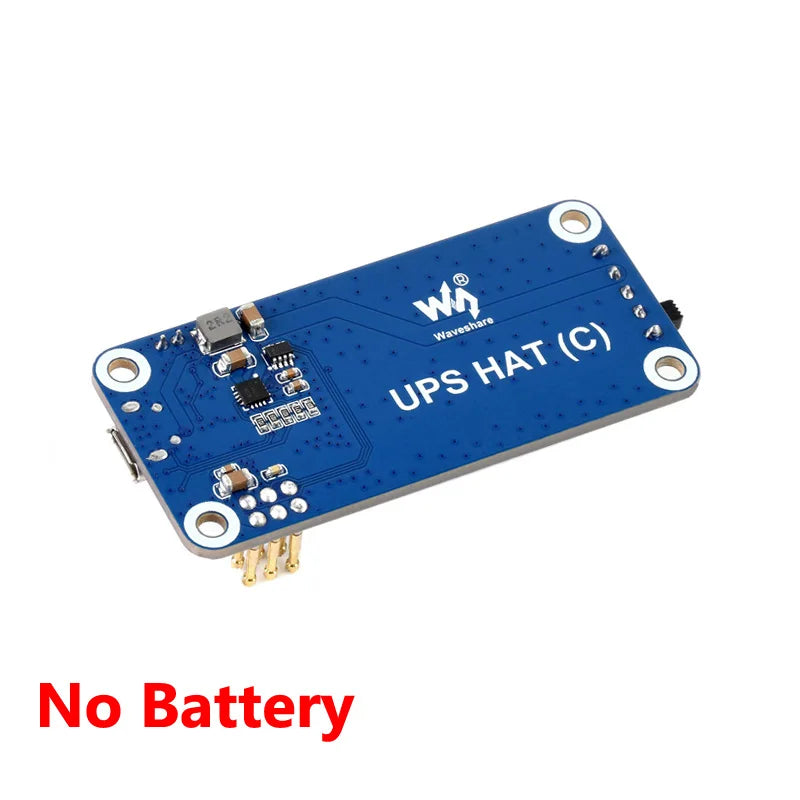

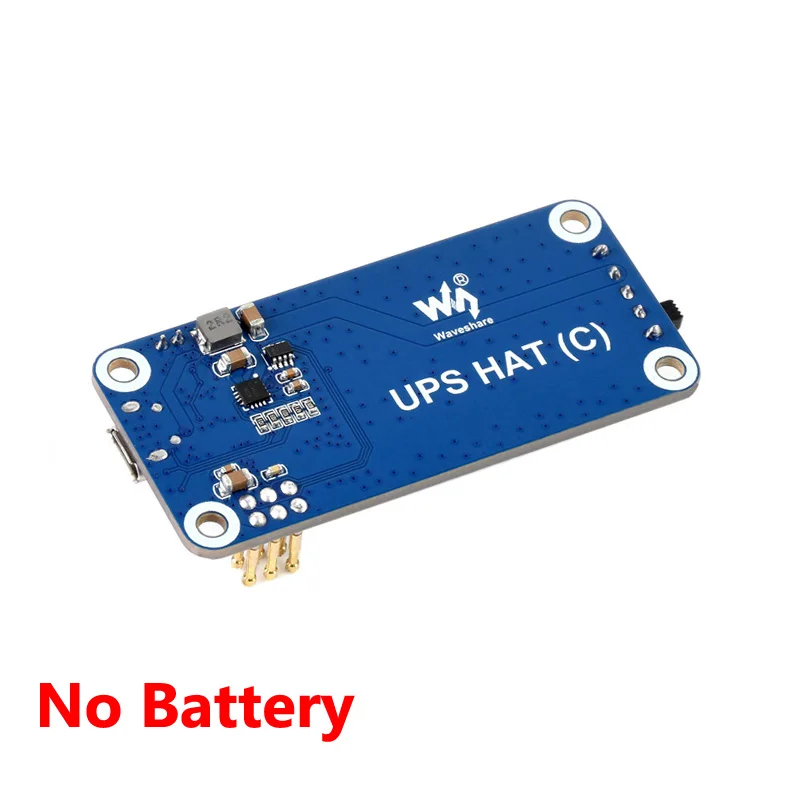

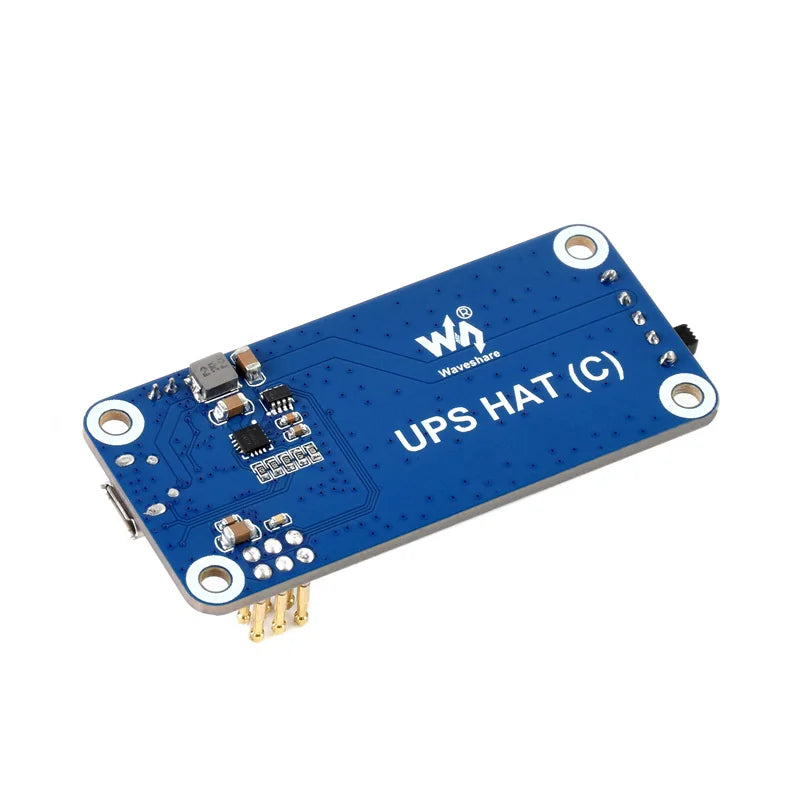

UPS HAT (C) No Battery

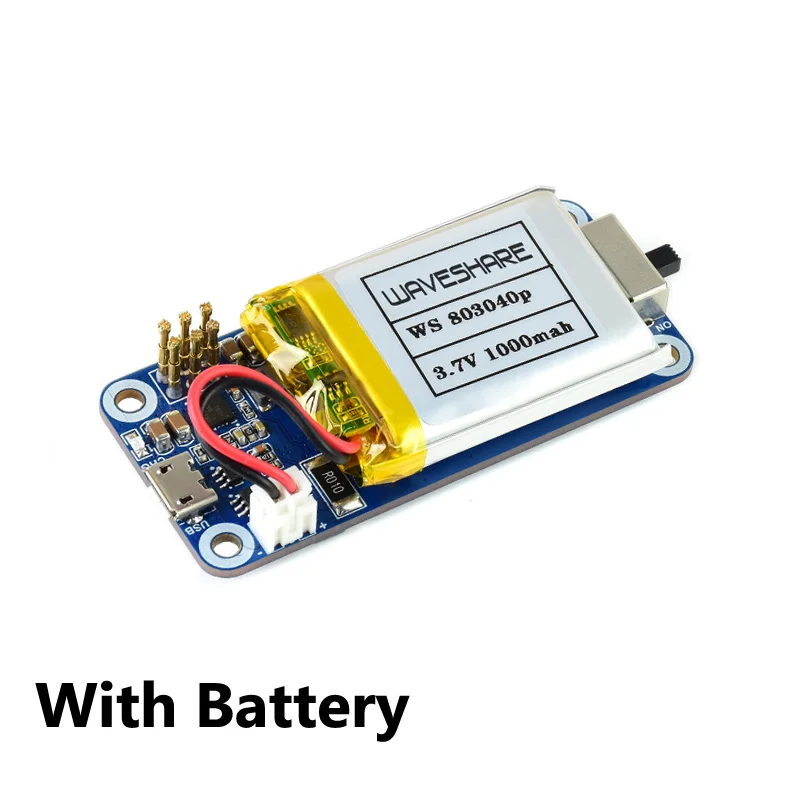

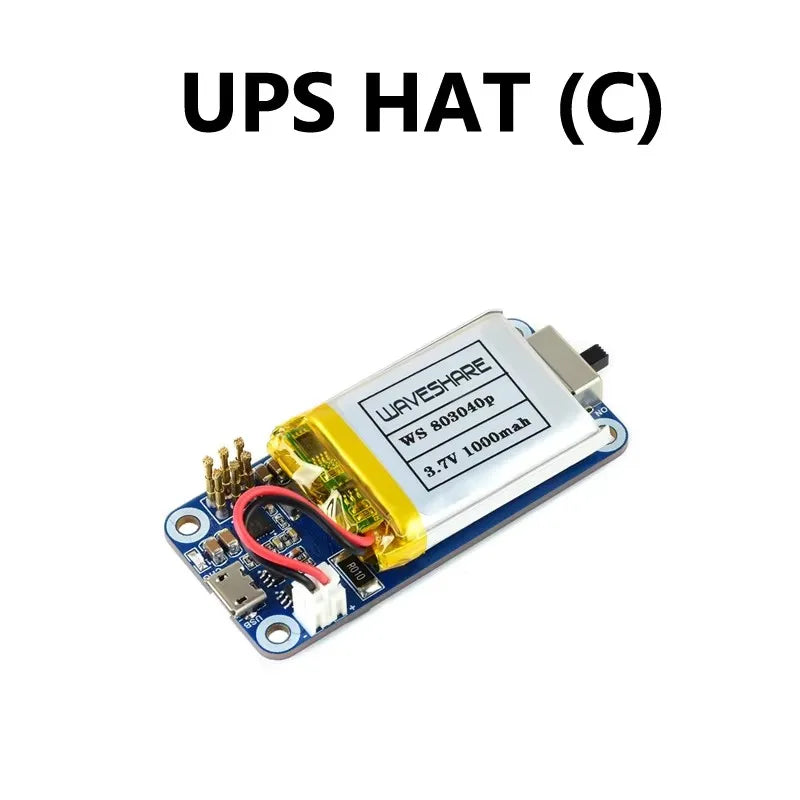

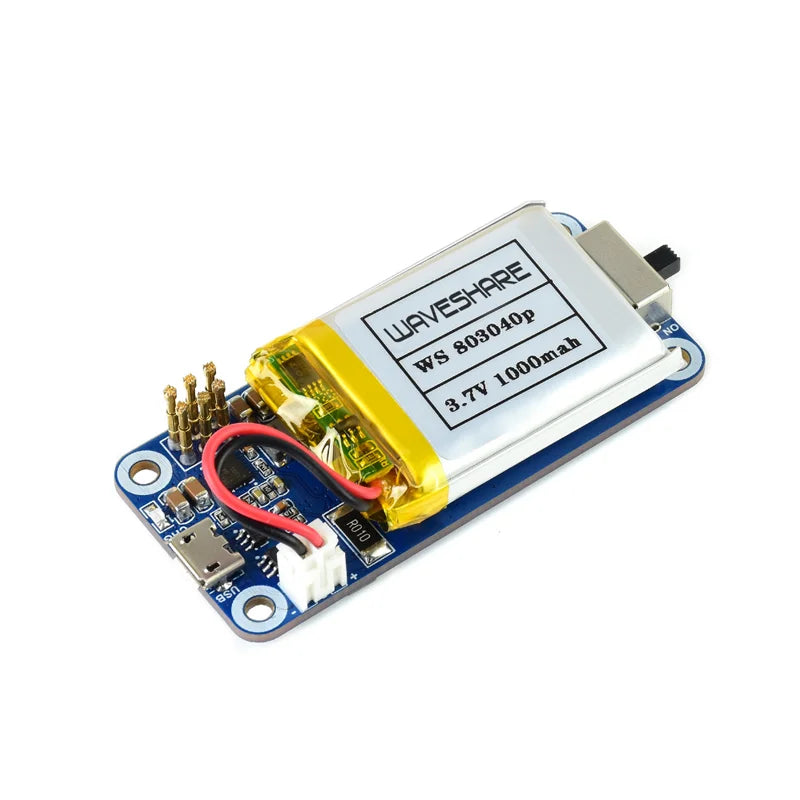

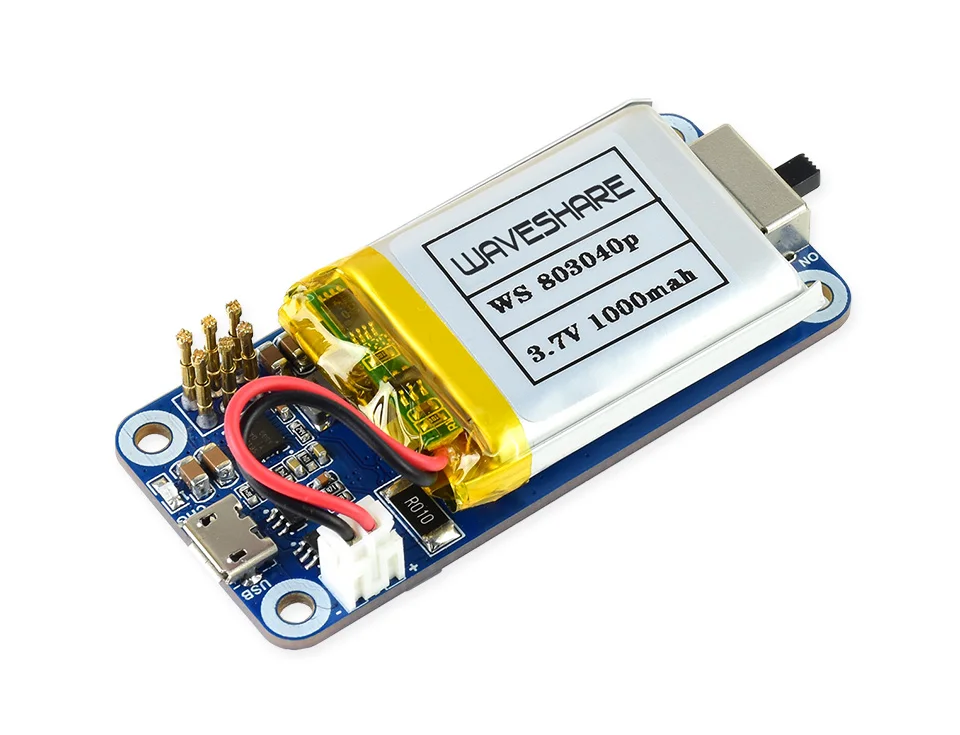

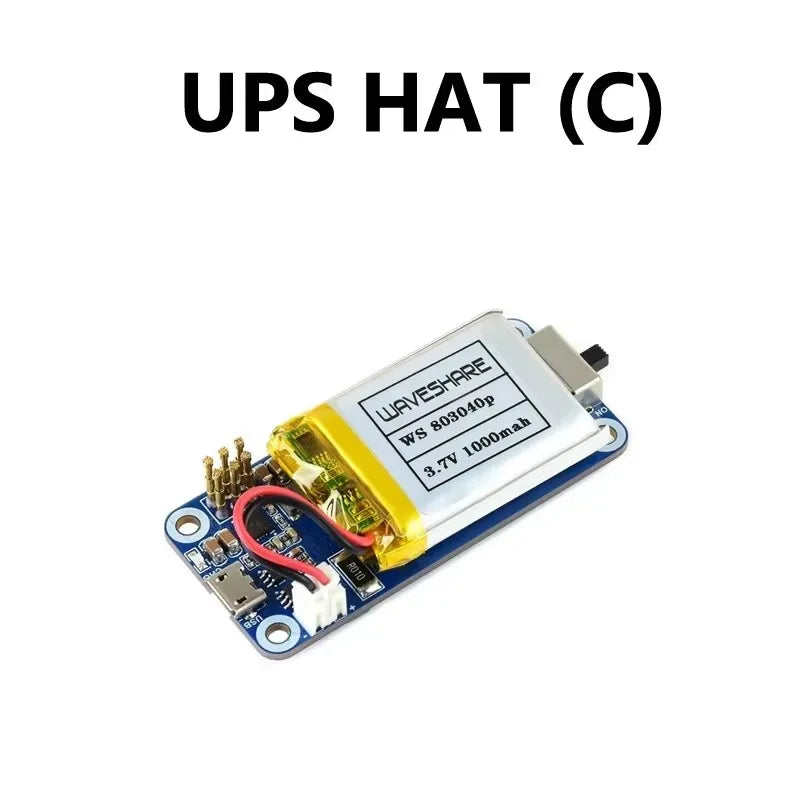

UPS HAT (C) With Battery
| Vendor: | Apsilon |
|---|---|
| Color: | UPS-HAT-(C), UPS-HAT-(C) 1, UPS HAT No Battery |
| SKU: | 14:691#UPS-HAT-(C) |
| Weight: | 80 g |
