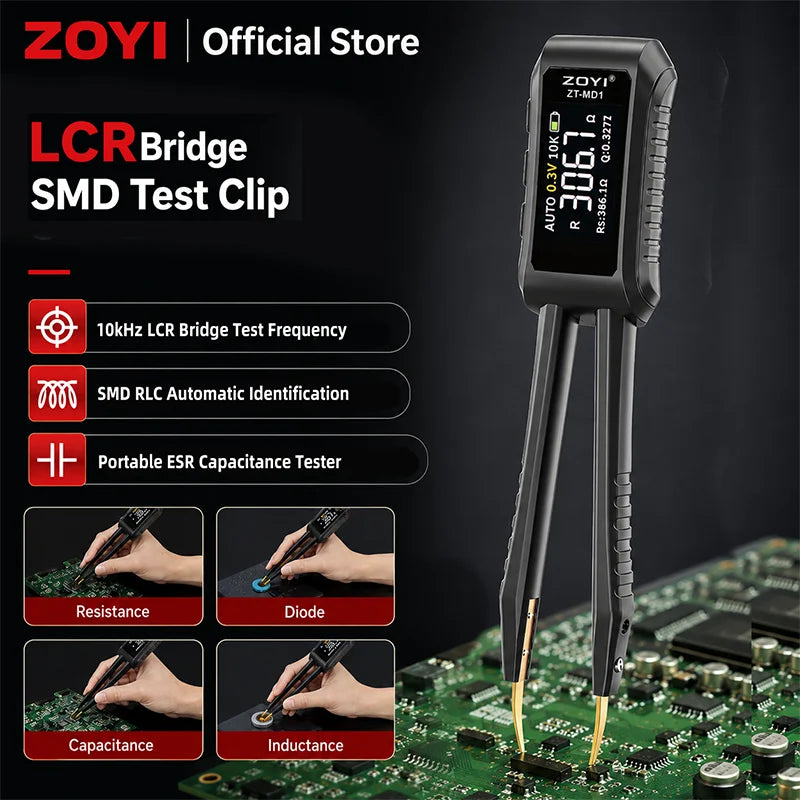

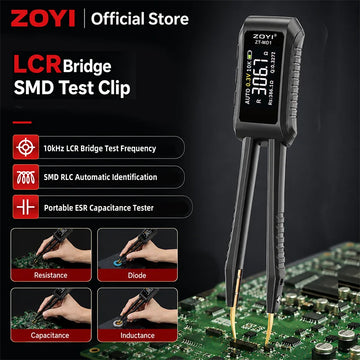

ZOYI ZT-MD1 is a compact integrated Kelvin LCR tweezer tester specially for SMD onboard component measurement.
The biggest highlight: test PCB patch resistors, capacitors and inductors directly without desoldering, effectively prevent circuit pads and tiny chips from being damaged by disassembly operation.
Core Key Features

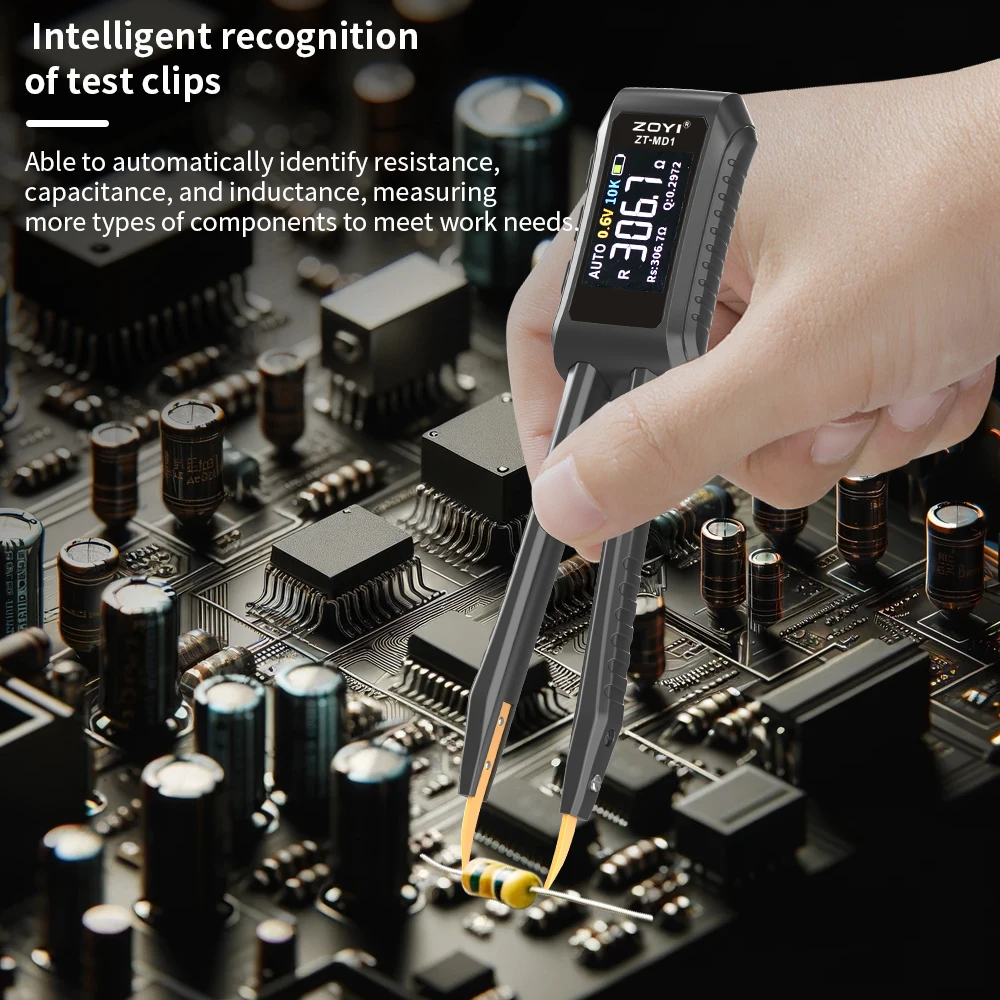

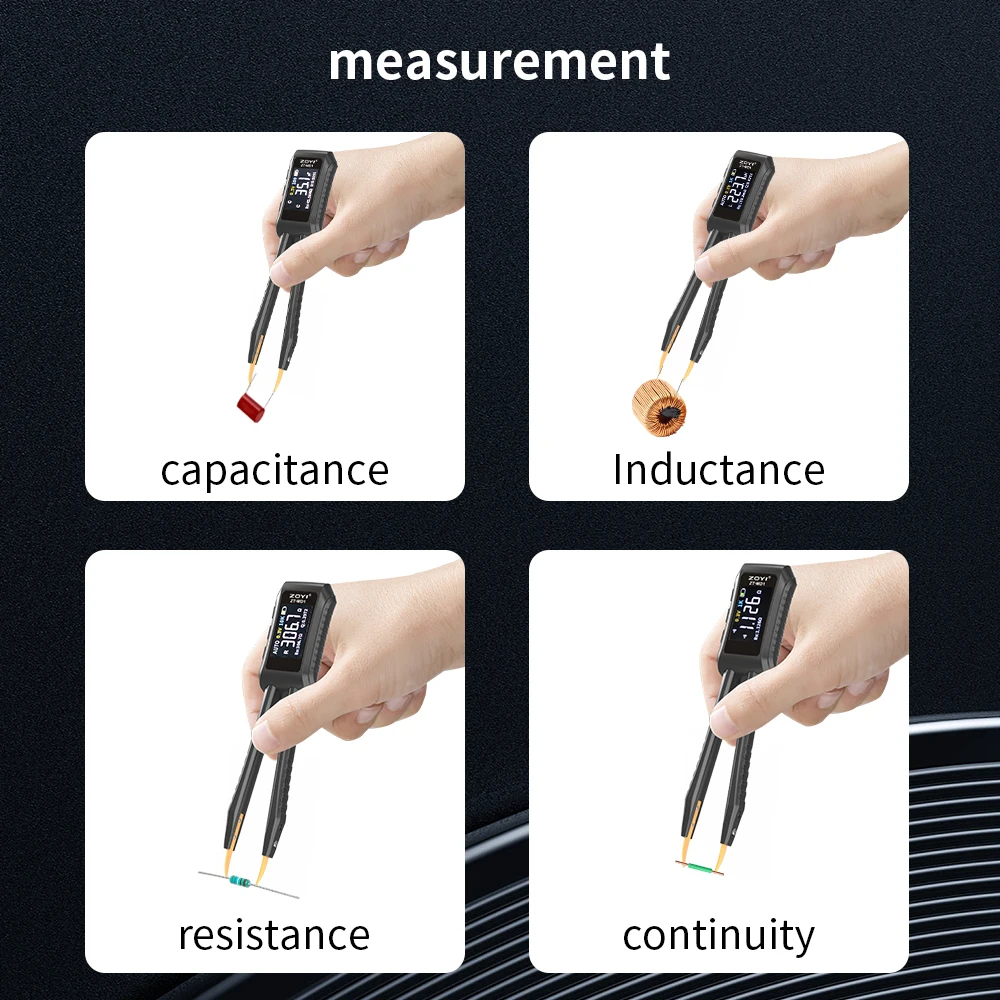

Auto L/C/R Recognition

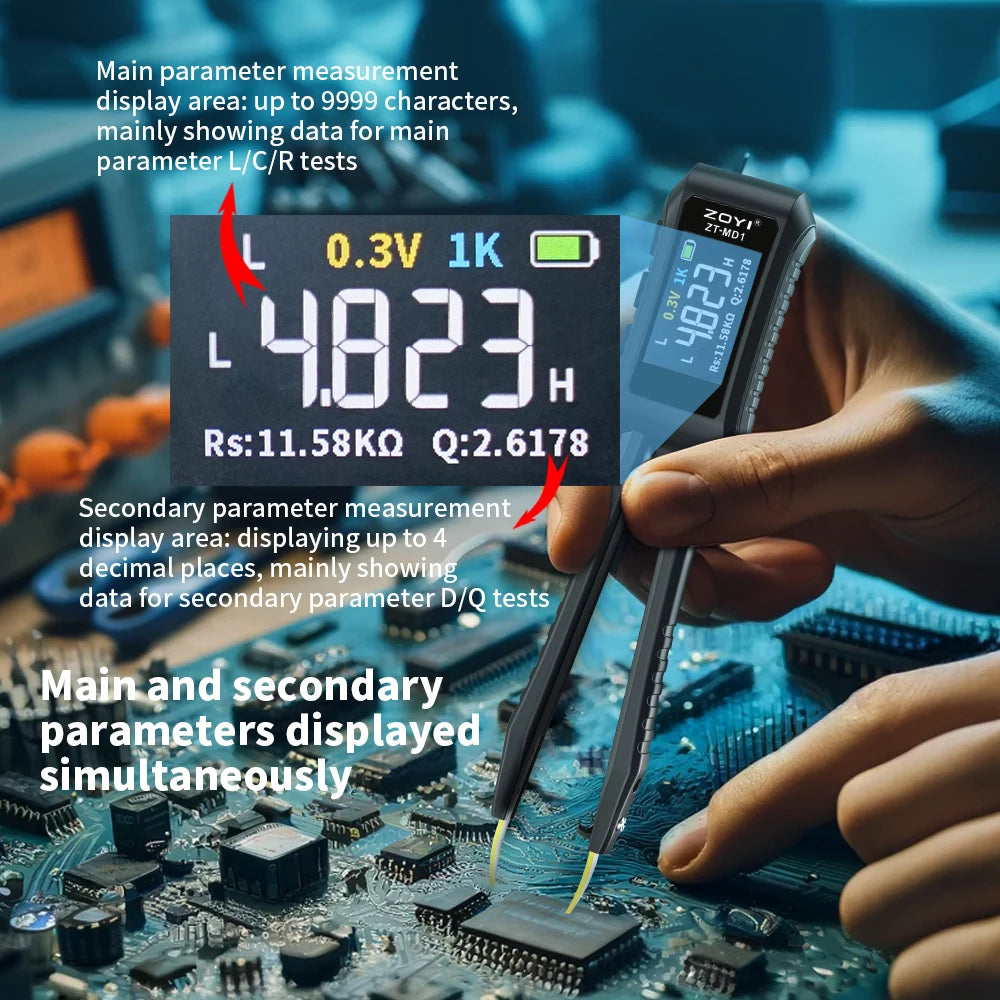

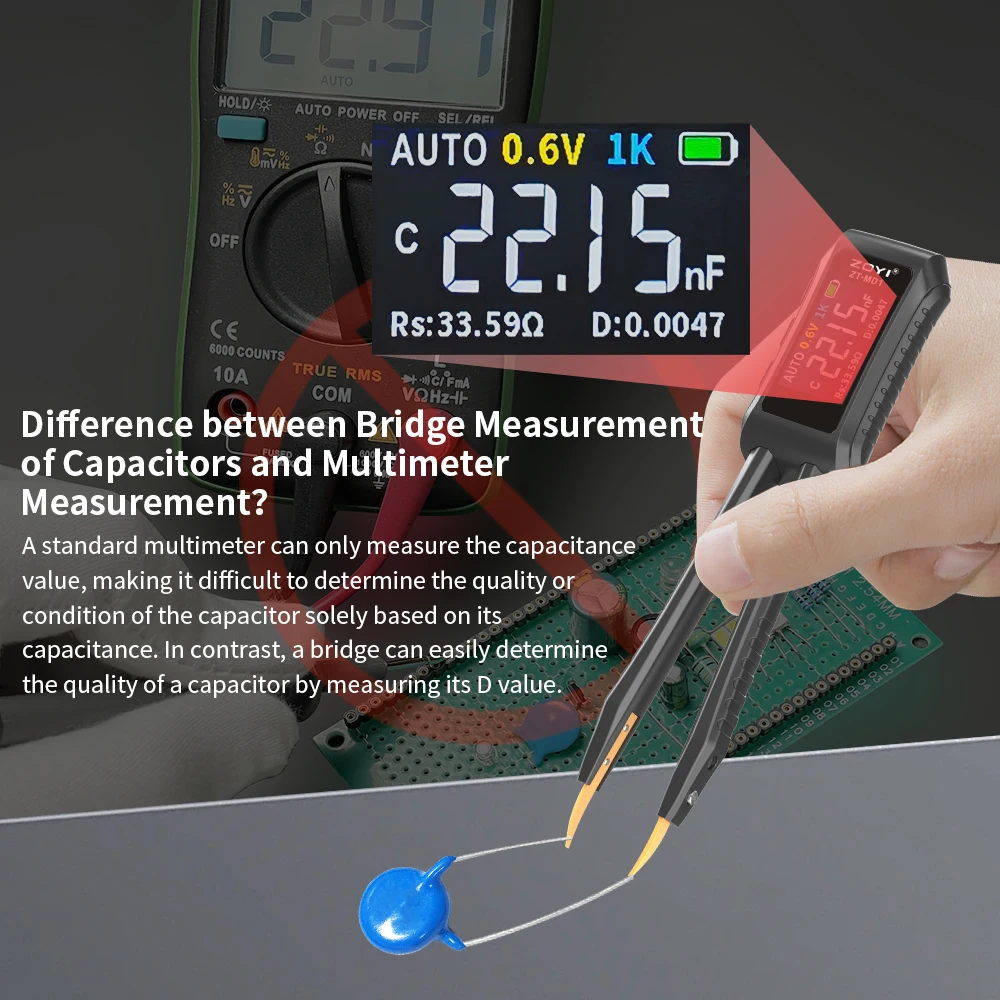

One-click automatic identification of resistor, capacitor and inductor, no manual mode switching. Synchronously display Rs, ESR, Q factor and D value for accurate fault judgment.

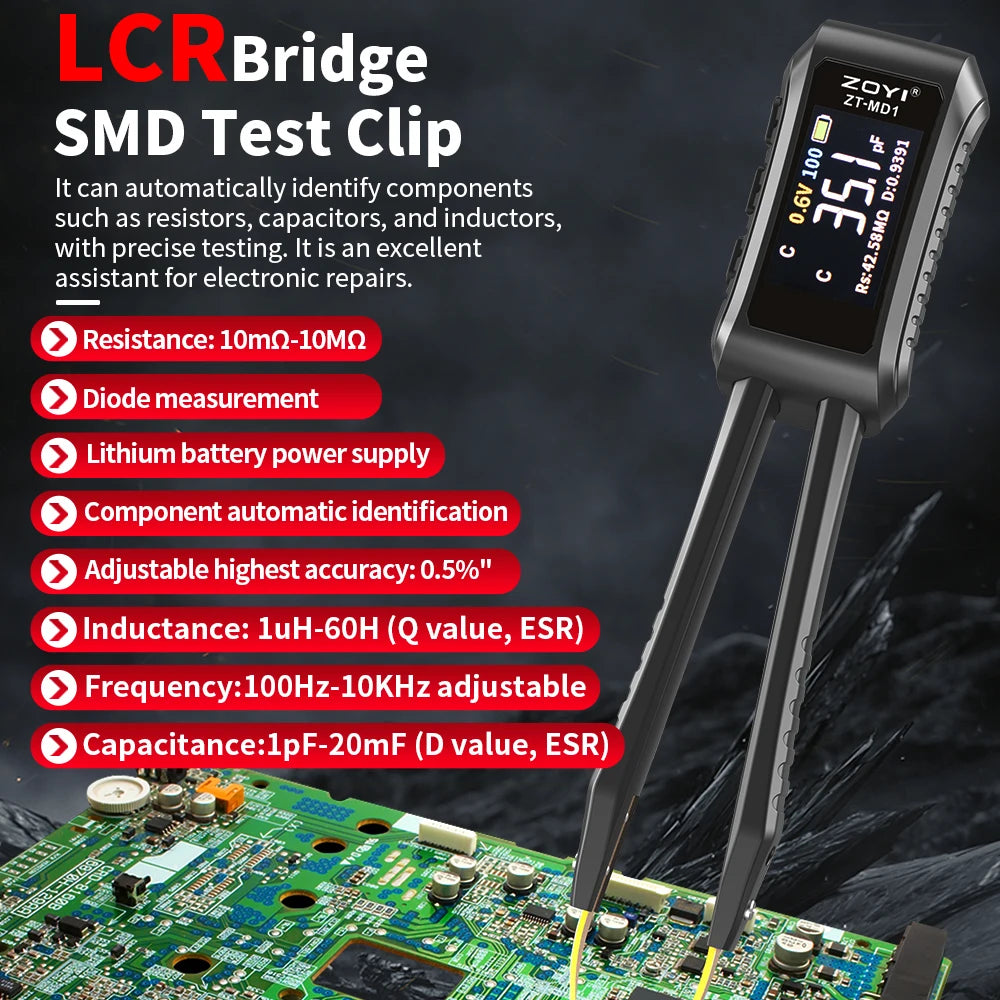

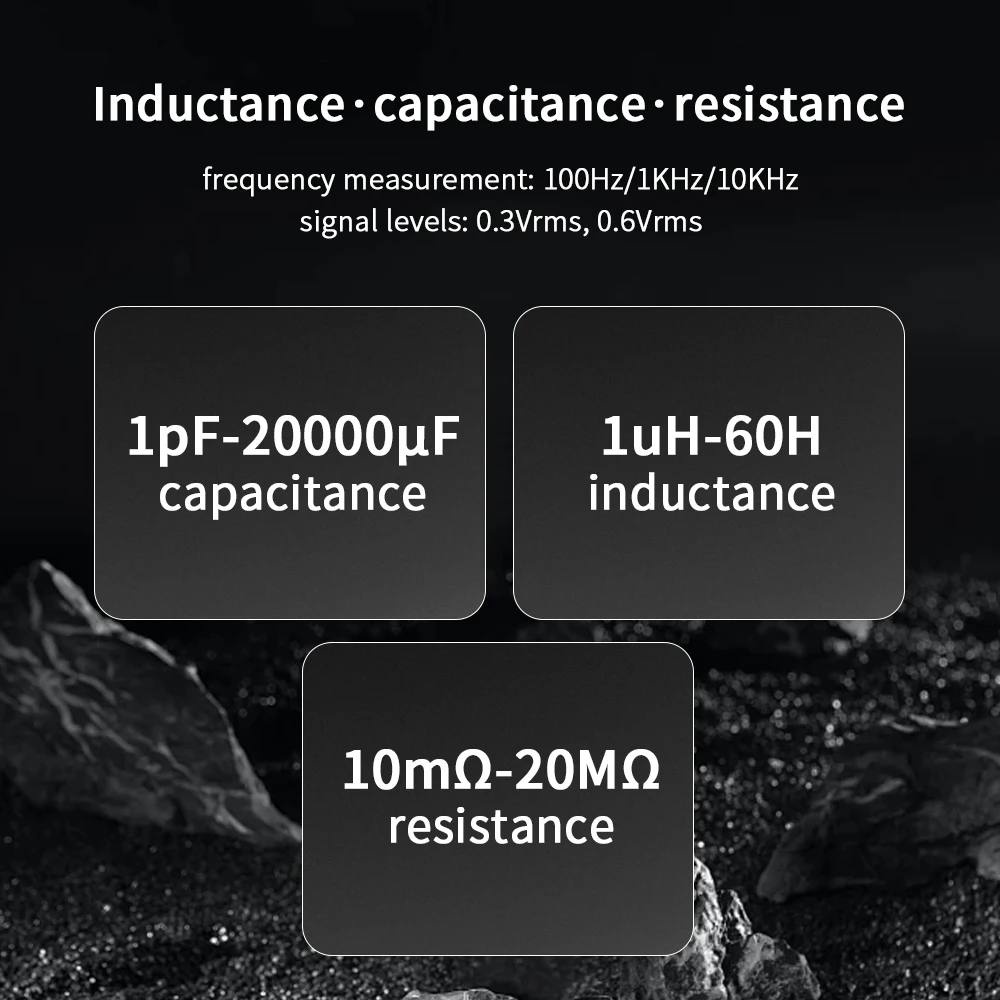

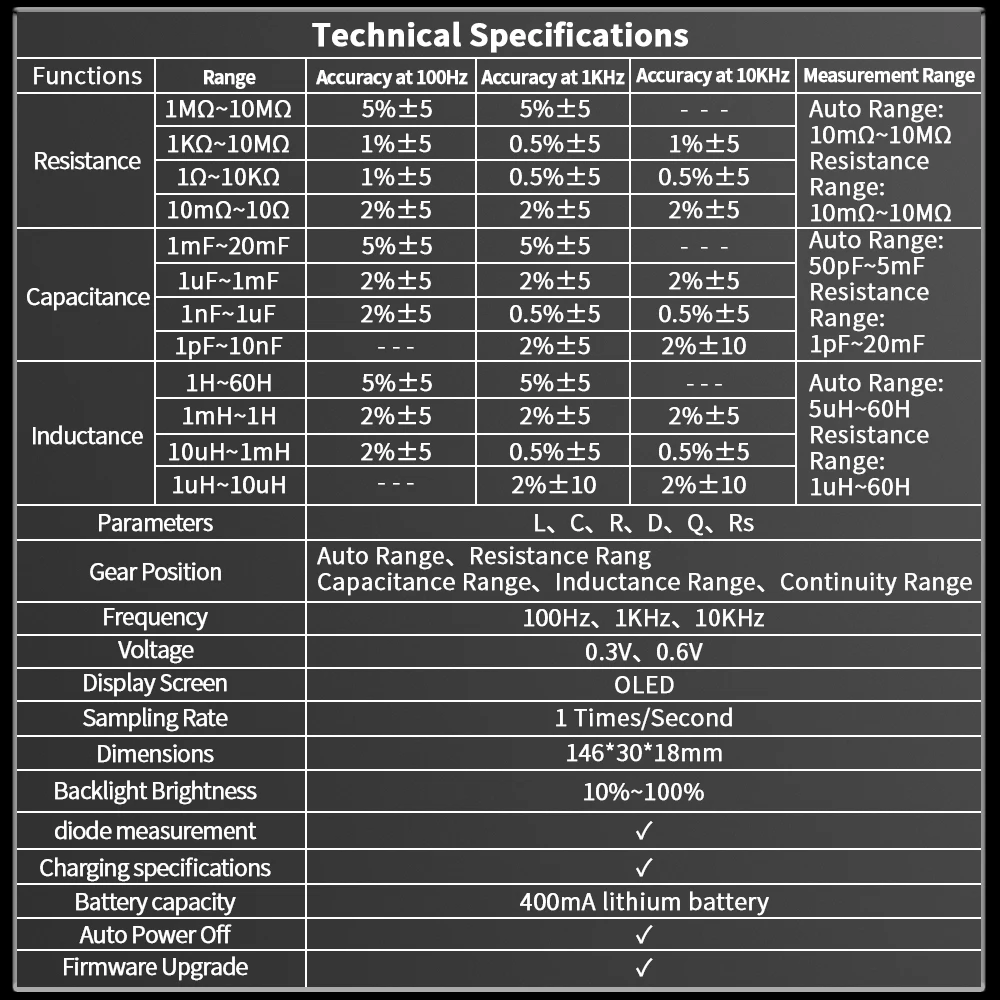

High Precision & Wide Measurement Range
Up to 0.5% professional measurement accuracy
Resistance: 10mΩ ~ 10MΩ
Capacitance: 1pF ~ 20mF (supports ESR & D value test)
Inductance: 1μH ~ 60H (supports Q factor & ESR test)
Additional independent diode continuity test function.
100Hz-10kHz Adjustable Test Frequency
Multi-frequency gears freely switch to meet testing standards of different passive components.

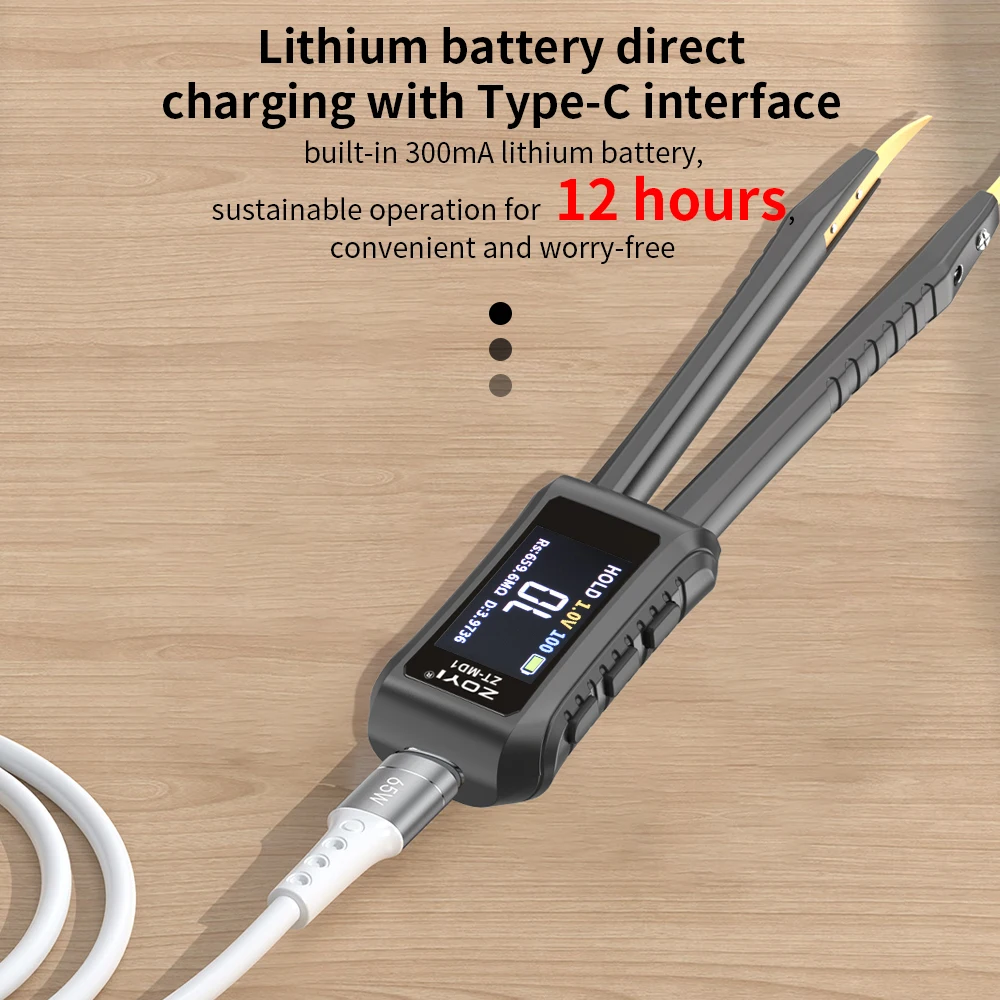

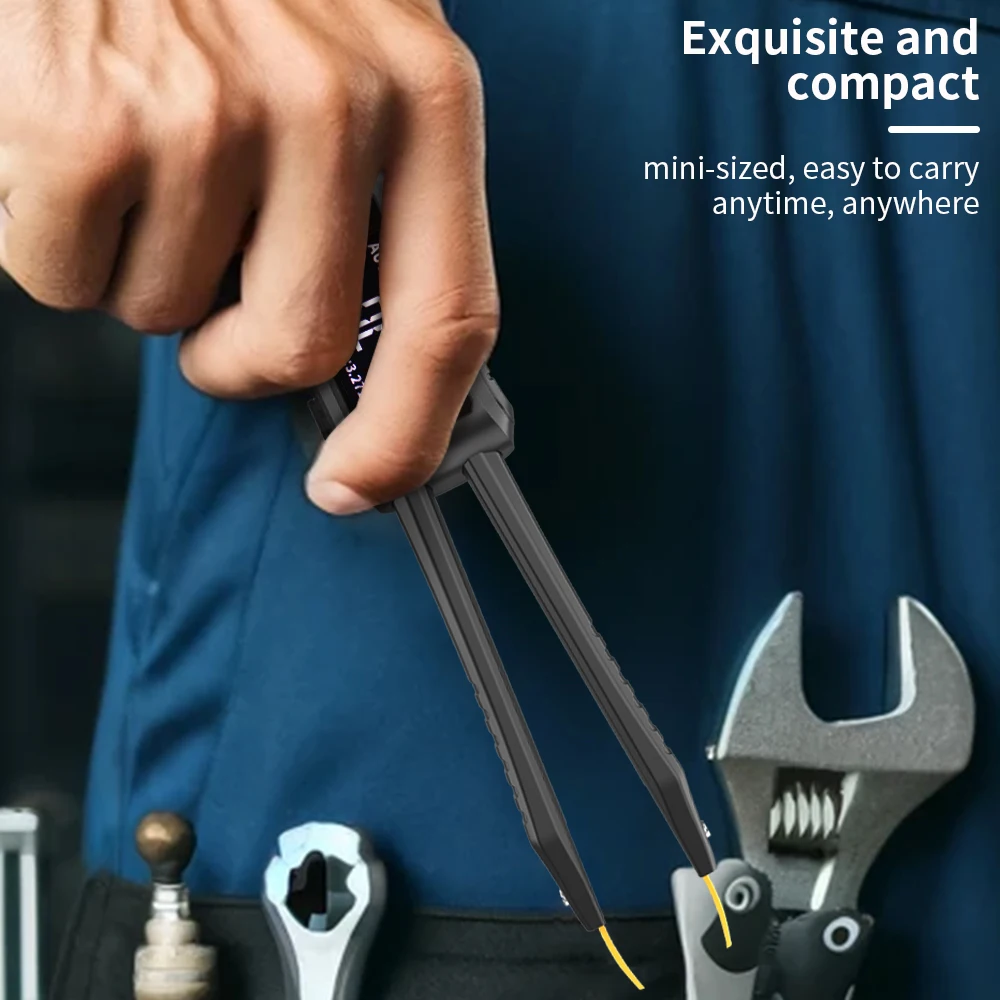

Rechargeable Wireless Portable Design
Built-in lithium rechargeable battery, no frequent replacement of disposable batteries, lightweight for mobile testing.

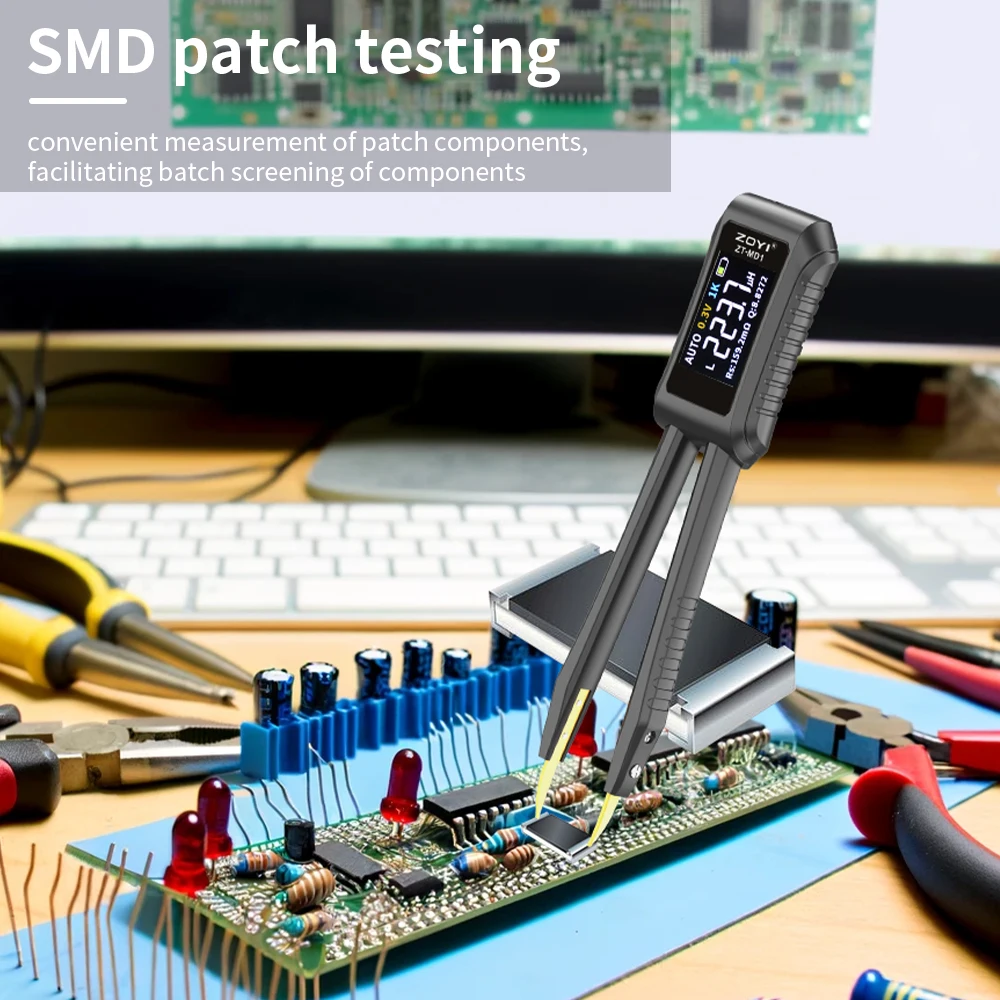

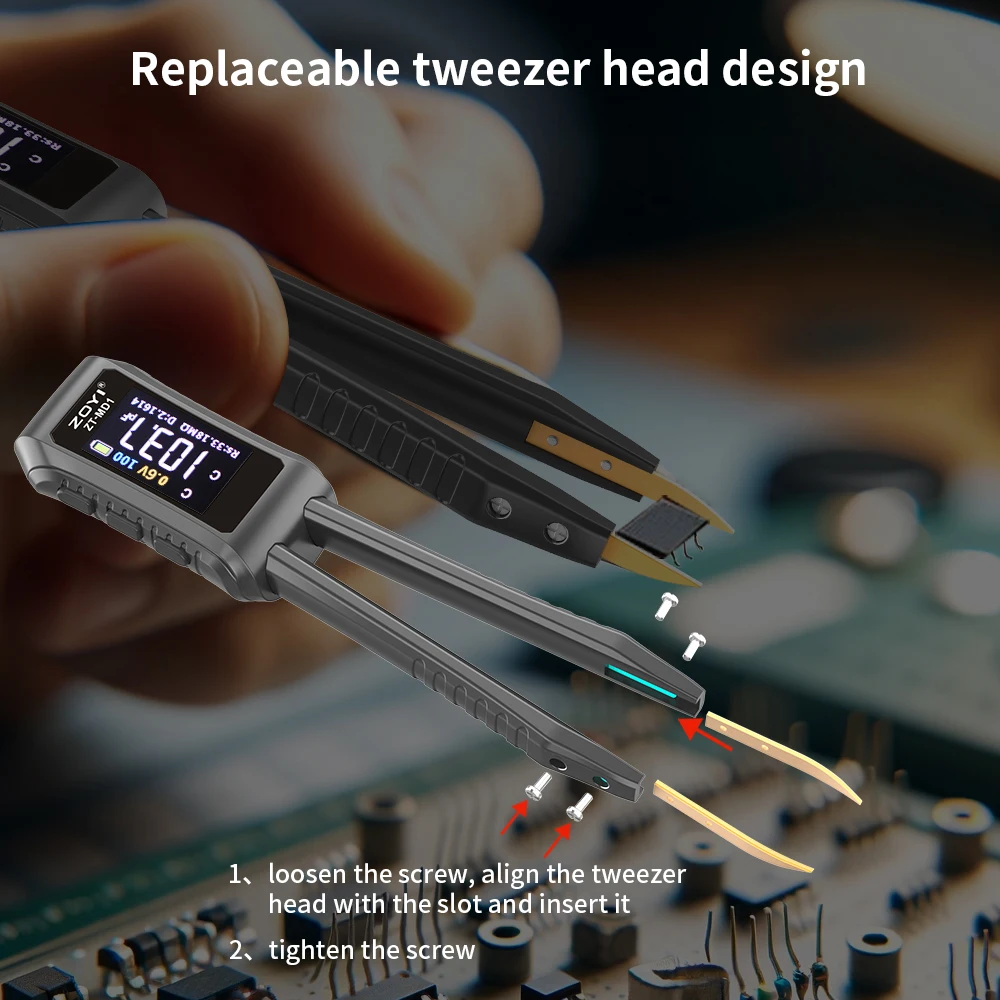

Integrated Tweezer Probe Structure
Ergonomic all-in-one tweezer clip easily clamps miniature SMD devices on dense PCBs, greatly improves maintenance efficiency.
Application Scenarios
✅ Mobile phone & laptop motherboard repair
✅ Household appliance circuit board troubleshooting
✅ Electronic engineer circuit debugging & laboratory R&D
✅ Factory PCB quality inspection & batch testing
✅ Electronics DIY hobbyist experimental measurement
Core Selling Points Recap
• On-board SMD test without desoldering
• 0.5% high precision LCR automatic detection
• Complete ESR/Q/D parameter test for passive components
• 100Hz~10kHz multi-frequency adjustable
• Rechargeable lithium battery, portable cordless design
• Extra diode measurement function
